Crestron CLXI-1DIM4 - 4 Channel Dimmer Module

₹ 42,429.00

Ooberpad brings to you Crestron CLXI-1DIM4 - 4 Channel Dimmer Module, 230V Single Feed - International Version. It provides 4 channels of dimming for 230V incandescent, magnetic low-voltage, neon/cold cathode, and dimmable 2-wire fluorescent loads. Each channel is rated for 2300 Watts, with a total module rating of 2990 Watts. Air-gap relays are provided on every channel output to allow individual circuits to be serviced without disabling the entire module.

CLXI-Series dimmers are rigorously built using 40 Amp triacs and oversized heat sinks for ultimate reliability. Split-bobbin transformers and ground-referenced electronics deliver superior performance. Lamp flicker is minimized through Crestron's innovative zero-crossing detection technique, backed by proprietary firmware. Low-maintenance convection cooling assures quiet and trouble-free operation. An override feature allows each channel to be adjusted to a preset state during setup. In the event that Cresnet® communications should be disrupted for any reason, a simple contact closure can be used to activate the override presets.

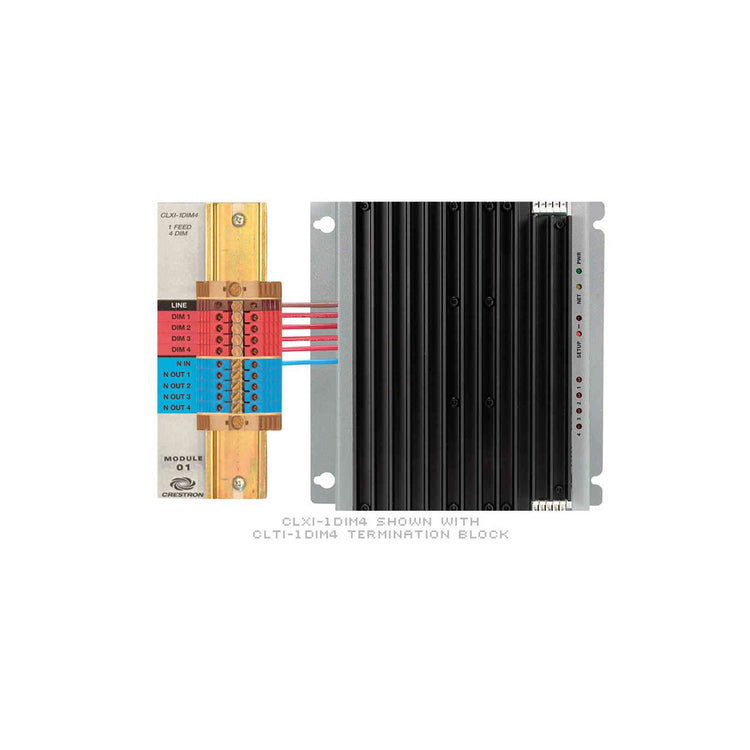

The CLXI-1DIM4 occupies a single module space in any CAEN or CAENIB automation enclosure. Termination of high-voltage wiring to the module is facilitated by a CLTI-1DIM4 terminal block, sold separately to enable termination of the wiring at any time prior to installing the module. CLXI modules are controlled by the PAC2 and PAC2M professional automation control systems via the Cresnet network. A 5-wire link provides bussing of the Cresnet and overrides signals between modules within an enclosure (interconnect jumpers included).

Warranty

1-year manufacturer warranty

Where to buy:
Buy Crestron CLXI-1DIM4 - 4 Channel Dimmer Module online at best price in Mumbai, Delhi, Bangalore, Hyderabad, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and will give you all the support you need to take the right buying decision in India.

Technical Specifications of Crestron CLXI-1DIM4 - 4 Channel Dimmer Module:

Brand & Model # Crestron CLXI-1DIM4
Load Ratings
Dimmer Channels
4
Per Channel
10 Amps (2300 Watts)
Module Total
13 Amps (2990 Watts)
Load Types
Incandescent, Magnetic Low-voltage, Neon/Cold Cathode, Dimmable 2-Wire Fluorescent
Minimum Load
15 Watts
Power Requirements & Environmental
Power Requirements
230 Volts AC, 50/60Hz, single-phase
Temperature
32° to 104° F (0° to 40° C)
Humidity
10% to 90% RH (non-condensing)
Heat Dissipation
84 BTU/Hr at maximum load
Connectors on Module
Module Interconnect
(2) 5-pin 0.156 inch headers;
Cresnet/Override interconnect ports;
Connect to PAC2, PAC2M, CAEN-BLOCK, or adjacent CLXI-Series module using interconnect cable provided
Buttons & LED Indicators
SETUP
Used for manual channel activation and TSID
(1) Red LED, indicates the unit is in setup/manual mode
PWR
(1) Green LED, indicates line power is applied to the LINE terminal
NET
(1) Yellow LED, indicates communication with the control system
1 – 4
(4) Red LEDs, each indicates the state of the corresponding channel
Enclosure, Dimensions & Weight
Enclosure
Gray metal with black heat sink, surface mount module with (2) integral mounting flanges;
Occupies 1 module space in any CAEN or CAENIB enclosure
Height
7.59 in (193 mm)
Width
6.92 in (176 mm)
Depth
3.43 in (87 mm)
Weight
3.00 lbs. (1.36 kg)
Connections via CLTI or CLTIBN Terminal Block (Sold Separately)
  • LINE: (1) DIN rail terminal block, brown, line power input
  • DIM 1 - 4: (4) DIN rail terminal blocks, red, channel outputs
  • N IN: (1) DIN rail terminal block, blue, line input neutral
  • N OUT 1 - 4: (4) DIN rail terminal blocks, blue, channel output neutrals
