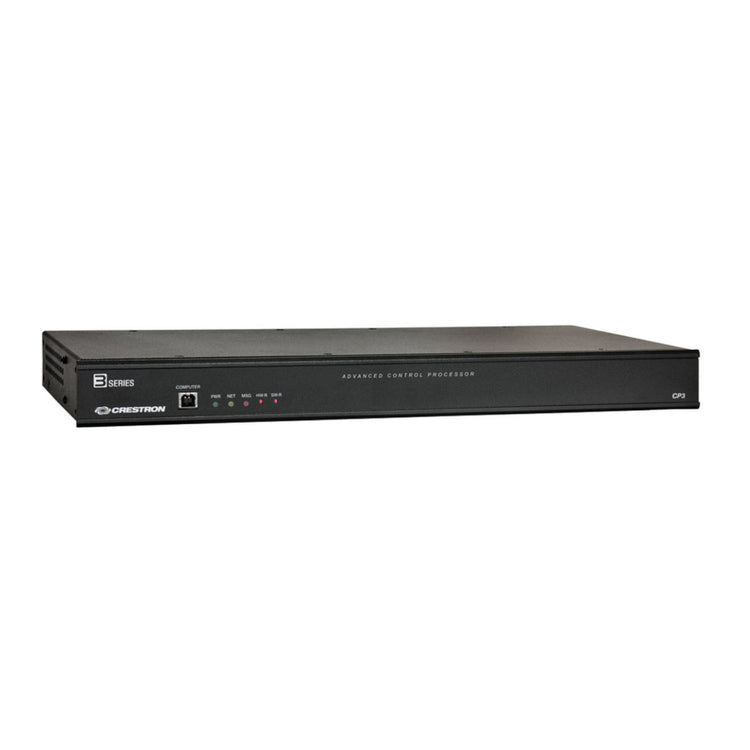

Crestron CP3 3-Series Control System

₹ 97,462.00

Presenting the Crestron CP3 3-Series Control System -  an immensely powerful yet compact, 3-Series® control processor with integrated control ports, available online on Ooberpad. Designed for residential, commercial and even government use, the Crestron® CP3 is an enterprise-class control system which can be mounted on a rack. The highlight of this system is its 3-Series® control engine that makes it significant to any modern networked home or commercial building. Users can manage and integrate all disparate technologies throughout their living or working facility. With the Crestron CP3 -Series Control System, users enjoy a productive, efficient and more importantly greener control system.

In the era of digital transformation, commercial and residential premises are becoming technologically adept to the extent that most of these premises are controlled by networked systems. The Crestron CP3-Series is an IP based platform specifically designed to deliver a network-grade server appliance. It is capable of handling just about anything and everything from humongous board rooms to home theatre systems.

Dynamic, secure and durable, the Crestron 3-Series is engineered to deliver high performance each time. Our experts compared this system to other control systems and found that while the others might be good, but the Crestron with its processing power, memory and IP control is far superior.

Warranty

1-year manufacturer warranty

Key Features:

  • Enterprise-class control system
  • 3-Series® Control Engine — substantially faster and more powerful than other control systems
  • Exclusive modular programming architecture
  • Onboard 512MB RAM & 4GB Flash memory
  • Expandable storage up to 1TB
  • Rear panel memory card slot
  • High-speed USB 2.0 host port
  • Industry-standard Ethernet and Cresnet® wired communications
  • XPanel with Smart Graphics™ computer and web-based control
  • iPhone®, iPad®, and Android™ control app support
  • Crestron Fusion® Cloud Enterprise Management Service support
  • SNMP remote management support
  • Front-panel USB computer console port
  • 1-space rack-mountable

Benefits of Crestron CP3 3-Series Control System:

    Modular Programming Architecture

    Crestron CP3 3-Series Control System

    The Crestron CP3 allows the user to multitask using high speed and in real time - this is possible because it is designed for enhanced scalability. Its exclusive modular programming architecture allows for running of device specific programs including audio-visual systems, lighting, shades, security etc. Users can make changes on one specific device, without impacting the other systems. Additionally, even if you add more devices, growing your network of systems, your processing resources can be seamlessly moved to the 3 series control system without rewriting existing codes - this is possible with a simple system upgrade and minimal downtime - on site or even remotely on network.

    Robust Ethernet & IP Control

    Robust Ethernet & IP Control

    A highlight of the Crestron 3CP3 Series is its IP technology - it uses high speed Ethernet connectivity allowing it to be a part of a much larger controlled network. Users could be making use of a secure home network or a local area network or even accessing the internet through the traditional cable modem - it’s not a challenge for the Crestron CP3. The system provides reliable interconnectivity with IP-enabled touch screens, computers, mobile devices, video displays, media servers, security systems, lighting, HVAC, and other equipment -literally anywhere across the globe.

    Control Apps & XPanel

    Watch as Crestron’s native XPanel technology transforms any laptop or desktop computer into a virtual Crestron touch screen. The Crestron control applications can deliver the Crestron touch screen experience to the iPhone®, iPad®, and even to Android™ devices. This allows users to monitor as well as control the premises - irrespective of residential or commercial - at their fingertips.

    Crestron Fusion® Cloud

    It is the age of smart and green buildings that save energy, enhance productivity and expand the life span of valuable equipment. Obviously, the Crestron CP3 has been built to accommodate the requirements of such new properties. As part of a complete managed network in a corporate enterprise, college campus, convention center, residence or any other facility, the CP3 works with the Crestron Fusion Cloud to enable remote scheduling, monitoring, and control of rooms and technology from a central help desk - this means reduction in energy consumption and automation of several devices and systems.

    SNMP Support

    Another feature of the Crestron CP3 that is worth the recognition is its built-in SNMP support. This support system enables integration with third-party IT management software. This has been built keeping in mind that organisations tend to use different kinds of IT management software - but that is not a worry for the Crestron CP3 because its SNMP support system allows network administrators to manage and control Crestron systems on the network in an IT-friendly format.

    Onboard Control Ports

    Finally, the Crestron CP3 includes 3 bidirectional COM ports and eight IR ports (and Ethernet connectivity) to interface directly with all centralized audio visual sources, video displays, lighting and other devices. It features 8 programmable relay ports for controlling projection screens,elevators, power controllers, and other contact-closure actuated equipment. It also features 8 "Versiport" I/O ports that enable the integration of power sensors, motion detectors, door switches, alarms, or anything else that provides a dry contact closure, low-voltage logic, or 0-10 Volt DC signal.

    Where to buy:
    The Crestron CP3 3-Series Control System is available online at best prices in Mumbai, Delhi, Bangalore, Hyderabad, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and will give you all the support you need to take the right buying decision in India.


    Technical Specifications of Crestron CP3 3-Series Control System:

    Brand & Model Crestron CP3 3-Series Control System
    Control Engine
    Crestron 3-Series; real-time, preemptive multi-threaded/multitasking kernel; Transaction-Safe Extended FAT file system; supports up to 10 simultaneously running programs
    Memory
    SDRAM 512 MB
    Flash 4 GB
    Memory Card Supports SD and SDHC cards up to 32 GB
    External Storage Supports USB mass storage devices up to 1 TB
    Communications
    Ethernet 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1X, SNMP, BACnet/IP[1], IPv4 or IPv6, Active Directory authentication, IIS v.6.0 Web Server, SMTP e-mail client
    Cresnet Cresnet master mode
    USB Supports USB mass storage class devices via rear panel USB 2.0 host ports, supports computer console via front panel USB 2.0 device port
    RS-232/422/485 For 2-way device control and monitoring, all ports support RS-232 up to 115.2k baud with software handshaking, one port also supports RS-422 or RS-485 and hardware handshaking
    IR/Serial Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0-5 Volts) up to 115.2k baud
    Connectors & Card Slots
    RELAY OUTPUT 1 – 8 (2) 8-pin 3.5 mm detachable terminal blocks;
    Comprises (8) normally open, isolated relays;
    Rated 1 Amp, 30 Volts AC/DC;
    MOV arc suppression across contacts
    I/O 1 – 8 (1) 9-pin 3.5 mm detachable terminal block;
    Comprises (8) “Versiport” digital input/output or analog input ports (referenced to GND);
    Digital Input: Rated for 0-24 Volts DC, input impedance 20k Ohms, logic threshold >3.125V low/0 and <1.875V high/1;
    Digital Output: 250 mA sink from maximum 24 Volts DC, catch diodes for use with “real world” loads;
    Analog Input: Rated for 0-10 Volts DC, protected to 24 Volts DC maximum, input impedance 21k Ohms with pull-up resistor disabled;
    Programmable 5 Volts, 2k Ohms pull-up resistor per pin
    IR - SERIAL OUTPUT 1 – 8 (2) 8-pin 3.5 mm detachable terminal blocks;
    Comprises (8) IR/Serial output ports;
    IR output up to 1.2 MHz;
    1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud
    COM 1 (1) 5-pin 3.5 mm detachable terminal block;
    Bidirectional RS-232/422/485 port;
    Up to 115.2k baud; hardware and software handshaking support
    COM 2 – 3 (2) 3-pin 3.5 mm detachable terminal blocks;
    Bidirectional RS-232 ports;
    Up to 115.2k baud; software handshaking support
    MEMORY (1) SD memory card slot;
    Accepts one SD or SDHC card up to 32 GB for memory expansion
    USB (1) USB Type A female;
    USB 2.0 port for storage devices
    LAN (1) 8-pin RJ45 jack;
    10Base-T/100Base-TX Ethernet port
    NET (1) 4-pin 3.5 mm detachable terminal block;
    Cresnet master port;
    Outputs power to Cresnet devices if a power pack is connected to the 24VDC power input jack;
    Receives Cresnet network power if no power pack is connected to the 24VDC power input jack;
    See “Power” section for additional specifications
    24VDC 2.0A (1) 2.1 x 5.5 mm DC power connector;
    24 Volt DC power input;
    PW-2420RU power pack included;
    Passes through to NET port to power Cresnet devices;
    See “Power” section for additional specifications
    G (1) 6-32 screw;
    C hassis ground lug
    COMPUTER (front) (1) USB Type B female;
    USB 2.0 computer console port (6 ft cable included);
    For setup only
    Controls & Indicators
    PWR (1) Green LED, indicates operating power supplied from power pack or Cresnet network
    NET (1) Amber LED, indicates communication with the Cresnet system
    MSG (1) Red LED, indicates control system has generated an error message
    HW-R (1) Recessed pushbutton for hardware reset
    SW-R (1) Recessed pushbutton for software reset
    LAN (rear) (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
    Power
    Power Pack 2.0 Amps @ 24 Volts DC;
    100-240 Volts AC, 50/60 Hz power pack, model PW-2420RU included
    Available Cresnet Power 24 Watts (1 Amp @ 24 Volts DC) when using power pack
    Cresnet Power Usage 15 Watts (0.625 Amp @ 24 Volts DC) when using Cresnet network power
    Environmental
    Temperature 41° to 113° F (5° to 45° C)
    Humidity 10% to 90% RH (non-condensing)
    Heat Dissipation 50 BTU/hr
    Enclosure
    Chassis Metal, black finish
    Faceplate Extruded metal, black finish, polycarbonate label overlay
    Mounting Freestanding or 1 RU 19-inch rack-mountable (adhesive feet and rack ears included)
    Dimensions
    Height 1.70 in (44 mm) without feet
    Width 17.28 in (439 mm), 19.00 in (483 mm) with rack ears
    Depth 6.56 in (167 mm)
    Weight 1.42 kg (3.12 lb)
