Crestron DM-TX-4K-302-C 4K DigitalMedia 8G+® Transmitter 302

₹ 83,219.00

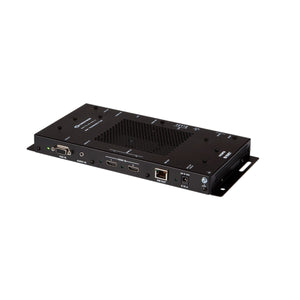

Provides a remote input connection for 4K HDMI® and VGA sources as part of a complete DigitalMedia™ System. Connects to the DM 8G+® input of a DM® Switcher or Receiver via a single CATx cable. Includes USB HID device and host ports. Compatible with HDBaseT® technology and Crestron Connect It™ cable caddy. The DM‑TX‑4K‑302‑C provides a versatile interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia™ system. It functions as a DM 8G+® transmitter and switcher with HDMI®, VGA, and analog audio inputs and as a control module, providing RS-232 and IR control ports, plus Ethernet and USB HID ports for a total connectivity solution.

Its low-profile, surface-mountable design makes the DM‑TX‑4K‑302‑C ideal for installation beneath a conference table, inside a lectern or equipment rack, or at virtually any other location in a boardroom, classroom, auditorium, or residence. It connects to the head end or display location using a single CAT type twisted pair cable. In addition to DM 8G+, it is also compatible with HDBaseT® standard, which allows it to be connected directly to the input of an HDBaseT certified display device.1

Key Features:

  • 4K DigitalMedia 8G+® transmitter and multimedia interface
  • Built-in 3x1 AV switcher with auto-switching and analog audio-breakaway
  • QuickSwitch HD™ technology manages HDCP keys for fast, reliable switching
  • Connects to a DM® switcher or receiver over a single CAT type twisted pair cable1
  • Supports cable lengths up to 330 ft (100 m) for all resolutions up to UHD and 4K using DM Ultra cable1
  • Supports cable lengths up to 330 ft (100 m) for 1080p, WUXGA, and 2K using DM 8G® cable or CAT5e1
  • Supports cable lengths up to 230 ft (70 m) for UHD and 4K using DM 8G cable, or 165 ft (50 m) using CAT5e1
  • HDBaseT® Certified standard — Enables direct connection to other HDBaseT certified equipment
  • Handles digital video with resolutions up to 4K and Ultra HD
  • Handles analog video with resolutions up to HD 1080p and WUXGA
  • Handles 3D video and Deep Color





Benefits of Crestron DM-TX-4K-302-C  4K DigitalMedia 8G+® Transmitter 302:

4K Ultra HD

Crestron DigitalMedia continues to advance the standard for digital AV signal distribution, delivering the world's first end-to-end 4K system solution. The DM‑TX‑4K‑302‑C features the latest DM 8G+ technology, providing support for the transport of 4K and Ultra HD video signals. Support for 4K video also ensures support for the latest generation of computers and monitors with native resolutions beyond 1080p and WUXGA.

DigitalMedia 8G+®

As the leader in HDMI and control system technologies, Crestron developed DigitalMedia to deliver the first complete HD AV distribution system to take HDMI to a higher level. DigitalMedia allows virtually any mix of HDMI and other AV sources to be distributed throughout a home, office, school, or virtually any other facility. The latest generation of DM® products is called DigitalMedia 8G™. Engineered for ultra-high bandwidth and ultimate scalability, DM 8G® products provide a true one-wire lossless transport for moving high-definition video, audio, and control signals over a choice of twisted-pair or fiber optic cable.

HDBaseT® Compatible

Crestron DigitalMedia 8G+ technology is designed using HDBaseT Alliance specifications, ensuring interoperability with other HDBaseT certified products. Via its DM 8G+ output, the DM‑TX‑4K‑302‑C can be connected directly to an HDBaseT compliant device without requiring a DM receiver.





Where to buy?
Buy the Crestron DM-TX-4K-302-C  4K DigitalMedia 8G+® Transmitter 302 online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Crestron DM-TX-4K-302-C  4K DigitalMedia 8G+® Transmitter 302:

Brand & Model # Resolution DM‑CBL‑ULTRA
DM® Ultra Cable



Cable Type

DM‑CBL‑8G
DM 8G® Cable

CAT5e
(or better) [2]
Crestron DM-RMC-4K-100-C-1G-B-T  Wall Plate 4K DigitalMedia 8G+® Receiver & Room Controller 100, Black Textured 1080p60 Full HD 330 ft
(100 m)
330 ft
(100 m)
330 ft
(100 m)
1920x1200 WUXGA

1600x1200 UXGA

2048x1080 DCI 2K

2048x1152 QWXGA 230 ft
(70 m)
165 ft
(50 m)

2560x1080 UWFHD

2560x1440 WQHD

2560x1600 WQXGA
3840x2160 4K UHD
4096x2160 DCI 4K

Video


Switcher 3x1 manual or auto-switching, Crestron QuickSwitch HD technology
Input Signal Types HDMI w/Deep Color, 3D, & 4K (DVI & Dual-Mode DisplayPort™ compatible 7); VGA/RGB (RGBHV, RGBS, RGsB); component (YPbPr); S-Video (Y/C); composite (NTSC, PAL) 6
Output Signal Types DM 8G+ & HDBaseT w/HDR10, Deep Color, 3D, & 4K; HDMI w/Deep Color, 3D, & 4K (DVI compatible 7)
Input Type Scan
Type
 Resolution Frame
Rate
Color
Sampling
Color
Depth
HDMI







Progressive







4096x2160 DCI 4K
&
3840x2160 4K UHD




2560x1600 WQXGA

1920x1080 HD 1080p

24 Hz

30 Hz

30 Hz

60 Hz

60 Hz

60 Hz

4:4:4

4:4:4

4:2:2

4:2:0

4:4:4

4:4:4

36 bit

36 bit

36 bit

24 bit

36 bit

36 bit

Interlaced 1920x1080 HD 1080i 30 Hz 4:4:4 36 bit
VGA/RGB Progressive

1600x1200 UXGA

1920x1200 WUXGA

60 Hz

60 Hz

n/a

n/a

n/a

n/a

Component [6]

Progressive

Interlaced

1920x1080 HD 1080p

1920x1080 HD 1080i

60 Hz

30 Hz

n/a

n/a

n/a

n/a

Composite
or S-Video [6]
Interlaced 480i NTSC or 576i PAL 60 Hz n/a n/a



Audio

Switcher 3x1 with auto-detecting digital/analog inputs and analog audio breakaway
Input Signal Types HDMI (Dual-Mode DisplayPort compatible 7), analog stereo
Output Signal Type DM 8G+ & HDBaseT, HDMI
Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio™,LPCM up to 8 channels
Analog Formats Stereo 2-channel
Analog-To-Digital Conversion 24-bit 48 kHz
Analog Input Level Compensation ±10.0 dB
Analog Performance Frequency Response: 20 Hz to 20 kHz ±0.5 dB
S/N Ratio: >90 dB, 20 Hz to 20 kHz A-weighted
THD+N: <0.05% @ 1 kHz
Stereo Separation: >90 dB

Communications

Ethernet 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP
USB Supports signal extension of USB HID class devices, supports a TT-100 series cable caddy 8 supports computer console (for setup)
RS-232 2-way device control and monitoring up to 115.2k baud with software handshaking (via control system) [1]
IR/Serial 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 Volts) up to 19.2k baud (via control system) [1]
DigitalMedia DM 8G+, HDCP 2.2, EDID, CEC, PoDM, Ethernet
HDBaseT HDCP 2.2, EDID, CEC, RS-232, PoE, Ethernet
HDMI HDCP 2.2, EDID, CEC

NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI devices and a control system.

Connectors

VGA IN (1) HD15, female;
Analog VGA/RGB/video input;
Signal Types: VGA, RGB, component, S-Video, or composite 6;
Formats: RGBHV, RGBS, RGsB, YPbPr, Y/C, NTSC, PAL;
Input Levels: 0.5 to 1.5 Vp-p with built-in DC restoration;
Input Impedance: 75 Ohms;
Sync Input Type: Autodetect RGBHV, RGBS, RGsB, YPbPr, Y/C, composite;
Sync Input Level: 3 to 5 Vp-p;
Sync Input Impedance: 510 Ohms
AUDIO IN (1) 3.5 mm TRS mini phone jack;
Unbalanced stereo line-level audio input;
Input Level: 2 Vrms maximum;
Input Impedance: 10k Ohms
HDMI IN 1 – 2 (2) 19-pin HDMI Type A, female;
HDMI digital video/audio inputs;
(DVI & Dual-Mode DisplayPort compatible 7)
DM OUT (1) 8-pin shielded RJ-45, female;
DM 8G+ output, HDBaseT compliant;
PoDM+ PD port (HDBaseT PoE+ compatible) 2,3,4;
Connects to the DM 8G+ input of a DM switcher, receiver, or other DM device, or to a HDBaseT device, via CAT5e or Crestron DM‑CBL‑8G cable, or Crestron DM‑CBL‑ULTRA cable 1
LAN (1) 8-pin RJ45 connector, female, shielded;
10Base-T/100Base-TX Ethernet port
COMPUTER (1) USB Type B, female;
USB 2.0 device port for computer console (setup), or for connection to a computer or other USB HID-compliant host (USB signal extension & routing)
IR  (1) 2-pin 3.5 mm detachable terminal block;
IR/Serial port;
IR output up to 1.1 MHz;
1-way serial TTL/RS-232 (0-5 V) up to 19200 baud
24VDC 0.75A MAX (1) 2.1 x 5.5 mm DC power connector;
24 Volt DC power input;
PW-2407WU power pack (optional, sold separately)
DM IN (1) 8-pin RJ45 connector, female, shielded;
DM 8G+ input, HDBaseT compliant;
PoDM PD port (HDBaseT PoE compatible) [4 ,5];
Connects to the DM 8G+ output of a DM switcher, transmitter, or other DM device, or to an HDBaseT device, via CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA cable [1]
HDMI OUT (1) 19-pin HDMI Type A, female;
HDMI digital video/audio output (DVI compatible 7)
COM (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud, hardware and software handshaking support
Ground (1) 6-32 screw;
Chassis ground lug

Controls & Indicators

VGA IN (1) Green LED, indicates video signal presence at the VGA input
HDMI IN 1 – 2 (2) Green LEDs, each indicates HDMI signal presence at the corresponding HDMI input
DM OUT (2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence
LAN (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
RESET (1) Recessed pushbutton, for hardware reset
SETUP (1) Red LED and (1) recessed pushbutton, for Ethernet setup
24VDC (1) Green LED, indicates operating power supplied via PoDM, HDBaseT PoE, or optional local power pack
HDMI OUT (1) Green LED, indicates video signal presence at the HDMI output


Power

Power over DM (PoDM) IEEE 802.3at Type 2 Class 4 (25.5 W) compliant PoDM+ PD (Powered Device), capable of being powered by a PoDM+ PSE (Power Sourcing Equipment) 2

Note: May be powered by a standard PoDM PSE (Class 3) if no USB device is connected to the USB HID port. 4

Power over HDBaseT IEEE 802.3at Type 2 Class 4 (25.5 W) compliant HDBaseT PoE+ PD (Powered Device), capable of being powered by an HDBaseT PoE+ PSE (Power Sourcing Equipment) 3

Note: May be powered by a standard HDBaseT PoE PSE (Class 3) if no USB device is connected to the USB HID port 4

Power Pack (Optional) Input: 100-240 VAC, 50/60 Hz
Output: 0.75 A @ 24 VDC
Model: PW‑2407WU (sold separately)

Environmental


Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 34.4 BTU/hr

Enclosure

Chassis Metal, black finish, with (2) integral mounting flanges; vented front, top, and bottom
Mounting Freestanding, surface mount, or attach to a single rack rail

Dimensions

Height 6.09 in (155 mm)
Width
5.35 in (136 mm)
Depth
1.08 in (28 mm)
Weight
1.48 lb (670 g
