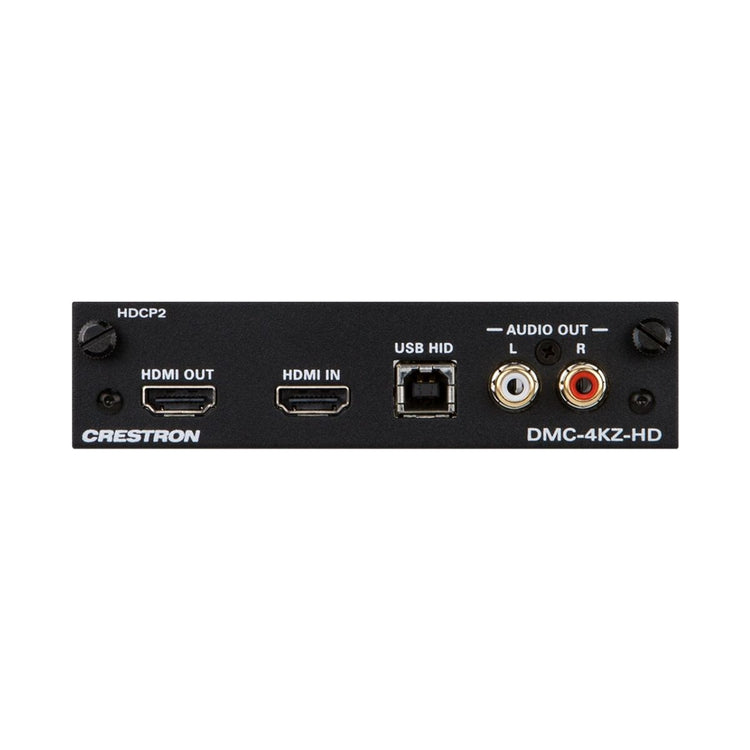

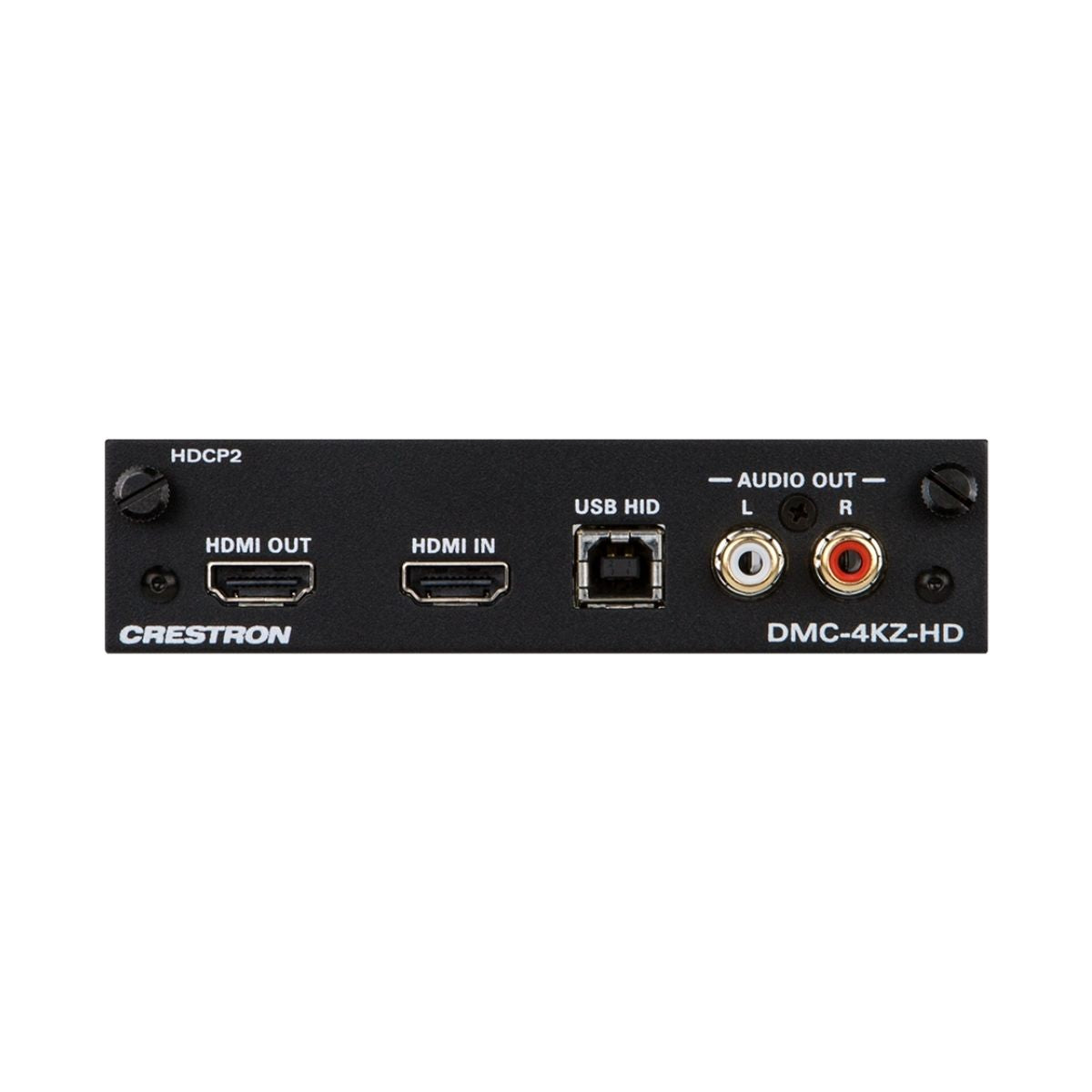

Crestron DMC-4KZ-HD HDMI® 4K60 4:4:4 HDR Input Card for DM® Switchers

₹ 35,998.00



The DMC-4KZ-HD is an input card designed for use with any card-based Crestron® DigitalMedia™ Switcher. It provides one HDMI® input, with complementary HDMI pass-through and analog audio outputs. A USB HID port is also provided. The HDMI input handles Full HD 1080p, Ultra HD, 2K, and 4K video signals with support for HDCP 2.2, HDR10, Deep Color, 3D, and high-bitrate 7.1 audio. The HDMI input can also handle DVI and Dual-Mode DisplayPort signals using an appropriate adapter or interface cable.

Key Features:

  • Modular input card for a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher
  • Provides a single 4K HDMI® input[2]
  • Handles UHD and 4K video resolutions up to 4K60 4:4:4[2]
  • Handles HDR (High Dynamic Range) video (HDR10)[2]
  • Handles 3D video and Deep Color
  • Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
  • HDCP 2.2 compliant
  • Includes an HDMI output for pass-through of the input signal[2]
  • Includes a stereo analog line-level audio output with volume control[3]
  • Allows de-embedding of stereo 2-channel audio signals
  • Enables device control via CEC
  • Enables USB HID signal extension for a local computer
  • Compatible with Crestron USB over Ethernet Extenders[4]
  • Occupies a single DM® switcher input card slot
  • Provides an HDMI problem-solving solution using the optional DMCI card interface



Benefits of Crestron DMC-4KZ-HD  HDMI® 4K60 4:4:4 HDR Input Card for DM® Switchers:

4K60 4:4:4 & HDR Support

Crestron DigitalMedia (DM) was the world’s first AV signal distribution solution to deliver end-to-end 4K signal management for large-scale commercial and residential applications. DM “4KZ” cards and endpoints enable new and existing DM systems to handle full 4K60 4:4:4 video signals, as well as HDR video signals (HDR10), without having to replace any wiring or switchers. Any Crestron DM system that supports 4K can be upgraded to handle 4K60 4:4:4 and HDR by simply installing DM 4KZ based cards, transmitters, and receivers. The DMC-4KZ-CO-HD is designed to replace an existing DMC-4K-CO-HD or DMC-4K-CO-HD-HDCP2 output card without requiring any extra configuration or programming.[2]

DM 4KZ technology employs VESA® Display Stream Compression (DSC) to enhance the capabilities of DigitalMedia to handle the extreme bandwidth requirement of resolutions beyond 4K30 4:4:4 and 4K60 4:2:0. DSC is a lightweight, line-based 2:1 compression standard that delivers visually lossless performance for 4K60 4:4:4 and HDR signals. DSC is applied only to 4K60 4:4:4 and HDR input signals. All other signals are transported uncompressed.

DigitalMedia 8G+®

Engineered for ultra high-bandwidth and ultimate scalability, DigitalMedia 8G+ (DM 8G+) provides a true one-wire lossless transport for moving high-definition video, audio, power, Ethernet, and control signals over twisted pair copper wire. DM 8G+ transports uncompressed Full HD 1080p, WUXGA, and 2K signals over distances up to 330 feet (100 m) using Crestron DM Ultra Cable, Crestron DM 8G® Cable, or third-party CAT5e. Higher resolution signals up to UHD and 4K are supported over distances up to 330 feet (100 m) using DM Ultra Cable, 230 feet (70 m) using DM 8G Cable, or 165 feet (50 m) using CAT5e.

HDMI® Pass-Through
Every DM switcher input card includes an HDMI output port, which can be used to pass the input signal through to a local audio processor or video monitor, or to feed a second DM switcher for output expansion purposes.

Audio De-embedding

The DMC-4KZ-HD includes an unbalanced analog audio output, allowing stereo audio signals to be extracted from the digital input and fed to a multiroom audio distribution system. The output volume is adjustable via a control system using a keypad, touch screen, handheld remote, or mobile device.

CEC Embedded Device Control

For controlling third-party AV devices, DigitalMedia offers an alternative to conventional IR, RS-232, and Ethernet by harnessing the CEC (Consumer Electronics Control) signal embedded in HDMI. Through its connection to a Crestron control system (via the DM switcher), the DMC-4KZ-HD provides a gateway for controlling the connected source device right through the HDMI connection, potentially eliminating the need for any dedicated control wires or IR emitters.



      Where to buy?
      Buy the Crestron DMC-4KZ-HD  HDMI® 4K60 4:4:4 HDR Input Card for DM® Switchers online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.


      Technical Specifications of Crestron DMC-4KZ-HD  HDMI® 4K60 4:4:4 HDR Input Card for DM® Switchers:

      Brand & Model #

      Crestron DMC-4KZ-HD


      Video


      Input Signal Types
      HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support [2] (DVI & Dual-Mode DisplayPort compatible [1])
      Output Signal Types
      HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support [2] (DVI compatible [1])
      Copy Protection
      HDCP 2.2
      Scan
      Type
       Resolution Frame
      Rate
      Color
      Sampling
      Color
      Depth





      Progressive







      4096x2160 DCI 4K
      &
      3840x2160 4K UHD




      2560x1600 WQXGA

      1920x1080 HD 1080p

      24 Hz

      30 Hz

      60 Hz

      60 Hz

      60 Hz

      60 Hz

      4:4:4

      4:4:4

      4:2:2

      4:4:4

      4:4:4

      4:4:4

      36 bit

      36 bit

      36 bit

      24 bit

      36 bit

      36 bit

      Interlaced 1920x1080 HD 1080i 30 Hz 4:4:4 36 bit



      Audio

      Input Signal Type
      HDMI (Dual-Mode DisplayPort compatible [1])
      Output Signal Type
      HDMI (multichannel pass-through from input), analog stereo (2-channel pass-through from input [3])
      Digital Formats
      Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels
      Analog Formats
      Stereo 2-channel
      Digital-To-Analog Conversion
      24-bit 48 kHz
      Analog Performance
      Frequency Response: 20 Hz to 20 kHz ±0.5 dB;
      S/N Ratio: >95 dB, 20 Hz to 20 kHz A-weighted;
      THD+N: <0.005% @ 1 kHz;
      Stereo Separation: >90 dB
      Analog Volume Adjustment
      -80 to 0 dB

      Communications

      USB
      Supports signal extension of USB HID class devices, expandable to support virtually any USB 1.1 or 2.0 device using Crestron USB-EXT-DM Series USB over Ethernet Extenders [4]
      HDMI
      HDCP 2.2, EDID, CEC

      Connectors

      HDMI OUT  (1) HDMI Type A connector, female;
      HDMI digital video/audio output [2];
      (DVI compatible [1])
      HDMI IN (1) HDMI Type A connector, female;
      HDMI digital video/audio input [2];
      (DVI and Dual-Mode DisplayPort compatible [1])
      USB HID (1) USB Type B connector, female;
      USB device port for connection to the USB host interface of a computer or other USB HID-compliant host
      AUDIO OUT
      (2) RCA connectors, female;
      Unbalanced stereo line-level audio output[3];
      Output Impedance: 100 Ohms nominal;
      Maximum Output Level: 2 Vrms

      Construction

      Plug-in card, occupies (1) DM switcher output card slot, includes metal faceplate w/black finish

      Weight

      6.2 oz (176 g)
