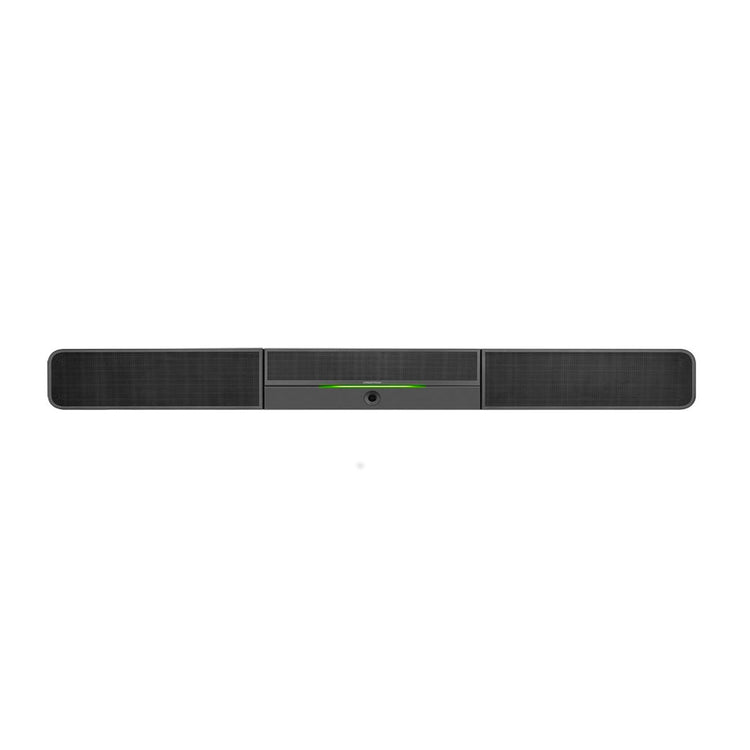

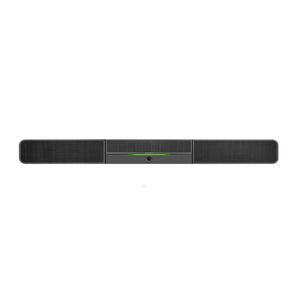

Crestron UC-SB1-CAM UC Video Conference Smart Soundbar & Camera

₹ 188,828.00

Any expert will tell you this is just the device your conference rooms need. Ooberpad presents the Crestron® UC Video Conference Smart Soundbar & Camera (UC-SB1-CAM) - a cutting edge solution for your video conferencing needs at work. This incredible system eliminates the need to install additional microphones, speakers, or cameras. It has the option to be wall mounted which means more space on desks in small or medium sized conference rooms and no ugly wires and cables in sight.

Featuring powerful speakers and an adaptive beamforming microphone, its advanced digital signal processing system delivers exceptional full‑duplex speakerphone performance with echo‑free voice clarity. Additionally, its in-built camera features 1080 HD resolution and an ultra wide 150 degree diagonal view field.

Warranty

1-year manufacturer warranty

Key Features:

  • A complete conferencing speakerphone and camera solution in one stunning front‑of‑room device
  • Sleek and stylish soundbar design installs cleanly beneath the room display(s) - mounts on the wall or sits on a credenza
  • Multicolor status bar indicates audio volume, mute, and operational status
  • 180° far‑field adaptive beamforming microphone array
  • Advanced AEC & DSP technology
  • Built‑in Huddly IQ™ camera - a premium conferencing camera fully integrated into the soundbar
  • Ultra wide‑angle 150° diagonal field of view captures the entire room
  • Genius Framing lossless digital autozoom automatically detects people and frames them perfectly in the shot1
  • Full HD 1080p video resolution, precision optics, and advanced video processing
  • 3x digital zoom, pan, and tilt allows manual shot control
  • People counting enables room usage analytics via Crestron XiO Cloud™ service when used with the UC-ENGINE or UC-ENGINE-SD
  • USB 3.0 provides audio and video connectivity through a single USB interface
  • Plug & Play - compatible with major computer OS platforms running any web conferencing software
  • Analog audio I/O - input and output connections for local source and assistive listening devices
  • Integral hinged mounting bracket simplifies wall mount installation

          Benefits of Crestron UC-SB1-CAM UC Video Conference Smart Soundbar & Camera:

          USB Speakerphone and Camera

          UC-SB1-CAM-Speakerphone and Camera

          Featuring high‑performance AEC‑enabled speaker phones and a camera, the Crestron UC-SB1-CAM has been designed to integrate with any device that supports UC conferencing software.  With a single USB 3.0 connection, users can gain access to the plug‑and‑play interface and connect to a computer. Just like any USB audio or USB video class device, the Crestron UC-SB1-CAM is meant for all types of multimedia applications running on a computer. Even if the meeting does not require video conferencing services, the Crestron UC-SB1-CAM can be used to share content with everyone within the conference room.

          Intelligent Huddly Camera

          Intelligent Huddly Camera

          A highlight of the Crestron UC-SB1-CAM is its integrated Huddly IQ™ camera that features an ultra-wide-angle of 150° with a diagonal field of view to capture the entire conference room in Full HD 1080p video resolution. Additionally, it features precision aspherical optics, a 12 MP CMOS sensor, along with advanced video processing to ensure video imagery that is free from light or noise or any type of artifact or optical aberrations.

          The Genius Framing digital auto zoom features smart technology that can automatically detect the number of people in the room and frames them for optimal viewing. When conferencing, the camera image adjusts automatically to frame everyone in the shot.

          Superb Sound Quality

          Superb Sound Quality

          Expect exceptional audio quality with the Crestron UC-SB1-CAM. This high performing sound bar with an integrated 180° far‑field microphone array faithfully captures voices throughout the room using adaptive beamforming technology. Additionally, its powerful two‑way stereo speakers produce audio that can fill the conference room. This is possible with AEC technology that achieves transparent full‑duplex performance free of distracting echo or noise.

          Enhanced Functionality

          Seamless integrate the Crestron UC-SB1-CAM smart soundbar with a variety of UC software platforms, enjoy plug and play and work the soundbar at the touch of a button. The computer detects the soundbar connection automatically, and in turn the soundbar responds when an online meeting commences. Smart technology enables the bar to detect the number of people attending the meeting so it will automatically adjust the speaker volume or mute a microphone. A multi colour LED display allows the user to know about change in volume and whether the microphone is functional or placed on mute.

          Analog Audio Input & Output

          Need to connect to more speakers? No problem. The Crestron UC-SB1-CAM is designed to accommodate. Additional audio connectivity is provided through unbalanced stereo analog input and output jacks on the rear panel. The input accommodates any line‑level audio source feeding into the internal amplifier and speakers with no volume control or other signal processing. The output is provided to feed an assistive listening system and carries the same audio signal as the soundbar speakers.

          Easy Installation

          Unlike other systems which are really cumbersome to install, the Crestron UC-SB1-CAM is user friendly and easy to install. You just have to use the hinged mounting bracket that easily attaches to any wall. Once attached, the sky bar will tip forward and allow the user access to the rear panel. 8 mounting keyholes have been arranged in 2 inch increments accommodating any wall stud spacing from 12 to 24 inches. Alternatively, the soundbar can be simply placed on a shelf or credenza.


          Where to buy:
          Buy Crestron UC-SB1-CAM UC Video Conference Smart Soundbar & Camera online at best price in Mumbai, Delhi, Bangalore, Hyderabad, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and will give you all the support you need to take the right buying decision in India.


          Technical Specifications of Crestron UC-SB1-CAM UC Video Conference Smart Soundbar & Camera:

          Brand & Model # Crestron UC-SB1-CAM
          Speakers
          Woofers
          2) 3 in. (76 mm) polypropylene cone w/rubber surround
          Passive Radiators
          (2) 3 x 4‑3/8 in. (76 x 112 mm) polypropylene cone w/rubber surround
          Tweeters
          (2) 1 in. (25 mm) polyester dome
          Amplifier Power
          20 W RMS per channel, stereo
          Frequency Response
          80 Hz to 20 kHz (±3 dB)
          Effective Output Level
          91 dB SPL @ 1 m, both channels are driven at full power
          Microphone / Audio / Video / Indicators / Connectors / Power / Dimensions
          Microphone
          Linear quad‑element far‑field adaptive beamforming microphone array
          Pickup Range
          15 ft. (4.6m)2
          Pickup Angle
          180° Horizontal
          Frequency Response
          20 Hz to 8 kHz
          DSP
          Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ and limiting (fixed); full‑duplex IEEE 1329 Type 1 compliant; Note: DSP affects USB audio in/out only unless noted otherwise
          USB Audio In/Out
          USB 3.0, UAC 1.0 & HID, AEC-enabled USB speakerphone compliant with Microsoft Teams & Skype® for Business specifications, 2-channel stereo far-end/content signal input, 2-channel mono microphone signal output; plug & play compatible with Crestron UC-ENGINE, UC-ENGINE-SD, computer, or other USB Audio Class host
          Analog Input
          2‑Channel Stereo, fixed level (bypasses DSP), for in‑room amplification of an external audio source
          Analog Input Sensitivity
          1 Vrms per channel for full rated output
          Analog Output
          2‑Channel stereo, fixed level, feeds amplified audio content to an assistive listening system; Note: Output level varies for USB input signal only according to the speaker volume control setting; analog input signal passes through without volume control or DSP
          USB Video Out
          USB 3.0, UVC 1.1 & HID, conferencing camera; plug & play compatible with a computer, or other USB Video Class host
          Output Resolution
          HD 1080p @ 30 fps
          Color Space
          YCbCr 4:2:0, YCbCr 4:2:2, MJPEG
          Indicators (Status Bar)
          (1) Multi‑segment RGBY LED zero‑center mutually‑diverging linear bar graph;
          Indicates the speaker volume, microphone mute, and speaker mute in red and green LEDs
          Connectors
          • AUDIO IN: (1) 3.5 mm TRS mini‑phone jack; Unbalanced stereo line‑level audio input; Input Level: 1 Vrms maximum; Input Impedance: 10k Ohms
          • AUDIO OUT: (1) 3.5 mm TRS mini‑phone jack; Unbalanced stereo line‑level audio output; Output Level: 1 Vrms maximum; Output Impedance: 100 Ohms
          • PC: (1) USB 3.0 Type‑B connector, female; USB 3.0 device port; Connects to computer; 6 ft (1.83 m) USB 3.0 Type B to Type-A cable included
          • CAMERA: (1) USB 3.0 Type‑A connector, female; USB 3.0 host port; Connects to the internal camera output via a 6 in. (13 cm) USB Type‑C™ to USB 3.0 Type-A cable
          100‑240V~ 0.5A 50/60Hz
          1) IEC 60320 C14 main power inlet;
          Mates with removable power cord included
          Power Consumption
          22 W
          Enclosure
          Lightly textured gunmetal black finish, plastic housing, perforated stainless steel grilles, die‑cast aluminum rear cover, integral steel hinged mounting bracket
          Mounting
          Freestanding or surface wall mount at ear/face level (adhesive feet included, mounting bracket attached)
          Specifications
          • Height: 4.57 in. (117 mm), 4.64 in. (118 mm) with feet
          • Width: 43.60 in. (1108 mm)
          • Depth: 3.90 in. (100 mm)
            Weight
            Approximately 15 lb (6.8 kg)
            Camera
            Model
            Huddly IQ (mounted internally)
            Image Sensor
            12 megapixel Sony® IMX477 Type 1/2.3 CMOS sensor
            Lens
            High precision, ultra wide-angle, six-element aspherical glass lens
            Field of View
            150º diagonal, 120º horizontal, 90º vertical
            Aperture
            f/2.8
            Processor
            Intel® Movidius® Myriad® X VPU with Neural Compute Engine hardware accelerator
            Pan/Tilt/Zoom
            3x lossless digital zoom, pan, and tilt
            Autozoom
            Genius Framing automatic lossless digital zoom intelligently frames people in the room
            Dynamic Light Optimization
            Auto‑adjusts light levels and white balance
            Noise Reduction
            5.7 oz (162 g), 5.7 oz (162 g) with clip and cable
            3D noise reduction, bias compensating Spatio-temporal filtering, wide-area chroma filtering, flicker elimination
            Scaling
            Real‑time scaling, dewarping, and perspective correction
            People Counting
            Detects and reports the number of people in the frame
