About

Description

Ooberpad brings to you Crestron USB-EXT - a very simple and reliable solution for extending high-speed USB signals up to 100 meters (330 ft) over one CAT 5 twisted-pair cable. The Crestron® USB over Twisted Pair Extender (USB-EXT) delivers reliable USB signal extension for use in a boardroom, classroom, auditorium, command center, or residence. Without any special set up or configuration, the USB-EXT enables wire runs up to 100 meters (330 feet) over a single, low-cost twisted-pair cable (For the "Link" connection, use quality CAT5, CAT5e, CAT6 or better UTP or STP cable. The maximum cable length is 330 ft (100 m). The minimum cable length is 6 ft (1.8 m). Do not connect the LINK ports to an Ethernet LAN or any other network or device).

The USB-EXT is compatible with USB 1.1 and High-Speed USB 2.0, supporting virtually any USB device such as keyboards and mice, game controllers, cameras, mobile devices, printers, hubs, and memory devices (Crestron does not guarantee that all USB devices are compatible with the USB-EXT). It is compatible with Windows® and Mac® computers without requiring any additional drivers.

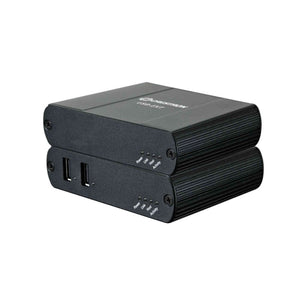

The USB-EXT is composed of two extender components. The "local" extender connects to your computer or other USB hosts, while the "remote" extender provides connections for your USB devices at some remote location. Linking the two extender components requires just one run of inexpensive CAT 5 (or better) twisted-pair cable.

Warranty

1-year manufacturer warranty

Key Features:

  • Extends USB signals 100 meters over CAT5 twisted-pair cable
  • USB 1.1 and 2.0 compatible
  • Provides 2 ports for USB devices
  • Supports up to 3 USB hubs
  • Works reliably without any programming or configuration
  • 24VDC power pack included

Where to buy:
Buy Crestron USB-EXT - USB over Twisted Pair Extender online at best price in Mumbai, Delhi, Bangalore, Hyderabad, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and will give you all the support you need to take the right buying decision in India.

Technical Specifications of Crestron USB-EXT - USB over Twisted Pair Extender:

Brand & Model # Crestron USB-EXT
Communications
Link USB extension up to 330 ft (100 m) over UTP or STP cable
USB Device Support
USB 1.1 and 2.0 compatible including 1.5 Mb/s low speed, 12 Mb/s full speed, and 480 Mb/s high-speed devices
USB HUB Support
Any signal chain may include up to 3 USB hubs plus one USB-EXT
Maximum USB Devices 14 USB devices, or 3 USB hubs with 11 USB devices
USB Host Support EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
Connectors - Local Extender
Ground
(1) M2 threaded hole;ient light level to the control system
DC IN 24V@1A (1) 2.1 mm barrel DC power jack;
24 Volt DC power input (power pack included)
USB (1) USB Type B female (cable included);
USB 2.0 device port for connection to the USB host interface
Link (1) 8-pin RJ45 female, connects to Link port on the Remote Extender
Connectors - Remote Extender
USB
(2) USB Type A female, USB 2.0 host ports;
For connection of USB mice, keyboards, game controllers, cameras, mobile devices, printers, memory, hubs, and other USB devices;
Available Power: 500 mA @ 5 Volts DC per port
Ground (1) M2 threaded hole;
Link (1) 8-pin RJ45 female, connects to Link port on the Local Extender
Indicators - Local Extender
Power
(1) Blue LED, indicates operating power supplied via local power pack
Link
(1) Green LED, indicates a valid Link connection to the Remote Extender
Host (1) Green LED, indicates a valid connection to the USB host
Activity (1) Amber LED, indicates data activity on the Link interface
Indicators - Remote Extender
USB
0(2) Green/orange dual-color LEDs, green indicates a valid USB device connection and orange indicates a current draw in excess of 500 mA at the respective USB port
Power (1) Blue LED, indicates operating power supplied from the Local Extender via the Link connection
Link
(1) Green LED, indicates a valid Link connection to the Local Extender
Host (1) Green LED, indicates a valid connection to the USB host at the Local Extender
Activity (1) Amber LED, indicates data activity on the Link interface
Power Requirements
Power
1 Amp @ 24 Volts DC600 mA @ 100-240 Volt.
The power pack must be connected to the Local Extender at the USB host location. Power is passed to the Remote Extender via the LINK connection.

Enclosure / Dimensions & Weight
Construction  Metal, black finish
Height
1.02 in (26 mm)
Width
3.94 in (100 mm)
Depth
2.99 in (76 mm)



Description

Ooberpad brings to you Crestron USB-EXT - a very simple and reliable solution for extending high-speed USB signals up to 100 meters (330 ft) over one CAT 5 twisted-pair cable. The Crestron® USB over Twisted Pair Extender (USB-EXT) delivers reliable USB signal extension for use in a boardroom, classroom, auditorium, command center, or residence. Without any special set up or configuration, the USB-EXT enables wire runs up to 100 meters (330 feet) over a single, low-cost twisted-pair cable (For the "Link" connection, use quality CAT5, CAT5e, CAT6 or better UTP or STP cable. The maximum cable length is 330 ft (100 m). The minimum cable length is 6 ft (1.8 m). Do not connect the LINK ports to an Ethernet LAN or any other network or device).

The USB-EXT is compatible with USB 1.1 and High-Speed USB 2.0, supporting virtually any USB device such as keyboards and mice, game controllers, cameras, mobile devices, printers, hubs, and memory devices (Crestron does not guarantee that all USB devices are compatible with the USB-EXT). It is compatible with Windows® and Mac® computers without requiring any additional drivers.

The USB-EXT is composed of two extender components. The "local" extender connects to your computer or other USB hosts, while the "remote" extender provides connections for your USB devices at some remote location. Linking the two extender components requires just one run of inexpensive CAT 5 (or better) twisted-pair cable.

Warranty

1-year manufacturer warranty

Key Features:

  • Extends USB signals 100 meters over CAT5 twisted-pair cable
  • USB 1.1 and 2.0 compatible
  • Provides 2 ports for USB devices
  • Supports up to 3 USB hubs
  • Works reliably without any programming or configuration
  • 24VDC power pack included

Where to buy:
Buy Crestron USB-EXT - USB over Twisted Pair Extender online at best price in Mumbai, Delhi, Bangalore, Hyderabad, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and will give you all the support you need to take the right buying decision in India.

Technical Specifications of Crestron USB-EXT - USB over Twisted Pair Extender:

Brand & Model # Crestron USB-EXT
Communications
Link USB extension up to 330 ft (100 m) over UTP or STP cable
USB Device Support
USB 1.1 and 2.0 compatible including 1.5 Mb/s low speed, 12 Mb/s full speed, and 480 Mb/s high-speed devices
USB HUB Support
Any signal chain may include up to 3 USB hubs plus one USB-EXT
Maximum USB Devices 14 USB devices, or 3 USB hubs with 11 USB devices
USB Host Support EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
Connectors - Local Extender
Ground
(1) M2 threaded hole;ient light level to the control system
DC IN 24V@1A (1) 2.1 mm barrel DC power jack;
24 Volt DC power input (power pack included)
USB (1) USB Type B female (cable included);
USB 2.0 device port for connection to the USB host interface
Link (1) 8-pin RJ45 female, connects to Link port on the Remote Extender
Connectors - Remote Extender
USB
(2) USB Type A female, USB 2.0 host ports;
For connection of USB mice, keyboards, game controllers, cameras, mobile devices, printers, memory, hubs, and other USB devices;
Available Power: 500 mA @ 5 Volts DC per port
Ground (1) M2 threaded hole;
Link (1) 8-pin RJ45 female, connects to Link port on the Local Extender
Indicators - Local Extender
Power
(1) Blue LED, indicates operating power supplied via local power pack
Link
(1) Green LED, indicates a valid Link connection to the Remote Extender
Host (1) Green LED, indicates a valid connection to the USB host
Activity (1) Amber LED, indicates data activity on the Link interface
Indicators - Remote Extender
USB
0(2) Green/orange dual-color LEDs, green indicates a valid USB device connection and orange indicates a current draw in excess of 500 mA at the respective USB port
Power (1) Blue LED, indicates operating power supplied from the Local Extender via the Link connection
Link
(1) Green LED, indicates a valid Link connection to the Local Extender
Host (1) Green LED, indicates a valid connection to the USB host at the Local Extender
Activity (1) Amber LED, indicates data activity on the Link interface
Power Requirements
Power
1 Amp @ 24 Volts DC600 mA @ 100-240 Volt.
The power pack must be connected to the Local Extender at the USB host location. Power is passed to the Remote Extender via the LINK connection.

Enclosure / Dimensions & Weight
Construction  Metal, black finish
Height
1.02 in (26 mm)
Width
3.94 in (100 mm)
Depth
2.99 in (76 mm)



Crestron by Crestron

Crestron USB-EXT - USB over Twisted Pair Extender

Regular price
₹ 67,845.00
Sale price
₹ 67,845.00
Regular price
Tax included.

Country of Origin: Usa
