| Brand & Model # |

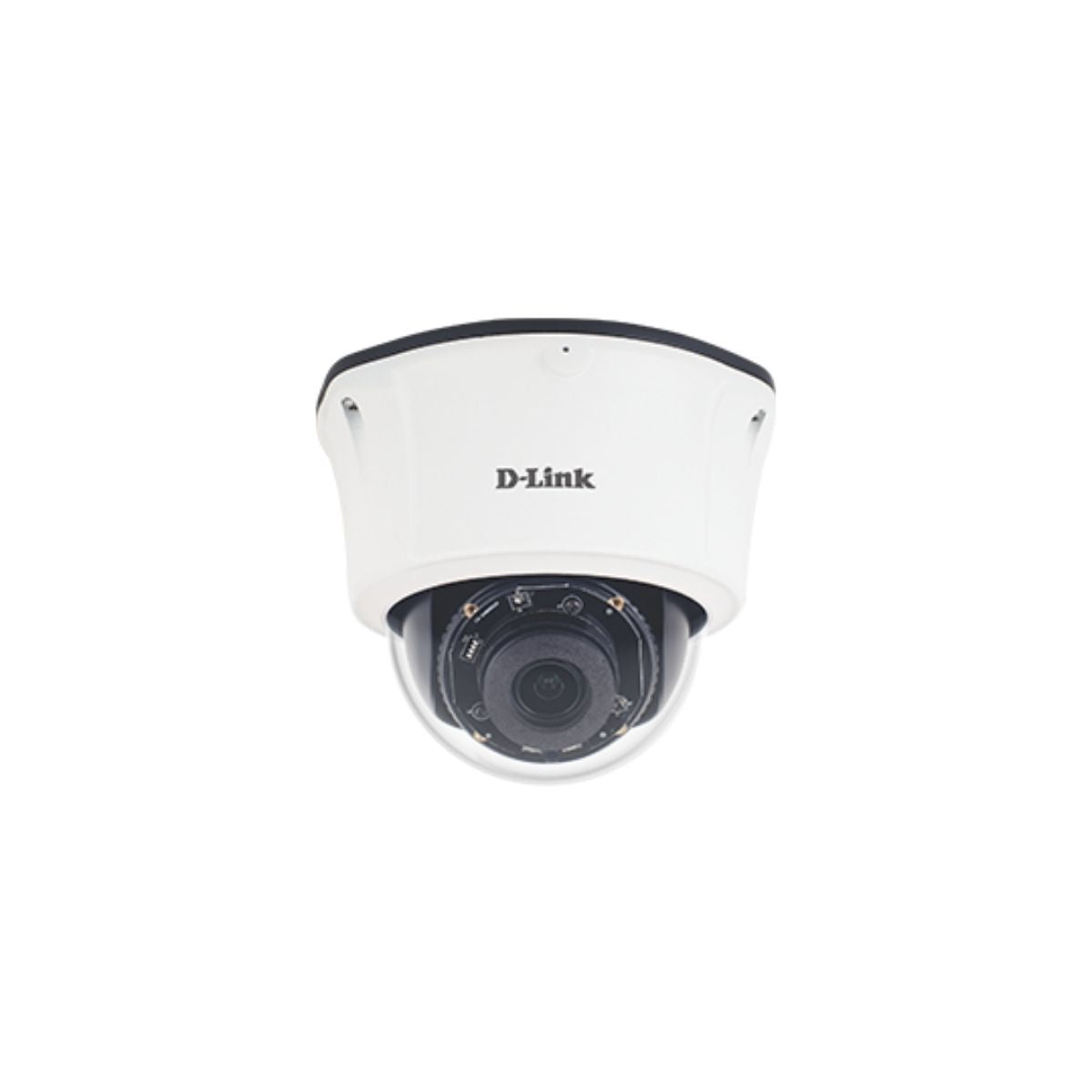

D-Link DCS-F4614 |
Camera Specification
|
|
| Camera Hardware Profil |
|
• 1 /3" 4 MP Progressive Scan CMOS sensor
• Focal Length: 3.6mm
• Up to 15 meter IR illumination distance
• Aperture : F2.2
• Built-in Infrared-Cut Removable (ICR) Filter module, Smart IR support
• Minimum illumination: Color 0.05Lux; IR ON 0 Lux
• Angle of view:
(H) 90
(V) 46
• Shutter Speed: 1/5-1/20000
• Minimum object distance : 0.3m
• Digital zoom : 10x
|
|
| Camera Housing |
• IP66 compliant weatherproof housing |
| Image Features |
|
• Configurable image size, quality, frame rate, VBR/CBR (500kbps ~ 12 Mbps)
• Configurable privacy mask zones : Total zones 4
• Time stamp and text overlays
• Customized text overlay
• Digital Noise reduction with 2D and 3D technology
• No. of zones configurable for ROI : 8
• Configurable Exposure, Brightness, Saturation, Contrast, Sharpness, White Balance, Rotate mode, Corridor mode
• Image Enhancement with WDR, HLC, BLC sion
|
|
| Video Compression |
• Simultaneous H.264 (BP/MP/HP) /MJPEG format compression
• H.264 multicast streaming
• JPEG for still images
|
| Video Resolution |
|
• Main Stream : 2592x1520 / 2560x1440 / 2304x1296 /1920x1080
• Second Stream : D1 to QVGA
|
|
| Frame Rate |
|
|
|
Yes |
| External Device Interfaces |
|
|
|
• 10/100 BASET- X Ethernet port with PoE
• BNC Output
• Built-in Microphone
• Micro SD/ SDHC/ SDXC Slot, max 128GB
• 1ch Audio in & 1ch Audio out
• 1ch Alarm in & 1ch Alarm out
|
|
System Management
|
|
| System Requirements for Web Interface |
|
| Event Management |
• Motion detection, Video Loss
• Alerts to SMTP client
• Event notification and uploading of snapshots via e-mail
• Multiple event notifications only on mails
|
| Remote Management |
• Configuration interface accessible via web browser
• Take snapshots
|
|
|
|
• Windows 7/8/XP/Vista/2000 and higher
• Android
|
|
|
|
|
• Operating System: 32 Bits - MSWindows XP pro SP3/Visa SPI/Win 7
SPI/Win 10 64 bits - Win 7 SPI/Win Server 2008 R2
|
|
| DCMS Software Function |
• Control and manage up to 64 channels |
General
|
|
| Weight |
700g |
| Power |
DC 12V /PoE (802.3af) |
| Power Consumption |
5W (IR LED OFF)7; W (IR LED ON) |
| Temperature |
Operating: -30°C ~ 60°C |
| Humidity |
Operating: 0% ~ 90% RH |
| Certification |
CE & FCC |
| Dimension |
120.6X 96.28 mm |
