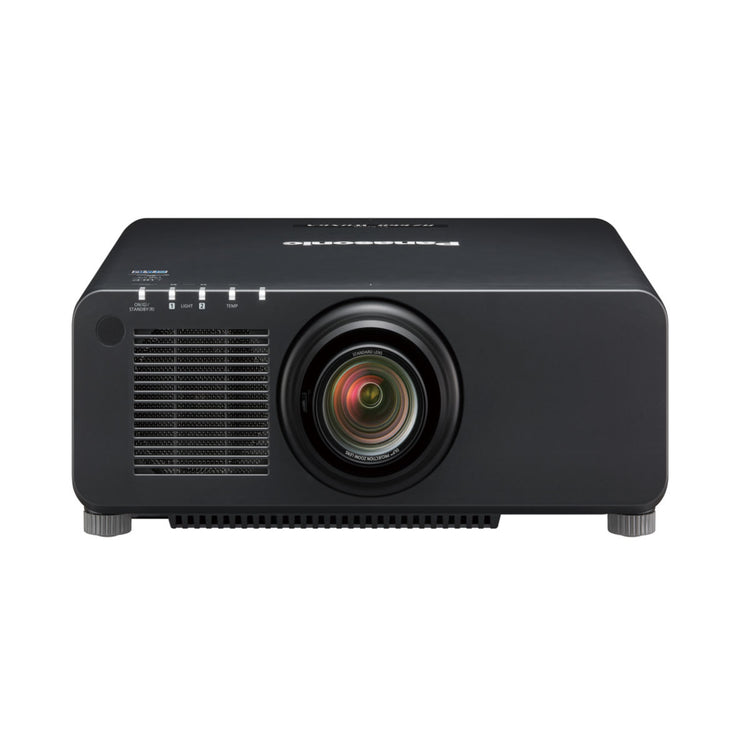

Panasonic PT-RZ660D 6,200-Lumen WUXGA DLP Projector

₹ 900,000.00


Ooberpad proudly announces the availability of Panasonic PT-RZ660D 6,200-Lumen WUXGA DLP Projector. With award-winning SOLID SHINE Laser drive at its core brought together with the latest DLP™ technology, the Panasonic PT-RZ660D 6,200-Lumen WUXGA DLP Projector is highly-equipped for unflinching, uncompromising brilliant pictures in a wide range of applications. Feel free to set  brightness in accordance with the ambient conditions and enjoy the product longevity, and maintenance-free life, with barely perceptible degradation in brightness, and leverage features that make installation hassle-free and cost effective. A lightweight heavy-hitter, it’s the ideal choice for the educated pro user.

Warranty

1-year manufacturer's warranty

Key Features:

  • High Brightness of 6,200 lm (Center) / 6,000 lm ANSI Lumens
  • 1920 x 1200 WUXGA native resolution
  • 4-Segment (R/G/B/Y) Color Wheel
  • Panasonic’s 1-Chip DLP™ SOLID SHINE Laser system
  • Next-generation DLP™ technology delivering high-resolution detail, dual laser modules for high brightness
  • 10,000:1 contrast ratio
  • High brightness and excellent image quality with laser light source
  • Maintenance free up to 20,000 hours with dust-resistant optical block and long lasting laser engine
  • Free 360 degrees installation and Geometric Manager Pro function

                Benefits of Panasonic PT-RZ660D 6,200-Lumen WUXGA DLP Projector:

                Wide Spectrum Color with 1-Chip DLP SOLID SHINE Laser
                Full Spectrum Color with 1-Chip DLP SOLID SHINE Laser

                With the next generation of the DLP™ technology the RZ660 series is delivering high resolution in detail and the dual laser modules outputting a brightness of up to 6,200 lm (centre). Due to the quartet colour harmonizer the energy loss of the light source is reduced and the sturdy and heat resistant phosphor wheel of the PT-RZ660 solid shine laser series produces stunning images, while being high on reliability.


                Outstanding White Balance and Color Reproduction
                Superior White Balance and Color Reproduction

                The quartet colour harmonizer wheel mechanism captures a wider colour space than comparable laser projectors, which enables a realistic reproduction of white on screen. With conventional projectors it’s not an easy feat to achieve an accurate white balance causing images to appear with a distracting greenish tint. Panasonic’s quartet colour harmonizer cuts down this negative impact by rendering an additional yellow segment to the colour wheel to produce whites with unmatched accuracy for natural and realistic picture quality.

                Dynamic Light Control for Higher Contrast
                Dynamic Light control for Higher Contrast

                The PT-RZ660 series directly modulates laser power output to achieve a high contrast with low power consumption. A digitally controlled frame-by-frame scene-linking modulation ensures highly precise output adjustment, while the accurate 10.000:1 contrast ratio is delivered even when bright and dark scenes are intermittently changing.

                Strong Images in Bright Environments
                Panasonic’s Daylight View Basic technology

                Panasonic's premium system daylight view 3 prevents images from washing cut in well lit environments and enhances brightness perception in multi-projector mapping applications by adjusting sharpness and gamma curves and correcting colours. The result is a greater visual impact even in challenging conditions.

                Maintain Image Quality for Longer Use

                Attributing to the long lasting dual solid state laser modules, there are no lamps which need to be replaced. The image colours and brightness degrades very gradually in consistent, linear fashion. As well as ensuring hassle-free maintenance, and unique picture quality that preserves longer.

                Highly reliable 24/7 Operation with Failover Protection

                With the dual drive laser optical engine the laser diodes are grouped into two discrete modules. A future-proof, robust redundancy circuit works to minimize the brightness- and colour uniformity loss if a laser diode fails. In combination with the 20.000 hours maintenance-free projection period the PT-RZ660 series is ideal for mission critical applications.

                Dust-resistant Airtight Optical Block

                The optical block of the PT-RZ660 series is airtight, ensuring consistent, sustainable image quality for up to 20.000 hours* without heavy-duty maintenance. The optical block design passed strict testing to assure high reliability in environments with up to 0,15mg of particulate matter per cubic meter. The structure prevents brightness degradation from dust intrusion.

                Where to buy?
                Buy the Panasonic PT-RZ660D 6,200-Lumen WUXGA DLP Projector online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and will give you all the support you need to take the right buying decision in India.



                Technical Specifications of Panasonic PT-RZ660D 6,200-Lumen WUXGA DLP Projector:

                Brand & Model # Panasonic PT-RZ660D
                DLP™ chip
                • Panel Size: 17.0 mm (0.67˝) diagonal (16:10 aspect ratio)
                • Display method: DLP™ chip x 1, DLP™ projection system
                • Pixels: 2,304,000 (1920 x 1200) pixels
                            Lens
                            • Powered zoom (throw ratio 1.7–2.4:1), powered focus
                              F 1.7–1.9, f 25.6–35.7 mm
                                    Light Source
                                    • Laser diodes (Class 1) (Class 3R for US models),
                                      light source life*2: 20,000 hours (Normal Mode) / 24,000 hours (Eco Mode). At this time, brightness will have decreased to approximately half its original level [Operating temperature: 30 °C (86 °F), altitude: 700 m (2,297 ft), dust density 0.15 mg/m3, Dynamic Contrast Mode: 3]
                                    Screen Size (diagonal)
                                    • 1.27–15.24 m (50–600˝), 1.27–5.08 m (50–200˝) with ET-DLE055, 2.54–8.89 m (100–350˝) with ET-DLE030,
                                      16:10 aspect ratio
                                    Brightness
                                    • 6,200 lm (Center)*3 / 6,000 lm*2
                                        Contrast*3

                                        • 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
                                            Resolution
                                            • 1920 x 1200 pixels
                                                Supported RGB Signal
                                                • XGA–WUXGA
                                                Supported Video Signal
                                                • NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i
                                                Optical axis shift*4 (from center of screen)
                                                • Vertical: +50 %, -16 % (powered)
                                                • Horizontal: +30 %, -10 % (+28 %, -10 % with the ET-DLE085/DLE105) (powered)
                                                Keystone correction range*5

                                                • Vertical: ±40 ° (±22 ° with ET-DLE085/DLE055, +5 ° with ET-DLE030), horizontal: ±15 ° (cannot be operated with ET-DLE030)
                                                    Keystone correction range with optional Upgrade Kit ET-UK20*5
                                                    • Vertical: ±45° (±40° with the ET-DLE150/ET-DLE250/supplied lens [DLE170] ), ±22° with the ET-DLE085/ET-DLE055), horizontal: ±40° (±15° with ET-DLE085/ET-DLE055), Up to a total of ±55 ° during simultaneous horizontal and vertical correction.
                                                    Installation
                                                    • Ceiling/floor, front /rear, free 360-degree installation
                                                    Cabinet materials
                                                    • Molded plastic
                                                    Power Supply
                                                    • 100–240 V AC, 10.4–5.0 A, 50/60 Hz
                                                    Power consumption*1
                                                    • 700 W (0.2 W with Standby Mode set to Eco, 3 W with Standby Mode set to Normal, 85 W with Quick Startup set to ON); 499 W (Normal Mode), 428 W (Eco Mode), 287–402 W (Long Life 1 Mode), 262–402 W (Long Life 2 Mode), 238–402 W (Long Life 3 Mode), 69 W (Shutter Mode)
                                                    Dimensions (W x H x D)
                                                    • with supplied lens: 498 x 200*6 x 581 mm (19 19/32˝ x 7 7/8˝*6 x 22 7/8˝) (with supplied lens [DLE170])
                                                    • without lens: 498 x 200*6 x 538 mm (19 19/32˝ x 7 7/8˝*6 x 21 3/16˝) (without lens)
                                                    Weight*7
                                                    • with supplied lens: Approx. 23.1 kg (50.9 lbs)
                                                    • without lens: Approx. 22.3 kg (49.2 lbs)
                                                    Operation noise*2
                                                    • 35 dB
                                                    Applicable Software
                                                    • Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro*9 (ET-UK20 Upgrade Kit*10 and ET-CUK10 Auto Screen Adjustment Kit*11)



                                                    *1 Operating temperature 25 °C (77 °F), altitude 700 m (2,297 ft), IEC62087: 2008 Broadcast Content, Picture Mode: Standard, Dynamic Contrast: 2.

                                                    *2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards.

                                                    *3 Measured at center area of projector screen. Measurement method is in compliance with ISO/IEC 21118: 2012. Value is average of all products when shipped. May differ depending on actual unit.

                                                    *4 Optical axis shift function cannot be operated when used with the ET-DLE055. If using the ET-DLE030, the optical axis is fixed.

                                                    *5 Range varies depending on mounted lens.

                                                    *6 With legs at shortest position.

                                                    *7 Average value. May differ depending on the actual unit.

                                                    *8 When used in locations from 0 m to 4,200 m (0 ft to 13,780 ft) above sea level in Normal Mode, and from 0 m to 2,700 m (0 ft to 8,858 ft) above sea level in other modes. If the ambient temperature exceeds 35 °C (95 °F) when used in locations from 0 m to 2,700 m (0 ft to 8,858 ft) above sea level, or if it exceeds 25 °C (77 °F) when used in locations from 2,700 m to 4,200 m (8,858 ft to 13,780 ft) above sea level, the light output may be reduced to protect the projector.

                                                    *9 Geometry Manager Pro software is available only with PT-RZ770/RZ660.

                                                    *10 ET-UK20 Series is available only with PT-RZ770/RZ660.

                                                    *11 ET-CUK10 Series is available only with PT-RZ770/RZ660.
