Country of Origin: Japan
Ooberpad announces the availability of the feature-packed Rotel C-8 - 8-channel Distribution Amplifier. Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads. The C8 comprises 4 Analog inputs matrixed to all Zones. Front panel display and controls render source and independent volume, bass and treble settings. The custom 2U height need no top or bottom clearance when rack mounting.
Warranty
2-year manufacturer's warranty
Key Features:
- 8 x 70 Watts of robust Class AB power, 4 Ohms
- Class AB amplifier Design
- Custom engineered toroidal transformer
- Rack Ears included
-
12 volt trigger input
Benefits of Rotel C-8 - 8-channel Distribution Amplifier:
Performance meets Efficiency

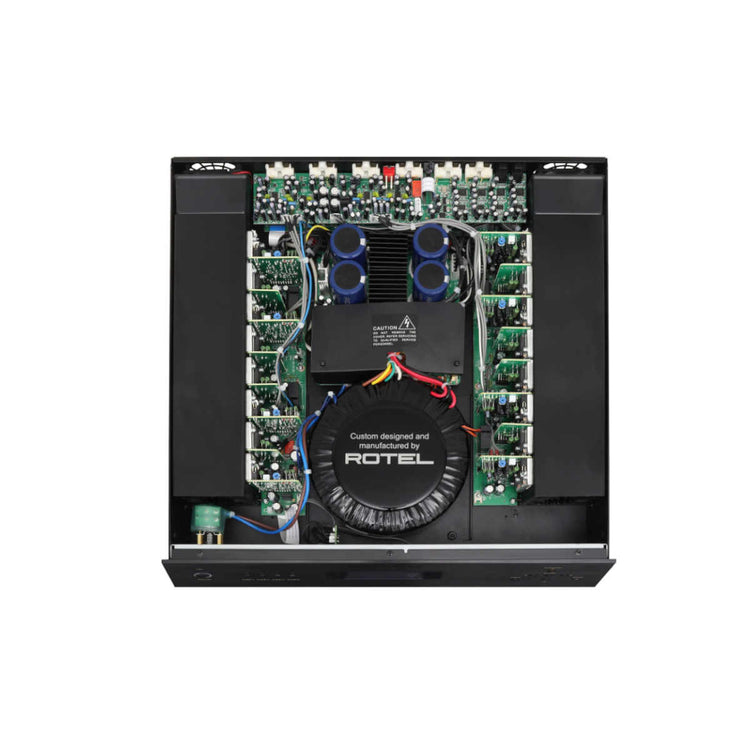

Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads utilizing Rotel’s proprietary amplification technology. The oversized in-house manufactured toroidal transformer drives sixteen output devices for effortless, controlled bass energy. For ultimate installation flexibility the C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide source and independent volume, bass and treble settings. Control system integration is available via IP and RS232 interfaces and 12-Volt trigger. The custom 2U height requires no top or bottom clearance when rack mounting. The C8 is available in black only.
Buy the Rotel C-8 - 8-channel Distribution Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.
Technical Specifications of Rotel C-8 - 8-channel Distribution Amplifier:
| Brand & Model # | Rotel C-8 |
| Maximum Power Output | 70W/Ch (8 channels driven, 4Ω) |
| Continuous Power Output |
50W/Ch (8 channels driven, 8Ω)
|
| Total Harmonic Distortion (THD) |
<0.1%
|
| Frequency Response |
Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB
|
|
S/N RATIO (IHF "A" Weighted) |
Line Level Inputs: 100dB
|
| Gain |
26dB
|
| Intermodulation Distortion (60Hz:7kHz, 4:1) | <0.01% |
| Damping Factor |
>80
|
| Tone Controls | ± 10dB at 100Hz / 10kHz |
| Crosstalk/Separation | >50dB |
| Input Sensitivity | Line Level Inputs: 0.3V |
| Input Impedance | Line Level Inputs: 31kΩ |
| Input Overload | Line Level Inputs (RCA): 2.8V |
| Power Requirements |
230V, 50Hz
|
|
Power Consumption |
570W |
| Standby Power Consumption |
Normal: <0.5W
Network Standby: <2W
|
|
BTU Rating |
1537 BTU/h |
| Dimensions (W x H x D) |
430 × 97 × 414mm
17" × 3.9" × 16.3" |
| Front Panel Height |
2U / 88.1mm (3.5")
|
| Net Weight |
16.7kg (36.81lbs.)
|
