Denon PMA-60 Digital Integrated Stereo Amplifier
Country of Origin: Japan
Ooberpad announces the availability of the feature-packed Denon PMA-60 Digital Integrated Stereo Amplifier. For more than a century, Denon is an embodiment of precision-engineering of the perfect sound – that’s why, in the early years, Denon called their Hi-Fi products “precision audio components”. And their approach hasn’t changed since: it’s all about performance. With this being factored, Denon decided that, though the latest products should be compact, and with unique and sleek styling, they should be true high fidelity components. In nutshell, they should be absolutely Denon. Introducing the Denon Design Series: Real Hi-Fi For contemporary lifestyles.
The PMA-60 amplifier packs a punch with true Denon sound, with outstanding performance despite its compact size. And it does so using Denon technology developed over many years, such as the Advanced AL32 audio processing it uses to turn digital data into beautiful music. With analogue and digital connectivity as well as Bluetooth®, audio streaming from your computer or a portable device is a piece of cake. And if you’re keen on high-resolution audio, this amp will be your perfect choice because of its USB-B input. Its 50W per channel output makes it suitable for a wide range of speaker types. Its compact design allows it to fit in limited spaces and you can even place the PMA-60 vertically – the orientation of the OLED display will adjust accordingly.
1-year manufacturer's warranty
- Class D power with new generation DDFA amplifier technology
- Fully digital processing
- "Advanced AL32 Processing Plus" brings the high-resolution sound closer to the original recording
- DSD 11.2 MHz & PCM 384 kHz / 32 bit compatible USB-DAC
- Digital isolator shuts out PC noise
- Advanced master clock design
- High quality headphone amplifier
- Bluetooth compatible (aptX™ Low Latency / AAC / SBC, NFC compatible)
- Superbly finished aluminium panels
Benefits of Denon PMA-60 Digital Integrated Stereo Amplifier:
Fully Digital Processing
Since DDFA is a digital input type Class D amplifier, when playing back a digital source, interpolation processing by "Advanced AL32 PP" technology, volume adjustment, amplification, and feedback management is all undertaken in the digital domain. This makes it possible to eliminate the influence of external noise which can become a problem with analogue amplifiers. The end result is a broad soundstage with excellent transparency and resolution.
* Advanced AL32 Processing Plus is compatible with PCM signals only
Bespoke Hi-Fi components taken from Denon’s high-end "NE series"
Denon has employed a number of audio electrolytic capacitors, resistors, film capacitors that are also used in the "NE series", a new generation of Denon's renowned Hi-Fi components. These optimum parts are selected by Denon's lead sound engineer only after repeated auditions. To further refine sound quality, Denon introduced custom parts developed in collaboration with electrolytic capacitors parts manufacturers.
Powerful and Detailed Sound
The advanced amplifier section incorporates Qualcomm DDFA® technology for an amazing sound from a compact form factor. The output stage circuit has a discrete construction which realizes higher Signal-to-Noise-ratio and lower distortion compared to conventional class D amplifiers. This advanced amplifier system delivers superior audio fidelity along with high amplifier efficiency at 50W into 4 ohms. The premium grade multi-way speaker connectors let you connect speaker cables via bare wire, pin connectors as well as banana plug connectors.
Master Clock Design
Advanced AL32 Adopt master clock design that operates FPGA and USB digital audio interface with master clock supplied from ultra-low jitter clock placed close to FPGA that performs processing such as Processing Plus. By precisely synchronizing each digital circuit with high quality master clock, high quality reproduction with reduced jitter is realized. In addition, it switches the two systems of clocks of the 44.1 kHz system and the 48 kHz system according to the sampling rate of the input signal, and supplies the clock of the optimum frequency. By eliminating jitter due to non-integral multiplication, waveform fluctuation in the time axis direction is suppressed and perform ideal signal processing.
Unique Denon Audio Processing
For the ultimate fidelity with your favourite digital audio tracks, the PMA-60 features Denon's Advanced AL32 digital audio processing system. Featured on Denon's premium audiophile disc players and digital audio components, Advanced AL32 processing upconverts, digitally filters and noise-shapes lower bit data to full 32-bits, delivering remarkable dynamic range and noticeably better low level resolution. Your digital audio tracks have never sounded better.
192kHz/24-bit Digital Input Compatible

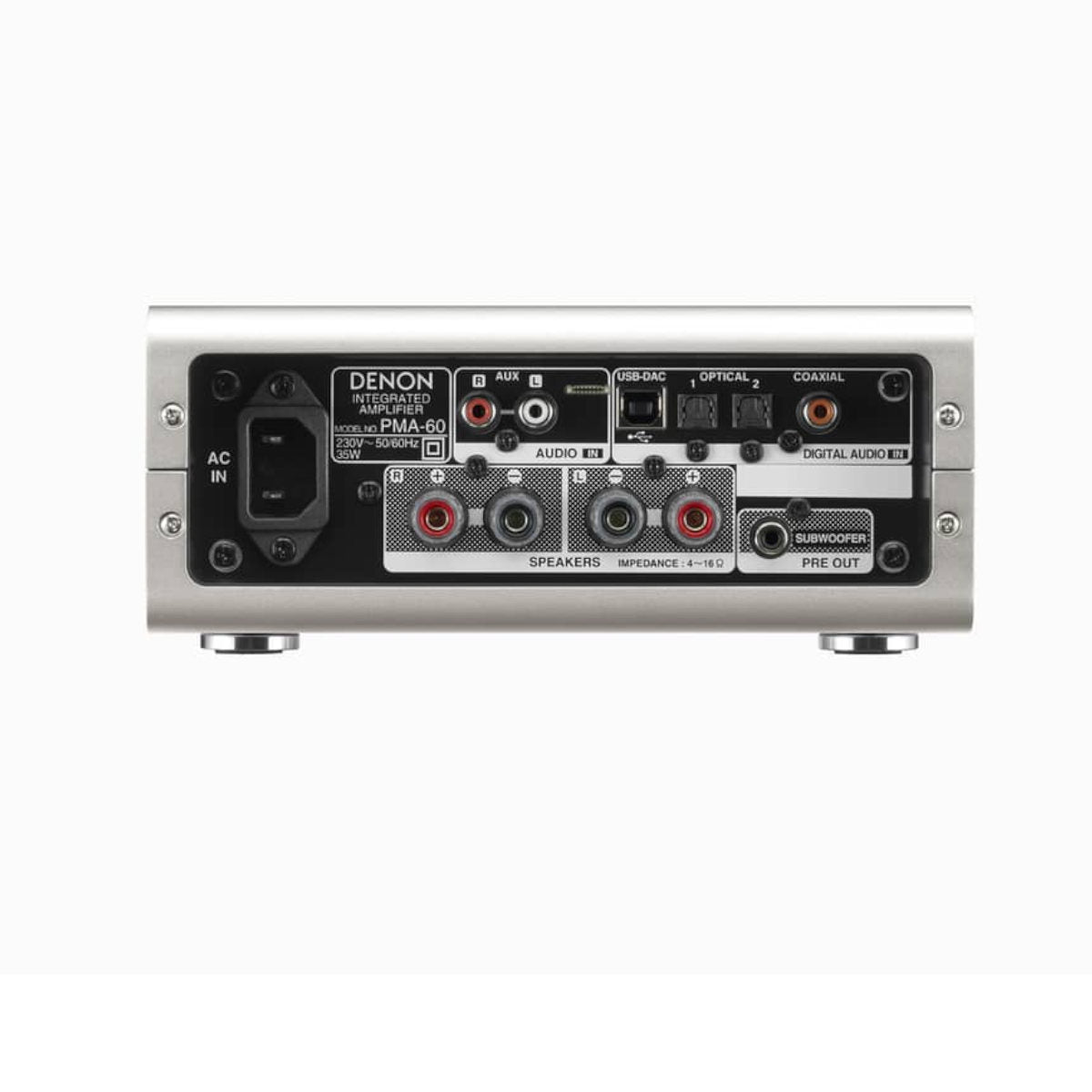

The PMA-60 has two optical digital inputs and one coaxial digital input that can connect digital equipment such as TVs and CD players. These inputs are compatible with high resolution sound sources up to a maximum of 192kHz/24-bit.
High Resolution Audio via your computer
Via the USB-B input on the back panel, you can connect your Mac or PC to the PMA-60 and enjoy high resolution audio tracks. The PMA-60 can play high resolution PCM files of up to 32-bits/384-kHz along with high resolution DSD 2.8 MHz, 5.6 MHz and even 11.2 MHz files (DSD is the advanced digital audio coding system of SACD). A USB-A to USB-B cable is included. To eliminate induced digital noise via the USB input, the PMA-60 features a dedicated noise isolation block prior to the digital amplifier and D/A conversion block that prevents digital noise from degrading the audio fidelity.
High Quality Headphone Output
For top audio fidelity the PMA-60 is equipped with a dedicated headphone amplifier circuit that features a high speed ultra low distortion wideband op amp that's paired with a fully discrete final output stage. In order to accommodate the widest range of headphone types, the PMA-60 features an adjustable headphone impedance control, with 3 settings for low, medium and high impedance headphones which provide proper matching of headphone impedance and amplifier gain. The headphone jack features a 6.3mm connector for compatibility with premium home and professional studio headphone models.
Pure Class Elegantly Designed
The Denon Design Series stands out, thanks to its combination of soft-look aluminium, bright silver tone accents and a mixture of glossy and matt black surfaces. Crisp OLED displays tell you all you need to know at a glance, using icons and text. And the PMA-60 and DCD-50 make a real statement also when used horizontally or vertically.
Where to buy?
Buy the Denon PMA-60 Digital Integrated Stereo Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you support to help you take the right buying decision in India.
Technical Specifications of Denon PMA-60 Digital Integrated Stereo Amplifier:
|Brand & Model #||Denon PMA-60|
|Power Amplifier Section
PN: All Pre-order/On-Order/Special-Color takes minimum 4-6 weeks to arrange from brand. Please speak with Customer Support Representative incase of any queries.
