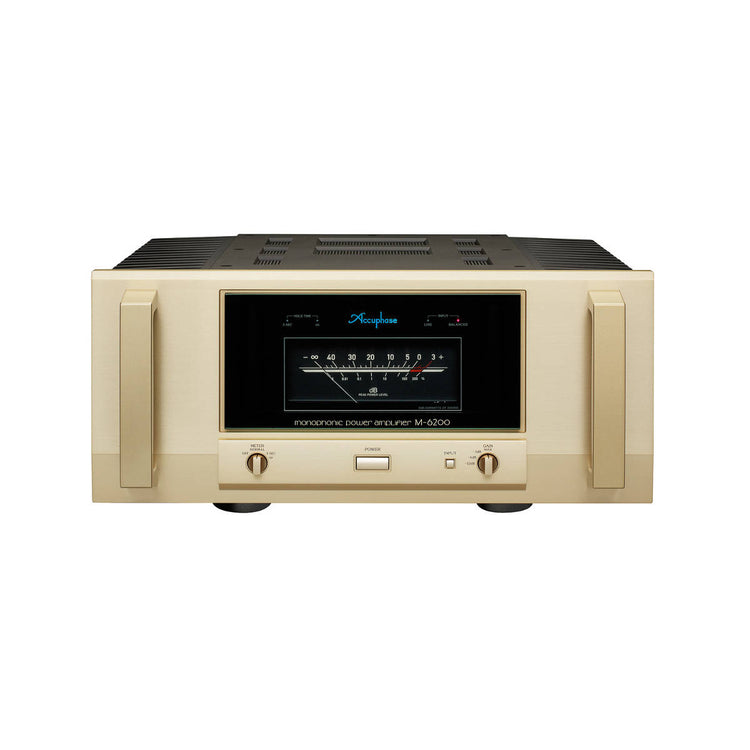

Accuphase M-6200 Monophonic Power Amplifier - Ooberpad India

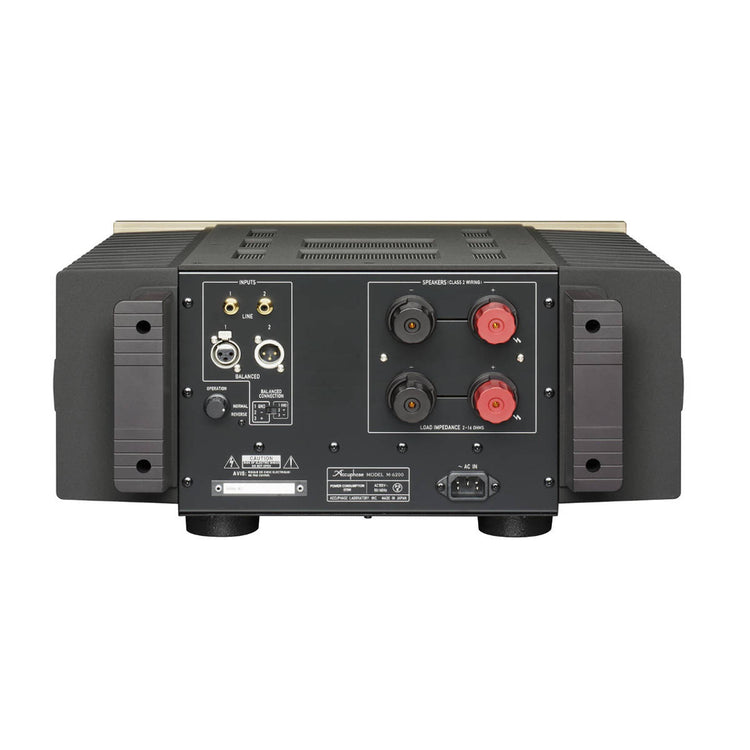

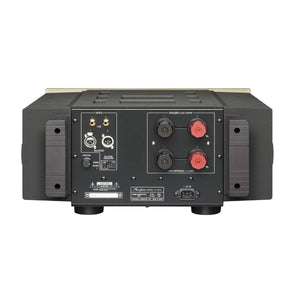

Accuphase M-6200 Mono Power Amp - Rear View
    Accuphase M-6200 Monophonic Power Amplifier - Ooberpad India
    Accuphase M-6200 Mono Power Amp - Rear View
Accuphase M-6200 Monophonic Power Amplifier - Ooberpad India
Accuphase M-6200 Mono Power Amp - Rear View
Accuphase M-6200 Monophonic Power Amplifier - Ooberpad India
Accuphase M-6200 Mono Power Amp - Rear View
    Accuphase M-6200 Monophonic Power Amplifier - Ooberpad India
    Accuphase M-6200 Mono Power Amp - Rear View
Accuphase M-6200 Monophonic Power Amplifier - Ooberpad India
Accuphase M-6200 Mono Power Amp - Rear View

About

Description

Ooberpad announces the availability of the feature-packed Accuphase M-6200 Monophonic Power Amplifier. The M-6200 approaches the concept of the power amplifier from a new vantage point. It achieves a remarkable level of performance that again redefines what a monophonic power amplifier can be. Retaining the parallel arrangement of two completely identical amplification circuits, the M-6200 radically cuts down the noise floor and improves the damping factor. The parallel operation has the benefit of superbly bolstering output current capability, as well as enabling extremely low output impedance. Furthermore, enhancements to the NFB circuit leveraging remote sensing and other technological refinements result in a damping factor in excess of 1,000 and make the amplifier capable of delivering constant current down to extremely low impedance loads. In the input stage, parallel operation along with optimized gain allocation keeps noise levels to a barely perceptible level, as illustrated by the surprising S/N ratio of 127 dB at maximum gain and 133 dB at the -12 dB gain setting.

Warranty

1-year manufacturer's warranty

Key Features:

  • Two totally identical power amplifier units driven in parallel
  • Output stage features novel high-power transistor devices in a dual 8-parallel push-pull arrangement
  • Latest low-noise instrumentation amplifier technology
  • MCS+ circuit and current feedback topology in amplification stage
  • Support for bridged use of two M-6200 units with even higher output power
  • Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors

Benefits of Accuphase M-6200 Monophonic Power Amplifier:

Low Noise Instrumentation Amplifier
Low Noise Instrumentation Amplifier

The balanced input stage circuitry features instrumentation amplifier topology such as used in high-precision measuring equipment. This approach ensures perfectly matched input conditions for the positive and negative side of the signal and thereby allows the realization of high-performance balanced signal transmission.

MCS+ (Multiple Circuit Summing) circuit in amplifier section drastically improves S/N ratio
MCS+ (Multiple Circuit Summing) circuit in amplifier section drastically improves S/N ratio

The input stage of the amplifier section features another Accuphase innovation: MCS+ (Multiple Circuit Summing). This innovative method further reduces noise and at the same time helps to ensure rock-stable performance.

Current Feedback Principle provides excellent phase characteristics in high frequency range

The M-6200 uses the output signal current rather than voltage for feedback. Since the impedance at the current feedback point is very low, there is almost no phase shift. A minimal amount of NFB therefore results in maximum improvement of circuit parameters. The principle provides excellent stability and is ideally suited to power amplifiers that handle signals ranging from extremely low to dynamic, high-volume levels.

Where to buy?
Buy the Accuphase M-6200 Monophonic Power Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Accuphase M-6200 Mono Power Amp:

Brand & Model # Accuphase M-6200
Continuous Average Output Power (20 - 20,000 Hz)
  • 1,200 watts into 1 ohm (1-ohm loads allowed with music signals only) 600 watts into 2 ohms 300 watts into 4 ohms 150 watts into 8 ohms
  • Bridged mode (2 units): 2,400 watts into 2 ohms (2-ohm loads allowed with music signals only) 1,200 watts into 4 ohms 600 watts into 8 ohms
    Total Harmonic Distortion
    • 0.05% with a 2-ohm load
    • 0.03% with a 4 to 16-ohm load
    Inputs/Outputs
    • 0.01%
      Frequency Response
      • At rated continuous average output: 20 – 20,000 Hz +0 -0.2 dB
      • At 1 watt output: 0.5 – 160,000 Hz +0 -3.0 dB
      Gain
      • 28.0 dB (GAIN selector in MAX position)
      Gain Selection
      • -12 dB, -6 dB, -3 dB, MAX
      Output Load Impedance
      • Continuous output: 2 to 16 ohms
      • With music signals: 1 to 16 ohms
      Input Sensitivity (with 8-ohm load)
      • 1.38 V for rated continuous average output
      • 0.11 V for 1 watt output
      Input Impedance
      • Balanced: 40 kilohms
      • Line: 20 kilohms
      Signal-to-Noise Ratio (A-weighted, with input shorted)
      • 127 dB (GAIN selector in MAX position)
      • 133 dB (GAIN selector in -12 dB position) At rated continuous average output
      Output Level Meter
      • -40 dB to +3 dB (dB / % indication) Logarithmic compression scale
      • Display illumination off switch
      • Peak hold time select: 3 seconds, ∞
      Power Consumption
      • 100 watts idle
      Maximum Dimensions
      • Width: 465 mm (183.1")
      • Height: 220 mm (86.6")
      • Depth: 499 mm (196.5")
      Weight
      • 40.2 kg (88.6 lbs) net
      Description

      Ooberpad announces the availability of the feature-packed Accuphase M-6200 Monophonic Power Amplifier. The M-6200 approaches the concept of the power amplifier from a new vantage point. It achieves a remarkable level of performance that again redefines what a monophonic power amplifier can be. Retaining the parallel arrangement of two completely identical amplification circuits, the M-6200 radically cuts down the noise floor and improves the damping factor. The parallel operation has the benefit of superbly bolstering output current capability, as well as enabling extremely low output impedance. Furthermore, enhancements to the NFB circuit leveraging remote sensing and other technological refinements result in a damping factor in excess of 1,000 and make the amplifier capable of delivering constant current down to extremely low impedance loads. In the input stage, parallel operation along with optimized gain allocation keeps noise levels to a barely perceptible level, as illustrated by the surprising S/N ratio of 127 dB at maximum gain and 133 dB at the -12 dB gain setting.

      Warranty

      1-year manufacturer's warranty

      Key Features:

      • Two totally identical power amplifier units driven in parallel
      • Output stage features novel high-power transistor devices in a dual 8-parallel push-pull arrangement
      • Latest low-noise instrumentation amplifier technology
      • MCS+ circuit and current feedback topology in amplification stage
      • Support for bridged use of two M-6200 units with even higher output power
      • Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors

      Benefits of Accuphase M-6200 Monophonic Power Amplifier:

      Low Noise Instrumentation Amplifier
      Low Noise Instrumentation Amplifier

      The balanced input stage circuitry features instrumentation amplifier topology such as used in high-precision measuring equipment. This approach ensures perfectly matched input conditions for the positive and negative side of the signal and thereby allows the realization of high-performance balanced signal transmission.

      MCS+ (Multiple Circuit Summing) circuit in amplifier section drastically improves S/N ratio
      MCS+ (Multiple Circuit Summing) circuit in amplifier section drastically improves S/N ratio

      The input stage of the amplifier section features another Accuphase innovation: MCS+ (Multiple Circuit Summing). This innovative method further reduces noise and at the same time helps to ensure rock-stable performance.

      Current Feedback Principle provides excellent phase characteristics in high frequency range

      The M-6200 uses the output signal current rather than voltage for feedback. Since the impedance at the current feedback point is very low, there is almost no phase shift. A minimal amount of NFB therefore results in maximum improvement of circuit parameters. The principle provides excellent stability and is ideally suited to power amplifiers that handle signals ranging from extremely low to dynamic, high-volume levels.

      Where to buy?
      Buy the Accuphase M-6200 Monophonic Power Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

      Technical Specifications of Accuphase M-6200 Mono Power Amp:

      Brand & Model # Accuphase M-6200
      Continuous Average Output Power (20 - 20,000 Hz)
      • 1,200 watts into 1 ohm (1-ohm loads allowed with music signals only) 600 watts into 2 ohms 300 watts into 4 ohms 150 watts into 8 ohms
      • Bridged mode (2 units): 2,400 watts into 2 ohms (2-ohm loads allowed with music signals only) 1,200 watts into 4 ohms 600 watts into 8 ohms
        Total Harmonic Distortion
        • 0.05% with a 2-ohm load
        • 0.03% with a 4 to 16-ohm load
        Inputs/Outputs
        • 0.01%
          Frequency Response
          • At rated continuous average output: 20 – 20,000 Hz +0 -0.2 dB
          • At 1 watt output: 0.5 – 160,000 Hz +0 -3.0 dB
          Gain
          • 28.0 dB (GAIN selector in MAX position)
          Gain Selection
          • -12 dB, -6 dB, -3 dB, MAX
          Output Load Impedance
          • Continuous output: 2 to 16 ohms
          • With music signals: 1 to 16 ohms
          Input Sensitivity (with 8-ohm load)
          • 1.38 V for rated continuous average output
          • 0.11 V for 1 watt output
          Input Impedance
          • Balanced: 40 kilohms
          • Line: 20 kilohms
          Signal-to-Noise Ratio (A-weighted, with input shorted)
          • 127 dB (GAIN selector in MAX position)
          • 133 dB (GAIN selector in -12 dB position) At rated continuous average output
          Output Level Meter
          • -40 dB to +3 dB (dB / % indication) Logarithmic compression scale
          • Display illumination off switch
          • Peak hold time select: 3 seconds, ∞
          Power Consumption
          • 100 watts idle
          Maximum Dimensions
          • Width: 465 mm (183.1")
          • Height: 220 mm (86.6")
          • Depth: 499 mm (196.5")
          Weight
          • 40.2 kg (88.6 lbs) net
