Description

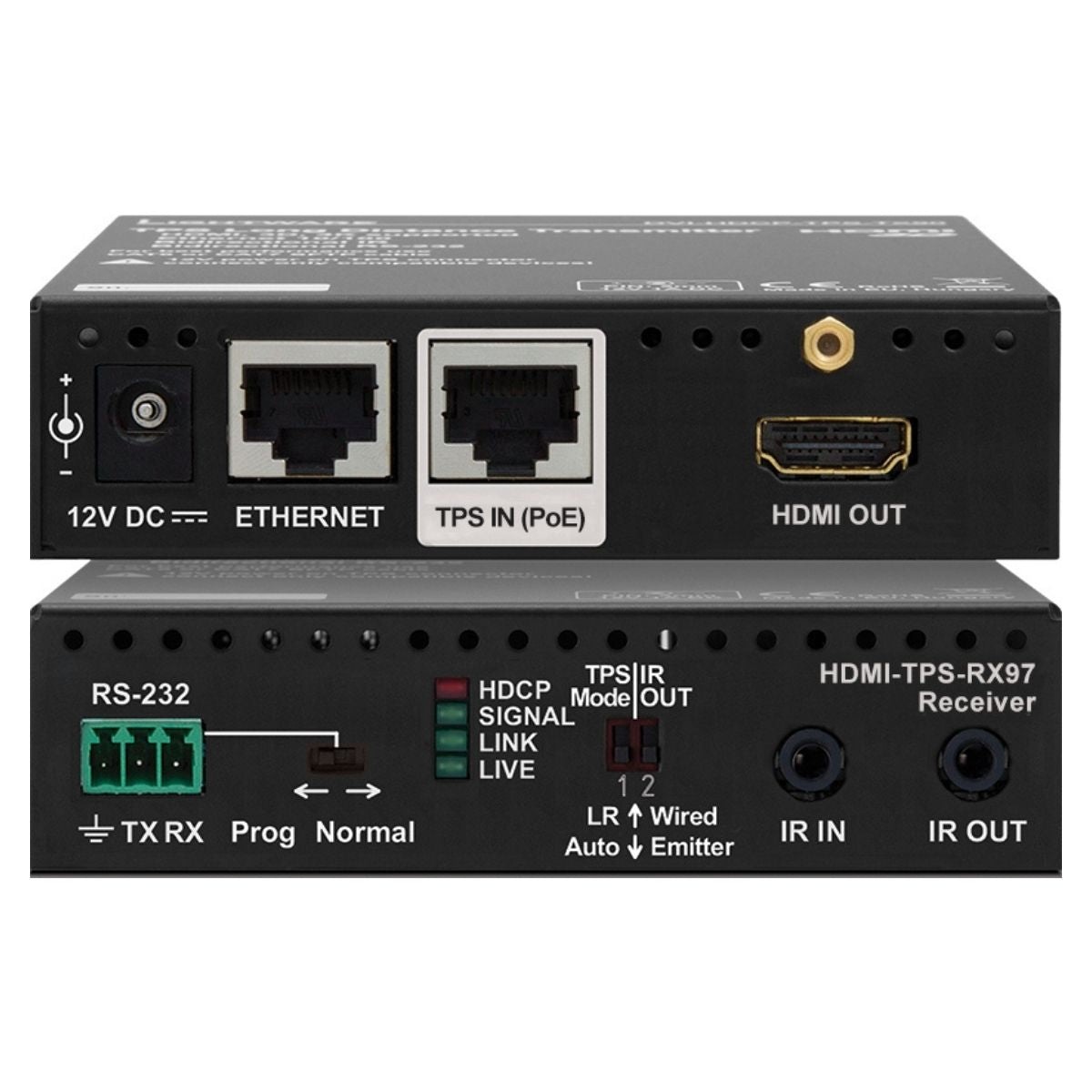

HDMI-TPS-TX97 and HDMI-TPS-RX97 twisted pair HDBaseT™ compatible extenders provide extension of uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) for long distances over a single CATx cable. The unit offers bi-directional RS-232, IR, and Ethernet pass-through on the same CATx cable that carries the video signal. The TPS extenders support full HDCP and EDID compliance and work on all standard AV resolutions up to 4K and 48-bit color depth handling all standard audio formats and also 120 Hz 3D signals. PoE 48V remote powering is available through a single CATx cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used standalone.

The auto operation mode allows the device to detect the far end extender’s mode and adopt it. If the far end device is in Auto mode or it is a third party HDBaseT™ device the link will be set to HDBT mode. If the far device is in forced Long Reach Mode then the auto operation will set the Link to Long Reach Mode. The IR OUT can operate in either Wired (unmodulated) or Emitter (modulated) mode.

Key Features:

  • Ethernet extension (100 Mbps)
  • Selectable IR output mode for emitter or wired connectivity
  • Bi-directional RS-232 and IR extension (pass-through)
  • Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
  • Can be remote powered through CATx cable (PoE PD)
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • Supports all VESA and HDTV resolutions

Applications

    • Post production studios
    • Control room
    • Digital Signage
    • Multiroom video
    • Conference rooms, collaborative telepresence

    Where to buy?
    Buy Lightware HDMI-TPS-RX97 single CATx cable with Poe online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

    Technical Specifications of Lightware HDMI-TPS-RX97 single CATx cable with Poe:

    Brand & Model # Lightware HDMI-TPS-RX97
    Power:
    • Universal power adaptor, DC 12 V 2.5 A OR PoE 48V
    Data rate:
    • 3.4 Gbps per color
    Equalization
    • Adaptive, automatic
    HDCP pass through:
    • Yes
    Ethernet pass-through:
    • Yes
    RS-232 pass through:
    • Yes
    Dimensions:
    • 100.4 W x 100.4 D x 26 H mm
    Weight
    • 330 g / product
    Description

    HDMI-TPS-TX97 and HDMI-TPS-RX97 twisted pair HDBaseT™ compatible extenders provide extension of uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) for long distances over a single CATx cable. The unit offers bi-directional RS-232, IR, and Ethernet pass-through on the same CATx cable that carries the video signal. The TPS extenders support full HDCP and EDID compliance and work on all standard AV resolutions up to 4K and 48-bit color depth handling all standard audio formats and also 120 Hz 3D signals. PoE 48V remote powering is available through a single CATx cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used standalone.

    The auto operation mode allows the device to detect the far end extender’s mode and adopt it. If the far end device is in Auto mode or it is a third party HDBaseT™ device the link will be set to HDBT mode. If the far device is in forced Long Reach Mode then the auto operation will set the Link to Long Reach Mode. The IR OUT can operate in either Wired (unmodulated) or Emitter (modulated) mode.

    Key Features:

    • Ethernet extension (100 Mbps)
    • Selectable IR output mode for emitter or wired connectivity
    • Bi-directional RS-232 and IR extension (pass-through)
    • Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
    • Can be remote powered through CATx cable (PoE PD)
    • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
    • Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
    • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
    • Supports all VESA and HDTV resolutions

    Applications

      • Post production studios
      • Control room
      • Digital Signage
      • Multiroom video
      • Conference rooms, collaborative telepresence

      Where to buy?
      Buy Lightware HDMI-TPS-RX97 single CATx cable with Poe online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

      Technical Specifications of Lightware HDMI-TPS-RX97 single CATx cable with Poe:

      Brand & Model # Lightware HDMI-TPS-RX97
      Power:
      • Universal power adaptor, DC 12 V 2.5 A OR PoE 48V
      Data rate:
      • 3.4 Gbps per color
      Equalization
      • Adaptive, automatic
      HDCP pass through:
      • Yes
      Ethernet pass-through:
      • Yes
      RS-232 pass through:
      • Yes
      Dimensions:
      • 100.4 W x 100.4 D x 26 H mm
      Weight
      • 330 g / product
      Lightware by Lightware

      Lightware HDMI-TPS-RX97 single CATx cable with Poe

      Regular price
      ₹ 41,445.00
      Sale price
      ₹ 41,445.00
      Regular price
      Tax included.

      Country of Origin: Usa
