Description

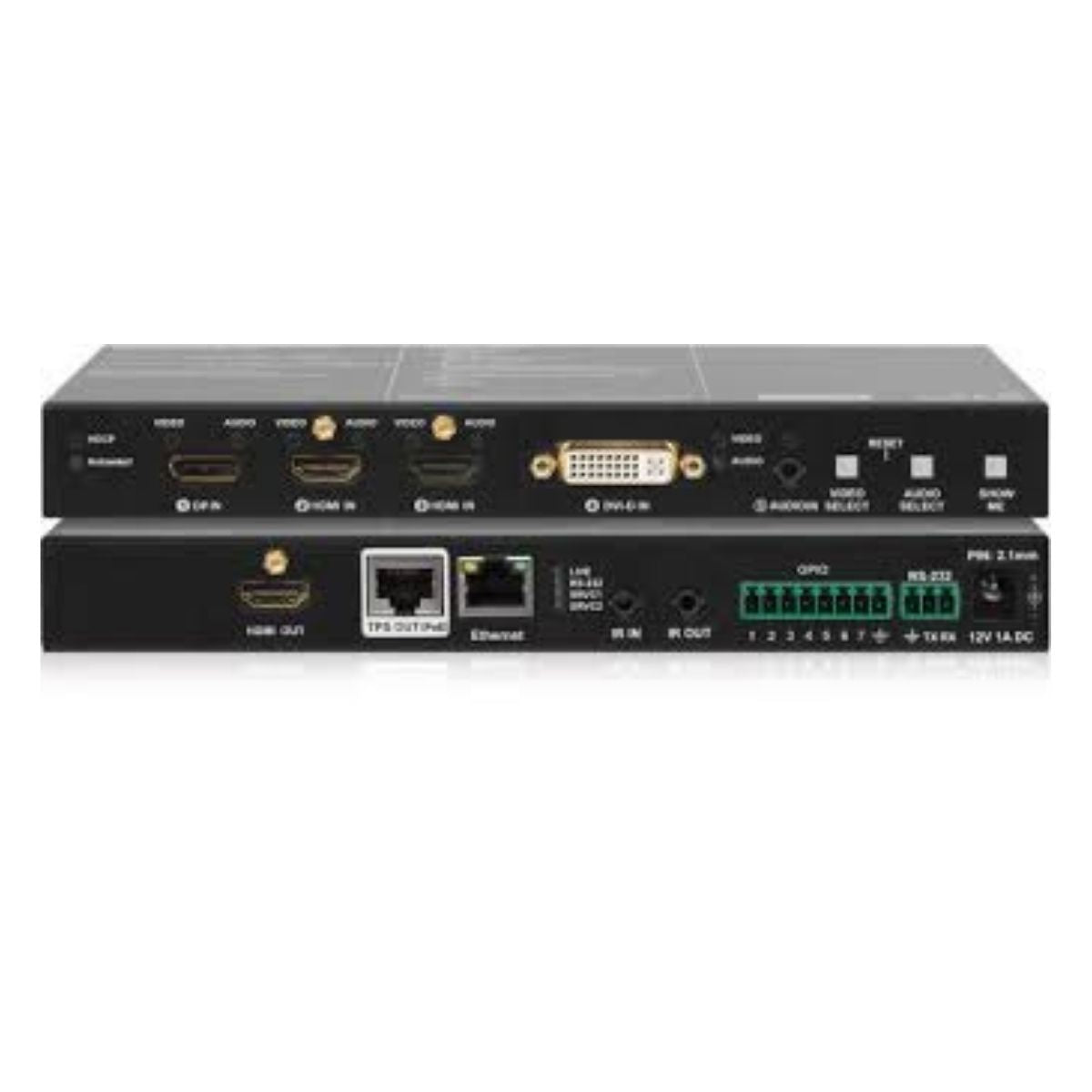

SW4-TPS-TX240 is a top smart extender in the TPS (HDBaseTTM) product family. The device is an all-round video, audio and control extender, transmitting over a single CAT5 or better class cable up to a range of 170 m for dynamic environments such as small board rooms and classrooms. The extender was designed to handle HDMI 1.4 and DP 1.1 digital video signals and analog stereo audio from local inputs or HDMI or DP embedded audio up to eight Channel PCM or HBR audio. Analog audio is converted to a digital format. The device has a local HDMI video output. The video and the embedded audio of the local output is the same as transmitted via TPS link. The SW4-TPS-TX240 handles HDCP encryption. Using the factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format to conform to the system requirements. The unit offers bi-directional and transparent IR, RS232 and Ethernet transmission. Furthermore the RS232 and IR connection supports command injection. Remote powering is available through the single CAT cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used in standalone formats. SW4-TPS-TX240 is compatible with both the HDBaseT extenders and matrix switchers.

Key Features:

  • Built-in Event Manager control automation feature
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • Extends DVI, HDMI 1.4 or DP 1.1 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
  • Audio embedding (or replace original audio)
  • Ethernet extension (100 Mbps)
  • Command injection on RS-232 and IR ports
  • GPIO control ports
  • Bi-directional RS-232 and IR extension (pass-through and control)
  • Can be remote powered through CATx cable (PoE PD)
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant


      Where to buy?

      Buy Lightware SW4-TPS-TX240 TPS (HDBaseT™) switcher and transmitter online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

      Technical Specifications:

      Brand & Model # Lightware HDMISW4-TPS-TX240
      Input cable equalization:
      • 4K UHD/15m; FullHD/30m
      EDID emulation
      • Yes, Advanced EDID Management
      HDCP pass-through

                Yes

      Digital video input:
      • HDMI connector, DVI-D connector, DisplayPort
      Digital video output
      • HDMI connector
      Audio input
      • 3.5 mm stereo jack
      Volume
      • -96 .. 0 dB
      Balance
      • 0 .. 100%
      Dimensions:       221 W x 100.4 D x 26 H mm
      Description

      SW4-TPS-TX240 is a top smart extender in the TPS (HDBaseTTM) product family. The device is an all-round video, audio and control extender, transmitting over a single CAT5 or better class cable up to a range of 170 m for dynamic environments such as small board rooms and classrooms. The extender was designed to handle HDMI 1.4 and DP 1.1 digital video signals and analog stereo audio from local inputs or HDMI or DP embedded audio up to eight Channel PCM or HBR audio. Analog audio is converted to a digital format. The device has a local HDMI video output. The video and the embedded audio of the local output is the same as transmitted via TPS link. The SW4-TPS-TX240 handles HDCP encryption. Using the factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format to conform to the system requirements. The unit offers bi-directional and transparent IR, RS232 and Ethernet transmission. Furthermore the RS232 and IR connection supports command injection. Remote powering is available through the single CAT cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used in standalone formats. SW4-TPS-TX240 is compatible with both the HDBaseT extenders and matrix switchers.

      Key Features:

      • Built-in Event Manager control automation feature
      • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
      • Extends DVI, HDMI 1.4 or DP 1.1 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
      • Audio embedding (or replace original audio)
      • Ethernet extension (100 Mbps)
      • Command injection on RS-232 and IR ports
      • GPIO control ports
      • Bi-directional RS-232 and IR extension (pass-through and control)
      • Can be remote powered through CATx cable (PoE PD)
      • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
      • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant


          Where to buy?

          Buy Lightware SW4-TPS-TX240 TPS (HDBaseT™) switcher and transmitter online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

          Technical Specifications:

          Brand & Model # Lightware HDMISW4-TPS-TX240
          Input cable equalization:
          • 4K UHD/15m; FullHD/30m
          EDID emulation
          • Yes, Advanced EDID Management
          HDCP pass-through

                    Yes

          Digital video input:
          • HDMI connector, DVI-D connector, DisplayPort
          Digital video output
          • HDMI connector
          Audio input
          • 3.5 mm stereo jack
          Volume
          • -96 .. 0 dB
          Balance
          • 0 .. 100%
          Dimensions:       221 W x 100.4 D x 26 H mm
          Lightware by Lightware

          Lightware SW4-TPS-TX240 TPS (HDBaseT™) switcher and transmitter

          Regular price
          ₹ 102,681.00
          Sale price
          ₹ 102,681.00
          Regular price
          Tax included.

          Country of Origin: Usa
