Description

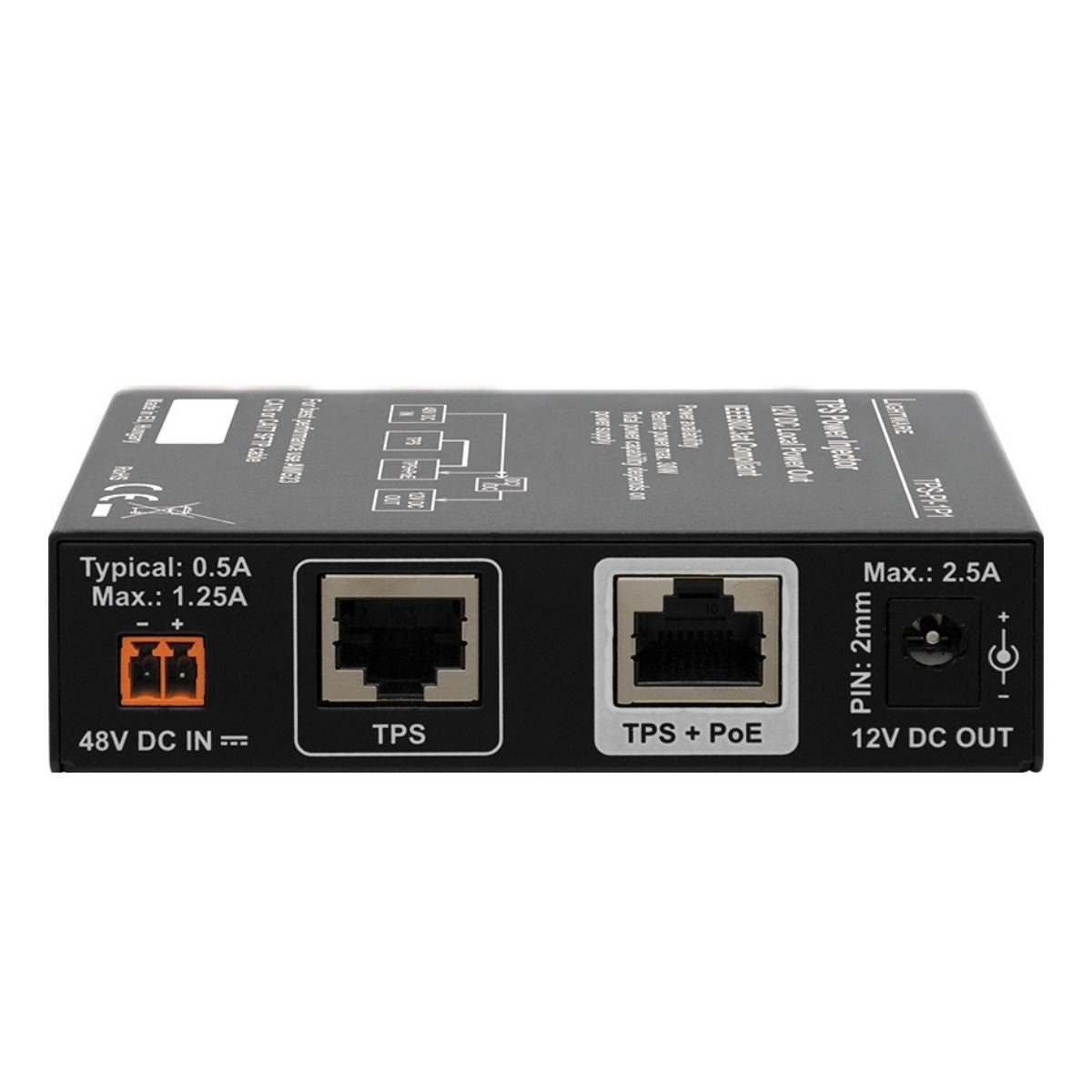

S-PI-1P1 is an IEEE802.3at compatible high end remote power injector device providing power to a remote TPS transmitter or receiver. The TPS-PI-1P1 is able to power a TPS extender placed in the TPS transmission chain, anywhere between the transmitter and the receiver unit. The incoming data stays untouched, the signal quality is unaffected but a 48V DC remote power is added to the signal by this device. This unit provides a uni-directional remote power only, but thanks to the 12V local output option the other device can be powered with the TPS-PI-1P1 if they are placed close to each other. Powering of the injector itself is provided by it’s own included power adapter. TPS-PI-1P1 has four front panel LED indicators for monitoring of the operation and troubleshooting: Power overload, 12V DC out active, Remote power out active and 48V DC in present.

Key Features:

  • Built-in PoE injector* for remote powering extenders
  • HDBaseT compatible
  • Single port 48V remote power feed to a TPS endpoint
  • Feeding up to 30W power
  • 12V DC local power output

Where to buy?
Buy Lightware TPS-PI-1P1 HDBaseTTM Power Injector online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Lightware TPS-PI-1P1 HDBaseTTM Power Injector:

Brand & Model # Lightware TPS-PI-1P1
 TPS+PoE power output
  •  Max. 30 W
 Local power output
  •  Max. 30 W (2.5A@12V)
 Power consumption
  •  4W typ., 8W max.
 Enclosure
  •  1 mm metal
 TPS input
  • RJ-45
 TPS+PoE output
  • RJ-45
 48V DC power input
  •  2-pole 3.5mm PHOENIX
 12V DC power output
  •  Locking DC connector (2.1 / 5.5 mm)
 Dimensions
  •  100,4 W x 26 H x 67,6 D mm
 Weight
  •  224 g
Description

S-PI-1P1 is an IEEE802.3at compatible high end remote power injector device providing power to a remote TPS transmitter or receiver. The TPS-PI-1P1 is able to power a TPS extender placed in the TPS transmission chain, anywhere between the transmitter and the receiver unit. The incoming data stays untouched, the signal quality is unaffected but a 48V DC remote power is added to the signal by this device. This unit provides a uni-directional remote power only, but thanks to the 12V local output option the other device can be powered with the TPS-PI-1P1 if they are placed close to each other. Powering of the injector itself is provided by it’s own included power adapter. TPS-PI-1P1 has four front panel LED indicators for monitoring of the operation and troubleshooting: Power overload, 12V DC out active, Remote power out active and 48V DC in present.

Key Features:

  • Built-in PoE injector* for remote powering extenders
  • HDBaseT compatible
  • Single port 48V remote power feed to a TPS endpoint
  • Feeding up to 30W power
  • 12V DC local power output

Where to buy?
Buy Lightware TPS-PI-1P1 HDBaseTTM Power Injector online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Lightware TPS-PI-1P1 HDBaseTTM Power Injector:

Brand & Model # Lightware TPS-PI-1P1
 TPS+PoE power output
  •  Max. 30 W
 Local power output
  •  Max. 30 W (2.5A@12V)
 Power consumption
  •  4W typ., 8W max.
 Enclosure
  •  1 mm metal
 TPS input
  • RJ-45
 TPS+PoE output
  • RJ-45
 48V DC power input
  •  2-pole 3.5mm PHOENIX
 12V DC power output
  •  Locking DC connector (2.1 / 5.5 mm)
 Dimensions
  •  100,4 W x 26 H x 67,6 D mm
 Weight
  •  224 g
