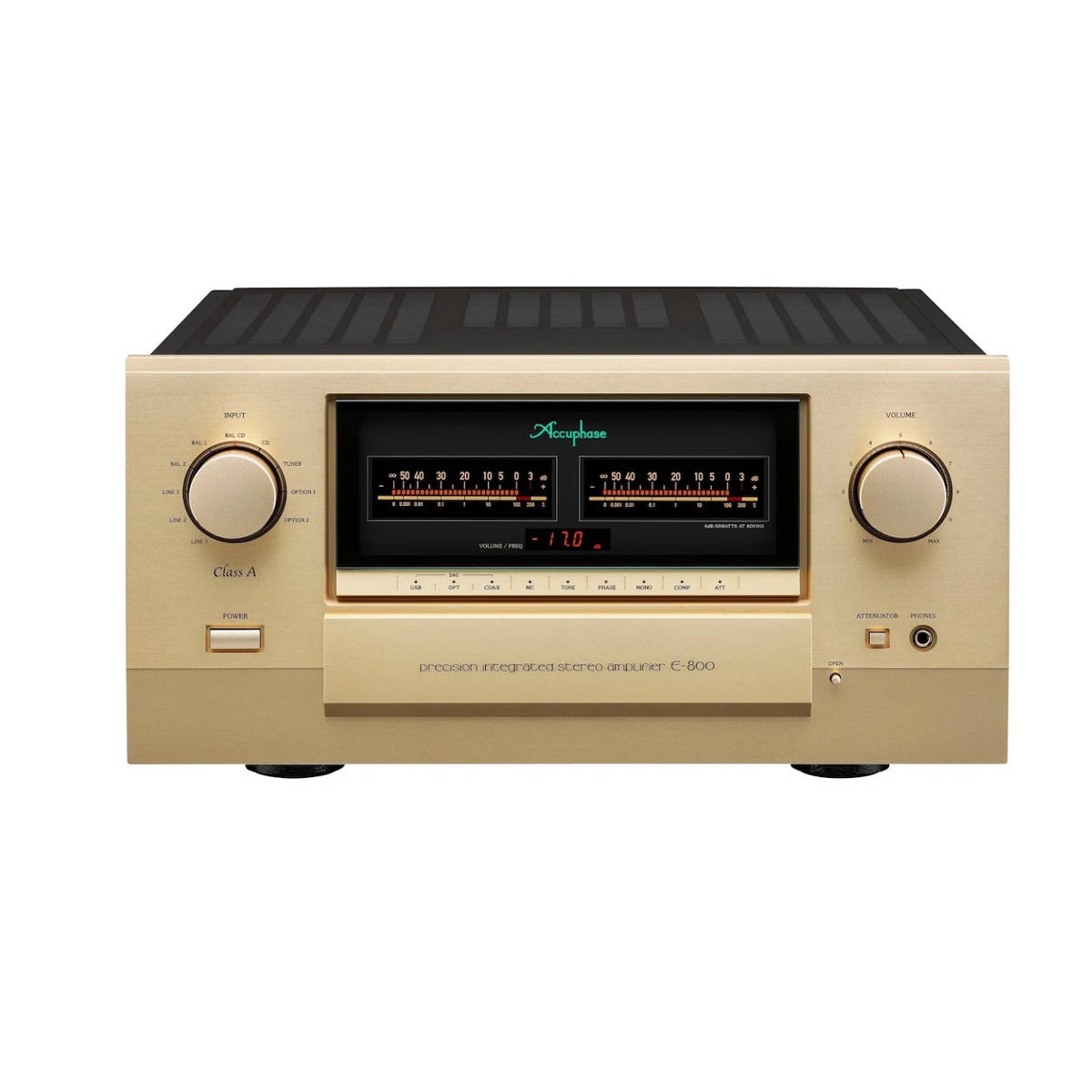

Accuphase E-800 Class-A Precision Integrated Stereo Amplifier
About
Ooberpad announces the availability of the power-packed Accuphase E-800 Class-A Precision Integrated Stereo Amplifier. The E-800 is positioned above the E-650 as the new flagship model in the integrated amplifier lineup of Accuphase. The preamplifier section is feature-packed with the flawless Balanced AAVA type volume control, while the power amplifier section is configured as an instrumentation amplifier leveraging a six-fold parallel push-pull configuration of power MOS-FETs driven in pure Class A. The final quality is on a par with high-class separate type amplifiers. Operating as a simple and smart system, the E-800 realizes acoustic excellence that reaches to the very core of the music.
Warranty
1-year manufacturer's warrantyKey Features:
- Integrated amplifier with fully balanced configuration extending from input to output
- Balanced AAVA type volume control
- Power amplification stage configured as instrumentation amplifier
- Six-fold parallel push-pull configuration of power MOS-FETs driven in Class A
- Linear power progression of 50 watts into 8 ohms, 100 watts into 4 ohms, and 200 watts into 2 ohms
- 300 W output into 1-ohm load (music signals)
- High damping factor of 1000
- Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors
- Protection circuitry using MOS-FET switches
Benefits of Accuphase E-800 Class-A Precision Integrated Stereo Amplifier:
Balanced AAVA type volume control
AAVA performs volume adjustment by making use of a combination of 16 current signals with different magnitude, thereby eliminating signal degradation and impedance fluctuations and maintaining high S/N ratio and low THD over the entire volume range. In the Balanced AAVA implementation of the E-800, two AAVA circuits are driven in a fully balanced configuration with a superior capability to eliminate external noise.
High-accuracy, high-rigidity volume sensor construction
The volume sensor mechanism developed by Accuphase in-house is built from a single massive aluminum block extruded and finished with utmost precision and complemented by other substantial materials, to ensure a silky smooth operation feel.
Formidable power amplification stage
The power amplification circuitry mounted directly on a large heat sink employs a six-fold parallel push-pull configuration of power MOS-FETs driven in Class A. Two identical units arranged on the left and right sides of the chassis deliver impeccable power in a linear progression for the two channels: 50 watts into 8 ohms, 100 watts into 4 ohms, and 200 watts into 2 ohms. The amplifier can even supply 300 watts into 1 ohm (music signals).
High damping factor brings out the full musical potential of loudspeakers
Features such as Balanced Remote Sensing and MOS-FET switches help to realize a damping factor of 1000. Superb motion control lets every loudspeaker perform at its very best.
Power supply circuitry designed for optimum stability
The strong power supply with massive high-efficiency toroidal transformer and two large 60,000 μF filtering capacitors ensures a stable current supply at all times.
Buy the Accuphase E-800 Class-A Precision Integrated Stereo Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Accuphase E-800 Class-A Precision Integrated Stereo Amplifier:
| Brand & Model # | Accuphase E-800 |
| Frequency Response |
|
| Damping Factor |
|
| Intermodulation Distortion |
|
| Loudness Compensator |
|
|
Attenuator |
|
| Stereo Headphones |
|
| Power Consumption |
|
| Maximum Dimensions |
|
| Weight |
|
Ooberpad announces the availability of the power-packed Accuphase E-800 Class-A Precision Integrated Stereo Amplifier. The E-800 is positioned above the E-650 as the new flagship model in the integrated amplifier lineup of Accuphase. The preamplifier section is feature-packed with the flawless Balanced AAVA type volume control, while the power amplifier section is configured as an instrumentation amplifier leveraging a six-fold parallel push-pull configuration of power MOS-FETs driven in pure Class A. The final quality is on a par with high-class separate type amplifiers. Operating as a simple and smart system, the E-800 realizes acoustic excellence that reaches to the very core of the music.
Warranty
1-year manufacturer's warrantyKey Features:
- Integrated amplifier with fully balanced configuration extending from input to output
- Balanced AAVA type volume control
- Power amplification stage configured as instrumentation amplifier
- Six-fold parallel push-pull configuration of power MOS-FETs driven in Class A
- Linear power progression of 50 watts into 8 ohms, 100 watts into 4 ohms, and 200 watts into 2 ohms
- 300 W output into 1-ohm load (music signals)
- High damping factor of 1000
- Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors
- Protection circuitry using MOS-FET switches
Benefits of Accuphase E-800 Class-A Precision Integrated Stereo Amplifier:
Balanced AAVA type volume control
AAVA performs volume adjustment by making use of a combination of 16 current signals with different magnitude, thereby eliminating signal degradation and impedance fluctuations and maintaining high S/N ratio and low THD over the entire volume range. In the Balanced AAVA implementation of the E-800, two AAVA circuits are driven in a fully balanced configuration with a superior capability to eliminate external noise.
High-accuracy, high-rigidity volume sensor construction
The volume sensor mechanism developed by Accuphase in-house is built from a single massive aluminum block extruded and finished with utmost precision and complemented by other substantial materials, to ensure a silky smooth operation feel.
Formidable power amplification stage
The power amplification circuitry mounted directly on a large heat sink employs a six-fold parallel push-pull configuration of power MOS-FETs driven in Class A. Two identical units arranged on the left and right sides of the chassis deliver impeccable power in a linear progression for the two channels: 50 watts into 8 ohms, 100 watts into 4 ohms, and 200 watts into 2 ohms. The amplifier can even supply 300 watts into 1 ohm (music signals).
High damping factor brings out the full musical potential of loudspeakers
Features such as Balanced Remote Sensing and MOS-FET switches help to realize a damping factor of 1000. Superb motion control lets every loudspeaker perform at its very best.
Power supply circuitry designed for optimum stability
The strong power supply with massive high-efficiency toroidal transformer and two large 60,000 μF filtering capacitors ensures a stable current supply at all times.
Buy the Accuphase E-800 Class-A Precision Integrated Stereo Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Accuphase E-800 Class-A Precision Integrated Stereo Amplifier:
| Brand & Model # | Accuphase E-800 |
| Frequency Response |
|
| Damping Factor |
|
| Intermodulation Distortion |
|
| Loudness Compensator |
|
|
Attenuator |
|
| Stereo Headphones |
|
| Power Consumption |
|
| Maximum Dimensions |
|
| Weight |
|
