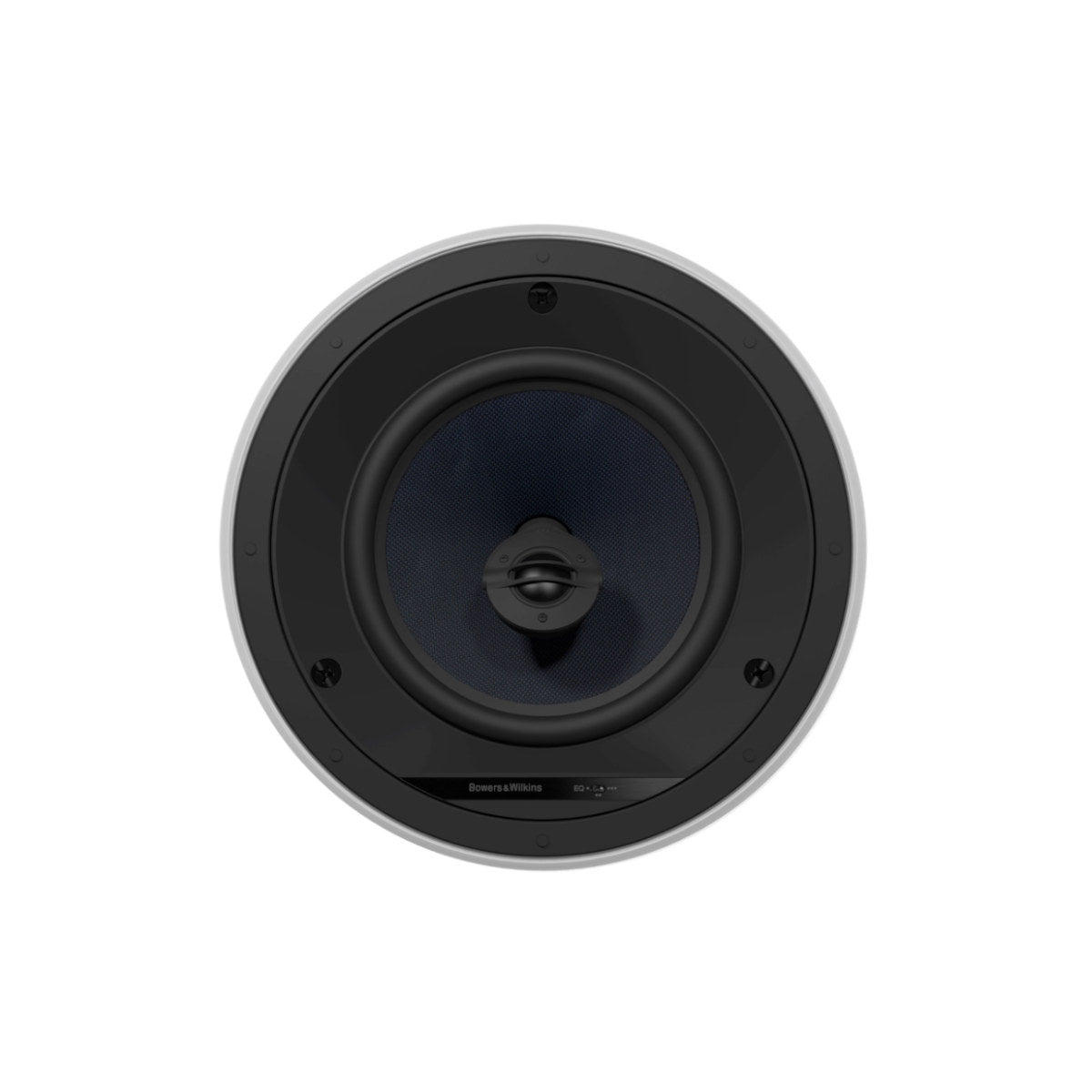

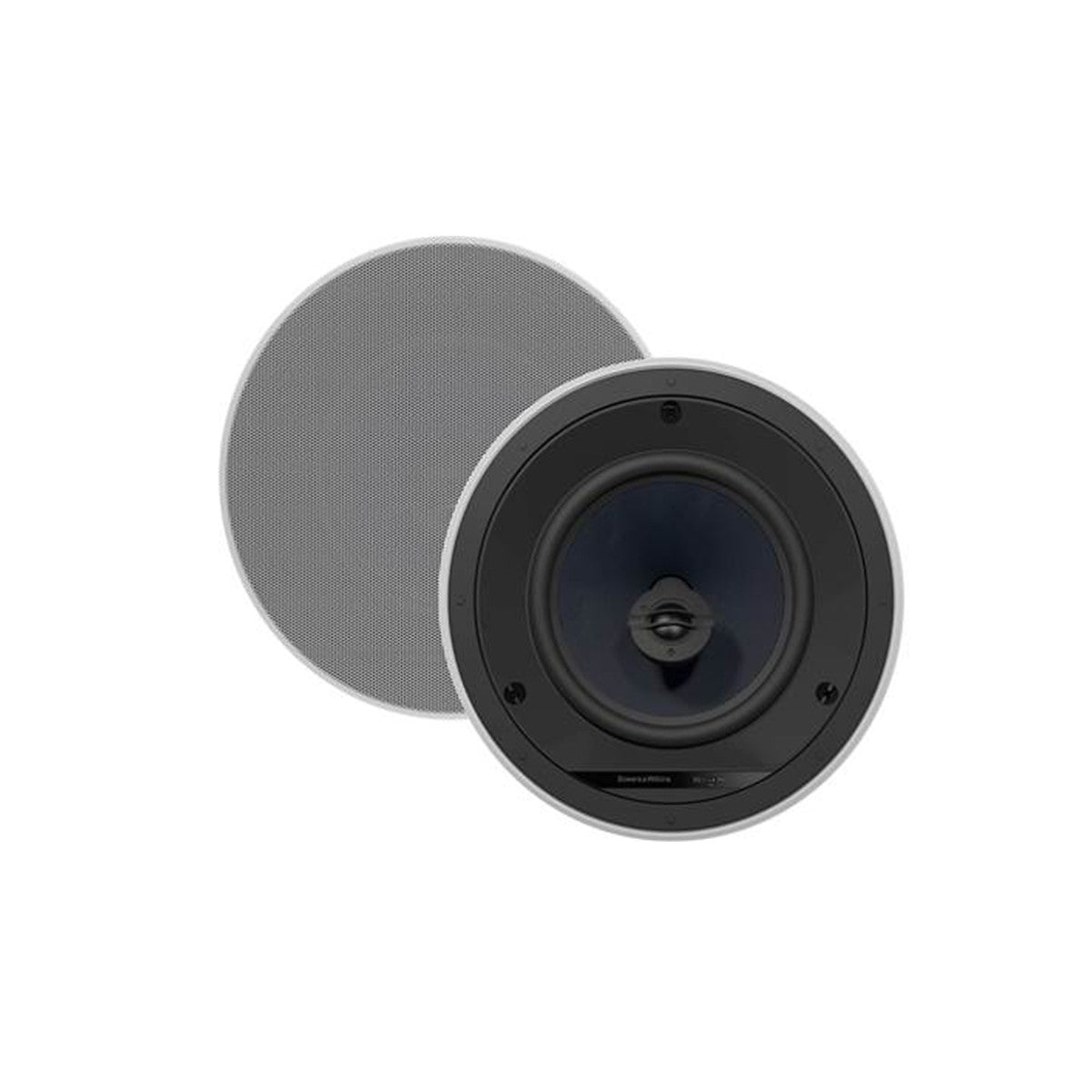

Bowers & Wilkins (B&W) CCM683 In-Ceiling Speaker
About
Positioned as one of the most capable 8-inch architectural speakers in the Performance Series, the Bowers & Wilkins CCM683 In-Ceiling Speaker is a high-output in-ceiling speaker in India designed for serious home theatre installations, immersive Dolby Atmos systems, and premium multi-room audio setups. It combines a 200mm Aramid Fibre bass/midrange driver with a 25mm aluminum dome tweeter mounted in a rigid die-cast chassis, delivering deep controlled bass, detailed midrange clarity, and precise high-frequency dispersion even in large or acoustically demanding rooms. The pivoting tweeter and three-position EQ adjustment allow fine-tuning for off-axis listening, ensuring consistent tonal balance across wider seating areas. Ideal for luxury residences and custom cinema projects in Mumbai, Delhi, and Bangalore, it is widely used as a surround, rear, or height channel speaker in advanced Dolby Atmos layouts. For users searching for the best 8-inch in-ceiling speaker in India, a premium B&W architectural speaker for home theatre, or a flush-mount ceiling speaker for high-performance cinema systems, the CCM683 offers a powerful blend of scale, clarity, and installation flexibility.
Warranty
1-year manufacturer's warranty
Key Features:
- 8" blue aramid fiber cone woofer
- 1" aluminium dome tweeter
- Low distortion, high resolution drive unit technologies
- Adjustable EQ and tweeter directivity to optimize sound
Benefits of Bowers & Wilkins CCM683 In-Ceiling Speaker:
A Cut Above the Rest with its Overhead Sound
The CCM683 is a true high-performance ceiling-mount speaker. The speaker is feature-packed with a 200mm (8in) woven blue Aramid Fibre cone bass/ midrange driver and an aluminium tweeter in a neat circular die-cast chassis. The tweeter’s housing pivots for adjustable off-axis treble response and the die-cast chassis packs a punch with extra rigidity that results in a cleaner, faster bass. The speaker also has a three-position EQ switch for a better off-axis response. The blue Aramid Fibre cone means that the unit is discreetly placed behind the grille but still provides a truly clear and dynamic sound.
Where to buy?
Buy Bowers & Wilkins (B&W) CCM683 In-Ceiling Speaker online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of B&W CCM683 In-Ceiling Speaker:
| Brand & Model # |
B&W CCM683 |
| Description |
2-way in-ceiling system
|
| Drive Units |
1x ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter 1x ø200mm (8in) blue Aramid Fibre cone bass/midrange
|
|
Frequency Range (-6dB)
|
35Hz – 50kHz
|
|
Recommended Amp Power
|
25 – 130w
|
|
Sensitivity SPL (2.83V, 1m)
|
88dB
|
|
Impedance Nominal (min)
|
8Ω (4.5Ω)
|
|
Frame diameter
|
290mm (11.4in)
|
|
Cut-out diameter
|
250mm (9.8in)
|
|
Depth behind surface
|
133mm (5.2in)
|
|
Protrusion
|
4mm (0.2in)
|
Positioned as one of the most capable 8-inch architectural speakers in the Performance Series, the Bowers & Wilkins CCM683 In-Ceiling Speaker is a high-output in-ceiling speaker in India designed for serious home theatre installations, immersive Dolby Atmos systems, and premium multi-room audio setups. It combines a 200mm Aramid Fibre bass/midrange driver with a 25mm aluminum dome tweeter mounted in a rigid die-cast chassis, delivering deep controlled bass, detailed midrange clarity, and precise high-frequency dispersion even in large or acoustically demanding rooms. The pivoting tweeter and three-position EQ adjustment allow fine-tuning for off-axis listening, ensuring consistent tonal balance across wider seating areas. Ideal for luxury residences and custom cinema projects in Mumbai, Delhi, and Bangalore, it is widely used as a surround, rear, or height channel speaker in advanced Dolby Atmos layouts. For users searching for the best 8-inch in-ceiling speaker in India, a premium B&W architectural speaker for home theatre, or a flush-mount ceiling speaker for high-performance cinema systems, the CCM683 offers a powerful blend of scale, clarity, and installation flexibility.
Warranty
1-year manufacturer's warranty
Key Features:
- 8" blue aramid fiber cone woofer
- 1" aluminium dome tweeter
- Low distortion, high resolution drive unit technologies
- Adjustable EQ and tweeter directivity to optimize sound
Benefits of Bowers & Wilkins CCM683 In-Ceiling Speaker:
A Cut Above the Rest with its Overhead Sound
The CCM683 is a true high-performance ceiling-mount speaker. The speaker is feature-packed with a 200mm (8in) woven blue Aramid Fibre cone bass/ midrange driver and an aluminium tweeter in a neat circular die-cast chassis. The tweeter’s housing pivots for adjustable off-axis treble response and the die-cast chassis packs a punch with extra rigidity that results in a cleaner, faster bass. The speaker also has a three-position EQ switch for a better off-axis response. The blue Aramid Fibre cone means that the unit is discreetly placed behind the grille but still provides a truly clear and dynamic sound.
Where to buy?
Buy Bowers & Wilkins (B&W) CCM683 In-Ceiling Speaker online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of B&W CCM683 In-Ceiling Speaker:
| Brand & Model # |
B&W CCM683 |
| Description |
2-way in-ceiling system
|
| Drive Units |
1x ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter 1x ø200mm (8in) blue Aramid Fibre cone bass/midrange
|
|
Frequency Range (-6dB)
|
35Hz – 50kHz
|
|
Recommended Amp Power
|
25 – 130w
|
|
Sensitivity SPL (2.83V, 1m)
|
88dB
|
|
Impedance Nominal (min)
|
8Ω (4.5Ω)
|
|
Frame diameter
|
290mm (11.4in)
|
|
Cut-out diameter
|
250mm (9.8in)
|
|
Depth behind surface
|
133mm (5.2in)
|
|
Protrusion
|
4mm (0.2in)
|
