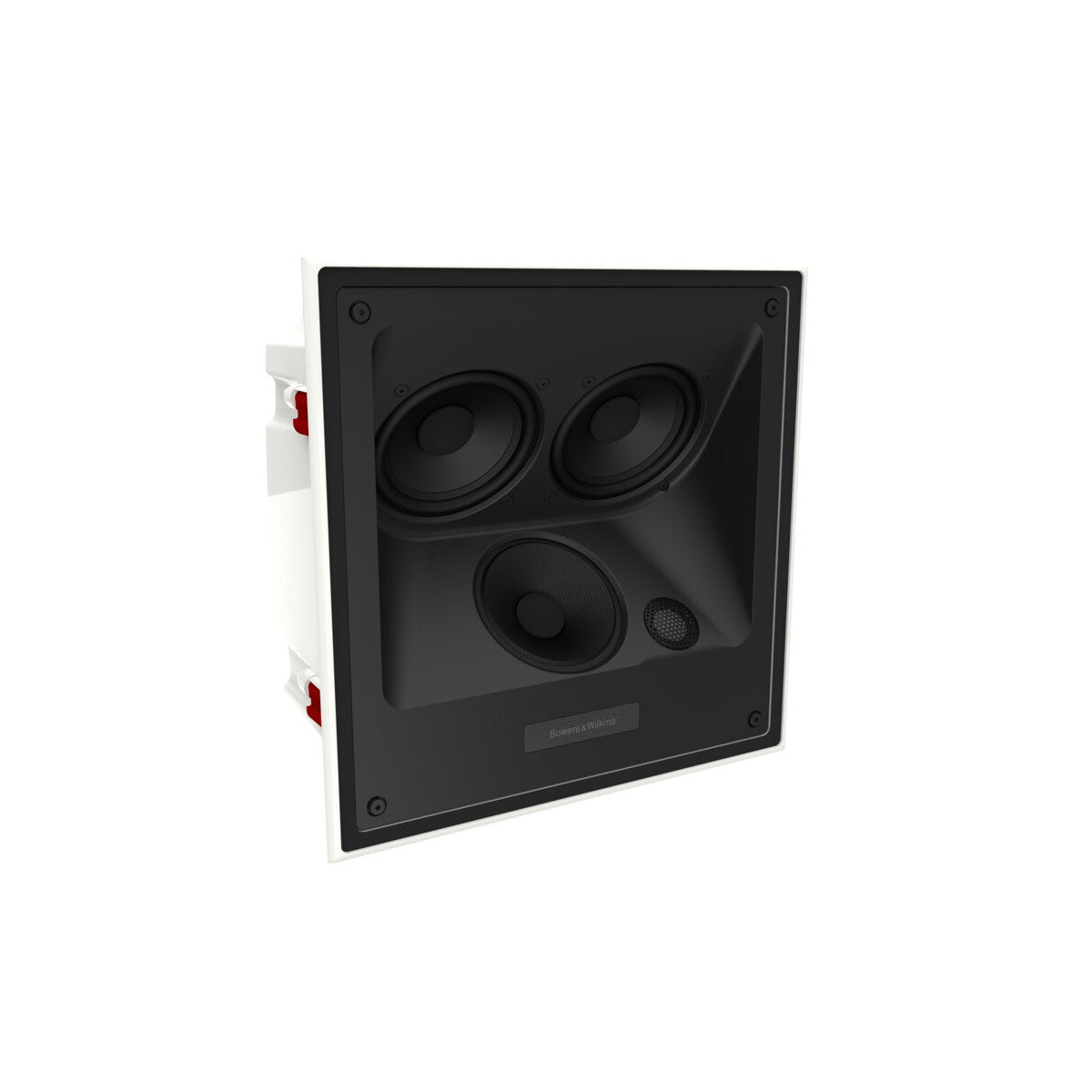

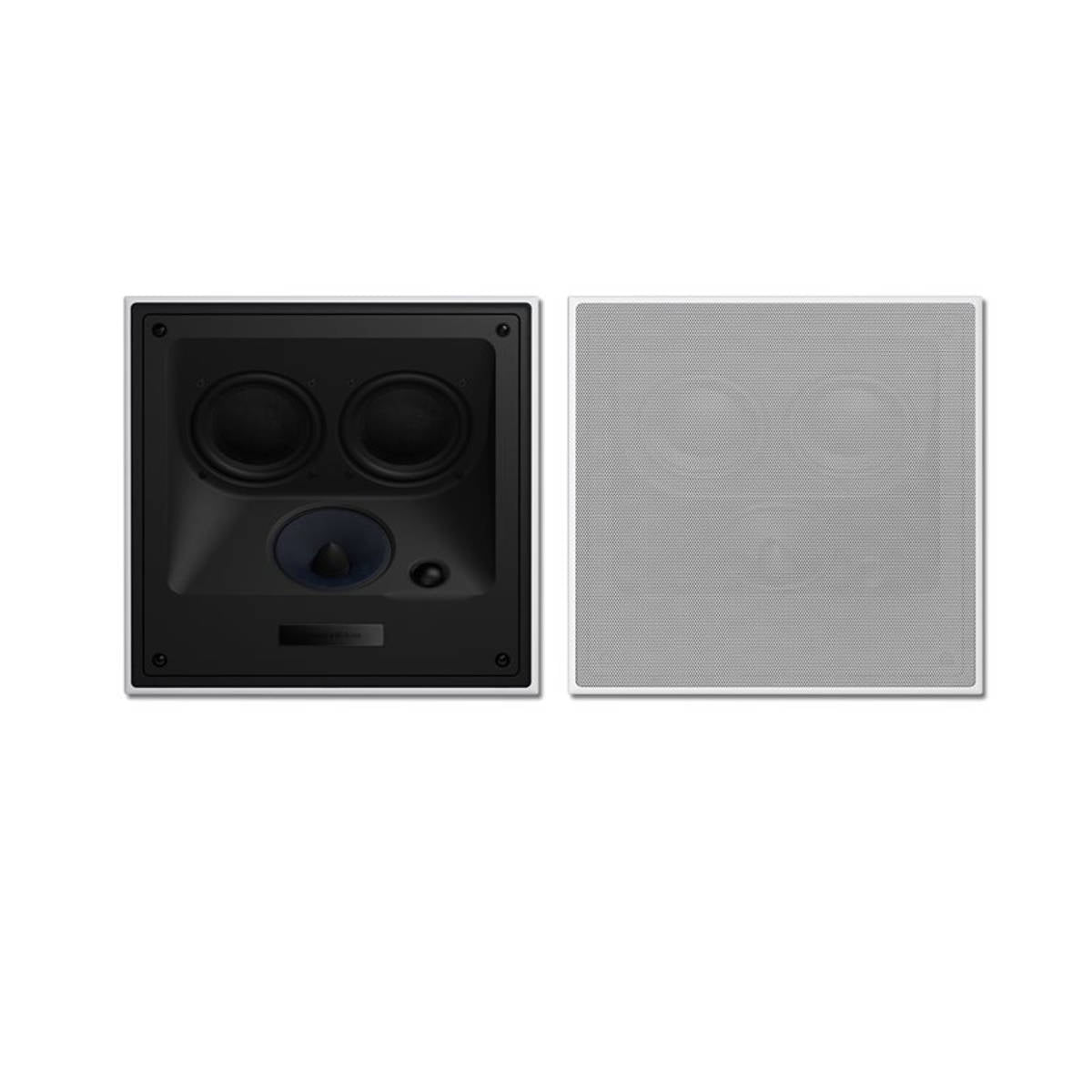

Bowers & Wilkins (B&W) CCM7.3 S2 Internally Angled In-ceiling Speaker
About
Step into reference-grade architectural audio with the Bowers & Wilkins CCM7.3 S2 internally angled in-ceiling speaker, engineered for uncompromising home theatre and high-end multi-channel installations in luxury Indian residences. Designed with a sophisticated 3-way driver system featuring a Carbon Dome tweeter, Continuum™ cone midrange, and dual Aerofoil™ bass drivers, it delivers expansive dynamics, exceptional clarity, and deep, controlled low-frequency performance. Its internally angled baffle directs sound precisely toward the listening area, ensuring a more immersive and focused soundstage while maintaining a completely discreet, flush-mounted ceiling integration ideal for design-led interiors.
Warranty
1-year manufacturer's warranty
Key Features:
- Carbon Dome tweeter
- Continuum cone FST midrange
- Aerofoil profile bass cones
Benefits of Bowers & Wilkins CCM7.3 S2 In-ceiling Speaker:
Invisible AudioThat Fills Your Home with Truly Riveting Sound Experience
Invisible audio fills your home with a riveting sound experience. For situations when you want near-invisible loudspeakers but doesn’t compromise on sound quality, there is CCM7.3 S2 Internally Angled In-ceiling Speaker from B&W's CI 700 Series.
Buy Bowers & Wilkins (B&W) CCM7.3 S2 Internally Angled In-ceiling Speaker online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of B&W CCM7.3 S2 In-ceiling Speaker:
| Brand & Model # |
B&W CCM7.3 S2 |
| Description |
3-way in-ceiling system
|
| Drive Units |
1x ø25mm (1in) Carbon Dome high-frequency
1x ø100mm (4in) Continuum cone FST midrange2x ø130mm (5in) Aerofoil profile bass |
|
Frequency Range (-6dB)
|
-6dB at 52Hz and 33kHz
|
| Frequency Range (-3dB) | 55Hz - 28kHz ±3dB |
| Sensitivity | 90dB spl (2.83Vrms, 1m) |
| Harmonic Distortion |
2nd and 3rd harmonics (90dB, 1m) <1% 90Hz - 33kHz <0.5% 120Hz - 33kHz |
| Nominal Impedance | 8Ω (minimum 3.1Ω) |
|
Recommended Amp Power
|
25W - 200W into 8Ω on unclipped programme
|
| Frame Height | 355mm (14in) |
| Frame Width | 355mm (14in) |
| Depth | 194.5mm (7.66in) |
|
Cut-out height
|
332mm (13.1in)
|
|
Cut-out width
|
332mm (13.1in)
|
| Cut-out height w/PMK | 335mm (13.2in) |
| Cut-out width w/PMK | 335mm (13.2in) |
|
Depth behind surface
|
133mm (5.2in)
|
|
Protrusion
|
8mm (0.3in)
|
| PMK | 7C |
| Net Weight | 9kg (19.84lb) Inc accessories |
| Finishes |
Back box: White Grille: White |
FAQ
1. I want to buy Bowers & Wilkins (B&W) CCM7.3 S2 Internally Angled In-ceiling Speaker You can buy Bowers & Wilkins (B&W) CCM7.3 S2 Internally Angled In-ceiling Speaker at best prices at Ooberpad.
2. I have questions about Bowers & Wilkins (B&W) CCM7.3 S2 Internally Angled In-ceiling Speaker
At Ooberpad, we will give you all the support you need to take the right buying decision about Bowers & Wilkins (B&W) CCM7.3 S2 Internally Angled In-ceiling Speaker
Step into reference-grade architectural audio with the Bowers & Wilkins CCM7.3 S2 internally angled in-ceiling speaker, engineered for uncompromising home theatre and high-end multi-channel installations in luxury Indian residences. Designed with a sophisticated 3-way driver system featuring a Carbon Dome tweeter, Continuum™ cone midrange, and dual Aerofoil™ bass drivers, it delivers expansive dynamics, exceptional clarity, and deep, controlled low-frequency performance. Its internally angled baffle directs sound precisely toward the listening area, ensuring a more immersive and focused soundstage while maintaining a completely discreet, flush-mounted ceiling integration ideal for design-led interiors.
Warranty
1-year manufacturer's warranty
Key Features:
- Carbon Dome tweeter
- Continuum cone FST midrange
- Aerofoil profile bass cones
Benefits of Bowers & Wilkins CCM7.3 S2 In-ceiling Speaker:
Invisible AudioThat Fills Your Home with Truly Riveting Sound Experience
Invisible audio fills your home with a riveting sound experience. For situations when you want near-invisible loudspeakers but doesn’t compromise on sound quality, there is CCM7.3 S2 Internally Angled In-ceiling Speaker from B&W's CI 700 Series.
Buy Bowers & Wilkins (B&W) CCM7.3 S2 Internally Angled In-ceiling Speaker online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of B&W CCM7.3 S2 In-ceiling Speaker:
| Brand & Model # |
B&W CCM7.3 S2 |
| Description |
3-way in-ceiling system
|
| Drive Units |
1x ø25mm (1in) Carbon Dome high-frequency
1x ø100mm (4in) Continuum cone FST midrange2x ø130mm (5in) Aerofoil profile bass |
|
Frequency Range (-6dB)
|
-6dB at 52Hz and 33kHz
|
| Frequency Range (-3dB) | 55Hz - 28kHz ±3dB |
| Sensitivity | 90dB spl (2.83Vrms, 1m) |
| Harmonic Distortion |
2nd and 3rd harmonics (90dB, 1m) <1% 90Hz - 33kHz <0.5% 120Hz - 33kHz |
| Nominal Impedance | 8Ω (minimum 3.1Ω) |
|
Recommended Amp Power
|
25W - 200W into 8Ω on unclipped programme
|
| Frame Height | 355mm (14in) |
| Frame Width | 355mm (14in) |
| Depth | 194.5mm (7.66in) |
|
Cut-out height
|
332mm (13.1in)
|
|
Cut-out width
|
332mm (13.1in)
|
| Cut-out height w/PMK | 335mm (13.2in) |
| Cut-out width w/PMK | 335mm (13.2in) |
|
Depth behind surface
|
133mm (5.2in)
|
|
Protrusion
|
8mm (0.3in)
|
| PMK | 7C |
| Net Weight | 9kg (19.84lb) Inc accessories |
| Finishes |
Back box: White Grille: White |
FAQ
1. I want to buy Bowers & Wilkins (B&W) CCM7.3 S2 Internally Angled In-ceiling Speaker You can buy Bowers & Wilkins (B&W) CCM7.3 S2 Internally Angled In-ceiling Speaker at best prices at Ooberpad.
2. I have questions about Bowers & Wilkins (B&W) CCM7.3 S2 Internally Angled In-ceiling Speaker
At Ooberpad, we will give you all the support you need to take the right buying decision about Bowers & Wilkins (B&W) CCM7.3 S2 Internally Angled In-ceiling Speaker
