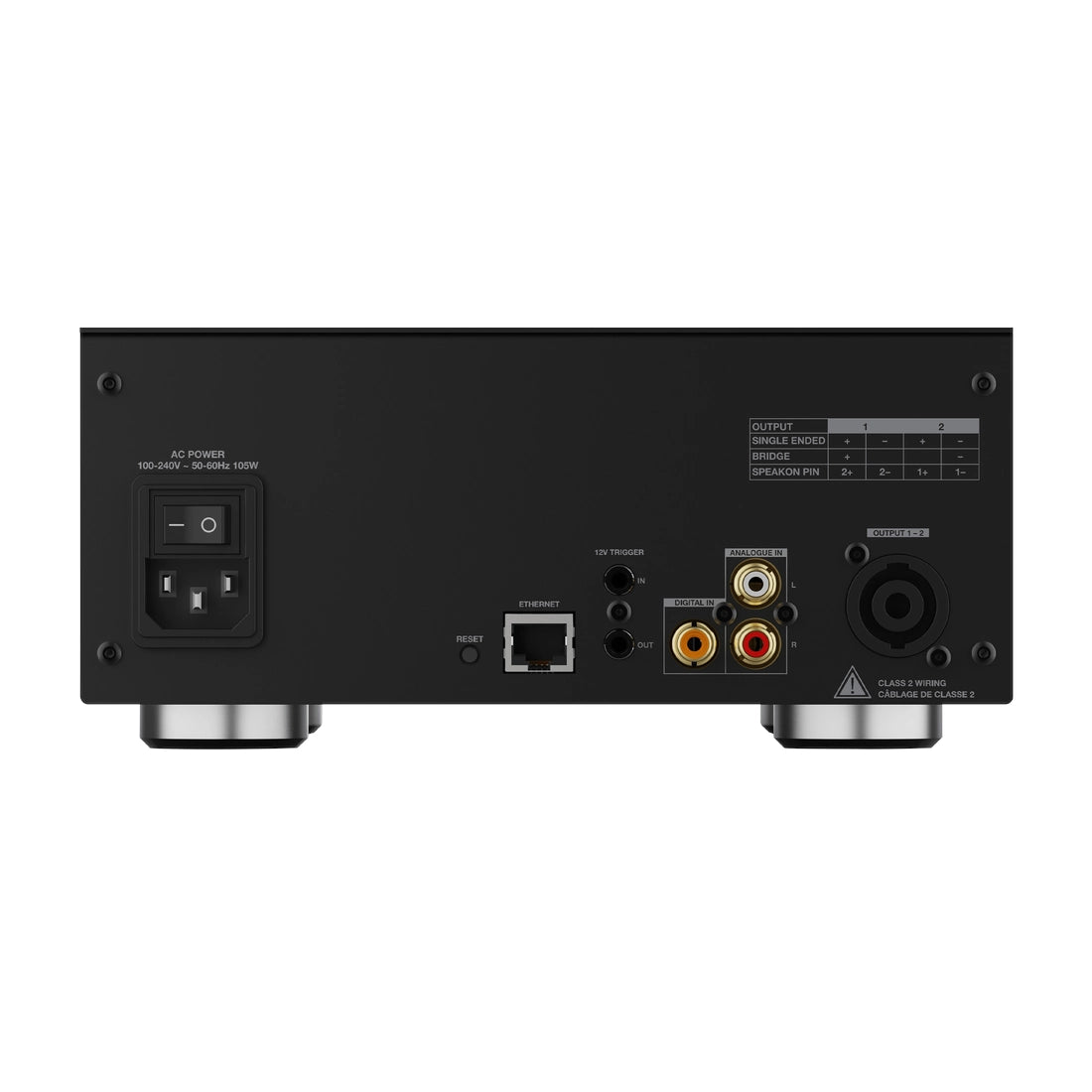

Bowers & Wilkins CDA-2HD High-power Distribution Amplifier - Rear View
B&W CDA-2HD Distribution Amplifier
Bowers & Wilkins (B&W) CDA-2HD high-power Distribution Amplifier
    Bowers & Wilkins CDA-2HD High-power 500W Distribution Amplifier
    B&W CDA-2HD High-power Distribution Amplifier
    Bowers & Wilkins CDA-2HD High-power Distribution Amplifier - Rear View
    B&W CDA-2HD Distribution Amplifier
    Bowers & Wilkins (B&W) CDA-2HD high-power Distribution Amplifier
Bowers & Wilkins CDA-2HD High-power 500W Distribution Amplifier
B&W CDA-2HD High-power Distribution Amplifier
Bowers & Wilkins CDA-2HD High-power Distribution Amplifier - Rear View
B&W CDA-2HD Distribution Amplifier
Bowers & Wilkins (B&W) CDA-2HD high-power Distribution Amplifier
Bowers & Wilkins CDA-2HD High-power 500W Distribution Amplifier
B&W CDA-2HD High-power Distribution Amplifier
Bowers & Wilkins CDA-2HD High-power Distribution Amplifier - Rear View
B&W CDA-2HD Distribution Amplifier
Bowers & Wilkins (B&W) CDA-2HD high-power Distribution Amplifier
    Bowers & Wilkins CDA-2HD High-power 500W Distribution Amplifier
    B&W CDA-2HD High-power Distribution Amplifier
    Bowers & Wilkins CDA-2HD High-power Distribution Amplifier - Rear View
    B&W CDA-2HD Distribution Amplifier
    Bowers & Wilkins (B&W) CDA-2HD high-power Distribution Amplifier
Bowers & Wilkins CDA-2HD High-power 500W Distribution Amplifier
B&W CDA-2HD High-power Distribution Amplifier
Bowers & Wilkins CDA-2HD High-power Distribution Amplifier - Rear View
B&W CDA-2HD Distribution Amplifier
Bowers & Wilkins (B&W) CDA-2HD high-power Distribution Amplifier

About

Description

The CDA-2HD is a high-power distribution amplifier, designed to drive current and future Bowers & Wilkins Custom Installation loudspeakers. Embedded DSP allows optimisation of a wide range of products and dynamic EQ for Bowers & Wilkins subwoofers. It boasts two channels of 500 watts each, and its half-rack width 2U design delivers high-performance from minimum rack space.

Warranty

1-year manufacturer's warranty

B&W CDA-2HD Key Features

  • 500W 2-Channel DSP Amplifier from B&W
  • Compact 2U Design
  • Mighty Flexible

          Benefits of Bowers & Wilkins CDA-2HD High-power Distribution Amplifier

          Impressively Smart

          Impressively Smart

          To ensure the CDA-2HD delivers in the modern custom installation system, it is equipped with Digital Signal Processing (DSP). This allows it to be used in wide variety of situations, provides control over IP and configuration, and dynamic EQ for Bowers & Wilkins subwoofers.

          Compact Powerhouse

          CDA-2HD’s half-rack width 2U size means that it takes up the minimum of rack real estate. But with two channels of 500 watts of Class D amplification on board it can bring the power when required. Plus, as it’s bridgeable this can be configured to deliver 1,000 watts where needed.

          Flexibility

          Whether you are looking to upgrade an in-situ installation or planning a new one, the CDA-2HD DSP amplifier is a great solution. It combines power with finesse, and works with a wide variety of Bowers & Wilkins products, both current and future.


          Where to buy?
          Buy Bowers & Wilkins (B&W) CDA-2HD high-power Distribution Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

          Technical Specifications of B&W CDA-2HD High-power 500W Distribution Amplifier

          Brand & Model # B&W CDA-2HD
          Audio Specifications
          • Load impedance range: >3Ω per channel (>6Ω in bridge mode)
          • Output Power per channel, non-clipped: 250W into 8Ω
          • 500 into 4Ω
          • Output Power bridge mode, non-clipped 1000W short term
          • >250W continuous
          • DC offset voltage: <50mV
          • Frequency Response (-3dB): <10Hz to >30kHz, any load impedance
          • Frequency response accuracy, 20Hz-20kHz: +/-1dB
          • Dynamic range: >85dB A-Weighted
          • THD+N (1kHz, 500W, 4Ω): less than 1%
          • Voltage Gain: 21dB to 45dB, adjustable
          • Input impedance: 10kΩ
          • Maximum input voltage: 4 Vrms
          • Signal sense threshold: 2.5mV (independent of Gain setting)
          • Wake-up time: <0.2s (If other zones active)
          • <2s (From all zones inactive)
          • Turn-off time: 15 minutes from last signal detected
          • 12V trigger input threshold: Typically 3V (recommended input is 5-15V) (TBC)
          Controls & Indicators - Front panel
          • 1 x Power LED (unit active – White, Fault – Red)
          • 1 x Network status LEDs (Signal present – White, Fault – Red)
          • 1 x Zone status LEDs (Signal present – White, Fault – Red)
          Connectors
          • Input: 1 x RCA (pair) Phono socket, Analogue line in
            1 x RCA Phono socket, Digital line in
            1 x Ethernet
          • Output: 1 x SpeakOn
          • 12V trigger control: 1 x 3.5mm jack - 12V trigger IN
            1 x 3.5mm jack - 12V trigger OUT (Maximum 100mA pass-through)
          Power
          • Power consumption: <0.5W Standby, WoL disabled
            <2W Standby, WoL enabled
            300W maximum average (TBC)
            1,000W peak (TBC)
          • AC supply: 100-240V 50/60Hz
          • AC inlet: IEC C14, switched
          Thermal dissipation
          • TBC BTU/hr (standby)
          • TBC BTU/hr (Idle)
          • TBC BTU/hr (max)
          Dimensions
          • Height: 85mm (3.4in) 1U (100 mm (3.9in) plus feet)
          • Width: 218mm (8.6in)
          • Depth: 315mm (12.4in)
          Net Weight
          • 3.7kg (8.2lb)


          FAQ

          1. I want to buy Bowers & Wilkins (B&W) CDA-2HD High-power 500W Distribution Amplifier
          You can buy Bowers & Wilkins (B&W) CDA-2HD High-power 500W Distribution Amplifier at best prices at Ooberpad.

          2. I have questions about Bowers & Wilkins (B&W) CDA-2HD High-power 500W Distribution Amplifier
          At Ooberpad, we will give you all the support you need to take the right buying decision about Bowers & Wilkins (B&W) CDA-2HD High-power 500W Distribution Amplifier

          Description

          The CDA-2HD is a high-power distribution amplifier, designed to drive current and future Bowers & Wilkins Custom Installation loudspeakers. Embedded DSP allows optimisation of a wide range of products and dynamic EQ for Bowers & Wilkins subwoofers. It boasts two channels of 500 watts each, and its half-rack width 2U design delivers high-performance from minimum rack space.

          Warranty

          1-year manufacturer's warranty

          B&W CDA-2HD Key Features

          • 500W 2-Channel DSP Amplifier from B&W
          • Compact 2U Design
          • Mighty Flexible

                  Benefits of Bowers & Wilkins CDA-2HD High-power Distribution Amplifier

                  Impressively Smart

                  Impressively Smart

                  To ensure the CDA-2HD delivers in the modern custom installation system, it is equipped with Digital Signal Processing (DSP). This allows it to be used in wide variety of situations, provides control over IP and configuration, and dynamic EQ for Bowers & Wilkins subwoofers.

                  Compact Powerhouse

                  CDA-2HD’s half-rack width 2U size means that it takes up the minimum of rack real estate. But with two channels of 500 watts of Class D amplification on board it can bring the power when required. Plus, as it’s bridgeable this can be configured to deliver 1,000 watts where needed.

                  Flexibility

                  Whether you are looking to upgrade an in-situ installation or planning a new one, the CDA-2HD DSP amplifier is a great solution. It combines power with finesse, and works with a wide variety of Bowers & Wilkins products, both current and future.


                  Where to buy?
                  Buy Bowers & Wilkins (B&W) CDA-2HD high-power Distribution Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

                  Technical Specifications of B&W CDA-2HD High-power 500W Distribution Amplifier

                  Brand & Model # B&W CDA-2HD
                  Audio Specifications
                  • Load impedance range: >3Ω per channel (>6Ω in bridge mode)
                  • Output Power per channel, non-clipped: 250W into 8Ω
                  • 500 into 4Ω
                  • Output Power bridge mode, non-clipped 1000W short term
                  • >250W continuous
                  • DC offset voltage: <50mV
                  • Frequency Response (-3dB): <10Hz to >30kHz, any load impedance
                  • Frequency response accuracy, 20Hz-20kHz: +/-1dB
                  • Dynamic range: >85dB A-Weighted
                  • THD+N (1kHz, 500W, 4Ω): less than 1%
                  • Voltage Gain: 21dB to 45dB, adjustable
                  • Input impedance: 10kΩ
                  • Maximum input voltage: 4 Vrms
                  • Signal sense threshold: 2.5mV (independent of Gain setting)
                  • Wake-up time: <0.2s (If other zones active)
                  • <2s (From all zones inactive)
                  • Turn-off time: 15 minutes from last signal detected
                  • 12V trigger input threshold: Typically 3V (recommended input is 5-15V) (TBC)
                  Controls & Indicators - Front panel
                  • 1 x Power LED (unit active – White, Fault – Red)
                  • 1 x Network status LEDs (Signal present – White, Fault – Red)
                  • 1 x Zone status LEDs (Signal present – White, Fault – Red)
                  Connectors
                  • Input: 1 x RCA (pair) Phono socket, Analogue line in
                    1 x RCA Phono socket, Digital line in
                    1 x Ethernet
                  • Output: 1 x SpeakOn
                  • 12V trigger control: 1 x 3.5mm jack - 12V trigger IN
                    1 x 3.5mm jack - 12V trigger OUT (Maximum 100mA pass-through)
                  Power
                  • Power consumption: <0.5W Standby, WoL disabled
                    <2W Standby, WoL enabled
                    300W maximum average (TBC)
                    1,000W peak (TBC)
                  • AC supply: 100-240V 50/60Hz
                  • AC inlet: IEC C14, switched
                  Thermal dissipation
                  • TBC BTU/hr (standby)
                  • TBC BTU/hr (Idle)
                  • TBC BTU/hr (max)
                  Dimensions
                  • Height: 85mm (3.4in) 1U (100 mm (3.9in) plus feet)
                  • Width: 218mm (8.6in)
                  • Depth: 315mm (12.4in)
                  Net Weight
                  • 3.7kg (8.2lb)


                  FAQ

                  1. I want to buy Bowers & Wilkins (B&W) CDA-2HD High-power 500W Distribution Amplifier
                  You can buy Bowers & Wilkins (B&W) CDA-2HD High-power 500W Distribution Amplifier at best prices at Ooberpad.

                  2. I have questions about Bowers & Wilkins (B&W) CDA-2HD High-power 500W Distribution Amplifier
                  At Ooberpad, we will give you all the support you need to take the right buying decision about Bowers & Wilkins (B&W) CDA-2HD High-power 500W Distribution Amplifier
