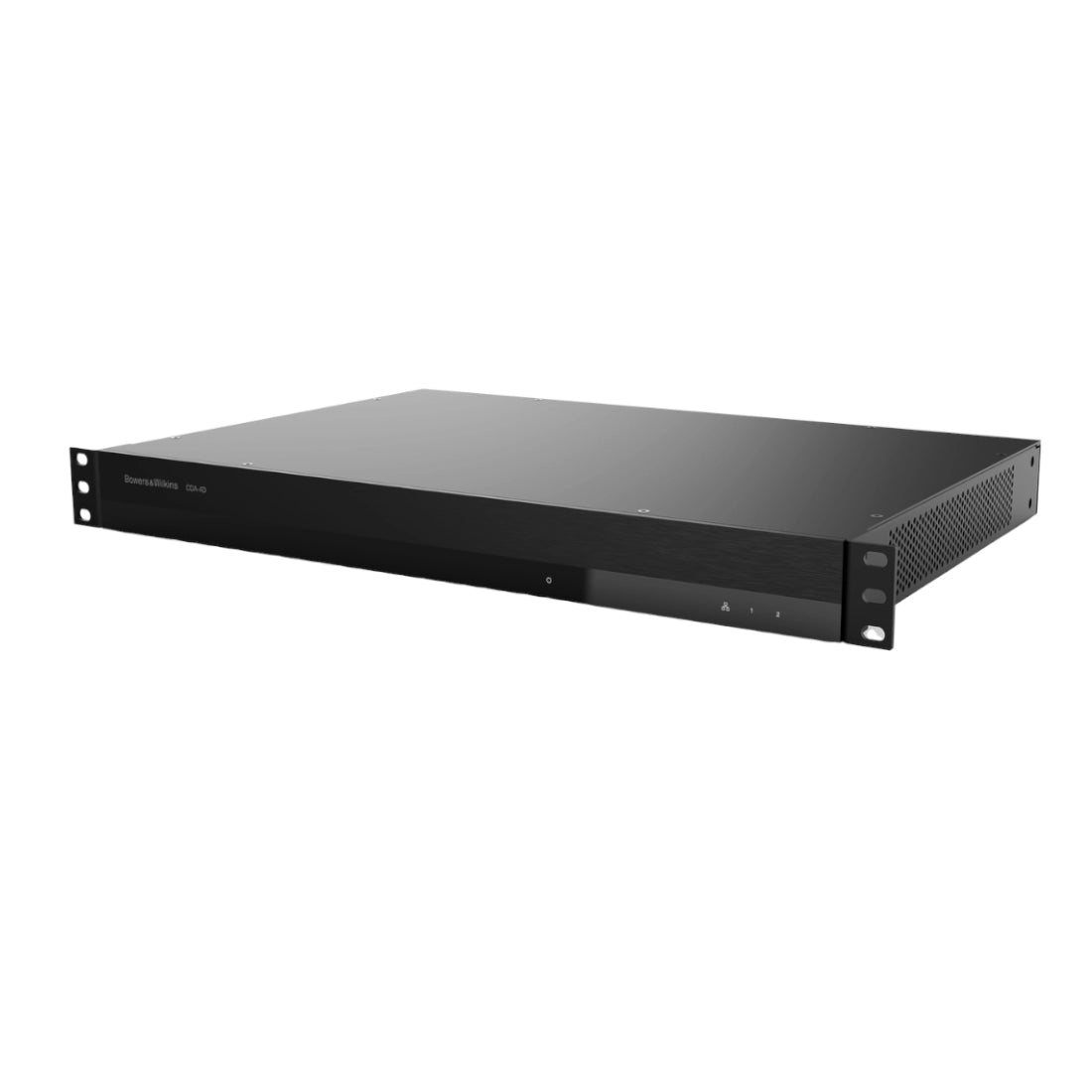

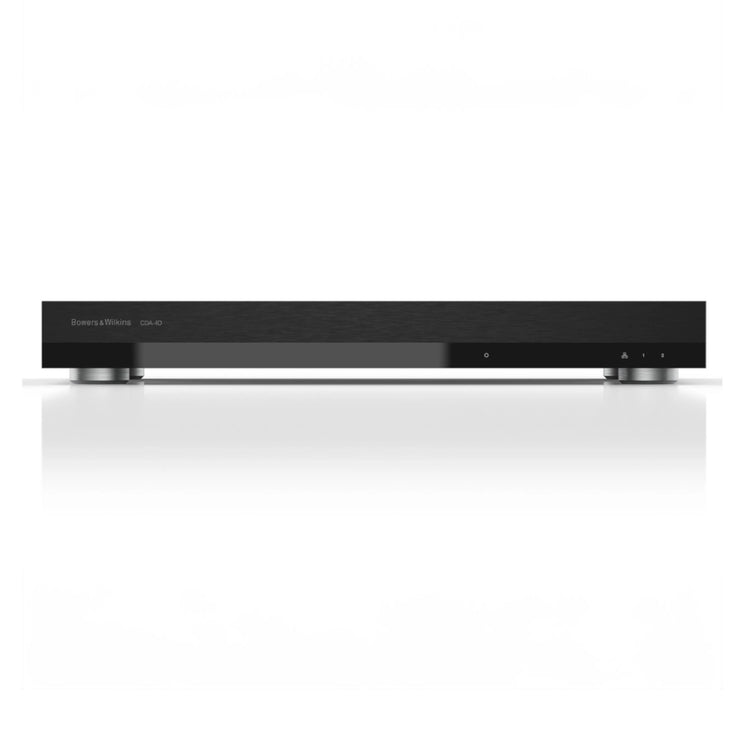

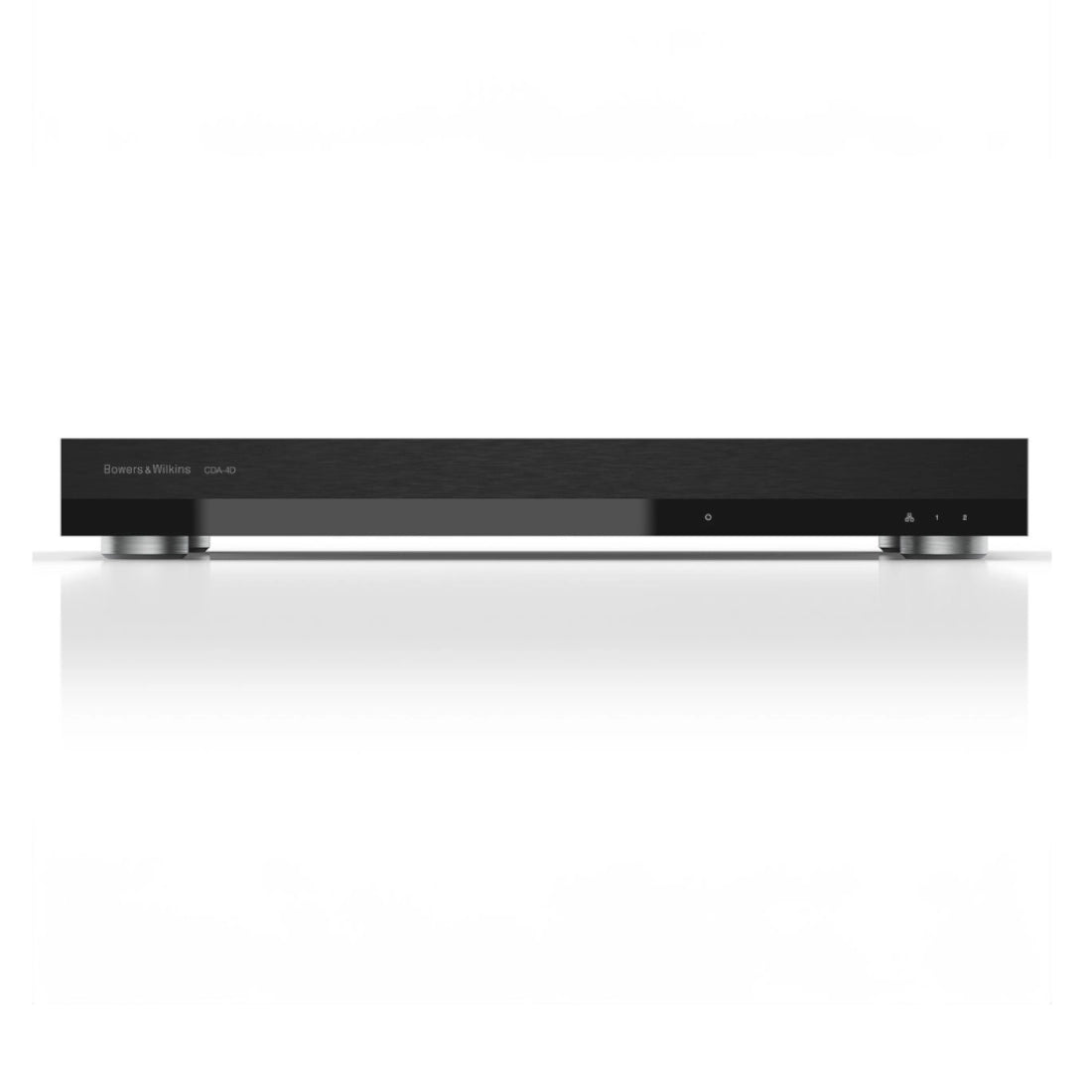

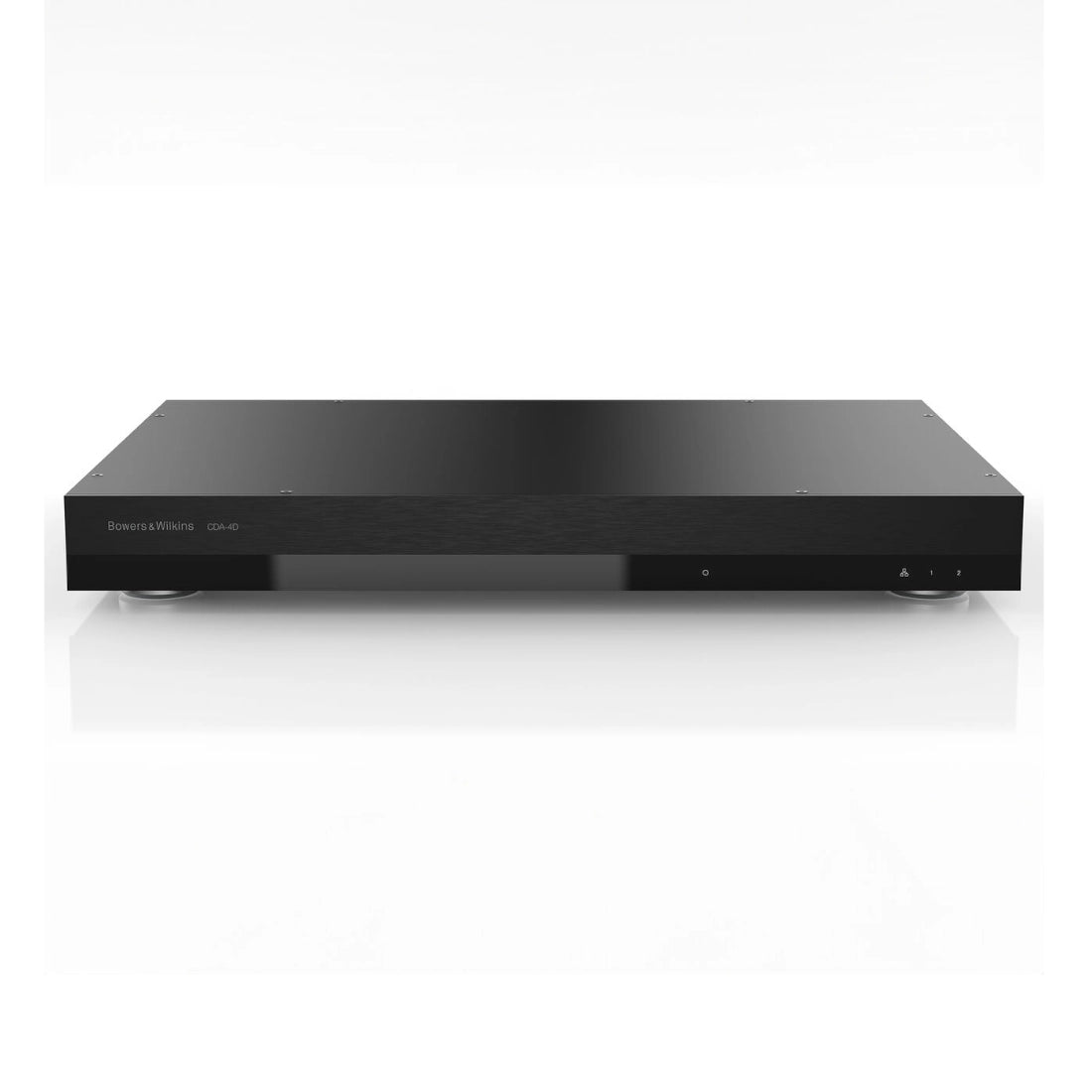

Bowers & Wilkins CDA-4D Compact 125W Distribution Amplifier
B&W CDA-4D Compact 125W Distribution Amplifier
Bowers & Wilkins (B&W) CDA-4D

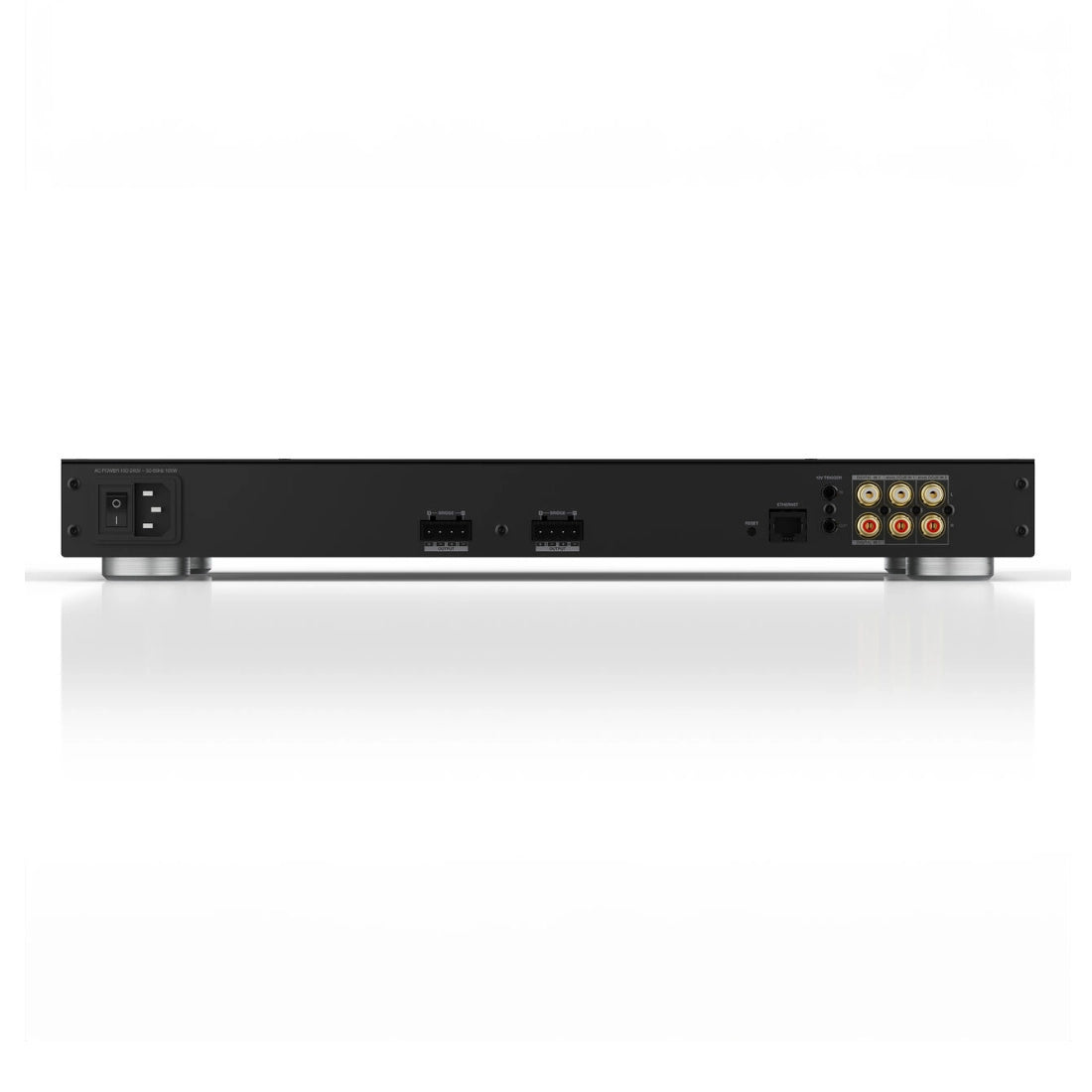

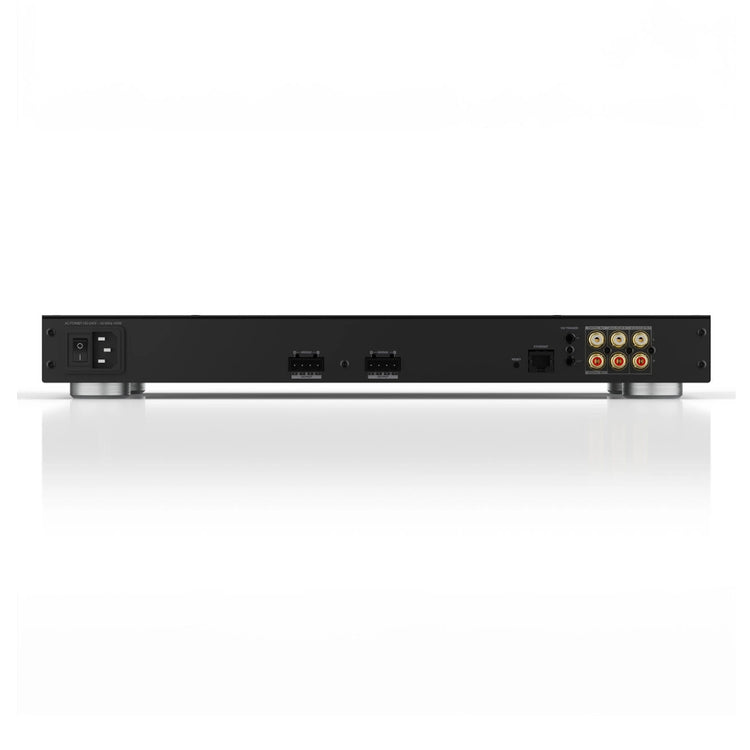

Bowers & Wilkins (B&W) CDA-4D Compact 125W Distribution Amplifier - Rear View
    Bowers & Wilkins CDA-4D Compact 125W Distribution Amplifier
    B&W CDA-4D Compact 125W Distribution Amplifier
    Bowers & Wilkins (B&W) CDA-4D
    Bowers & Wilkins (B&W) CDA-4D Compact 125W Distribution Amplifier - Rear View
Bowers & Wilkins CDA-4D Compact 125W Distribution Amplifier
B&W CDA-4D Compact 125W Distribution Amplifier
Bowers & Wilkins (B&W) CDA-4D
Bowers & Wilkins (B&W) CDA-4D Compact 125W Distribution Amplifier - Rear View
Bowers & Wilkins CDA-4D Compact 125W Distribution Amplifier
B&W CDA-4D Compact 125W Distribution Amplifier
Bowers & Wilkins (B&W) CDA-4D
Bowers & Wilkins (B&W) CDA-4D Compact 125W Distribution Amplifier - Rear View
    Bowers & Wilkins CDA-4D Compact 125W Distribution Amplifier
    B&W CDA-4D Compact 125W Distribution Amplifier
    Bowers & Wilkins (B&W) CDA-4D
    Bowers & Wilkins (B&W) CDA-4D Compact 125W Distribution Amplifier - Rear View
Bowers & Wilkins CDA-4D Compact 125W Distribution Amplifier
B&W CDA-4D Compact 125W Distribution Amplifier
Bowers & Wilkins (B&W) CDA-4D
Bowers & Wilkins (B&W) CDA-4D Compact 125W Distribution Amplifier - Rear View

About

Description

The CDA-4D is a compact distribution amplifier, designed to power current and future Bowers & Wilkins Custom Installation loudspeakers. Embedded DSP allows optimisation of a wide range of products and dynamic EQ for Bowers & Wilkins subwoofers. It boasts four channels of 125 watts each, and its full-rack-width 1U design delivers high-performance from minimum rack space.

Warranty

1-year manufacturer's warranty

B&W CDA-4D Key Features

  • 125W 4-Channel DSP Amplifier from B&W
  • Compact 1U Design
  • Mighty Flexible

          Benefits of Bowers & Wilkins CDA-4D Compact 125W Distribution Amplifier

          Impressively Smart

          Impressively Smart

          To ensure the CDA-4D delivers in the modern custom installation system, it is equipped with Digital Signal Processing (DSP). This allows it to be used in wide variety of situations, provides control over IP and configuration, and for providing dynamic EQ for Bowers & Wilkins subwoofers.

          Compact Powerhouse

          CDA-4D’s 1U size means that it takes up the minimum of rack real estate. But with four channels of 125 watts of Class D amplification on hand it can deliver power when required. Plus, as it’s bridgeable this can be configured to 2 x 250 watts, or a 2.1 setup (2 x 125 watts and 1 x 250 watts), where needed.

          Flexibility

          Whether you are looking to upgrade an in-situ installation or planning a new one, the CDA-4D DSP amplifier is ideal. It can drive two zones, and works with a wide variety of Bowers & Wilkins products, both current and future.


          Where to buy?
          Buy Bowers & Wilkins (B&W) CDA-4D Compact 125W Distribution Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.


          Technical Specifications of B&W CDA-4D Compact 125W Distribution Amplifier

          Brand & Model # B&W CDA-4D
          Audio Specifications
          • Load impedance range: >3Ω per channel (>6Ω in bridge mode)
          • Output Power per channel, non-clipped: 60W into 8Ω
          • 125 into 4Ω
          • Output Power bridge mode, non-clipped 500W short term
          • >125W continuous
          • DC offset voltage: <50mV
          • Frequency Response (-3dB): <10Hz to >30kHz, any load impedance
          • Frequency response accuracy, 20Hz-20kHz: +/-1dB
          • Dynamic range: >85dB A-Weighted
          • THD+N (1kHz, 500W, 4Ω): less than 1%
          • Voltage Gain: 15dB to 39dB, adjustable
          • Input impedance: 10kΩ
          • Maximum input voltage: 4 Vrms
          • Signal sense threshold: 2.5mV (independent of Gain setting)
          • Wake-up time: <0.2s (If other zones active)
          • <2s (From all zones inactive)
          • Turn-off time: 15 minutes from last signal detected
          • 12V trigger input threshold: Typically 3V (recommended input is 5-15V) (TBC)
          Controls & Indicators - Front Panel
          • 1 x Power LED (unit active – White, Fault – Red)
          • 1 x Network status LEDs (Signal present – White, Fault – Red)
          • 2 x Zone status LEDs (Signal present – White, Fault – Red)
          • 1 x Reset button
          Connectors
          • Input: 2 x RCA (pair) Phono socket, Analogue line in
            2 x RCA Phono socket, Digital line in
            1 x Ethernet
          • Output: 2 x 5.08mm Pitch 4-way Phoenix Combicon style
          • 12V trigger control: 1 x 3.5mm jack - 12V trigger IN
            1 x 3.5mm jack - 12V trigger OUT (Maximum 100mA pass-through

          Power
          • Power consumption: <0.5W Standby, WoL disabled
            <2W Standby, WoL enabled
            300W maximum average (TBC)
            1,000W peak (TBC)
          • AC supply: 100-240V 50/60Hz
          • AC inlet: IEC C14, switched
          Thermal dissipation
          • TBC BTU/hr (standby)
          • TBC BTU/hr (Idle)
          • TBC BTU/hr (max)
          Dimensions
          • Height: 42.5mm (1.7in) 1U (57.5mm (2.3in) plus feet
          • Width: 436mm (17.2in)
          • Depth: 300mm (11.8in)
          Net Weight
          • 4.0kg (8.8lb)


          FAQ

          1. I want to buy Bowers & Wilkins (B&W) CDA-4D Compact 125W Distribution Amplifier
          You can buy Bowers & Wilkins (B&W) CDA-4D Compact 125W Distribution Amplifier at best prices at Ooberpad.

          2. I have questions about Bowers & Wilkins (B&W) CDA-4D Compact 125W Distribution Amplifier
          At Ooberpad, we will give you all the support you need to take the right buying decision about Bowers & Wilkins (B&W) CDA-4D Compact 125W Distribution Amplifier
