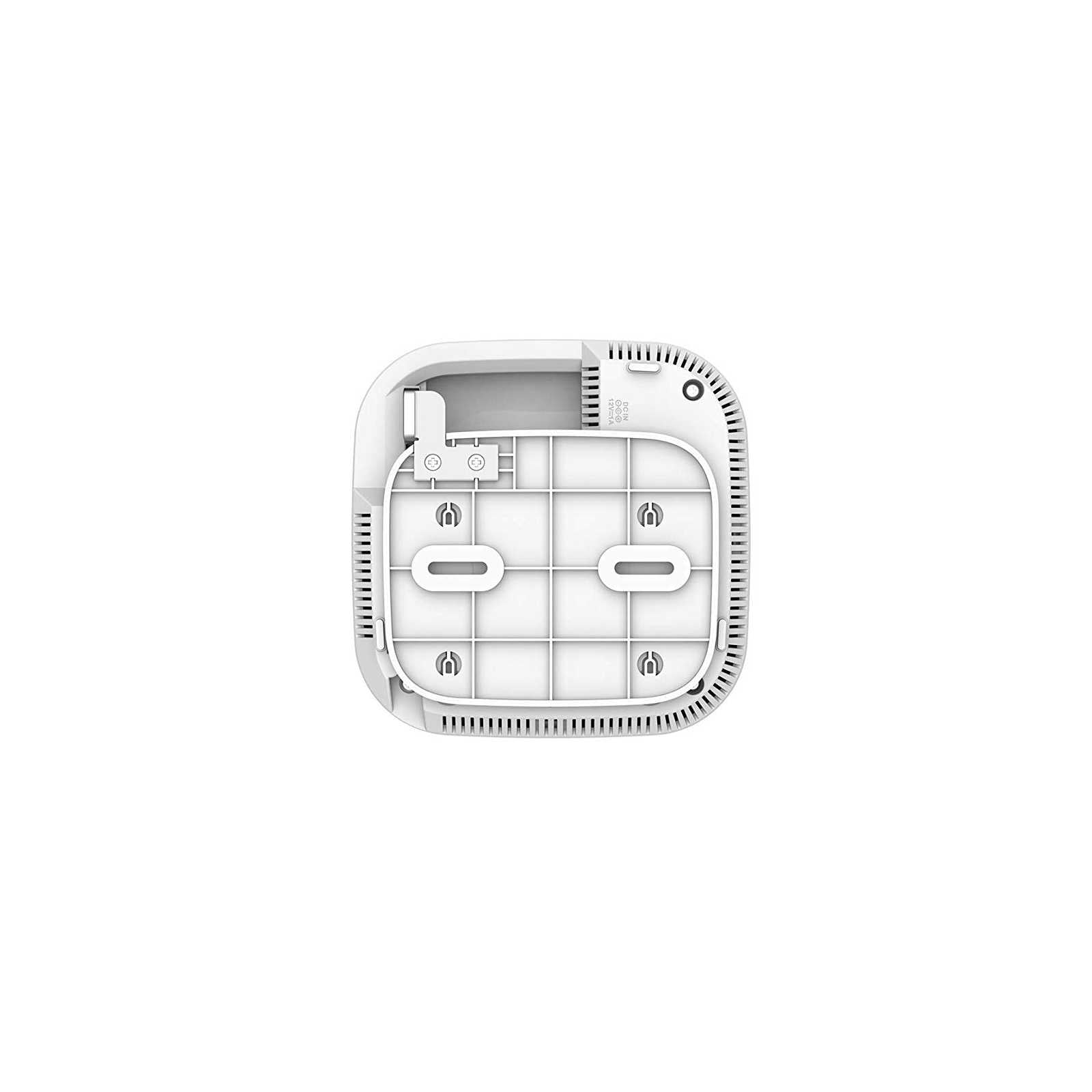

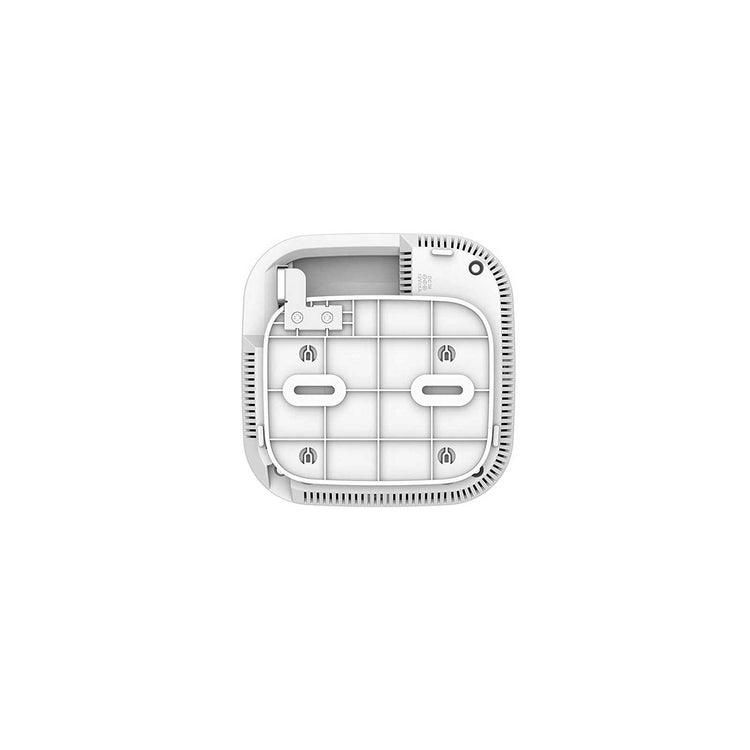

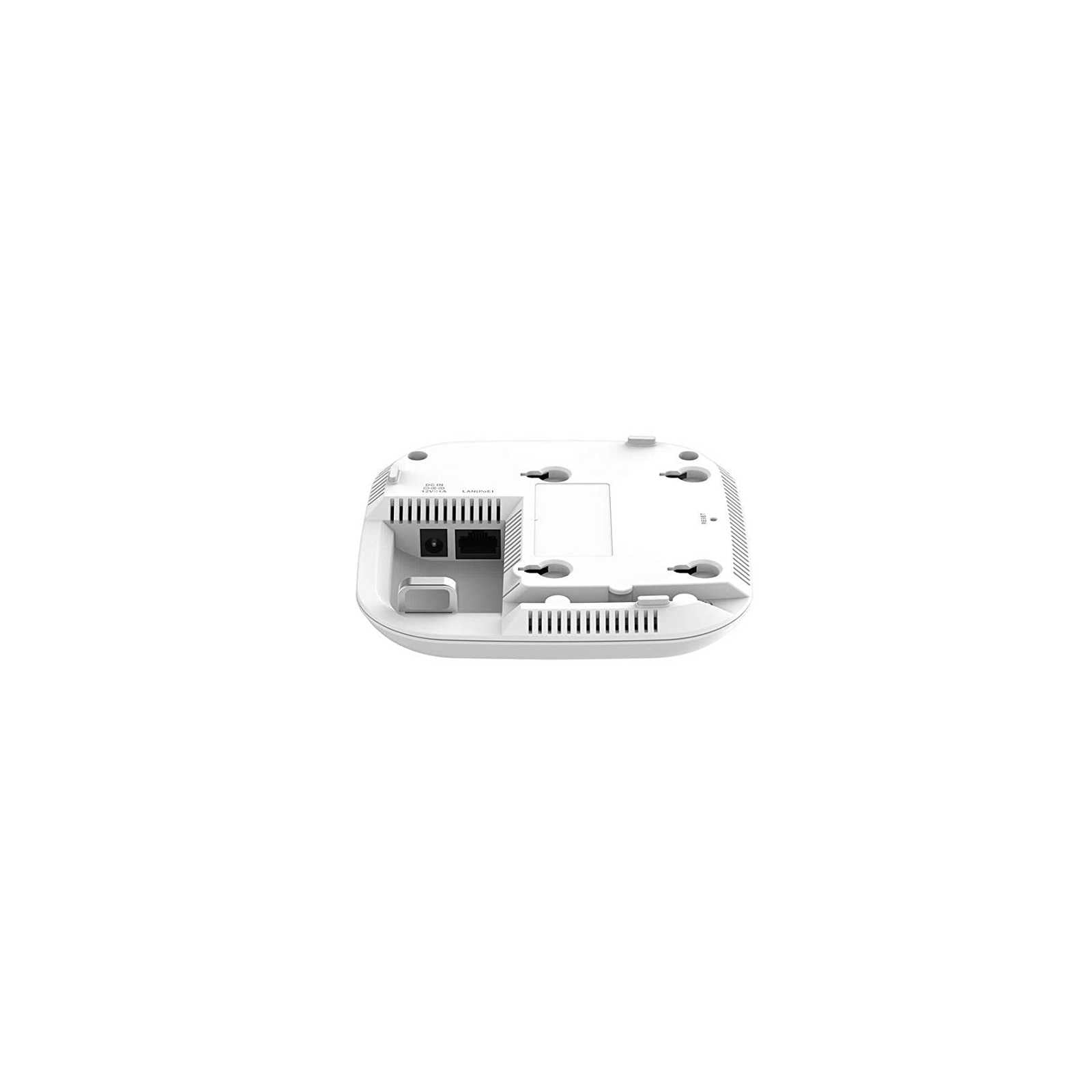

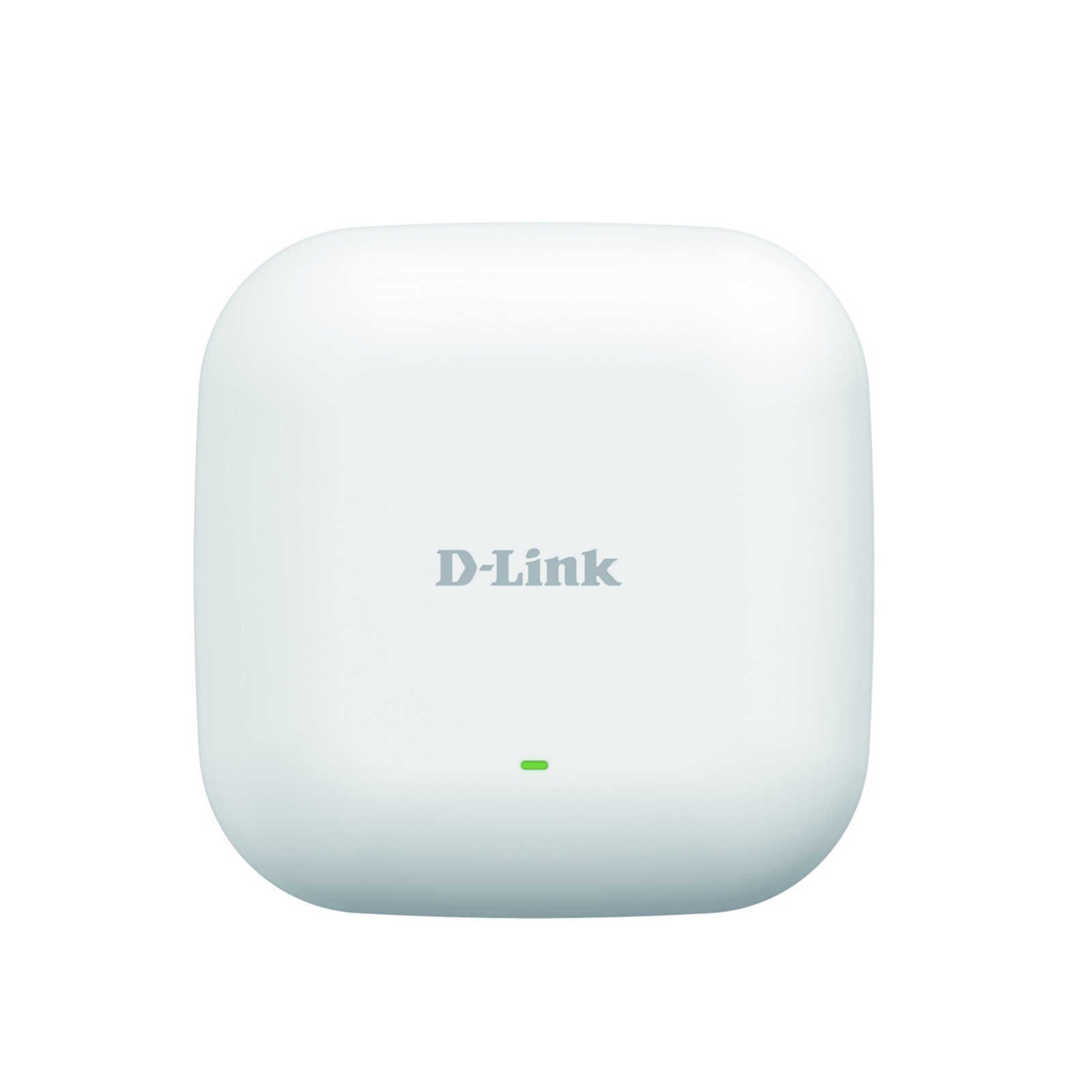

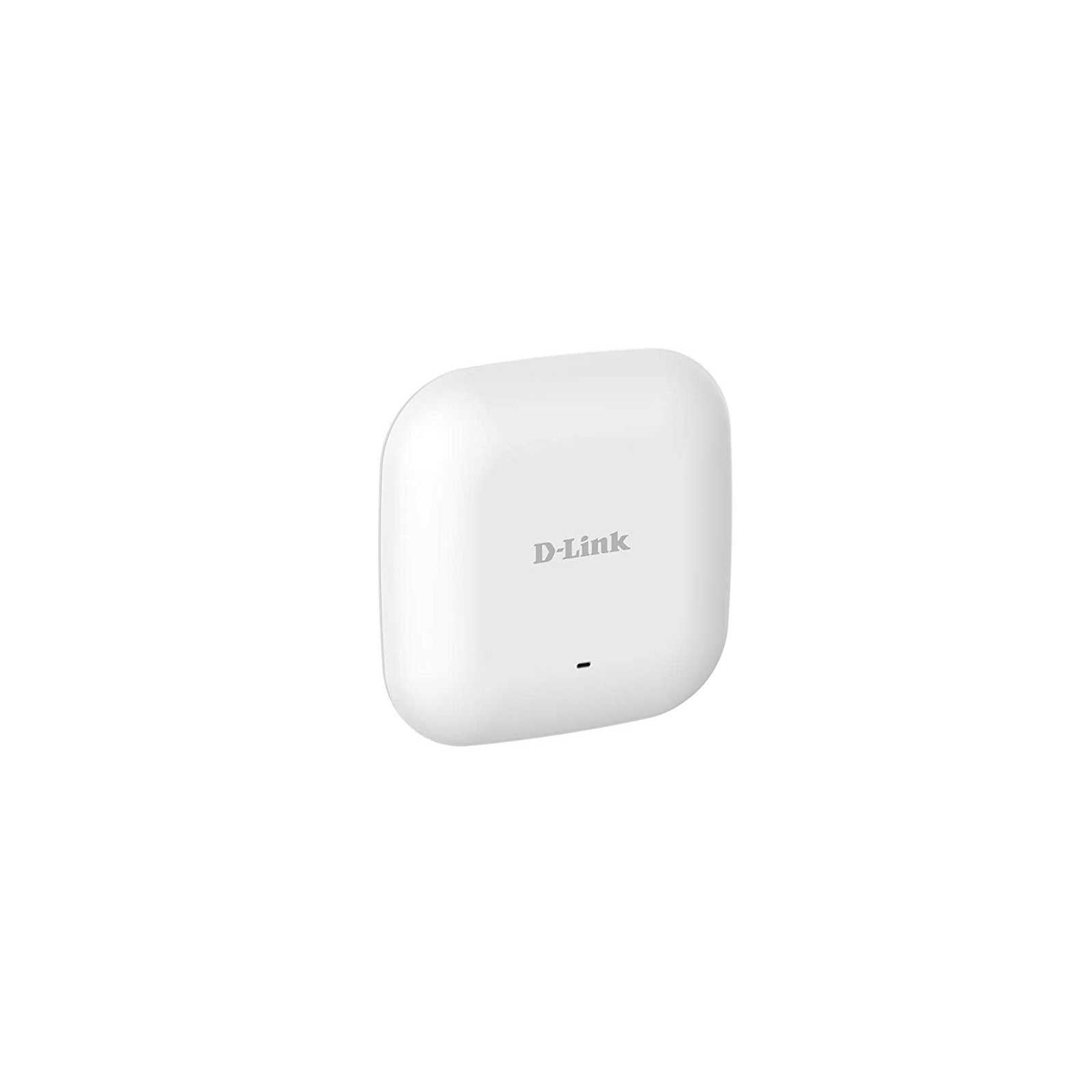

D-Link DAP-2230 Wireless N PoE Access Point

Save 32%
₹ 7,350.00
₹ 5,011.00

Ooberpad brings to you D-Link DAP-2230 Wireless N PoE Access Point. Give your business the secure and easily manageable wireless network it deserves. With its multiple operational modes, network management tool and security features gives network administrators better deployment options. Easily mountable on the ceiling or wall or even placed on a desktop, the DAP-2230 is designed to meet any wireless demands you business might have.

Key Features:

  • High Performance Connectivity
  • Made for Business class Environments
  • Trusted Security Features
  • Convenient Installation
  • Flexible Operation with multiple operating modes


1-year manufacturer warranty

Benefits of D-Link DAP-2230 Wireless N PoE Access Point:

Performance without Compromise

Performance without Compromise

Reliable, high-speed wireless performance is something the DAP-2230 will always deliver at maximum wireless signal rates of up to 300 Mbps. Coupled with the support of the Wi-Fi Multimedia™ (WMM) and Quality of Service (QoS) features, the DAP-2230 makes for an ideal access point be it for audio, video or even voice-based applications. Once it is set-up, the QoS feature allows the DAP-2230 to automatically prioritize network traffic basis the level of interactive streaming, such as HD movies or VoIP.

Users can also adjust the QoS feature on the DAP-2230 by using a drop-down menu option on its web GUI. Additionally, the DAP-2230 is capable of load balancing - this can ensure excellent performance by curbing the ratio of users to the access point.

Versatile Access Point Functionality

Versatile Access Point Functionality

Once the DAP-2230 is set up, it allows network administrators to deploy a highly manageable and robust wireless network with optimal wireless coverage. The DAP-2230 can be easily placed in any convenient spot whether on the ceiling or a wall or placed on a desktop - easy to set up and perfect for your wireless needs. The DAP-2230 has integrated 802.3af Power over Ethernet (PoE) support for users seeking an advanced set-up. This feature allows devices to be installed even in areas with limited power outlets.

Robust Security

Robust Security

To help maintain a secure wireless network, the DAP-2230 supports both Personal and Enterprise versions of WPA and WPA2 (802.11i). This system is supported by a RADIUS backend server and an in-built internal RADIUS server that allow users to create their account within the device.

This access point also includes MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling - these features ensure that your wireless network is securely protected.

Upto eight VLANs per band are supported by the DAP-2230. It can be used for implementing multiple SSIDs to segment users on the network. It also includes a wireless client isolation mechanism - this is capable of limiting direct client-to-client communication. But that’s not all! The DAP-2230 supports Network Access Protection (NAP), a feature of Windows Server® 2008 - this feature will allow a network administrator to define multiple levels of network access - this is ideal for enterprises looking to limit usage.

Efficient Network Management

Efficient Network Management

Network administrators have multiple options for managing the DAP-2230, including web (HTTP), Secure Socket Layer (SSL), Secure Shell (SSH), and Telnet. For advanced network management, administrators can use the D-Link Central WiFiManager to confgure and manage multiple access points from a single location. In addition, the D-Link Central WiFiManager provides network administrators with the means of conducting regular maintenance checks remotely, eliminating the need for sending out personnel to physically verify proper operation.

The DAP-2230 has a wireless scheduler feature, which turns of wireless functionality when it isn’t needed, saving power. With its high output power design, PoE support, extensive manageability, versatile operation modes, and solid security enhancements, the DAP-2230 provides small to medium business and enterprise environments with a business-class solution for deploying a wireless network.

Multiple Operation Modes

Multiple Operation Modes

Users have the opportunity to maximize their return on investment by using multiple operation modes - a feature offered by the DAP-2230. This system can be programmed to optimize network performance based on any one of its multiple operation modes including Access Point, Wireless Distribution System (WDS) with Access Point, WDS/Bridge (No AP Broadcasting), and Wireless Client.

A network administrators can set up multiple DAP-2230 systems within and across a building and bridge them to one another while simultaneously providing network clients to individual clients. For instance - a company with facilities on different floors of a building can be present on the same network but have individual access.  Other features including load balancing and redundancy make the DAP-2230 an ideal choice for fool-proof wireless connectivity.

Where to buy:

The D-Link DAP-2230 Wireless N PoE Access Point is available online at best price in Mumbai, Delhi, Bangalore, Hyderabad, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and will give you all the support you need to take the right buying decision in India.

Technical Specifications of D-Link DAP-2230 Wireless N PoE Access Point:

Brand & Model D-Link DAP-2230 Access Point
Device Interfaces
802.11 n/g/b wireless1
10/100BaseT Fast Ethernet LAN PoE port
LED Power/Status
Standards IEEE 802.11n/g/b1
IEEE 802.3u/af
Wireless Frequency Range
2.4 to 2.4835 GHz
Two internal 3 dBi
Security WPA-Personal
WEP 64/128-bit encryption
SSID broadcast disable
MAC address access control
Network Access Protection (NAP)
Network Management Telnet
Secure Telnet (SSH)
Traffic control
D-Link Central WiFiManager
AP Array
Maximum Output Power
29.84 dBm
Operating Voltage 12 V DC, 1 A or 802.3af PoE
Maximum Power Consumption
5.76 Watts
129 x 129 x 29 mm
5.08 x 5.08 x 1.14 inches
Weight 101.4 grams (3.56 ounces)
213.6 grams (7.5 ounces) with mounting kit
