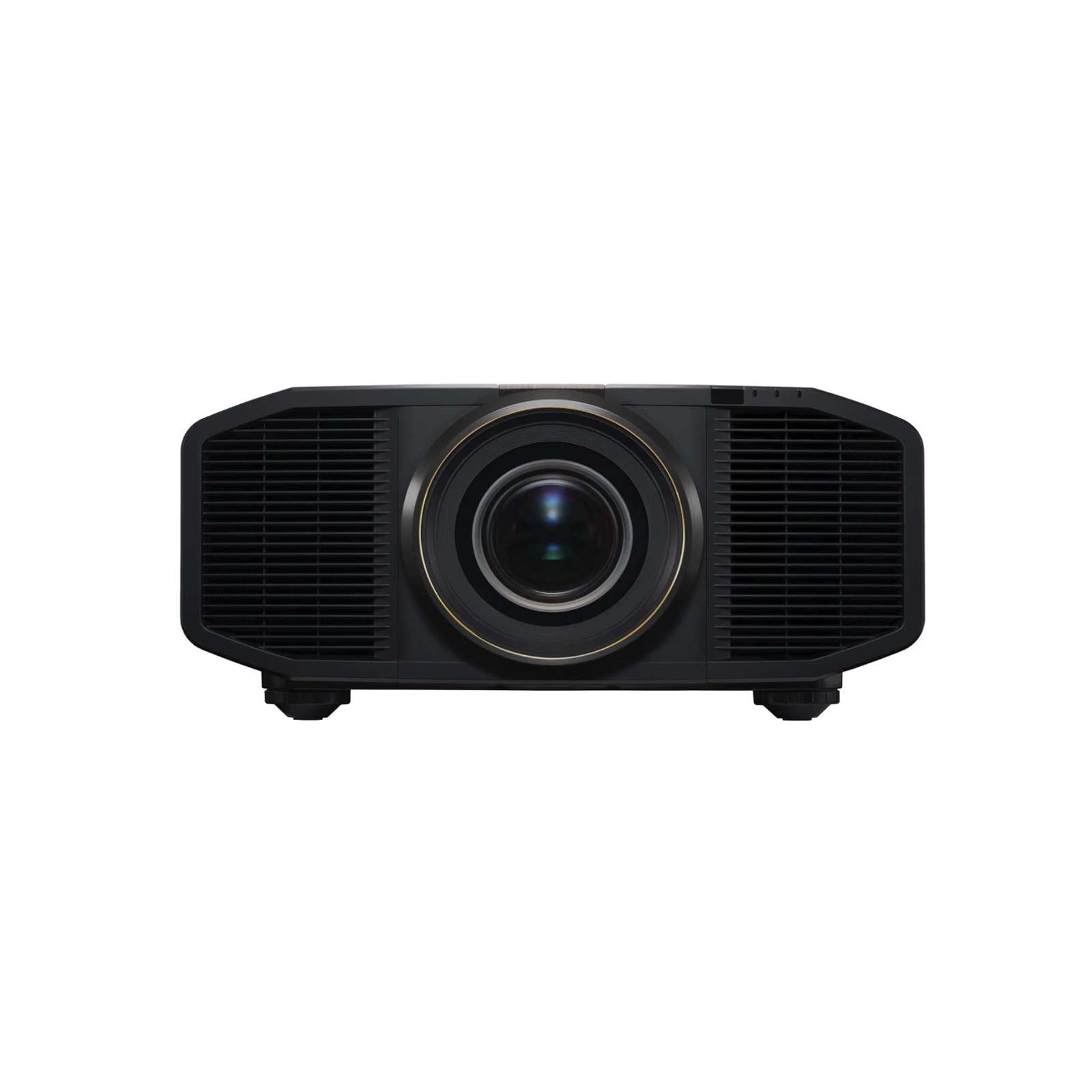

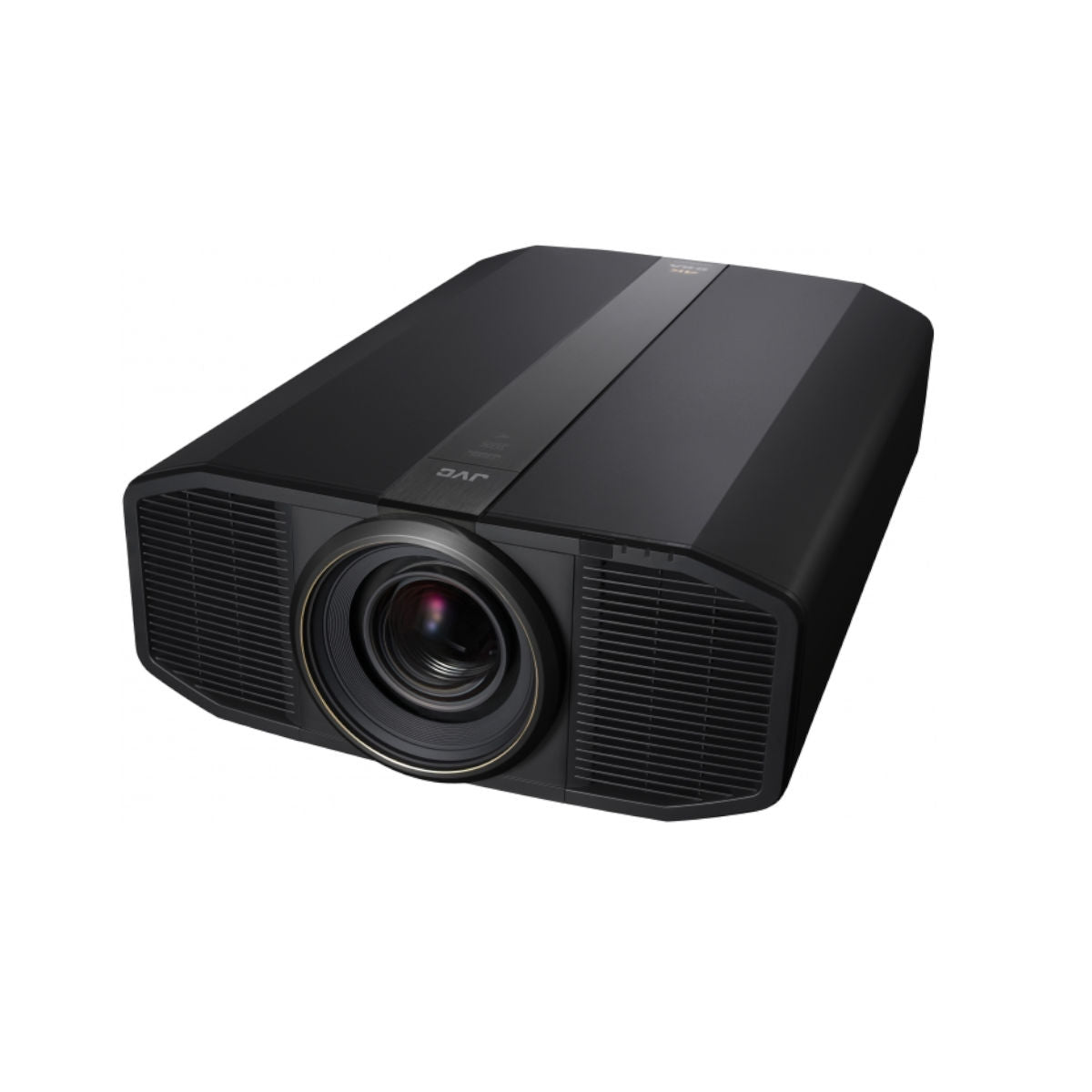

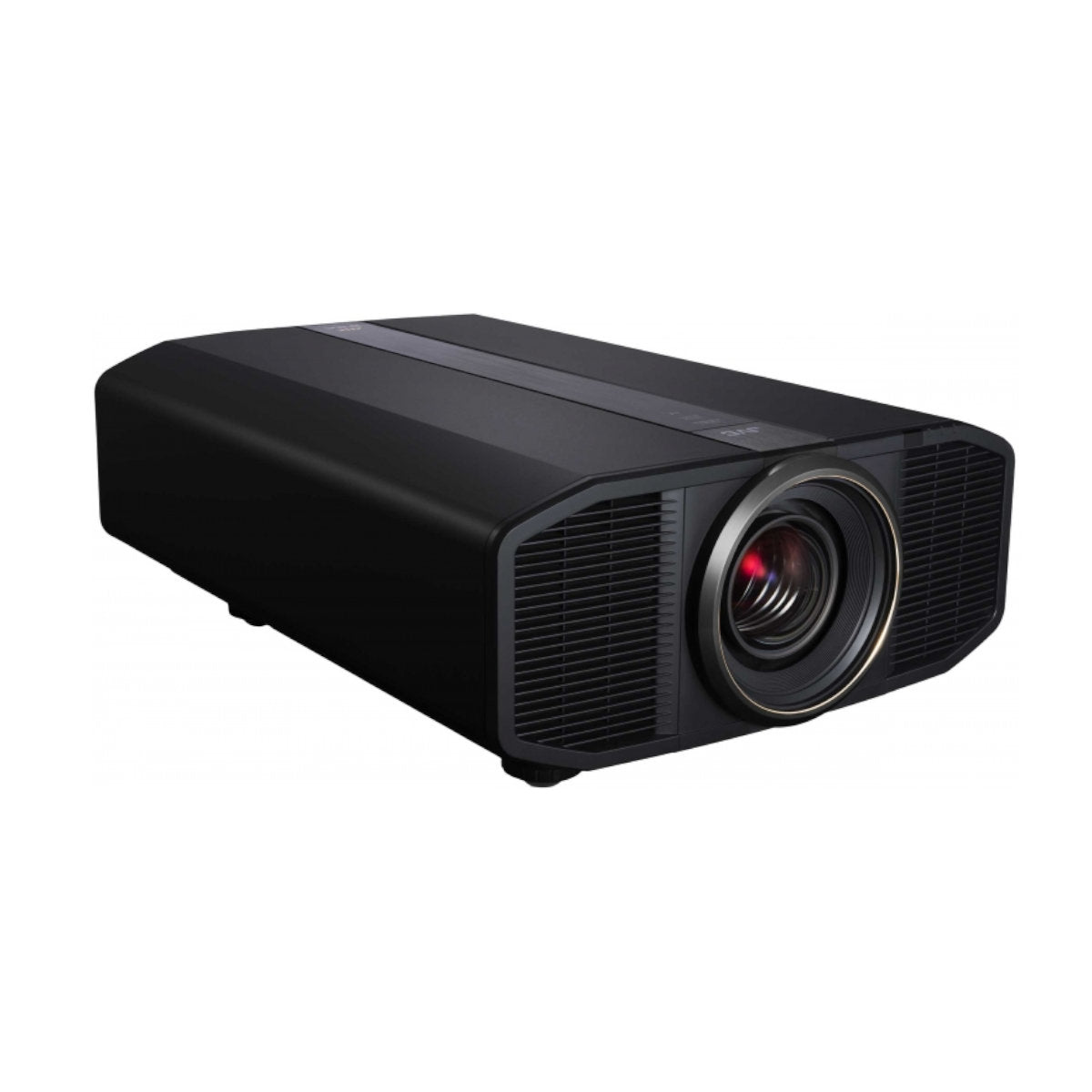

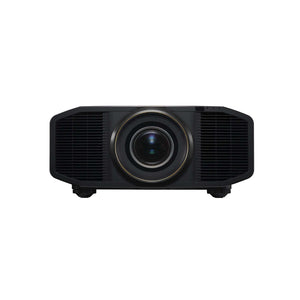

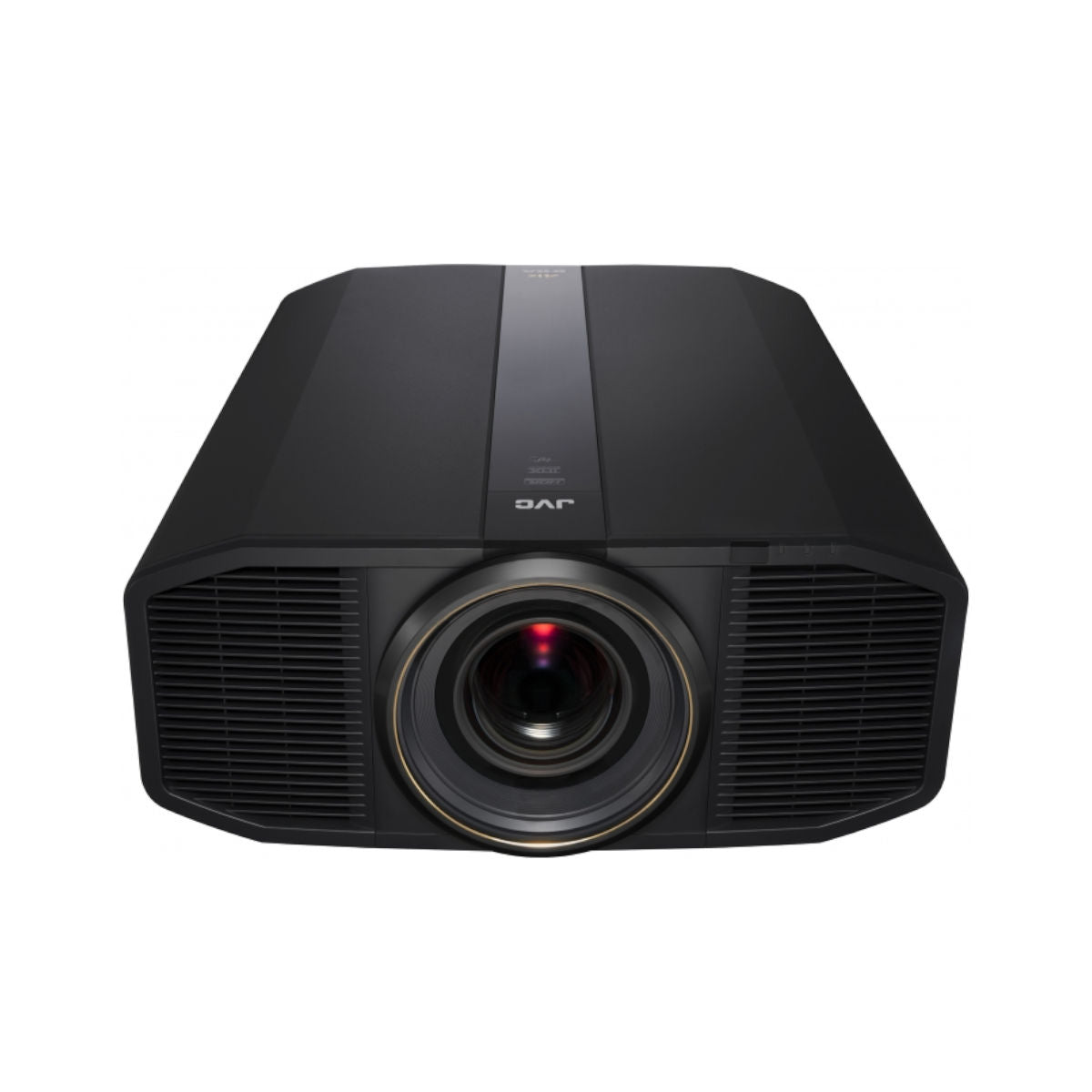

JVC DLA-Z1 4K D-ILA Laser Projector

by JVC
₹ 2,699,900.00

Check Cash on Delivery Availability for Orders under Rs 20,000/-

No Cost EMI: Avail No Cost EMI on Bajaj Finserve and select Credit Cards for orders above ₹3000 Details

EMI Guide


EMI for Rs.

Below EMI options can be availed while making payment. To avail EMI continue to check out and chose the Credit Card option for payment.

Country of Origin: China

JVC DLA-Z1 4K D-ILA Laser Projector is now available on Ooberpad. DLA-Z1 is feature-packed with original cutting-edge technologies for high-quality, high-definition images to realise the full potential of 4K. It is also compatible with next-gen technologies such as HDR (high dynamic range) content and video at 4K resolution. Visually appealing picture quality with a powerful lifelike sense of realism can be enjoyed for all types of video content, from movies to sports, music and documentaries, even 3D. Wrapped in a snazzy physical design that renders simple lines to emphasize functionality and symmetrical design to focus around the centrally positioned high-resolution lens, the weight and form of the projector befit a flagship 4K model.


1-year manufacturer's warranty

Key Features:

  • Original 0.69" native 4K D-ILA device (4096 x 2160)
  • BLU-Escent laser diode light source
  • 18-element, 16-group all-glass 100 mm diameter lens system with full aluminium lens barrel
  • Brightness of 3,000 lm
  • Dynamic contrast: Infinity:1
  • 4K signal input (4K60P 4:4:4, 4K60P 4:2:2/36-bit, 4K24P 4:4:4/36-bit)
  • Resolution: 4096 x 2160

        Benefits of JVC DLA-Z1 4K D-ILA Laser Projector:

        The Newly developed 0.69” native 4K D-ILA device
        The Newly developed 0.69” native 4K D-ILA device

        The brand new D-ILA device, with a pixel pitch of 3.8 μm, occupies an area that is 31% smaller compared to the previous devices. The native 4K device for projection is the smallest in the world at 0.69”, and allows the projector to notch a high-definition display at 4K resolution (4096 × 2160 pixels). Additionally, vertical orientation and planarization technologies radically cut down defects such as light scattering and diffraction, enhancing contrast. Resultantly, there is a smooth, high-definition image free of visible pixelation, even when projecting on large screens.

        HDR (High Dynamic Range)
        HDR (High Dynamic Range)

        HDR (high dynamic range) content, such as that available on UHD Blu-ray Discs, is enhanced with extended brightness range, 10-bit gradation, and a wide BT.2020 color gamut. With its high contrast ratio, 80% BT.2020 coverage, dynamic light source control, and a peak brightness of 3,000 lm, the projector offers optimal reproduction of HDR content. Furthermore, in conjunction with the HDR picture modes that are easy to set up when viewing HDR content, the projector also supports Hybrid Log-Gamma, a breakthrough technology that is anticipated to be used widely in future broadcasting.

        High brightness level and long life with the BLU-Escent laser light source
        1610_Optical_engineLaser Block

        The projector’s light source is based on JVC’s proprietary BLU-Escent laser projection technology, which uses blue laser diodes to offer both a brightness level of 3,000 lm and 20,000 hours of operational life. Enhancements in brightness result in stunningly captivating images on large screens. Moreover, the high increase in peak brightness, when projecting HDR and dynamic control of laser output according to the brightness of the image, work synergically to create a contrast ratio of ∞:1, creating the ultimate home theatre experience that transcends the previous range.

        The latest 4K-capable, high-resolution lens
        The latest 4K-capable, high-resolution lens

        Along with the new 4K D-ILA device, a new 18-element, 16-group all-glass lens with a full aluminum lens barrel was also designed. A new 100 mm diameter lens is used to project 4K-resolution images to every corner of the screen. This compares to the 65 mm diameter used in other projectors. The new lens offers an expanded lens shift of ±100% vertically and ±43% horizontally (*When the projection aspect ratio is 16:9). Additionally, it adopts five ED lenses that factor in the differences in the R/G/B refractive index, as a result, the projector is able to cut down chromatic aberration and color fringing to deliver a precise reproduction of 4K-resolution images.

        Reproduction of vivid images through a wide range of colours
        Reproduction of vivid images through a wide range of colours

        Through the use of its laser light source and a new cinema filter, the projector achieves 100% coverage of the DCI-P3 display range used in film production. Additionally, the unit achieves a minimum 80% coverage of the BT.2020 color range, used for UHD Blu-ray Discs and 4K and 8K broadcasting. These technologies facilitate a more accurate reproduction of the natural gradations in images of the sky and the sea, which has presented challenges in the past. Also, with a thorough recalibration, the differences in the color contrast between subjects have been worked out. Here is an example - flowers of a deep crimson or rose color, or the different shades of green on tree leaves.

        Where to buy?
        Buy a JVC DLA-Z1 4K D-ILA Laser Projector online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and will give you all the support you need to take the right buying decision in India.

        Technical Specifications of JVC DLA-Z1 4K D-ILA Laser Projector:

        Brand & Model # JVC DLA-Z1
        • Device: 0.69-inch 4K D-ILA (4096 x 2160) x3
        • Resolution: 4096 x 2160
        • Lens shift function: +/-100% vertical & +/-43% horizontal, motorised
        • Light source lamp: Laser Diode
        • Lamp life: Approx. 20,000 hours
        • Brightness: 3,000 lm
        • Contrast Ratio: Infinity:1
        • Video format: 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 60/50/24, 3840 x 2160p 60/50/30/25/24, 4096 x 2160p 60/50/30/25/24
        • PC input signal: HDMI - VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+

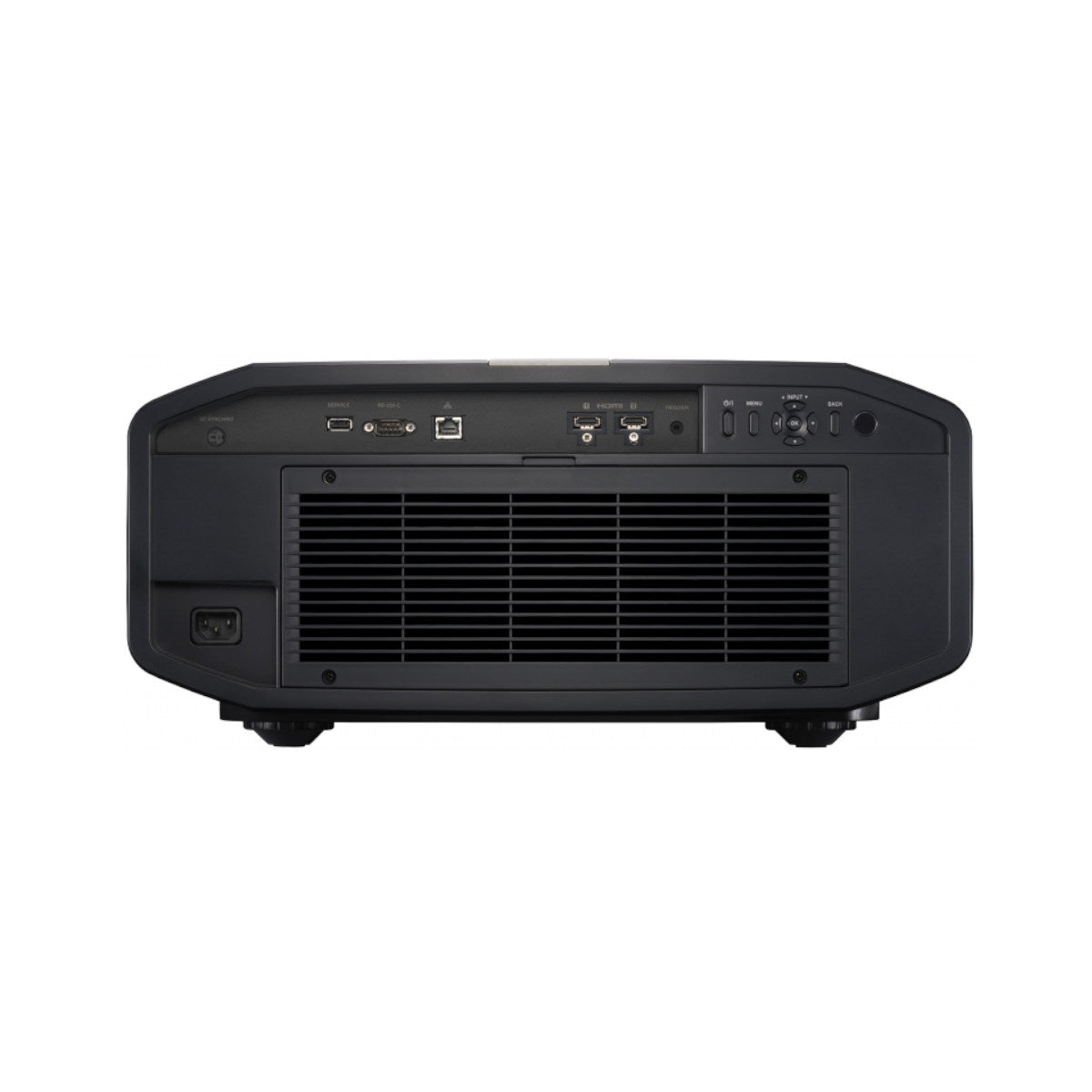

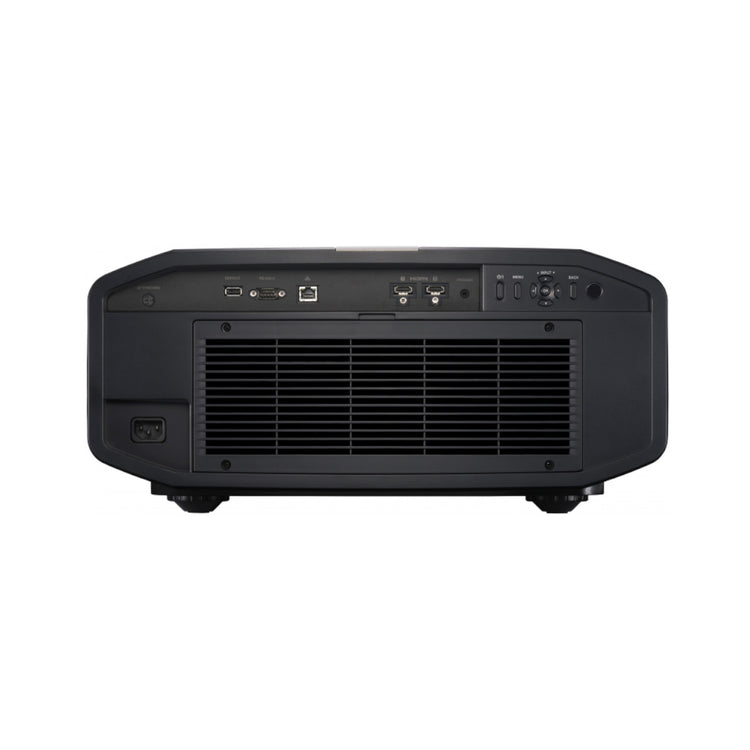

        • Control terminals: LAN - 1, RS232C - 1 (D-sub 9-pin)
        Noise Level
        25 dB (when the lamp is in Low mode)
        Power Consumption
        750 W (Normal standby: 1.5 W; Eco-mode standby: 0.4 W)
        Dimensions (W x H x D)
        500 x 235 x 720
        37.5 kg
