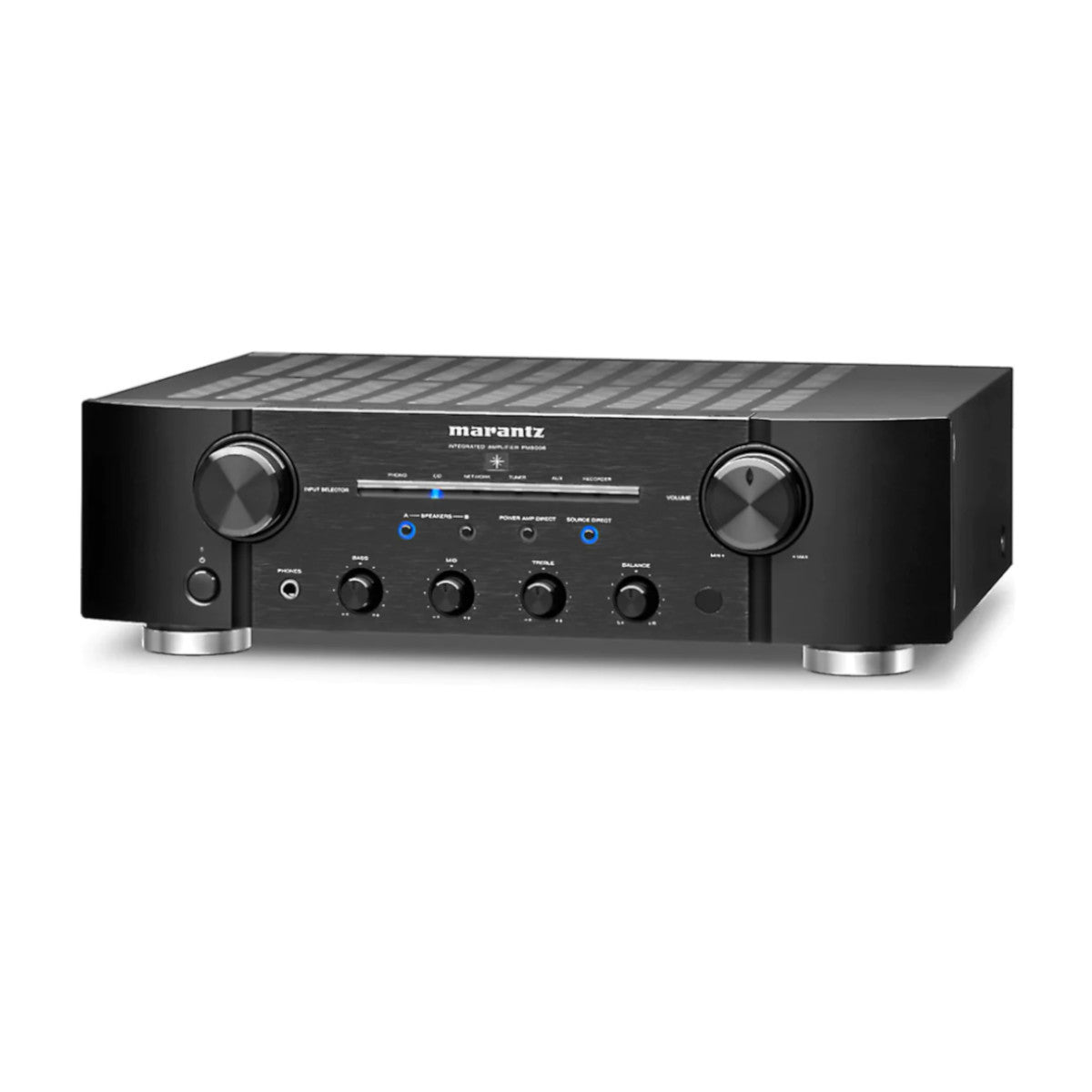

Marantz PM8006 Stereo Integrated Amplifier

by Marantz
Save 65%
₹ 221,900.00
₹ 78,490.00

Check Cash on Delivery Availability for Orders under Rs 20,000/-

No Cost EMI: Avail No Cost EMI on Bajaj Finserve and select Credit Cards for orders above ₹3000 Details

EMI Guide

×

EMI for Rs.




Below EMI options can be availed while making payment. To avail EMI continue to check out and chose the Credit Card option for payment.

Country of Origin: Japan

Did you check out the power-packed Marantz PM8006 Stereo Integrated Amplifier? With a fully discrete current feedback design, the PM8006 integrated amplifier is best-fit for audiophiles wanting both top-notch music quality and flexible operation. It offers a powerful 2x 70W into 8 ohms, while the symmetrical circuits ensure optimal imaging. To ensure that the listeners get the most riveting musical experience, the amplifier leverages a new Marantz-designed electric volume control and brand-new Marantz Musical Phono EQ phono preamp stage, precision-designed to get the purest signal from beloved vinyl by cutting down noise levels. To further attenuate interference, new isolating feet are used to support the amplifier, amalgamating high density and damping fibre.

The PM8006 also comprises preamp outputs along with a power amp direct input, which lets you use the unit as a standalone power amplifier for integration into a multi-channel home theater system. For precise sound tailoring, our triple tone control system provides separate controls for the bass, midrange and treble. The functionally-sophisticated remote control is equipped with an ergonomic layout for effortless operation and can control accompanying source players.

Warranty

1-year manufacturer's warranty

Key Features:

  • Integrated Current Feedback Amplifier with 2x 70W / 8 ohm rms
  • Newly designed electric volume circuit
  • Exceptional Marantz Musical Phono EQ stage
  • Marantz proprietary HDAM-SA3 circuits
  • Triple layer bottom plate
  • Gold Plated Inputs/Outputs incl. Phono (MM) input
  • Double shielded Toroidal Transformer and high quality customized components
  • High quality, original Marantz SPKT-1+ Speaker Terminals (A / B switchable)

Benefits of Marantz PM8006 Stereo Integrated Amplifier:

Marantz HDAM Technology
Marantz HDAM Technology

Marantz developed its own discrete circuit boards, called Hyper-Dynamic Amplifier Modules, or HDAMs, to replace the chip based amps used elsewhere. Using discrete surface mount components with short mirror-image left and right signal paths, HDAMs outperform the regular integrated Op-amps dramatically in Slew Rate and noise level, resulting in a much more dynamic, accurate and detailed sound. Over the years Marantz has developed different HDAMs to fit the particular requirements of players and amplifiers: the PM8006 uses the high-grade SA3 version.

Integrated Current Feedback Amplifier
Integrated Current Feedback Amplifier

Current Feedback amplification is a well-known, Marantz-original circuit technology, suiting perfectly with the requirements of Super Audio hi-res music for wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited resulting in a very low phase shift, meaning Marantz Current Feedback amplifiers reduce the need for phase compensation via Negative FeedBack (NFB) to a minimum. This simplified the signal path, resulting in high through-rate, excellent transient response and superb sonic transparency across the full bandwidth. Unlike conventional Voltage Feedback topology, Current Feedback also makes the power amplifier insensitive to difficult loudspeaker loads.

Marantz Musical Phono EQ
Marantz Musical Phono EQ

For a long time, Marantz integrated amplifiers have featured high-quality phono stages, but now the company takes its commitment to vinyl to new levels with the Marantz Musical Phono EQ stage, launched in the PM8006 amplifier. This unique technology, simplifying the signal path in the phono stage for optimal sound quality, underlines the company’s commitment to the very best playback of all music sources, be they digital or analogue. Marantz Musical Phono EQ uses two-stage amplification, allowing less gain per stage, for lower distortion. Of course, being a Marantz design it uses the company’s HDAMs, but here they’re combined with JFETs (junction gate field-effect transistors) in the input stage, giving a high input impedance. This allows the deletion of the AC coupling capacitors previously used providing a simpler signal path for the tiny output from a phono cartridge, improving signal purity.

Toroidal Transformer
Toroidal Transformer

A Toroidal transformer has several advantages over a normal EI core transformer. It is very efficient and therefore delivers more power compared to the same size of an EI core transformer. Additionally, due to its shape, the electromagnetic radiation and the mechanical vibration are extremely low all ending in a better sound quality.

A high quality volume control

A newly developed electric volume control using the latest volume control IC realizes better channel separation, dynamic range and distortion-reduction, while retaining the operational feel of an analogue volume control device. To ensure the most involving musical experience, the amplifier uses a new Marantz-designed electric volume control for high linearity and best-in-class channel separation.

High quality, original Marantz SPKT-1+ Speaker Terminals
High quality, original Marantz SPKT-1+ Speaker Terminals

The terminals are made of massive brass with a thick silver plating for the best possible contact with the speaker cables, and the main speaker terminals are mounted lower, and thus closer to the main circuit board, to reduce the signal path. That’s in keeping with the entire design of the amplifier, which uses the shortest possible signal paths and High Instantaneous Current topology for better speed and dynamics.

Where to buy?
Buy the Marantz PM8006 Stereo Integrated Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of Marantz PM8006 Stereo Integrated Amplifier:

Brand & Model # Marantz PM8006
Features
  • Channels: 2
  • Current Feedback Topology: Yes
  • Phono EQ: Marantz Musical: Yes
  • HDAM version: SA3, SA2
  • Power Transformer: Toroidal / EI: Yes / -
  • High Grade Audio Components: Yes
  • Customised Components: Yes
  • Symmetric PCB Layout: Yes
  • Aluminium extrusion heat sink: Yes
  • Tri Tone Control (Bass / Mid / Treble): Yes
  • Balance / Bass / Treble / Loudness: Yes / Yes / Yes / -
Inputs/Outputs
  • Audio Inputs: 6
  • Digital in: USB-B / optical / coaxial / USB-A: No
  • Phono Input: MM / MC: Yes / -
  • Audio Outputs: 1
  • Balanced In / Out: -
  • Pre-out / Main-in: 1 / -
  • Power Amp Direct IN: Yes
  • Gold Plated Cinch: Yes
  • Speaker A / B: Yes
  • Speaker Terminals: Marantz SPKT-1+
  • Number of terminals: 4
  • D-Bus: Yes
  • Floating Control Bus (3.5 mm mono jack x 2): -
  • Headphone Out: Yes
  • Headphone Gain Control (low / mid / high): -
Specifications
  • Power Output (8 / 4 Ohm RMS): 70 W / 100 W
  • Frequency Response: 5 Hz-100 kHz
  • Total Harmonic Distortion: 0.02%
  • Damping Factor: 100
  • Input Sensitivity: MM: 2 mV / 47 kOhm
  • Input Sensitivity: MC: -
  • Signal to Noise Ratio: MM / MC: 87 dB / -
  • Input Sensitivity: High level: 200 mV / 20 kOhm
  • Input Sensitivity: Balanced High level: No
  • Signal to Noise Ratio: High level: 106dB(2V input)
  • Input Sensitivity: Power Amp Direct IN: 1.6V / 15 kOhm
  • Signal to Noise Ratio: Power Amp Direct IN: 125 dB
General
  • Metal Front Panel: Yes
  • Power Consumption in W: 220
  • Standby Consumption in W: 0.2
  • Auto power off: Yes
  • Detachable Power Cable: Yes
  • Remote Control: RC001PMND
  • System Remote Function: Yes
Maximum Dimensions (W x D x H)
440 x 379 x 128
Weight 12 kg
