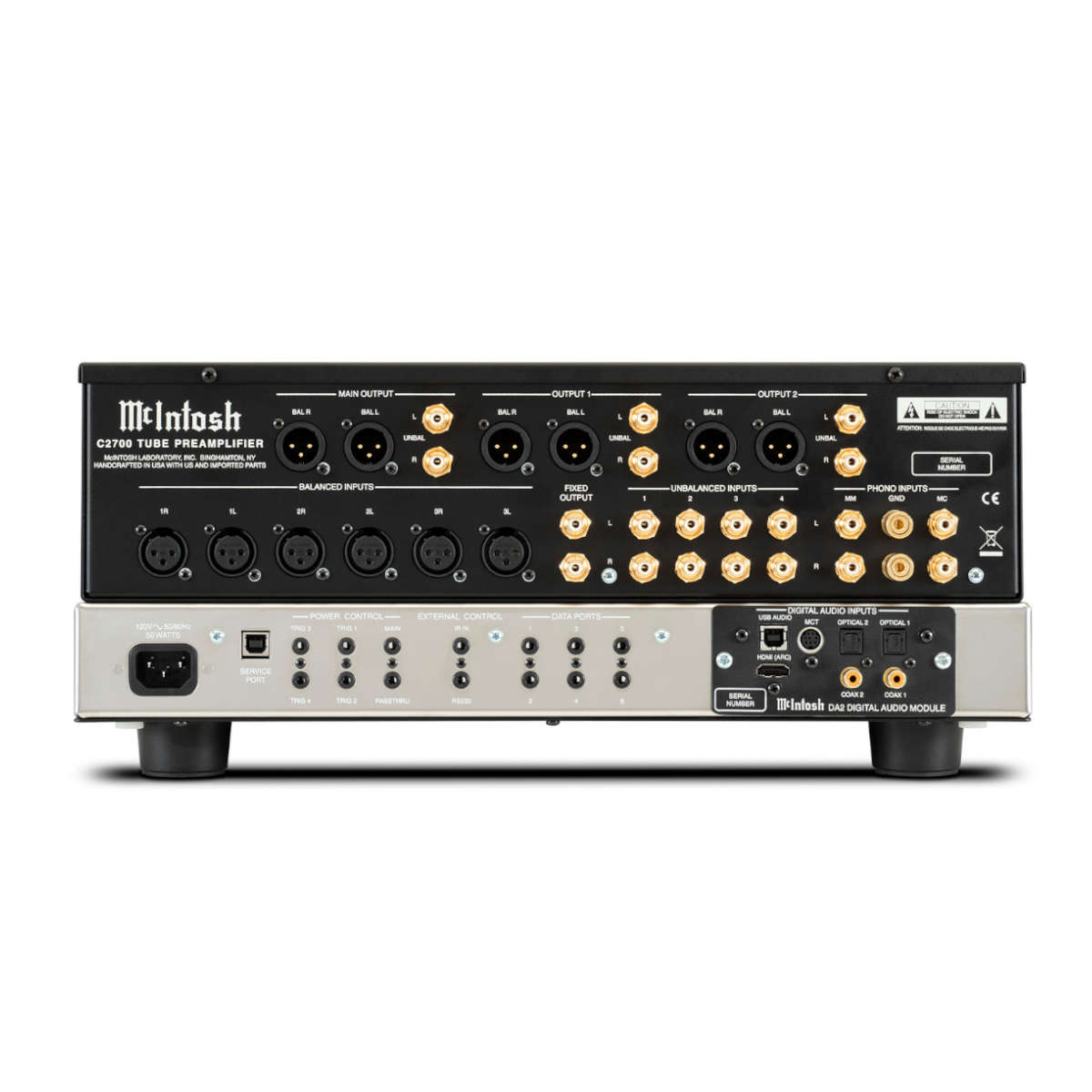

McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Rear View

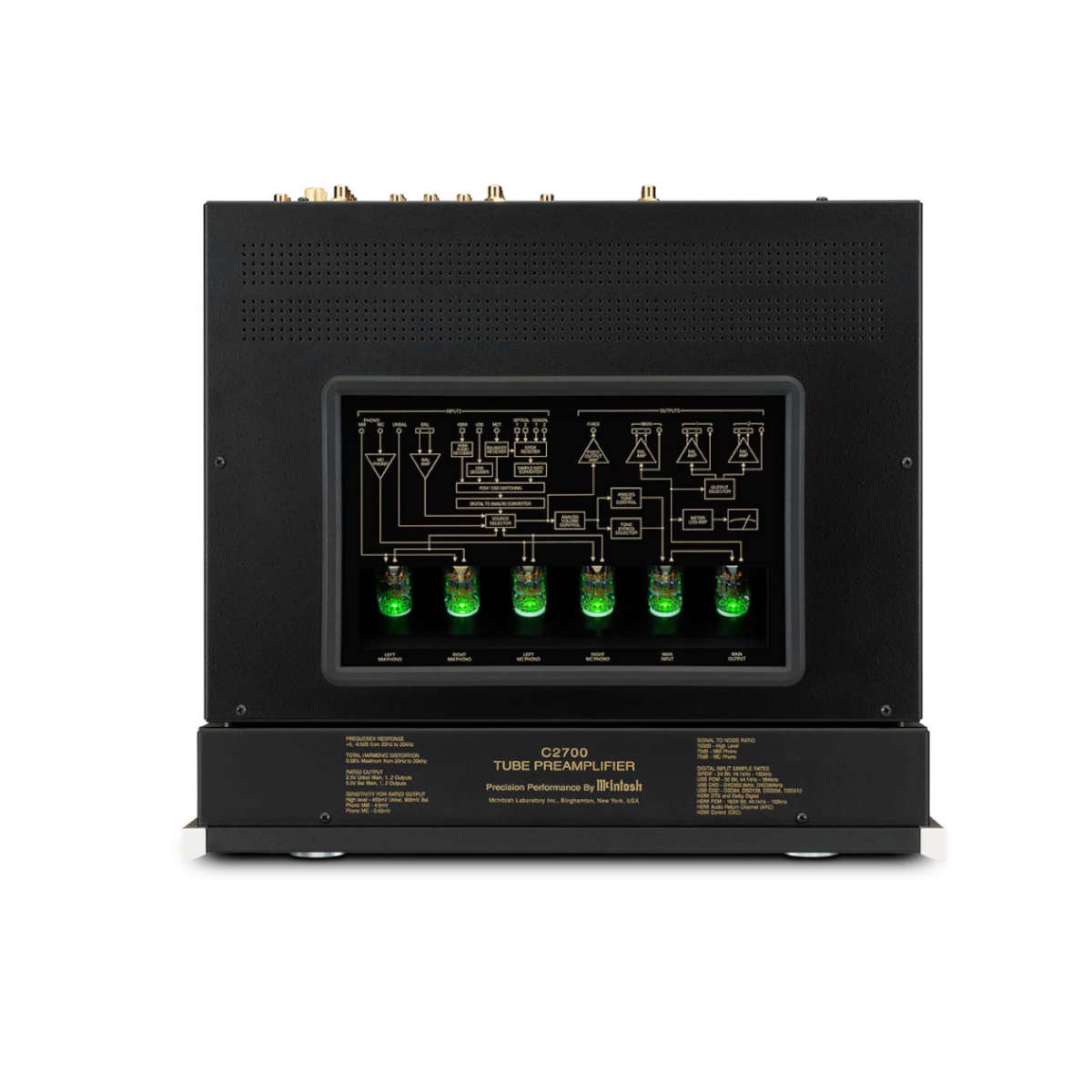

McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Top View
    McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
    McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
    McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
    McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Rear View
    McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Top View
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Rear View
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Top View
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Rear View
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Top View
    McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
    McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
    McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
    McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Rear View
    McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Top View
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Ooberpad India
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Rear View
McIntosh C2700 2-Channel Vacuum Tube Preamplifier - Top View

About

Description

Ooberpad announces the availability of the feature-packed McIntosh C2700 2-Channel Vacuum Tube Preamplifier. Following in a long line of revered McIntosh vacuum tube preamplifiers is the C2700 Tube Preamplifier. Leveraging the well-established vacuum tube topology, the C2700 also comes featured with the cutting-edge DA2 Digital Audio Module technology to combine cutting edge digital music capabilities with time tested vacuum tube performance. A credible successor to McIntosh's popular DA1 Digital Audio Module, the DA2 features a wide set of capabilities. The DA2 offers 7 digital inputs including all the same connections found on the DA1 (2 coaxial, 2 optical, 1 USB and 1 MCT) plus a new audio-only HDMI Audio Return Channel (ARC)1 connection. TVs with a compatible HDMI (ARC) output can be connected to the C2700 to enjoy your TV’s sound through your home audio system. Popular multi-channel audio formats from Dolby® and DTS® are supported and will be accurately converted to 2-channel audio for proper playback. The TV remote can control the power and volume of the C2700 when CEC communication is enabled in both the preamplifier and the TV. Besides these new HDMI (ARC) features found in the DA2, its USB input has increased DSD playback support up to DSD512 as opposed to the DSD256 limit of the DA1.

Warranty

3-year manufacturer's warranty

Key Features:

  • 16 inputs (9 analog + 7 digital)
  • (5) 12AX7A and (1) 12AT7 vacuum tubes
  • Supports up to DSD512 files
  • Comes with DA2 Digital Audio Module installed

Benefits of McIntosh C2700 2-Channel Vacuum Tube Preamplifier:

Advanced DA2 Digital Audio Module technology
Advanced DA2 Digital Audio Module technology

The DA2 is powered by a next generation, audiophile-grade, Quad Balanced, 8-channel, 32-bit Digital-to-Analog Converter (DAC) that has improvements in both dynamic range and total harmonic distortion compared to the DA1. The coax and optical inputs in the DA2 can decode digital music up to 24-bit/192kHz for playback of high resolution audio. Finally, the DA2 has a McIntosh exclusive MCT input that offers a secure DSD connection to any of our MCT series of SACD/CD Transports to deliver the best possible sound quality of the high definition audio from your SACDs.

Connections
Connections

For analog music, the C2700 has 9 inputs comprised of 3 balanced connections, 4 unbalanced connections, along with 1 Moving Coil and 1 Moving Magnet phono inputs for connecting a turntable or two. With a total of 16 inputs, the C2700 has a virtually infinite number of inputs to connect all your music sources. The dual chassis design keeps the analog and digital sections separate to prevent signal corruption. Outputs include 3 variable balanced and 3 variable unbalanced plus 1 fixed unbalanced connection.

Bass and treble tone controls
Bass and treble tone controls

Bass and treble tone controls are included and can be adjusted in 2dB increments. The ¼” headphone jack is powered by the High Drive Headphone Amplifier which can power almost any pair of headphones; Headphone Crossfeed Director (HXD®) is included and brings an added dimension to your personal listening session when activated. Home Theater Pass Through allows the C2700 to be seamlessly integrated into your home theater system. Power Control ports let you easily turn other connected McIntosh components on and off, while the Data Ports can send remote control commands to connected source components.

Roon Tested designation from Roon Labs

The C2700 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. As a Roon Tested partner, McIntosh has provided equipment to Roon for testing with a variety of different operating systems and computers, and shared information about its design and capabilities

Makes a visual statement in addition to its audio prowess

All this audio technology is packed inside the timeless McIntosh design highlighted by a black glass front panel backlit by direct LED lighting, blue meters, rotary knobs, an illuminated logo, aluminum end caps and a polished stainless steel chassis. The 6 alluring vacuum tubes can be viewed through a glass panel located on the top of the preamplifier. It can be paired with an assortment of amplifiers, CD players, turntables, tuners, media streamers, room correction devices and power controllers, and speakers to complete your home audio system.


Where to buy?
Buy the McIntosh C2700 2-Channel Vacuum Tube Preamplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of McIntosh C2700 2-Channel Vacuum Tube Preamplifier:

Brand & Model # McIntosh C2700
Electronic Specifications
  • Number of Channels: 2
  • Total Harmonic Distortion: 0.08%
  • Frequency Response:
    +0, -0.5dB from 20Hz to 20kHz
    +0, -3dB from 15Hz to 100kHz
  • Maximum Volts Out (Balanced / Unbalanced): 16V RMS / 8V RMS
  • Sensitivity High Level (Balanced / Unbalanced): 900mV / 450mV
  • Sensitivity Phono (Moving Coil): 0.45mV
  • Sensitivity Phono (Moving Magnet): 4.5mV
  • Signal To Noise Ratio (High Level): 100dB
  • Signal To Noise Ratio (Moving Coil): 80dB
  • Signal To Noise Ratio (Moving Magnet): 82dB
  • Voltage Gain (High Level): 15dB
  • Voltage Gain (Moving Coil): 60dB
  • Voltage Gain (Moving Magnet): 40dB
  • Input Impedance (Balanced / Unbalanced): 44K ohm, 22K ohm
Connectivity
  • Balanced Input: 3
  • Unbalanced Input: 4
  • Phono Input Moving Coil: 1 (adjustable)
  • Phono Input Moving Magnet: 1 (adjustable)
  • Upgradeable Digital Audio Module: Yes: DA2
  • Digital Coaxial Input: 2
  • Digital Optical Input: 2
  • Digital MCT (DIN) Input: 1
  • Digital USB Input: 1
  • HDMI (ARC) Input: 1
  • Digital AES/EBU Input: 0
  • Balanced Fixed Output: 0
  • Balanced Variable Output: 3
  • Unbalanced Fixed Output:1
  • Unbalanced Variable Output:3
  • Headphone Output:1/4" High Drive with Headphone Crossfeed Director (HXD®)
  • Input Level Match:Yes, +/- 6dB
  • Home Theater PassThru:Yes
  • Unbalanced Analog Connector Type: Premium gold-plated solid brass
  • Service Port: 1
Control
  • Tone Controls: Bass and Treble
  • Tone Bypass and Input Assign: Yes
  • RS232 Control Input: Yes
  • Power Control Output: 1 Main, 4 Trigger
  • Rear Panel Data Port: 6
  • Rear Panel IR Sensor Input: Yes
General Specifications
  • Multi-Chassis or Single: Single, two layer
  • Output Meters: Yes
  • Vacuum Tube or Solid State:
    Vacuum Tube
    (5) 12AX7a and (1) 12AT7
  • Power Consumption (On): 50 Watts
Dimensions & Weight
  • Unit Dimensions (W x H x D)
    17.5" (44.45cm) x 7.625" (19.37cm) x 18" (45.72cm)
  • Unit Weight: 29.5 lbs (13.4kg)

    Description

    Ooberpad announces the availability of the feature-packed McIntosh C2700 2-Channel Vacuum Tube Preamplifier. Following in a long line of revered McIntosh vacuum tube preamplifiers is the C2700 Tube Preamplifier. Leveraging the well-established vacuum tube topology, the C2700 also comes featured with the cutting-edge DA2 Digital Audio Module technology to combine cutting edge digital music capabilities with time tested vacuum tube performance. A credible successor to McIntosh's popular DA1 Digital Audio Module, the DA2 features a wide set of capabilities. The DA2 offers 7 digital inputs including all the same connections found on the DA1 (2 coaxial, 2 optical, 1 USB and 1 MCT) plus a new audio-only HDMI Audio Return Channel (ARC)1 connection. TVs with a compatible HDMI (ARC) output can be connected to the C2700 to enjoy your TV’s sound through your home audio system. Popular multi-channel audio formats from Dolby® and DTS® are supported and will be accurately converted to 2-channel audio for proper playback. The TV remote can control the power and volume of the C2700 when CEC communication is enabled in both the preamplifier and the TV. Besides these new HDMI (ARC) features found in the DA2, its USB input has increased DSD playback support up to DSD512 as opposed to the DSD256 limit of the DA1.

    Warranty

    3-year manufacturer's warranty

    Key Features:

    • 16 inputs (9 analog + 7 digital)
    • (5) 12AX7A and (1) 12AT7 vacuum tubes
    • Supports up to DSD512 files
    • Comes with DA2 Digital Audio Module installed

    Benefits of McIntosh C2700 2-Channel Vacuum Tube Preamplifier:

    Advanced DA2 Digital Audio Module technology
    Advanced DA2 Digital Audio Module technology

    The DA2 is powered by a next generation, audiophile-grade, Quad Balanced, 8-channel, 32-bit Digital-to-Analog Converter (DAC) that has improvements in both dynamic range and total harmonic distortion compared to the DA1. The coax and optical inputs in the DA2 can decode digital music up to 24-bit/192kHz for playback of high resolution audio. Finally, the DA2 has a McIntosh exclusive MCT input that offers a secure DSD connection to any of our MCT series of SACD/CD Transports to deliver the best possible sound quality of the high definition audio from your SACDs.

    Connections
    Connections

    For analog music, the C2700 has 9 inputs comprised of 3 balanced connections, 4 unbalanced connections, along with 1 Moving Coil and 1 Moving Magnet phono inputs for connecting a turntable or two. With a total of 16 inputs, the C2700 has a virtually infinite number of inputs to connect all your music sources. The dual chassis design keeps the analog and digital sections separate to prevent signal corruption. Outputs include 3 variable balanced and 3 variable unbalanced plus 1 fixed unbalanced connection.

    Bass and treble tone controls
    Bass and treble tone controls

    Bass and treble tone controls are included and can be adjusted in 2dB increments. The ¼” headphone jack is powered by the High Drive Headphone Amplifier which can power almost any pair of headphones; Headphone Crossfeed Director (HXD®) is included and brings an added dimension to your personal listening session when activated. Home Theater Pass Through allows the C2700 to be seamlessly integrated into your home theater system. Power Control ports let you easily turn other connected McIntosh components on and off, while the Data Ports can send remote control commands to connected source components.

    Roon Tested designation from Roon Labs

    The C2700 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. As a Roon Tested partner, McIntosh has provided equipment to Roon for testing with a variety of different operating systems and computers, and shared information about its design and capabilities

    Makes a visual statement in addition to its audio prowess

    All this audio technology is packed inside the timeless McIntosh design highlighted by a black glass front panel backlit by direct LED lighting, blue meters, rotary knobs, an illuminated logo, aluminum end caps and a polished stainless steel chassis. The 6 alluring vacuum tubes can be viewed through a glass panel located on the top of the preamplifier. It can be paired with an assortment of amplifiers, CD players, turntables, tuners, media streamers, room correction devices and power controllers, and speakers to complete your home audio system.


    Where to buy?
    Buy the McIntosh C2700 2-Channel Vacuum Tube Preamplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

    Technical Specifications of McIntosh C2700 2-Channel Vacuum Tube Preamplifier:

    Brand & Model # McIntosh C2700
    Electronic Specifications
    • Number of Channels: 2
    • Total Harmonic Distortion: 0.08%
    • Frequency Response:
      +0, -0.5dB from 20Hz to 20kHz
      +0, -3dB from 15Hz to 100kHz
    • Maximum Volts Out (Balanced / Unbalanced): 16V RMS / 8V RMS
    • Sensitivity High Level (Balanced / Unbalanced): 900mV / 450mV
    • Sensitivity Phono (Moving Coil): 0.45mV
    • Sensitivity Phono (Moving Magnet): 4.5mV
    • Signal To Noise Ratio (High Level): 100dB
    • Signal To Noise Ratio (Moving Coil): 80dB
    • Signal To Noise Ratio (Moving Magnet): 82dB
    • Voltage Gain (High Level): 15dB
    • Voltage Gain (Moving Coil): 60dB
    • Voltage Gain (Moving Magnet): 40dB
    • Input Impedance (Balanced / Unbalanced): 44K ohm, 22K ohm
    Connectivity
    • Balanced Input: 3
    • Unbalanced Input: 4
    • Phono Input Moving Coil: 1 (adjustable)
    • Phono Input Moving Magnet: 1 (adjustable)
    • Upgradeable Digital Audio Module: Yes: DA2
    • Digital Coaxial Input: 2
    • Digital Optical Input: 2
    • Digital MCT (DIN) Input: 1
    • Digital USB Input: 1
    • HDMI (ARC) Input: 1
    • Digital AES/EBU Input: 0
    • Balanced Fixed Output: 0
    • Balanced Variable Output: 3
    • Unbalanced Fixed Output:1
    • Unbalanced Variable Output:3
    • Headphone Output:1/4" High Drive with Headphone Crossfeed Director (HXD®)
    • Input Level Match:Yes, +/- 6dB
    • Home Theater PassThru:Yes
    • Unbalanced Analog Connector Type: Premium gold-plated solid brass
    • Service Port: 1
    Control
    • Tone Controls: Bass and Treble
    • Tone Bypass and Input Assign: Yes
    • RS232 Control Input: Yes
    • Power Control Output: 1 Main, 4 Trigger
    • Rear Panel Data Port: 6
    • Rear Panel IR Sensor Input: Yes
    General Specifications
    • Multi-Chassis or Single: Single, two layer
    • Output Meters: Yes
    • Vacuum Tube or Solid State:
      Vacuum Tube
      (5) 12AX7a and (1) 12AT7
    • Power Consumption (On): 50 Watts
    Dimensions & Weight
    • Unit Dimensions (W x H x D)
      17.5" (44.45cm) x 7.625" (19.37cm) x 18" (45.72cm)
    • Unit Weight: 29.5 lbs (13.4kg)
