Ooberpad announces the availability of Parasound NewClassic 200 Integrated Stereo Integrated Amplifier with DAC. Parasound has turned its most affordable preamplifier and DAC design into its most-affordable integrated amplifier and DAC by adding a 110-watt per channel power amplifier stage. The resulting Parasound NewClassic 200 Integrated Amplifier and DAC has all the same preamplifier features as the NewClassic 200 Pre, plus the ability to drive high quality loudspeakers without the need for a separate power amplifier. Like the 200 Pre, the 200 Integrated includes analog bass management for optimal performance with compact satellite speakers and a powered subwoofer.
Warranty
1-year manufacturer's warranty
Key Features:
- 110 Watts @ 8 or 4 Ohms
- Class D amplification by Pascal
- Burr-Brown 192kHz-24 bit DAC from the Halo P 5
- USB, Optical and Coax digital audio inputs
- 4 Analog audio inputs
- Phono input for MM or MC cartridges
- Pure analog signal path from input to output
- Analog bass management w/ variable 20-140Hz high pass crossover
- Subwoofer On/Off & level by remote control
- 80Hz low pass subwoofer output
- Full range mono output can be used for subwoofer or mono listening area
- Variable and fixed stereo preamp outputs
- Bypass input for surround sound or music streamer integration
- Default turn on volume memory
- Favorite volume memory with remote control button
- Input level matching (source volume offset)
- Bass, treble and balance adjustments by remote control
- Front panel LCD display with dimming
- 2-way RS232 w/ exact volume control & feedback
- Control4 Driver available
- Rename inputs to match connected source
- Front panel Aux input with12dB of additional gain
- Dedicated headphone amplifier
- Back-lit remote control with discrete buttons
- 12V trigger output
- Rear panel IR input
- 0.5w standby power consumption meets Energy Star & EU specs
Benefits of Parasound NewClassic 200 Integrated Stereo Integrated Amplifier with DAC:
Built-in DAC
The Parasound NewClassic 200 Integrated Amp is ready to bring you maximum enjoyment from your digital music files. It incorporates a very high quality state-of-the-art DAC using circuitry from the highly regarded Halo P5 preamp. This DAC can process a wide range of digital sources with its coaxial and optical inputs accepting up to 192 kHz rates, and the USB input accepts up to 96 kHz. The NewClassic 200 Integrated Amp's Cirrus Logic Digital Receiver scrubs the digital clock to attenuate jitter not only for the USB but for all inputs. This enables its acclaimed Burr-Brown PCM1798 DAC to achieve outstanding, natural sound quality for all of your digital sources.
Where to buy?
Buy Parasound NewClassic 200 Integrated Stereo Integrated Amplifier with DAC online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad.com team. We will help you choose better and will give you all the support you need to take the right buying decision in India.
Technical Specifications of Parasound NewClassic 200 Integrated Stereo Integrated Amplifier with DAC:
| Brand & Model # | Parasound NewClassic 200 Integrated |
|
Power Output - Both channels driven (0.05% THD, 20 Hz - 20 kHz) |
110 watts x 2 @ 4 Ω or 8 Ω (RMS) |
|
Power Output - Both channels driven (1% THD, 20 Hz - 20 kHz) |
125 watts x 2 @ 4 Ω or 8 Ω (RMS) |
| Frequency Response |
20 Hz - 20 kHz, +0 / -0.05 dB 10 Hz - 80 kHz, +0 / -3 dB |
| Total Harmonic Distortion: (20 Hz - 20 kHz) |
< 0.05 %, (110 watts, 8 Ω) |
|
Inter-Channel Crosstalk |
-75 dB at 20 kHz -85dB at 1 kHz |
| Preamp Output | 250mv = 1V output Total gain = 12 dB (volume set to 100) Unity gain = Volume set to 76 Maximum output = 3.5V |
| Phono Stage Gain / Input Impedance |
MM: 40 dB / 47 k Ω MC: 50 dB / 100 Ω |
| Line Level Input Impedance | 24k Ohms |
| Preamp Output Impedance | 470 Ohms |
| S/N Ratio – Line Inputs | > 100 dB, input shorted, IHF A-weighted |
| S/N Ratio – Digital Inputs | > 110 dB, input shorted, IHF A-weighted |
| DAC IC | Burr-Brown PCM1798 |
| DC Trigger Output |
12 Vdc, 50mA |
| AC Power Requirement |
Standby: 0.5 watts Idling: 15 watts (no music playing) Typical: 50 watts (music playing) Maximum: 300 watts 100-250 VAC 50/60 Hz (automatic) |
| Dimensions |
Width: 17.25" (438 mm) Depth: 14.75" (375 mm) Depth: 16.75" (425 mm) with cables connected Height, with feet: 2.5" (63.5 mm) Height, without feet: 1.75" (44.5 mm), 1U |
| Net Weight |
Net: 11.5 lbs (5.2 kg) |
Ooberpad announces the availability of Parasound NewClassic 200 Integrated Stereo Integrated Amplifier with DAC. Parasound has turned its most affordable preamplifier and DAC design into its most-affordable integrated amplifier and DAC by adding a 110-watt per channel power amplifier stage. The resulting Parasound NewClassic 200 Integrated Amplifier and DAC has all the same preamplifier features as the NewClassic 200 Pre, plus the ability to drive high quality loudspeakers without the need for a separate power amplifier. Like the 200 Pre, the 200 Integrated includes analog bass management for optimal performance with compact satellite speakers and a powered subwoofer.
Warranty
1-year manufacturer's warranty
Key Features:
- 110 Watts @ 8 or 4 Ohms
- Class D amplification by Pascal
- Burr-Brown 192kHz-24 bit DAC from the Halo P 5
- USB, Optical and Coax digital audio inputs
- 4 Analog audio inputs
- Phono input for MM or MC cartridges
- Pure analog signal path from input to output
- Analog bass management w/ variable 20-140Hz high pass crossover
- Subwoofer On/Off & level by remote control
- 80Hz low pass subwoofer output
- Full range mono output can be used for subwoofer or mono listening area
- Variable and fixed stereo preamp outputs
- Bypass input for surround sound or music streamer integration
- Default turn on volume memory
- Favorite volume memory with remote control button
- Input level matching (source volume offset)
- Bass, treble and balance adjustments by remote control
- Front panel LCD display with dimming
- 2-way RS232 w/ exact volume control & feedback
- Control4 Driver available
- Rename inputs to match connected source
- Front panel Aux input with12dB of additional gain
- Dedicated headphone amplifier
- Back-lit remote control with discrete buttons
- 12V trigger output
- Rear panel IR input
- 0.5w standby power consumption meets Energy Star & EU specs
Benefits of Parasound NewClassic 200 Integrated Stereo Integrated Amplifier with DAC:
Built-in DAC
The Parasound NewClassic 200 Integrated Amp is ready to bring you maximum enjoyment from your digital music files. It incorporates a very high quality state-of-the-art DAC using circuitry from the highly regarded Halo P5 preamp. This DAC can process a wide range of digital sources with its coaxial and optical inputs accepting up to 192 kHz rates, and the USB input accepts up to 96 kHz. The NewClassic 200 Integrated Amp's Cirrus Logic Digital Receiver scrubs the digital clock to attenuate jitter not only for the USB but for all inputs. This enables its acclaimed Burr-Brown PCM1798 DAC to achieve outstanding, natural sound quality for all of your digital sources.
Where to buy?
Buy Parasound NewClassic 200 Integrated Stereo Integrated Amplifier with DAC online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad.com team. We will help you choose better and will give you all the support you need to take the right buying decision in India.
Technical Specifications of Parasound NewClassic 200 Integrated Stereo Integrated Amplifier with DAC:
| Brand & Model # | Parasound NewClassic 200 Integrated |
|
Power Output - Both channels driven (0.05% THD, 20 Hz - 20 kHz) |
110 watts x 2 @ 4 Ω or 8 Ω (RMS) |
|
Power Output - Both channels driven (1% THD, 20 Hz - 20 kHz) |
125 watts x 2 @ 4 Ω or 8 Ω (RMS) |
| Frequency Response |
20 Hz - 20 kHz, +0 / -0.05 dB 10 Hz - 80 kHz, +0 / -3 dB |
| Total Harmonic Distortion: (20 Hz - 20 kHz) |
< 0.05 %, (110 watts, 8 Ω) |
|
Inter-Channel Crosstalk |
-75 dB at 20 kHz -85dB at 1 kHz |
| Preamp Output | 250mv = 1V output Total gain = 12 dB (volume set to 100) Unity gain = Volume set to 76 Maximum output = 3.5V |
| Phono Stage Gain / Input Impedance |
MM: 40 dB / 47 k Ω MC: 50 dB / 100 Ω |
| Line Level Input Impedance | 24k Ohms |
| Preamp Output Impedance | 470 Ohms |
| S/N Ratio – Line Inputs | > 100 dB, input shorted, IHF A-weighted |
| S/N Ratio – Digital Inputs | > 110 dB, input shorted, IHF A-weighted |
| DAC IC | Burr-Brown PCM1798 |
| DC Trigger Output |
12 Vdc, 50mA |
| AC Power Requirement |
Standby: 0.5 watts Idling: 15 watts (no music playing) Typical: 50 watts (music playing) Maximum: 300 watts 100-250 VAC 50/60 Hz (automatic) |
| Dimensions |
Width: 17.25" (438 mm) Depth: 14.75" (375 mm) Depth: 16.75" (425 mm) with cables connected Height, with feet: 2.5" (63.5 mm) Height, without feet: 1.75" (44.5 mm), 1U |
| Net Weight |
Net: 11.5 lbs (5.2 kg) |

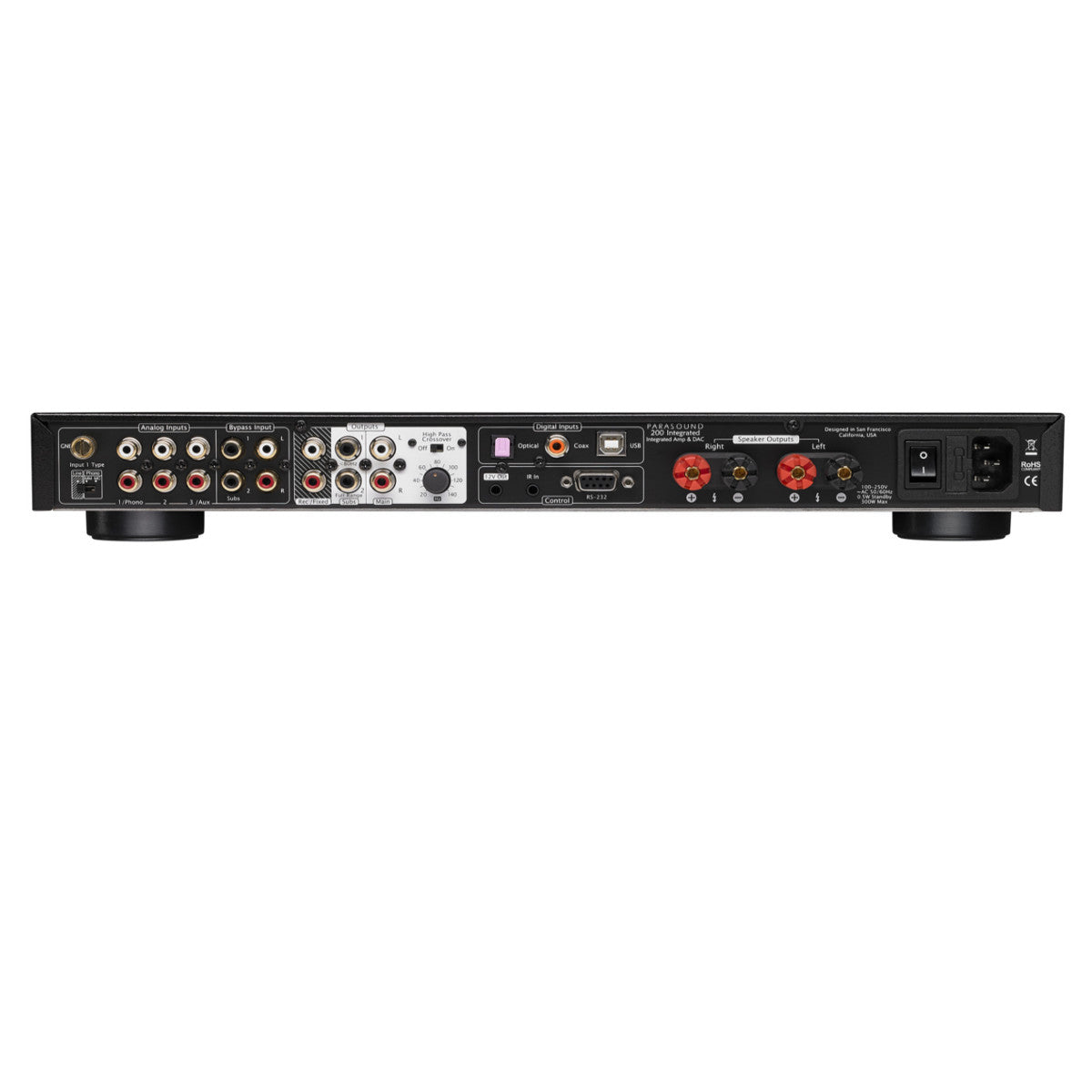

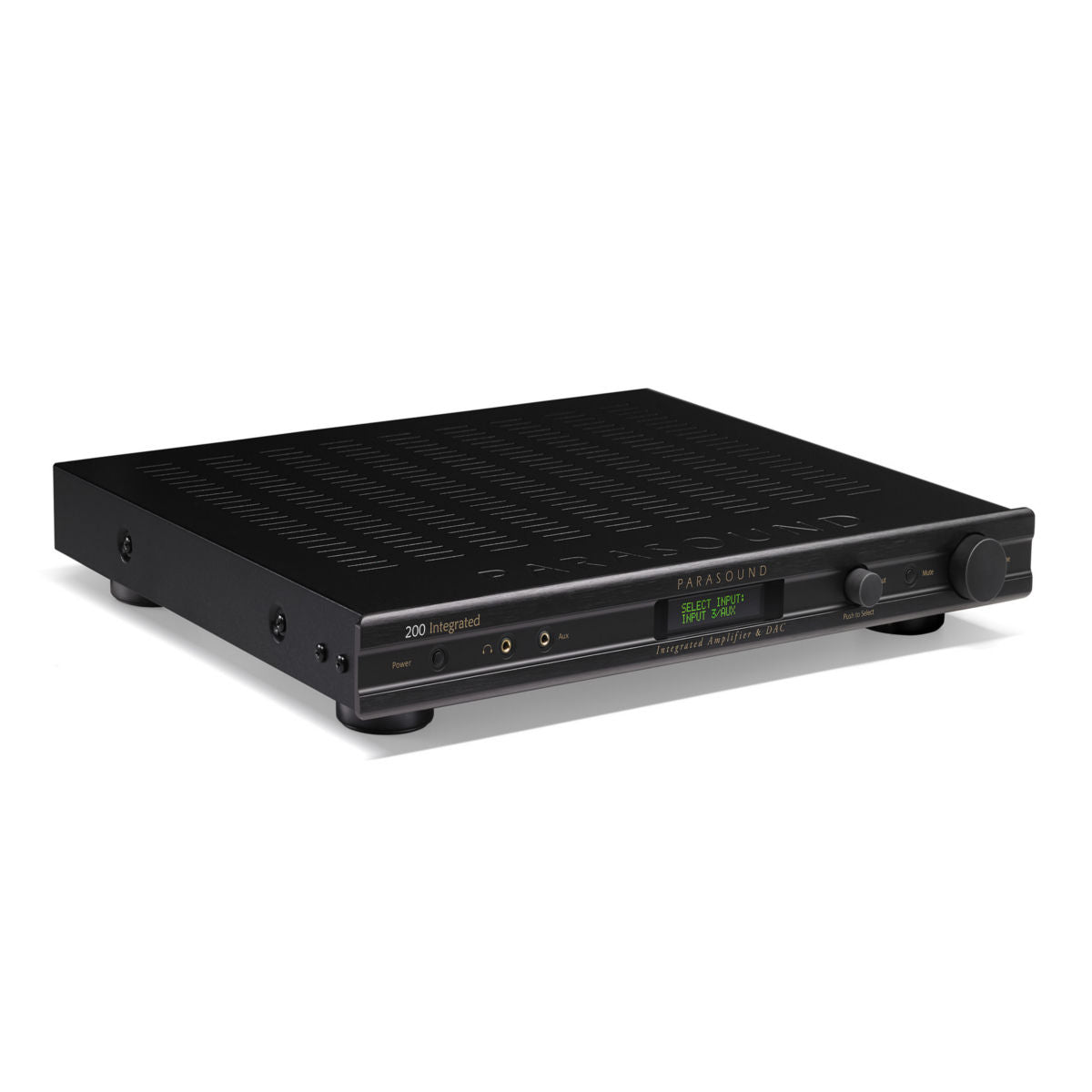

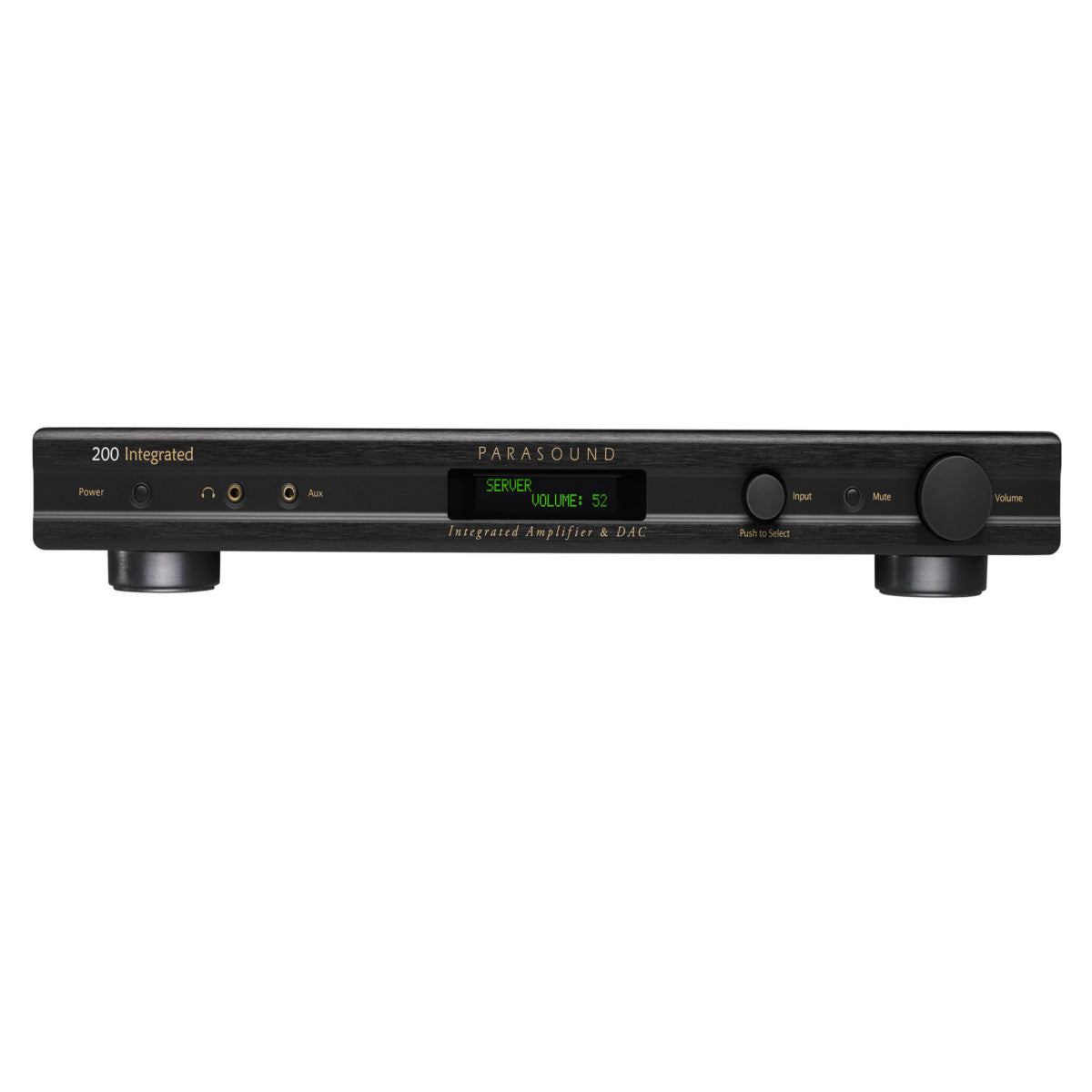

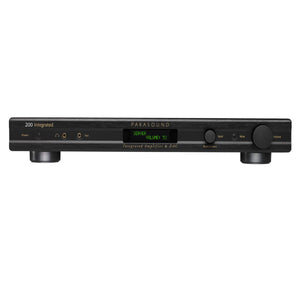

Parasound NewClassic 200 Integrated Stereo Integrated Amplifier with DAC
