About

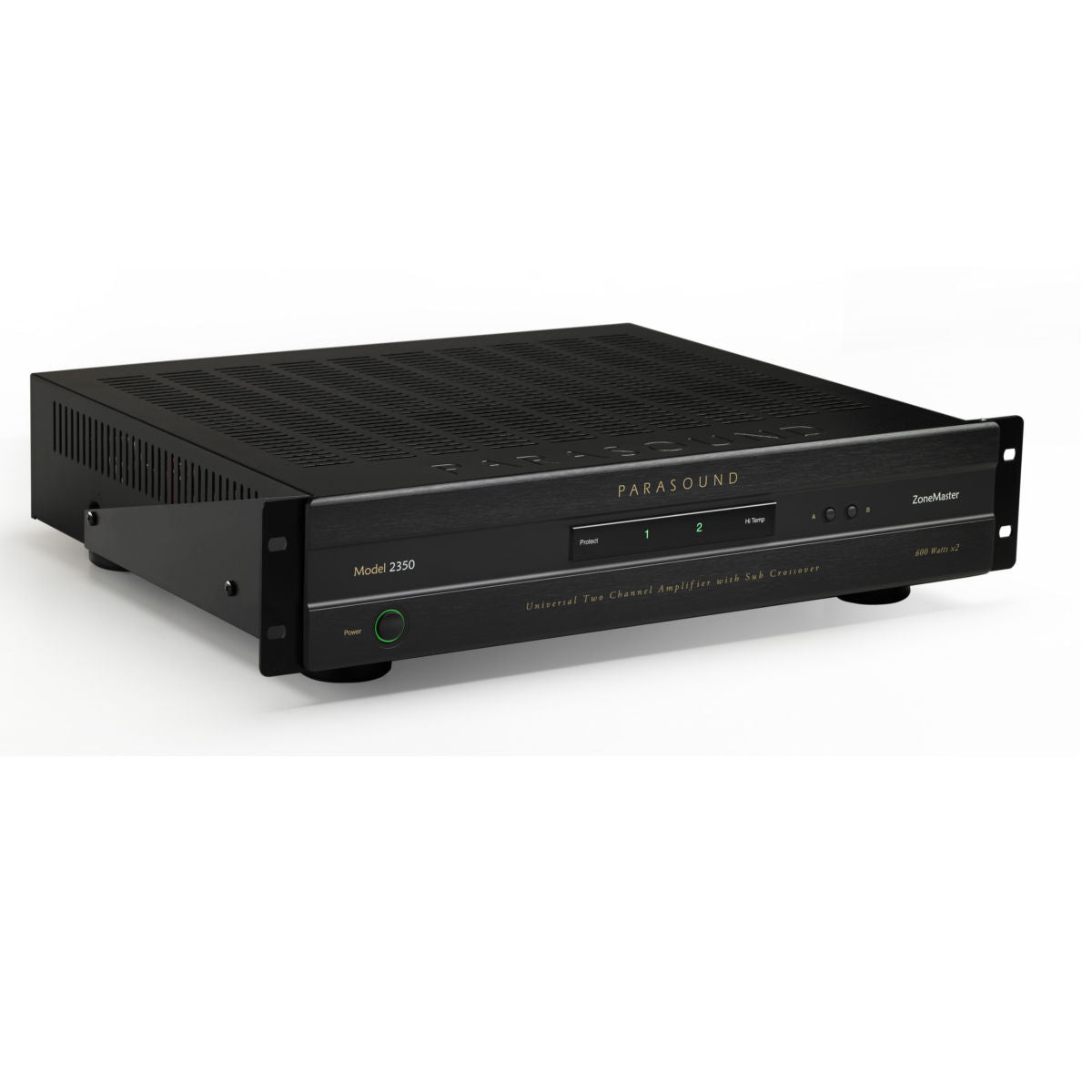

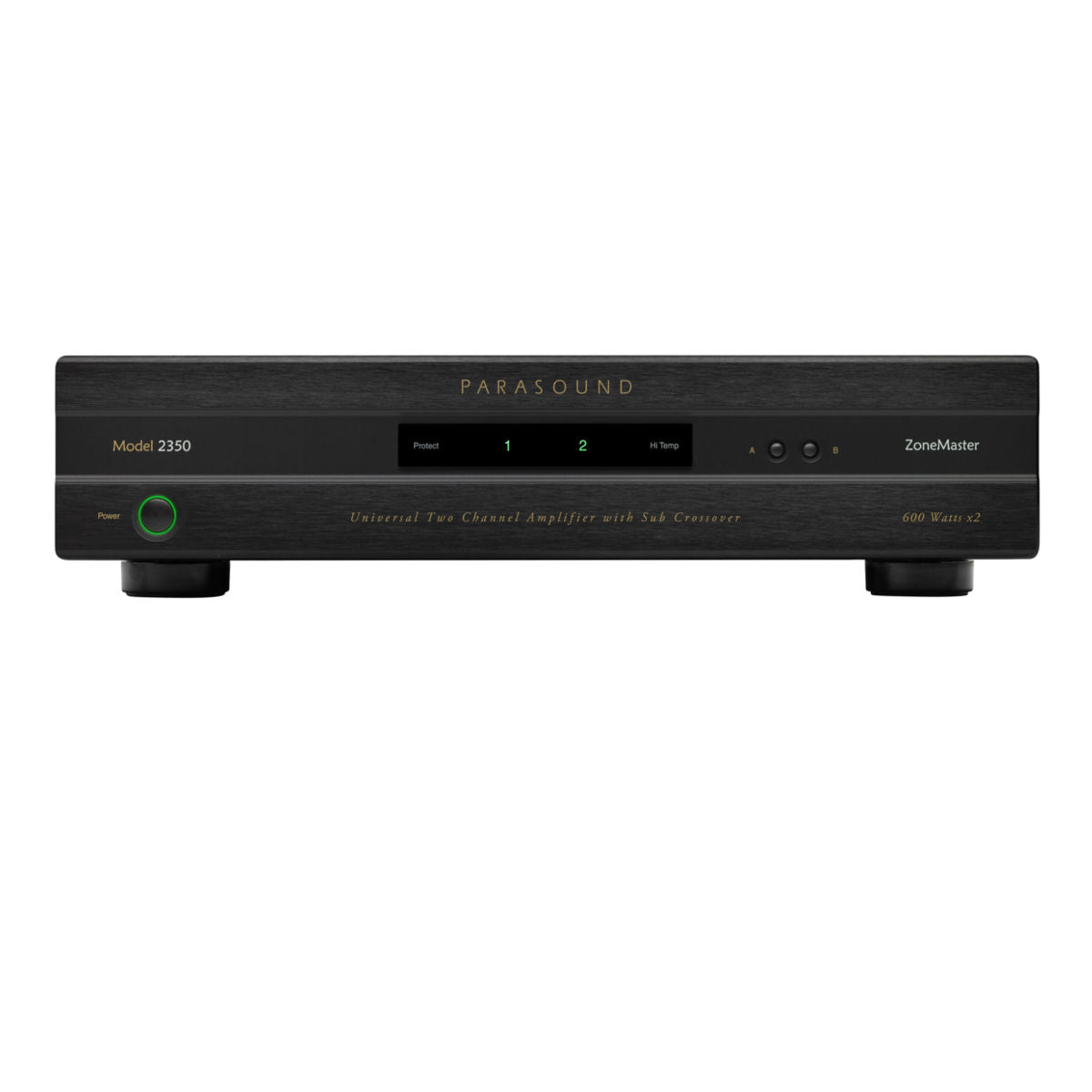

Parasound ZoneMaster 2350 Universal 2 Channel Amplifier with Sub Crossover is designed from the ground up to be as friendly to custom installations as it is powerful. With 600 watts x 2 available, it will drive any speaker or passive subwoofer with ease. Unique preamp outputs for full-range mono and low-pass mono provide unsurpassed flexibility. A switch engages an analog 30 Hz or 80 Hz high-pass filter to prevent heavy bass from reaching smaller speakers. A built-in analog 80 Hz, 24 dB/octave low-pass filter makes the ZoneMaster 2350 an outstanding amplifier for driving multiple in-wall passive subwoofers without the need for external crossovers.
Warranty
1-year manufacturer's warranty
Key Features:
- 350 watts x 2 @ 8 Ω
- 600 watts x 2 @ 4 Ω
- 2 Ω stable for driving multiple speaker pairs

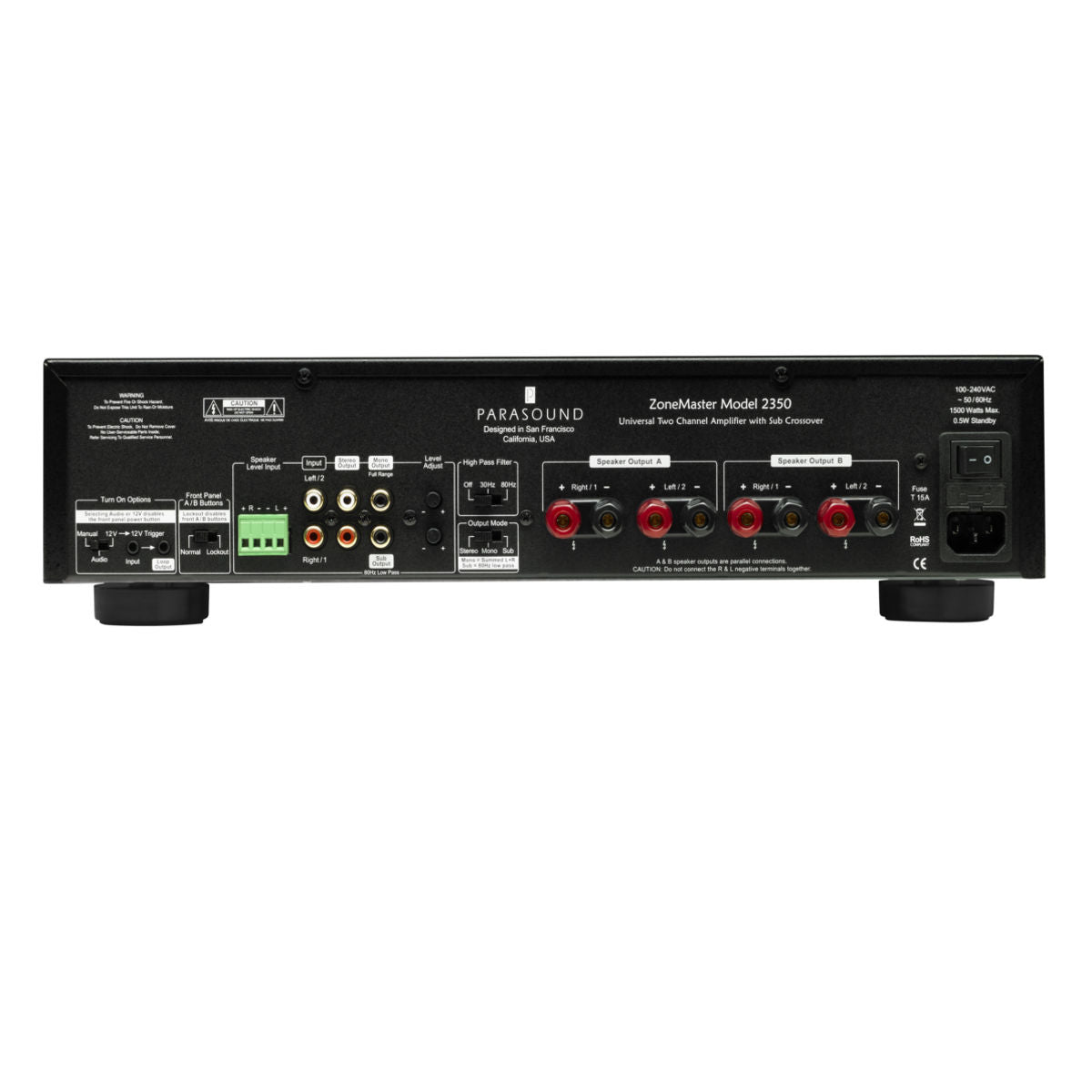

- Two pairs of speaker outputs with A/B buttons
- Lockout switch on rear panel to disable A/B buttons
- High pass filter, switchable for 30Hz or 80Hz
- Automatic on/off by 12V trigger w/ looping output
- Automatic on/off by audio signal
- Speaker level input enables integration with systems lacking preamp output jacks
- Parasound designed class AB input stage w/ premium Class D power stage
- Subwoofer mode for driving multiple in-wall subs without the need for an external crossover
- Mono mode combines L and R for single speaker applications
- Mono full range preamp output
- Subwoofer 80Hz, 24dB/oct. low pass preamp output
- Looping left and right output jacks
- Left and right input level controls
- Efficient, low heat design
- Short circuit and overload protection
- 0.5 watt standby power consumption meets EU and Energy Star requirements
- 2U rack mounting hardware is included in box
Benefits of Parasound ZoneMaster 2350 Universal 2 Channel Amplifier with Sub Crossover:
Varied Features
The Speaker Level Input enables the ZoneMaster 2350 to connect to any audio receiver or stereo system, even if it lacks preamp output jacks. This is a high impedance input, and the ZoneMaster 2350's Speaker Level Input can connect to the speaker terminals on any receiver or amplifier. This will not reduce the output power or degrade the sound quality of the speakers that are already connected directly to the "host" receiver or amplifier. Speaker level audio is internally converted to line level and routed to the Loop Out, Mono Out and Sub Out jacks. These provide line level outputs to drive additional power amplifiers and powered subwoofers.
Where to buy?
Buy Parasound ZoneMaster 2350 Universal 2 Channel Amplifier with Sub Crossover online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad.com team. We will help you choose better and will give you all the support you need to take the right buying decision in India.
Technical Specifications of Parasound ZoneMaster 2350 Universal 2 Channel Amplifier with Sub Crossover:
| Brand & Model # | Parasound ZoneMaster 2350 |
| Power Output RMS, Both Channels Driven (20 Hz – 20 kHz) |
350 watts x 2 @ 8 Ω 600 watts x 2 @ 4 Ω or 2 Ω |
| Minimum Speaker Impedance (Output A+B) | Stereo or Mono Mode: 2 Ω Subwoofer Mode: 4 Ω Note: Operation at these minimum impedances might require additional ventilation. |
| Frequency Response | 10 Hz – 70 kHz, +0/-3 dB 20 Hz – 20 kHz, +0/-0.8 dB |
| Total Harmonic Distortion |
< 0.05 % at typical listening levels < 0.9 % at full power |
| Inter-channel Crosstalk | 70 dB at 20 kHz |
| Input Sensitivity |
2 Volts = Full output (350 Watts @ 8 Ω) Total gain = 29 dB (Level controls set to Maximum) |
| S/N Ratio | > 100 dB, input shorted, unweighted > 114 dB, input shorted, IHF A-weighted |
| High and Low Pass Crossovers |
Sub Mode and Sub out jack: 80 Hz, 24 dB per octave High Pass Filter: 30 Hz or 80 Hz, 12 dB per octave |
|
DC Trigger Requirements |
+9 Vdc to +12 Vdc, 5 mA |
|
Audio Trigger Requirements |
2 mV audio signal (8-15 minutes turn off delay) |
|
AC Power Requirement |
1500 Watts maximum 100 Watts typical (music playing, typical listening level) 30 Watts idle (no music playing) 0.5 Watts in standby 110-240 VAC 50/60 Hz |
| Dimensions |
Width: 17.25" (438 mm) Depth: 14.5" (368 mm) Depth: 16.25" (412 mm) with cables connected Height, with feet: 4.25" (108 mm) Height, without feet: 3.5" (89 mm), 2U |
| Weight | Net: 15 lbs. (6.8 kg) |
