About
Time to witness all the scale and grandness of your favourite music without allowing your loudspeaker to dominate your room. The Q Acoustics 5020 standmounting speaker will put you right at the core of the music without putting itself at the heart of your space. The new 5000 series from Q Acoustics is a range of stereo and home cinema loudspeakers that will change your viewpoint of how a speaker can look and sound. By symbolising genuine and important advancement in driver design, the game-changing C3 Continuous Curved Cone™ mid/bass driver boosts the 5000 series beyond any nominal rival. By including the innovative cabinet technology first deployed in the company’s flagship Concept range, the 5000 series is as unmatched on the inside as it is sophisticated and modern on the exterior.
Warranty
Q Acoustics 5020 Key Features
- C3 Continuous Curved ConeTM design in the mid/bass driver ensures smoother high-frequency integration with the tweeter and superior bass dynamics.
- Sophisticated, clean and contemporary design with dark acrylic baffle motif mirrors the minimalist C3 Continuous Curved ConeTM profile.

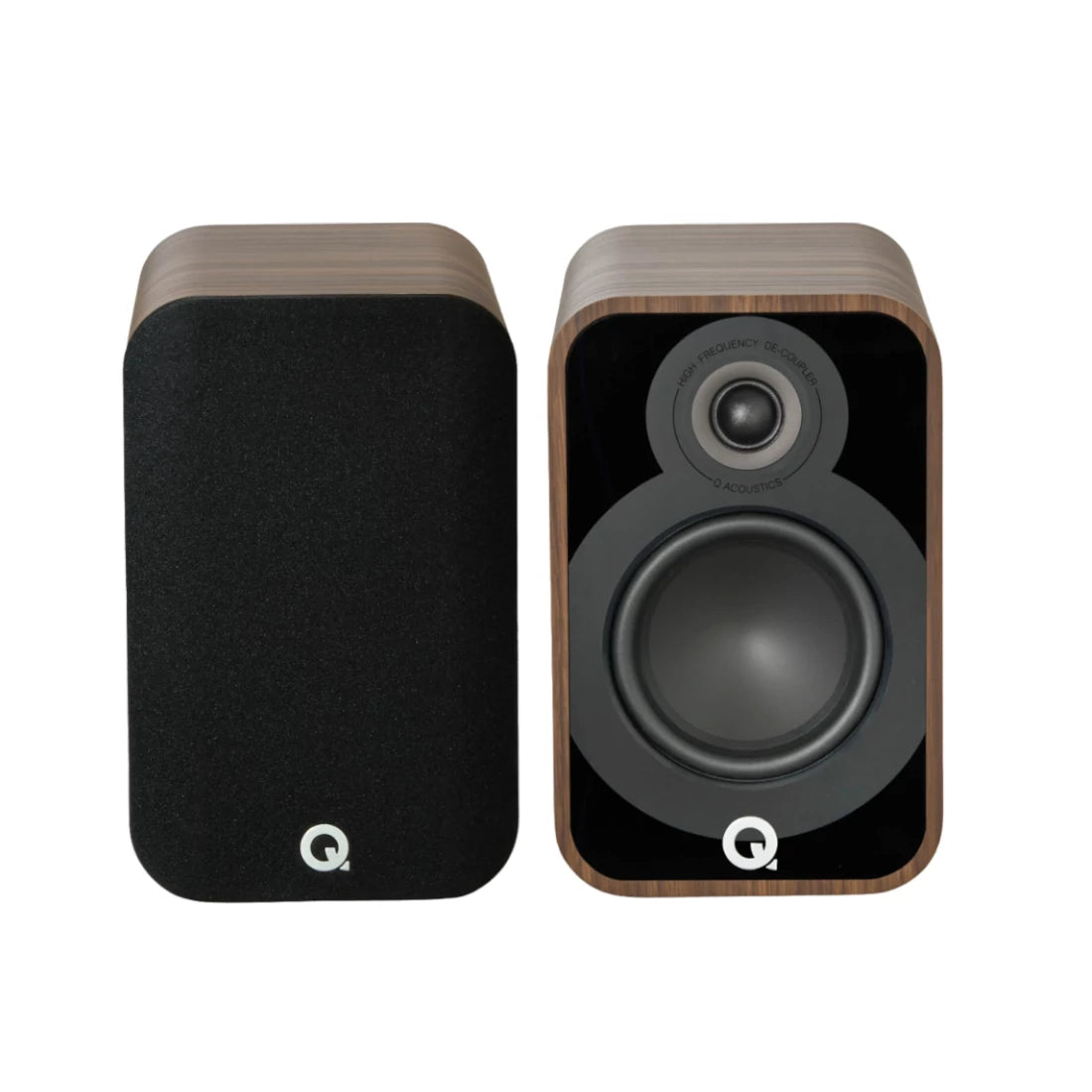

- Available in four stylish finishes: Satin Black, Satin White, Santos Rosewood and Holme Oak.
- With a design taken from the Concept series but in a new housing, the high-frequency driver is fully hermetically sealed and mechanically isolated from the front baffle to protect from internal cabinet pressure and resonances from the mid/bass driver.
- Ground-up mid/bass driver design delivers increased power handling.
- Point-2-PointTM (P2P) internal bracing stiffens the cabinet to minimise lower frequency vibrations, while focusing stereo imaging and improving soundstage.
Benefits of Q Acoustics 5020 Bookshelf Speaker:
Sophisticated and contemporary design
The reductive nature of the C3 Continuous Curved Cone’s™ appearance is also reflected in the 5000 series minimalist design, with its sophisticated but contemporary lines leaning towards the elegant form of the latest Concept speaker series. The baffle fronts are laminated with a layer of butyl rubber and black acrylic trim, not only to provide a damping layer to suppress vibration occurring in the baffle, but to offer an eye-catching counterpoint to the cosmetically clean front presentation uninterrupted by any fixings.
Mid/bass driver design
At the heart of the ground-up mid/bass driver design is the C3 Continuous Curved Cone™. The cone’s geometry requires good motor strength for optimal performance. Substantial magnets are coupled to large voice coils to increase motor strength - the result is a 50% increase in power handling and control over a comparable driver with 25.4 mm voice coil. The result is an improvement in the dynamic range of the speaker, especially in the bass region.
High-frequency driver design
Based on the tweeter design principle found in the newest Concept series, the high frequency driver unit is hermetically sealed and mechanically isolated (floating) from the baffle to prevent internal pressure modulations from within the cabinet and adjacent mid/bass driver. The inner chamber is also carefully vented for lower distortion, with a lower crossover point for seamless integration through the crossover region.
C3 Continuous Curved Cone™
A genuine advancement in elements of mid/bass driver design, the C3 Continuous Curved Cone™ profile is the result of extensive research and expert engineering to combine the bass performance benefits of a traditional straight conic cone with the high/mid-range frequency control of a flared cone.
By creating a single, smooth, continuous curve profile, the advantages are clear. Its excellent dispersion, alongside its well-controlled frequency response and reduced harmonic distortion, enables smoother integration with the tweeter. Deep bass dynamics are also superior, with this and tighter, damped low-end sound allowing more flexibility in in placement of speakers near the wall boundaries of the listening room.
Where to buy?
Buy the Q Acoustics 5020 Bookshelf Speaker (Pair) online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad.com team. We will help you choose better & give you all the support you need to take the right buying decision in India.
Technical Specifications of Q Acoustics 5020 Bookshelf Speaker
| Brand & Model # | Q Acoustics 5020 |
|
Bass Unit |
1 x 125 mm (5.0 in) |
| Treble Unit |
1 x 25 mm (1.0 in) |
| Frequency Response (-6 dB) |
53 Hz - 30 kHz |
|
Nominal Impedance |
6 Ohm |
| Minimum Impedance | 3.3 Ohm |
| Sensitivity (2.83 V@1 m) | 87.9 dB/w/m |
|
Recommended Amplifier Power |
25-100 W |
| Crossover Frequency |
2.5 kHzz |
| Effective Volume | 6.8 L |
| Dimensions (per loudspeaker / HxWxD) |
284 x 180 x 293 mm (11.2 x 7.1 x 11.5 in) |
| Weight (per speaker) |
7.0 kg (15.4 lbs) |
| What's in the box ? |
|
Time to witness all the scale and grandness of your favourite music without allowing your loudspeaker to dominate your room. The Q Acoustics 5020 standmounting speaker will put you right at the core of the music without putting itself at the heart of your space. The new 5000 series from Q Acoustics is a range of stereo and home cinema loudspeakers that will change your viewpoint of how a speaker can look and sound. By symbolising genuine and important advancement in driver design, the game-changing C3 Continuous Curved Cone™ mid/bass driver boosts the 5000 series beyond any nominal rival. By including the innovative cabinet technology first deployed in the company’s flagship Concept range, the 5000 series is as unmatched on the inside as it is sophisticated and modern on the exterior.
Warranty
Q Acoustics 5020 Key Features
- C3 Continuous Curved ConeTM design in the mid/bass driver ensures smoother high-frequency integration with the tweeter and superior bass dynamics.
- Sophisticated, clean and contemporary design with dark acrylic baffle motif mirrors the minimalist C3 Continuous Curved ConeTM profile.
- Available in four stylish finishes: Satin Black, Satin White, Santos Rosewood and Holme Oak.
- With a design taken from the Concept series but in a new housing, the high-frequency driver is fully hermetically sealed and mechanically isolated from the front baffle to protect from internal cabinet pressure and resonances from the mid/bass driver.
- Ground-up mid/bass driver design delivers increased power handling.
- Point-2-PointTM (P2P) internal bracing stiffens the cabinet to minimise lower frequency vibrations, while focusing stereo imaging and improving soundstage.
Benefits of Q Acoustics 5020 Bookshelf Speaker:
Sophisticated and contemporary design
The reductive nature of the C3 Continuous Curved Cone’s™ appearance is also reflected in the 5000 series minimalist design, with its sophisticated but contemporary lines leaning towards the elegant form of the latest Concept speaker series. The baffle fronts are laminated with a layer of butyl rubber and black acrylic trim, not only to provide a damping layer to suppress vibration occurring in the baffle, but to offer an eye-catching counterpoint to the cosmetically clean front presentation uninterrupted by any fixings.
Mid/bass driver design
At the heart of the ground-up mid/bass driver design is the C3 Continuous Curved Cone™. The cone’s geometry requires good motor strength for optimal performance. Substantial magnets are coupled to large voice coils to increase motor strength - the result is a 50% increase in power handling and control over a comparable driver with 25.4 mm voice coil. The result is an improvement in the dynamic range of the speaker, especially in the bass region.
High-frequency driver design
Based on the tweeter design principle found in the newest Concept series, the high frequency driver unit is hermetically sealed and mechanically isolated (floating) from the baffle to prevent internal pressure modulations from within the cabinet and adjacent mid/bass driver. The inner chamber is also carefully vented for lower distortion, with a lower crossover point for seamless integration through the crossover region.
C3 Continuous Curved Cone™
A genuine advancement in elements of mid/bass driver design, the C3 Continuous Curved Cone™ profile is the result of extensive research and expert engineering to combine the bass performance benefits of a traditional straight conic cone with the high/mid-range frequency control of a flared cone.
By creating a single, smooth, continuous curve profile, the advantages are clear. Its excellent dispersion, alongside its well-controlled frequency response and reduced harmonic distortion, enables smoother integration with the tweeter. Deep bass dynamics are also superior, with this and tighter, damped low-end sound allowing more flexibility in in placement of speakers near the wall boundaries of the listening room.
Where to buy?
Buy the Q Acoustics 5020 Bookshelf Speaker (Pair) online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad.com team. We will help you choose better & give you all the support you need to take the right buying decision in India.
Technical Specifications of Q Acoustics 5020 Bookshelf Speaker
| Brand & Model # | Q Acoustics 5020 |
|
Bass Unit |
1 x 125 mm (5.0 in) |
| Treble Unit |
1 x 25 mm (1.0 in) |
| Frequency Response (-6 dB) |
53 Hz - 30 kHz |
|
Nominal Impedance |
6 Ohm |
| Minimum Impedance | 3.3 Ohm |
| Sensitivity (2.83 V@1 m) | 87.9 dB/w/m |
|
Recommended Amplifier Power |
25-100 W |
| Crossover Frequency |
2.5 kHzz |
| Effective Volume | 6.8 L |
| Dimensions (per loudspeaker / HxWxD) |
284 x 180 x 293 mm (11.2 x 7.1 x 11.5 in) |
| Weight (per speaker) |
7.0 kg (15.4 lbs) |
| What's in the box ? |
|
Q Acoustics 5020 Bookshelf Speaker (Pair)
- Regular price
- ₹ 89,900.00
- Sale price
- ₹ 89,900.00
- Regular price
-
₹ 89,900.00
Country of Origin: Uk
