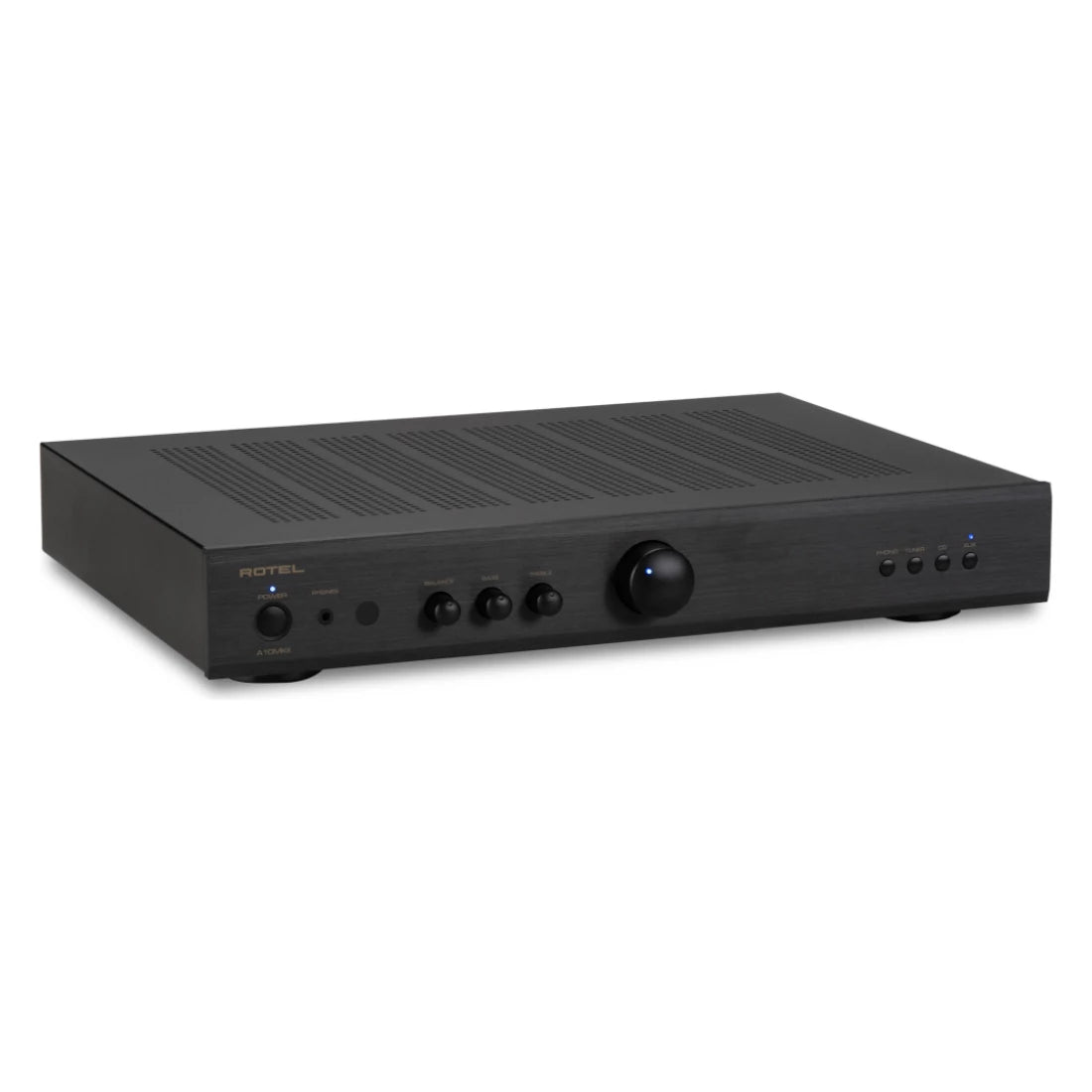

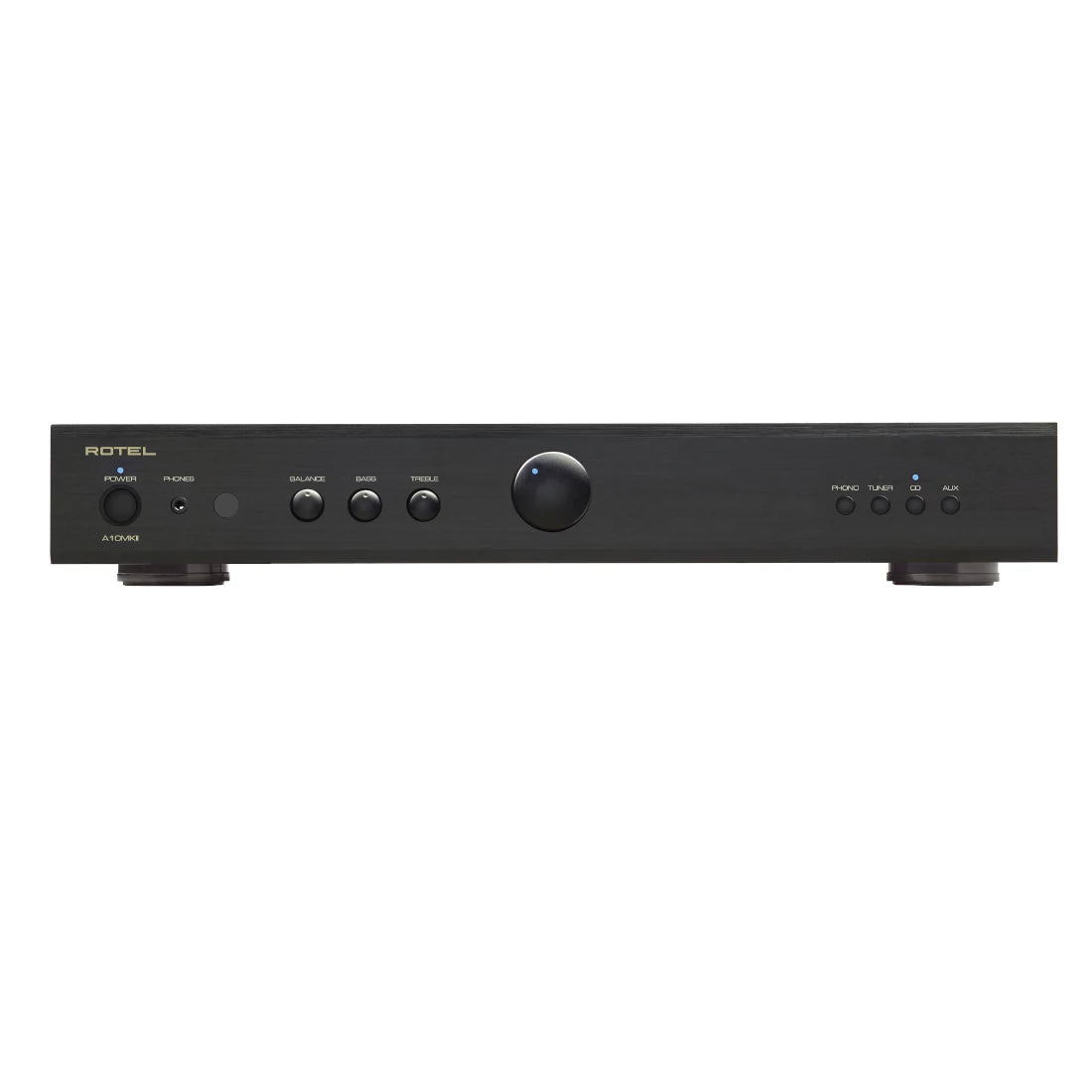

Rotel A10 MKII Integrated Amplifier - Black

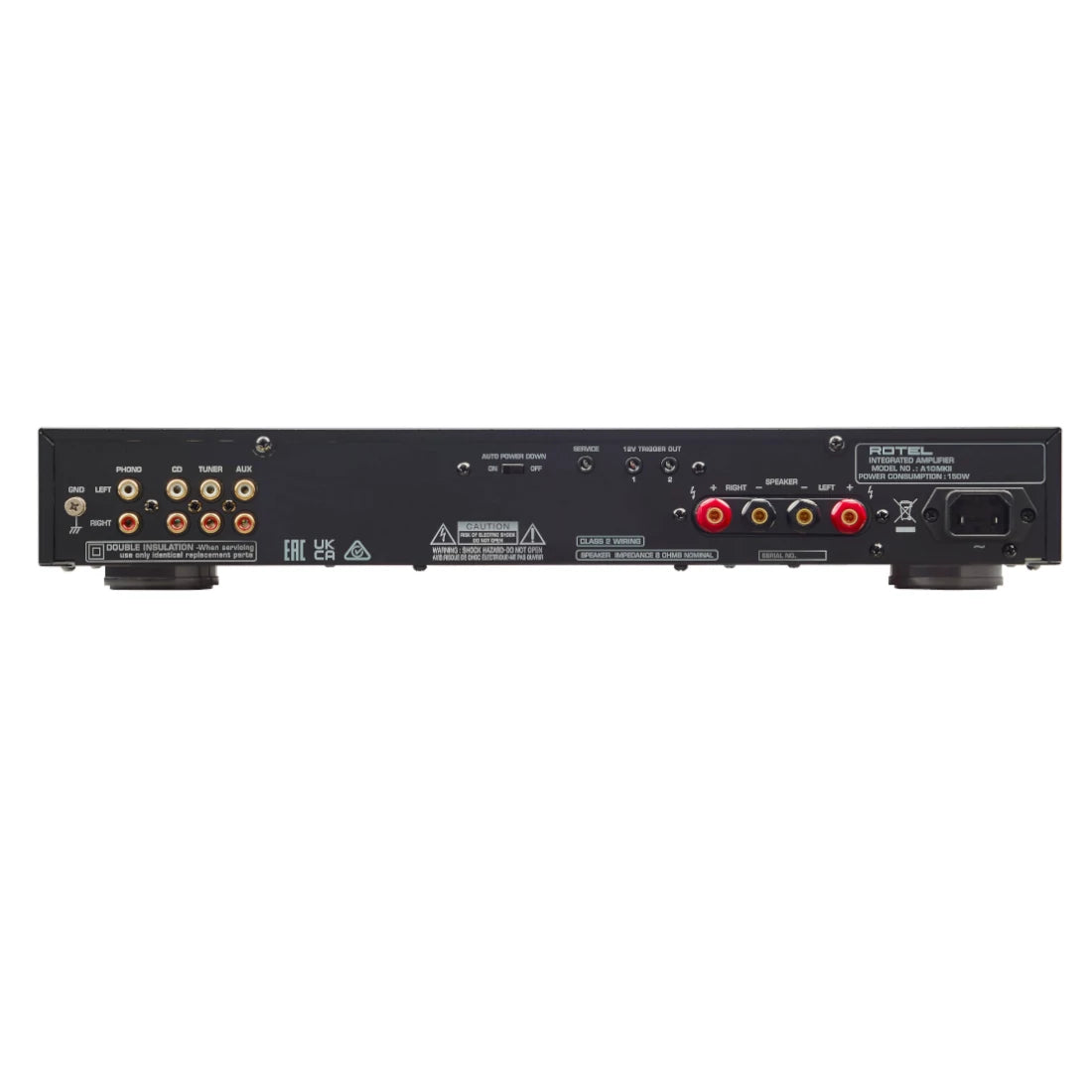

Rotel A10 MKII Integrated Amplifier - Black Rear View
Rotel A10 MKII Integrated Amplifier

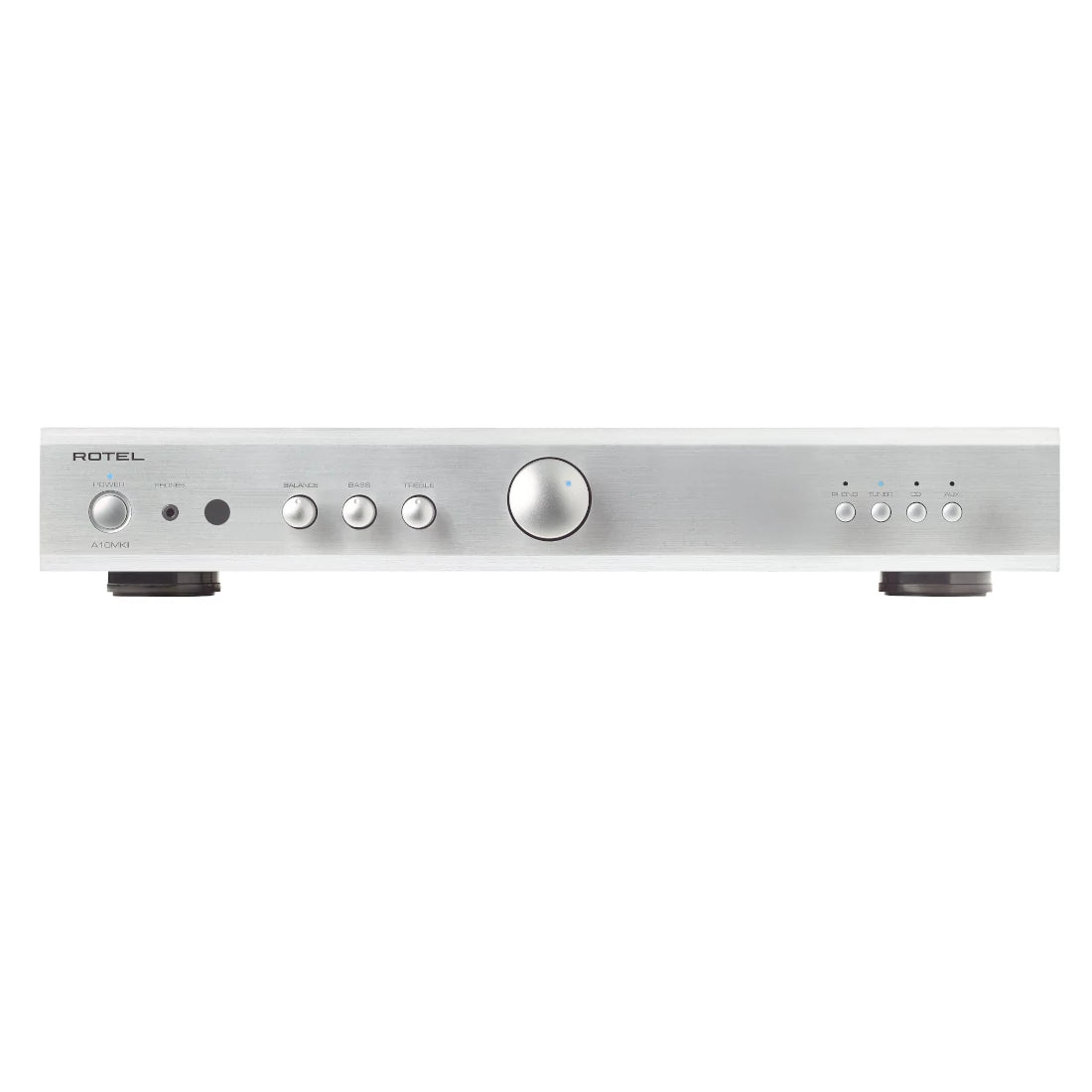

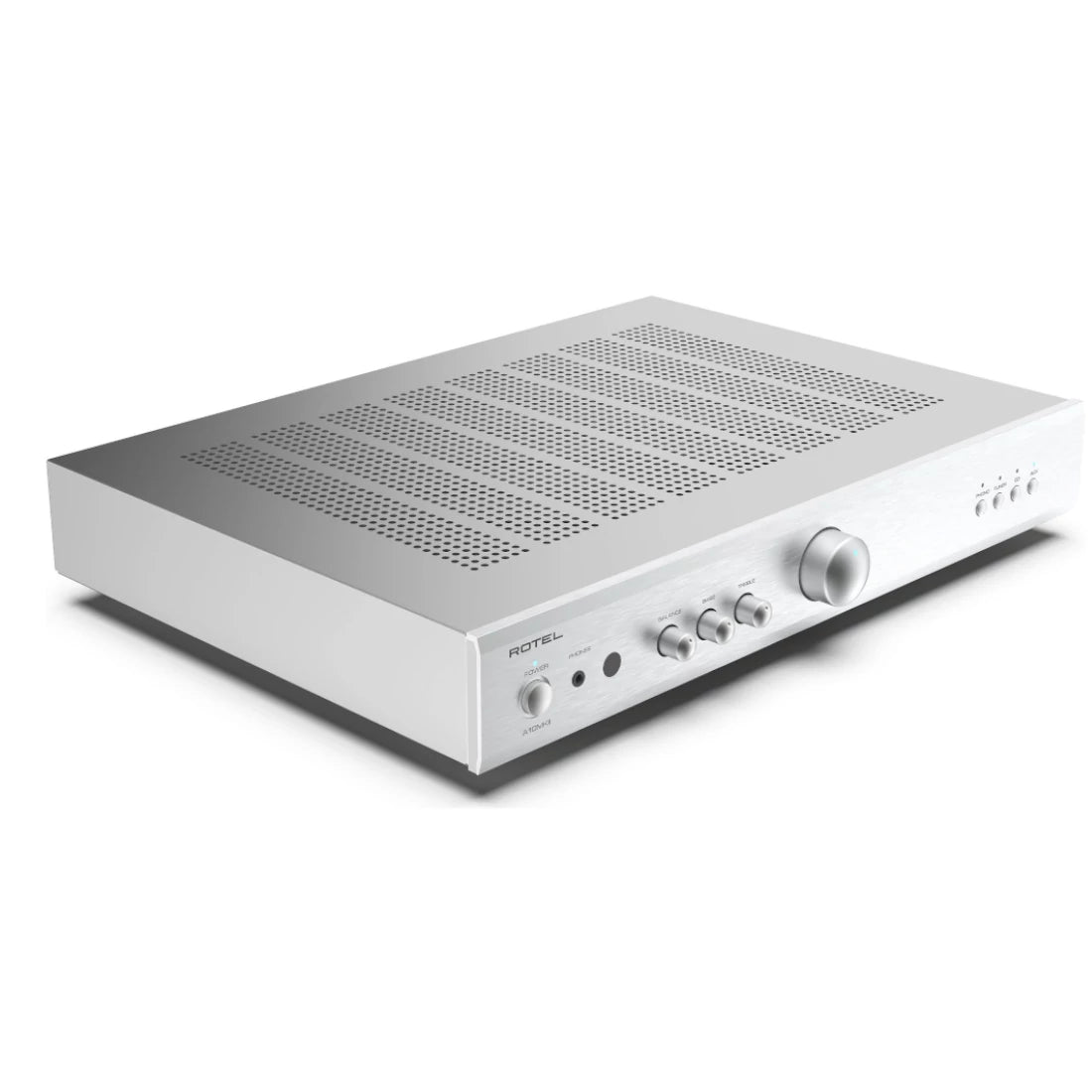

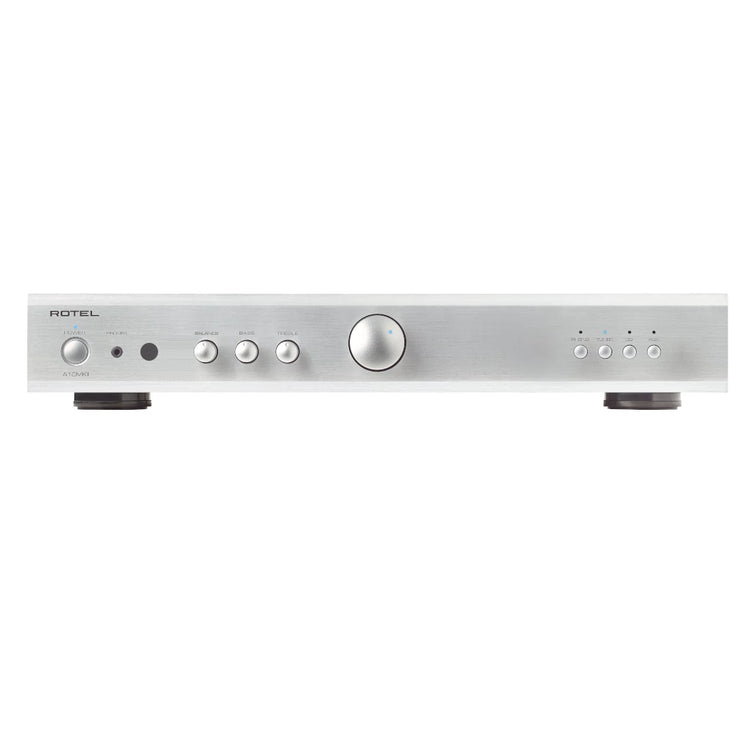

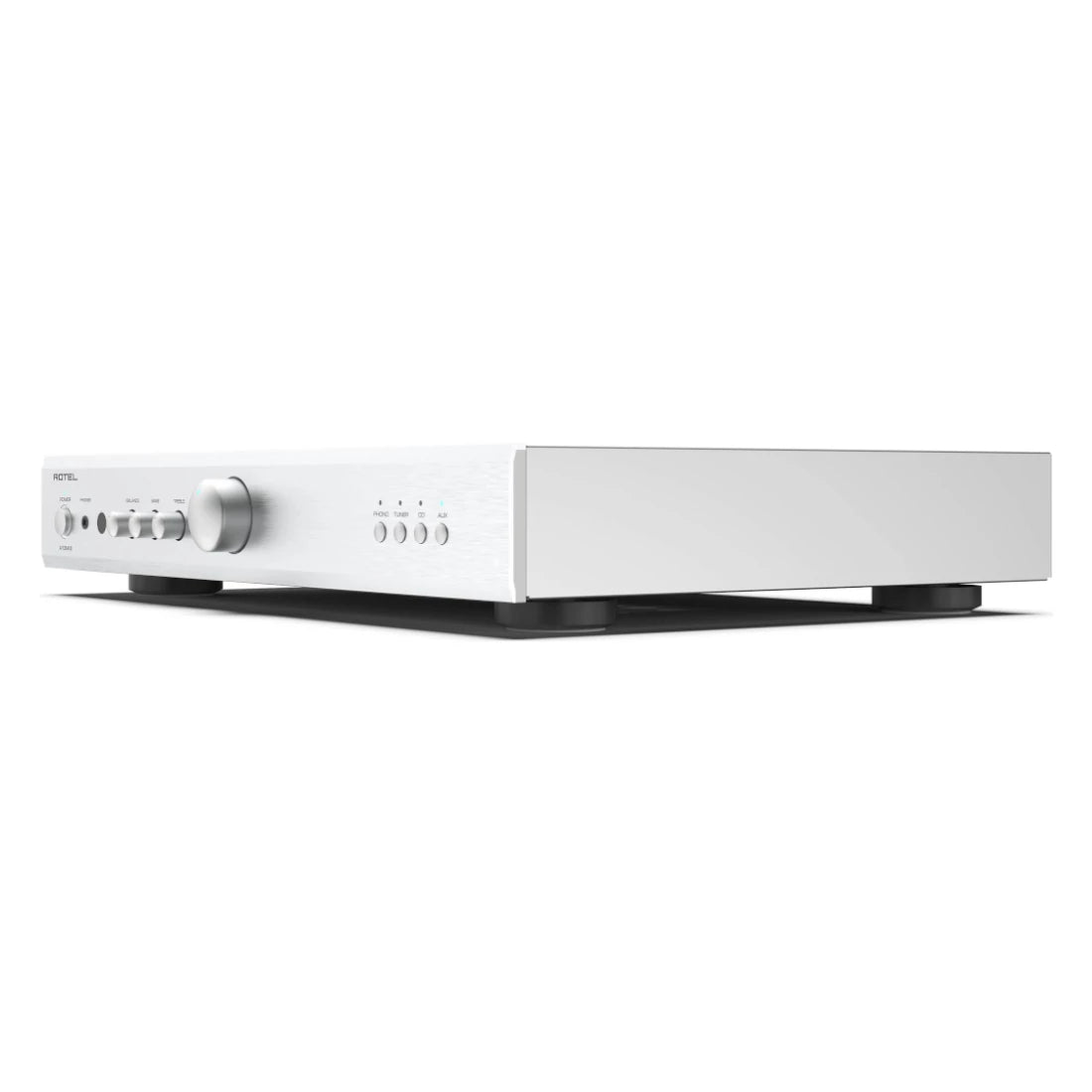

Rotel A10 MKII Integrated Amplifier - Silver
Rotel A10 MKII Integrated Amplifier - Silver
Rotel A10 MKII Integrated Amplifier
    Rotel A10 MKII Integrated Amplifier - Black
    Rotel A10 MKII Integrated Amplifier - Black Rear View
    Rotel A10 MKII Integrated Amplifier
    Rotel A10 MKII Integrated Amplifier - Silver
    Rotel A10 MKII Integrated Amplifier - Silver
    Rotel A10 MKII Integrated Amplifier
Rotel A10 MKII Integrated Amplifier - Black
Rotel A10 MKII Integrated Amplifier - Black Rear View
Rotel A10 MKII Integrated Amplifier
Rotel A10 MKII Integrated Amplifier - Silver
Rotel A10 MKII Integrated Amplifier - Silver
Rotel A10 MKII Integrated Amplifier
Rotel A10 MKII Integrated Amplifier - Black
Rotel A10 MKII Integrated Amplifier - Black Rear View
Rotel A10 MKII Integrated Amplifier
Rotel A10 MKII Integrated Amplifier - Silver
Rotel A10 MKII Integrated Amplifier - Silver
Rotel A10 MKII Integrated Amplifier
    Rotel A10 MKII Integrated Amplifier - Black
    Rotel A10 MKII Integrated Amplifier - Black Rear View
    Rotel A10 MKII Integrated Amplifier
    Rotel A10 MKII Integrated Amplifier - Silver
    Rotel A10 MKII Integrated Amplifier - Silver
    Rotel A10 MKII Integrated Amplifier
Rotel A10 MKII Integrated Amplifier - Black
Rotel A10 MKII Integrated Amplifier - Black Rear View
Rotel A10 MKII Integrated Amplifier
Rotel A10 MKII Integrated Amplifier - Silver
Rotel A10 MKII Integrated Amplifier - Silver
Rotel A10 MKII Integrated Amplifier

About

Description

Video: Rotel A10 MKII Integrated Amplifier

The A10MKII Integrated Amplifier brings to you the ideal amalgamation of power and style for the music lover seeking to boost their listening experience. Built around a linear power supply featuring a massive Rotel-built toroidal power transformer, the
A10MKII packs a punch with an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into more challenging loudspeakers.

Warranty

2-year manufacturer's warranty

Rotel A10 MKII Key Features

  • 2 x 50 Watts of robust Class AB power, 8 Ohms
  • Moving magnet phono stage input for turntable connection
  • Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
  • Bluetooth with aptXTM HD and AAC
  • Includes remote control

          Benefits of Rotel A10 MKII Integrated Amplifier

          Superior Level of Acoustic Performance
          Higher Level of Acoustic Performance

          Exclusive Rotel power supply innovations and critical circuit layout provide physical and electrical separation to lower the noise floor and increase musical dynamics. The A10MKII’s multi-tap transformer delivers power to sensitive low-voltage circuits and the high current amplifier output stage independently, isolating the signal path from noise and reducing unwanted distortion. This sound-first design supports fast transients and delivers an expressive, open musical performance.

          Effortless Control of the Audio

          All analog sources are welcome, with three line-level RCA inputs, and a Moving Magnet compatible Phono stage provided for vinyl lovers. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

          A Pleasure to operate

          An intuitive front panel layout includes rotary Bass, Treble, and Balance controls making the A10MKII a joy to use up close, while the included IR remote control, and a motorized analog volume controller extend ease of use to the listening seat. User friendly features such as a detachable IEC power cord, two 12V trigger outputs, heavy 5-way speaker binding posts, and auto power-off functions ensure compatibility with any installation.


          Where to buy:
          Buy the Rotel A10 MKII Integrated Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.

          Technical Specifications of Rotel A10 MKII Integrated Amplifier

          Brand & Model # Rotel A10 MKII
          Continuous Power Output
          50 Watts / ch (8 Ohms)
          Total Harmonic Distortion
          <0.03%
          Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
          Frequency Response
          Phono input 20 Hz - 20k Hz, -0.5 dB, +0.3 dB
          Line Level Inputs 10 Hz - 100k Hz, -0.5 dB, +0.05 dB
          S/N Ratio (IHF "A" Weighted)
          Line Level Inputs: 100dB
          Phono Input: 85dB
          Damping Factor (20 - 20,000 Hz, 8 Ohms) 120
          Input Sensitivity
          Phono input 1.5 mV / 43k Ohms
          Line Level Inputs 120 mV / 45k Ohms
          Input Overload
          Phono input 50 mV
          Line Level Inputs 4 V
          Tone Controls - Bass / Treble ± 6 dB at 100 Hz / 10k Hz
          Signal to Noise Ratio (IHF “A” weighted)
          Phono input 85 dB
          Line Level Inputs 90 dB
          Power Requirements
          USA 120 V, 60 Hz
          Europe 230 V, 50 Hz
          Power Consumption 150 Watts
          Standby Power Consumption
          < 0.5 Watts
          BTU (4 Ohms, 1/8 power)
          450 BTU/h
          Dimensions (WxHxD)
          430 x 73 x 347 mm
          17” x 2 7/8” x 13 5/8”
          Front Panel Height
          60 mm / 2 3/8”
          Net Weight
          6.6 kg, 14.5 lbs.
          Finish
          Black and Silver
          Description

          Video: Rotel A10 MKII Integrated Amplifier

          The A10MKII Integrated Amplifier brings to you the ideal amalgamation of power and style for the music lover seeking to boost their listening experience. Built around a linear power supply featuring a massive Rotel-built toroidal power transformer, the
          A10MKII packs a punch with an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into more challenging loudspeakers.

          Warranty

          2-year manufacturer's warranty

          Rotel A10 MKII Key Features

          • 2 x 50 Watts of robust Class AB power, 8 Ohms
          • Moving magnet phono stage input for turntable connection
          • Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
          • Bluetooth with aptXTM HD and AAC
          • Includes remote control

                  Benefits of Rotel A10 MKII Integrated Amplifier

                  Superior Level of Acoustic Performance
                  Higher Level of Acoustic Performance

                  Exclusive Rotel power supply innovations and critical circuit layout provide physical and electrical separation to lower the noise floor and increase musical dynamics. The A10MKII’s multi-tap transformer delivers power to sensitive low-voltage circuits and the high current amplifier output stage independently, isolating the signal path from noise and reducing unwanted distortion. This sound-first design supports fast transients and delivers an expressive, open musical performance.

                  Effortless Control of the Audio

                  All analog sources are welcome, with three line-level RCA inputs, and a Moving Magnet compatible Phono stage provided for vinyl lovers. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

                  A Pleasure to operate

                  An intuitive front panel layout includes rotary Bass, Treble, and Balance controls making the A10MKII a joy to use up close, while the included IR remote control, and a motorized analog volume controller extend ease of use to the listening seat. User friendly features such as a detachable IEC power cord, two 12V trigger outputs, heavy 5-way speaker binding posts, and auto power-off functions ensure compatibility with any installation.


                  Where to buy:
                  Buy the Rotel A10 MKII Integrated Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.

                  Technical Specifications of Rotel A10 MKII Integrated Amplifier

                  Brand & Model # Rotel A10 MKII
                  Continuous Power Output
                  50 Watts / ch (8 Ohms)
                  Total Harmonic Distortion
                  <0.03%
                  Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
                  Frequency Response
                  Phono input 20 Hz - 20k Hz, -0.5 dB, +0.3 dB
                  Line Level Inputs 10 Hz - 100k Hz, -0.5 dB, +0.05 dB
                  S/N Ratio (IHF "A" Weighted)
                  Line Level Inputs: 100dB
                  Phono Input: 85dB
                  Damping Factor (20 - 20,000 Hz, 8 Ohms) 120
                  Input Sensitivity
                  Phono input 1.5 mV / 43k Ohms
                  Line Level Inputs 120 mV / 45k Ohms
                  Input Overload
                  Phono input 50 mV
                  Line Level Inputs 4 V
                  Tone Controls - Bass / Treble ± 6 dB at 100 Hz / 10k Hz
                  Signal to Noise Ratio (IHF “A” weighted)
                  Phono input 85 dB
                  Line Level Inputs 90 dB
                  Power Requirements
                  USA 120 V, 60 Hz
                  Europe 230 V, 50 Hz
                  Power Consumption 150 Watts
                  Standby Power Consumption
                  < 0.5 Watts
                  BTU (4 Ohms, 1/8 power)
                  450 BTU/h
                  Dimensions (WxHxD)
                  430 x 73 x 347 mm
                  17” x 2 7/8” x 13 5/8”
                  Front Panel Height
                  60 mm / 2 3/8”
                  Net Weight
                  6.6 kg, 14.5 lbs.
                  Finish
                  Black and Silver
                  Rotel by Rotel

                  Rotel A10 MKII Integrated Amplifier

                  Regular price
                  ₹ 70,900.00
                  Sale price
                  ₹ 70,900.00
                  Regular price
                  ₹ 70,900.00
                  Tax included.
                  Color:

                  Country of Origin: Japan
