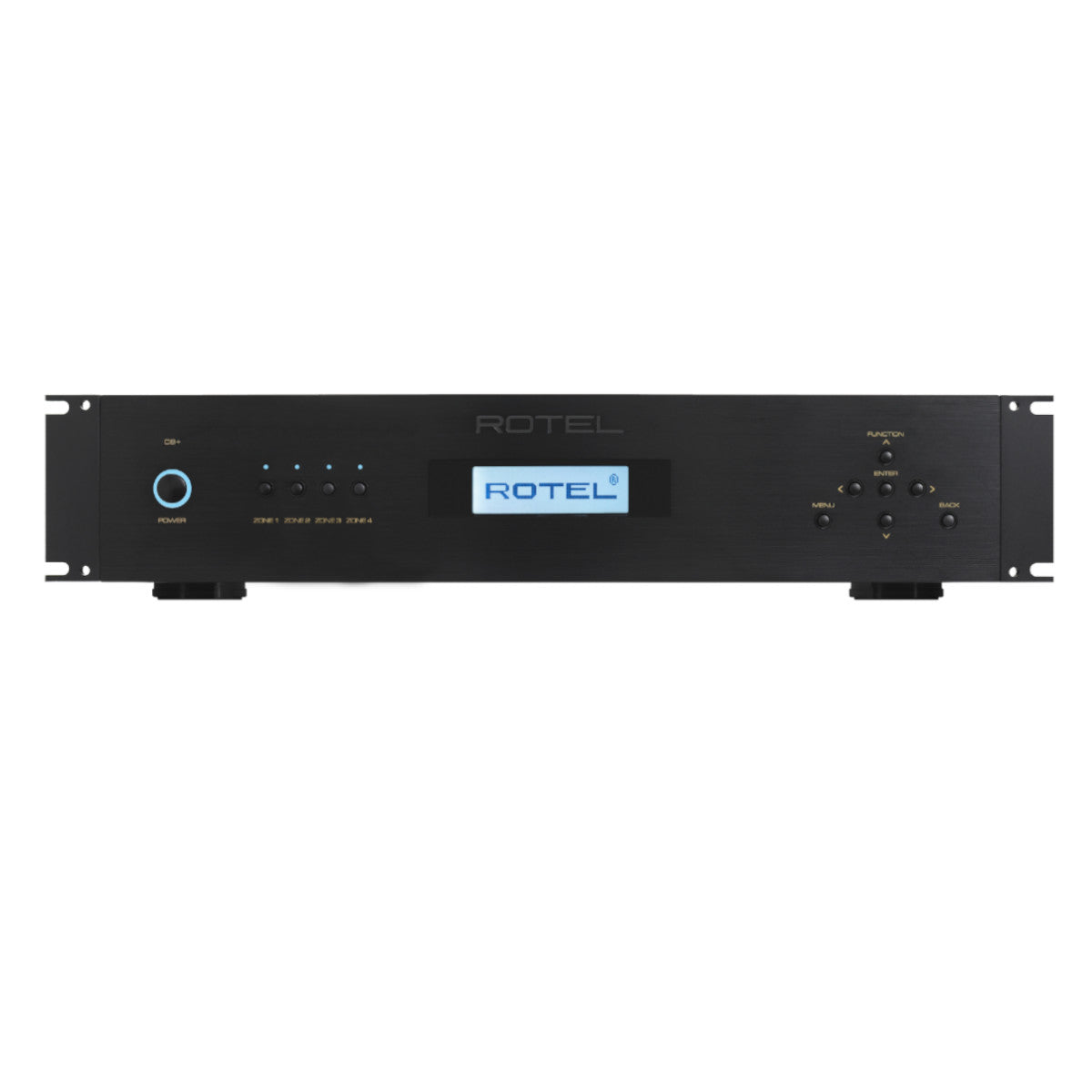

The feature-packed Rotel C8+ 8-channel Distribution Amplifier is now available on Ooberpad. Performance amalgamates efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm loads. The C8+ comprises 4 Analog and 4 Digital inputs matrixed to all Zones. Front panel display and controls render source selection and independent volume, bass and treble settings. The custom 2U height requires no top or bottom clearance when rack mounting.

Warranty

2-year manufacturer's warranty

Key Features:

• 8 x 150 Watts of robust Class AB power, 4 Ohms
• Class AB amplifier Design
• Custom engineered toroidal transformer
• 4 individual 24-bit/192kHz Digital to Analogue Converters
• Rack Ears included
• 12 volt trigger input



Benefits of Rotel C-8+ 8-channel Distribution Amplifier:

Performance meets Efficiency

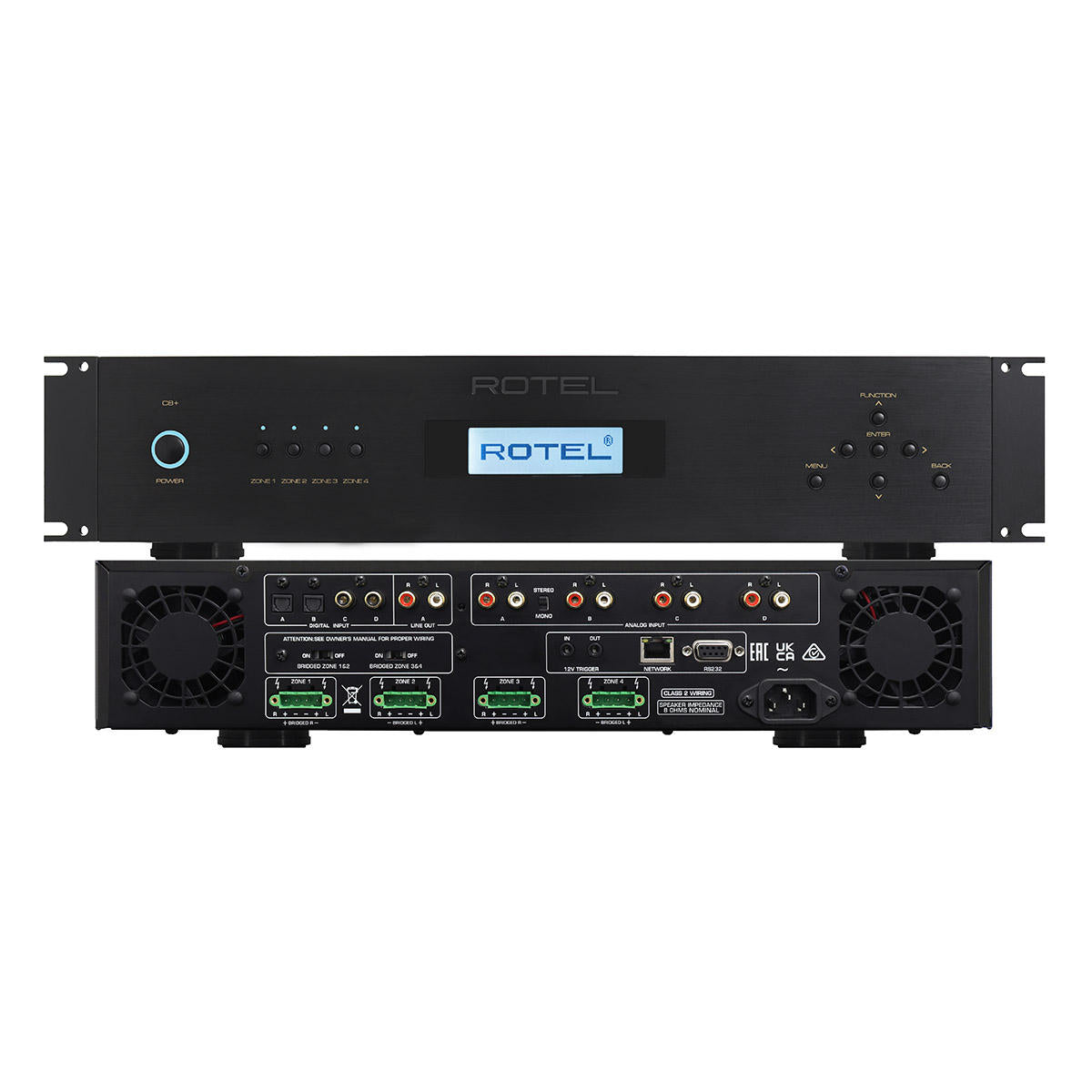

Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm speakers utilizing Rotel’s proprietary amplification technology. The oversized in-house manufactured toroidal transformer drives thirty-two output devices for effortless, controlled bass energy. For ultimate installation flexibility the C8+ includes 4 Analog, 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings. Control system integration is available via IP and RS232 interfaces and 12-Volt trigger. The custom 2U height requires no top or bottom clearance when rack mounting. The C8+ is available in black only.

Where to buy:
Buy the Rotel C8+ 8-channel Distribution Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.

Technical Specifications of Rotel C-8+ 8-channel Distribution Amplifier:

Brand & Model #	Rotel C-8+
Maximum Power Output	150W/Ch (8 channels driven, 4Ω)
Continuous Power Output	100W/Ch (8 channels driven, 8Ω)
Total Harmonic Distortion (THD)	<0.1%
Frequency Response	Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB Digital Inputs: 10Hz - 20kHz, 0 ± 0.5dB
S/N RATIO (IHF "A" Weighted)	Line Level Inputs: 100dB Digital Inputs: 102dB
Gain	26dB
Intermodulation Distortion (60Hz:7kHz, 4:1)	<0.01%
Damping Factor	80
Tone Controls	±10dB at 100Hz / 10kHz
Crosstalk/Separation	>50dB
Digital to analo Instruments	Texas Instruments
Input Sensitivity	Line Level Inputs: 0.43V Digital Inputs: -13.5dBfs
Input Impedance	Line Level Inputs: 31kΩ Digital Inputs: 75Ω
Input Overload	Line Level Inputs (RCA): 2.8V
Optical Digital Signals	SPDIF LPCM (up to 192kHz/24-bit)
Power Requirements	120V, 60Hz
Power Consumption	980W
Standby Power Consumption	Normal: <0.5W Network Standby: <2W
BTU Rating	2744 BTU/h
Dimensions (W x H x D)	430 × 97 × 414mm 17" × 3.9" × 16.3"
Front Panel Height	2U / 88.1mm (3.5")
Net Weight	18.35kg (40.79lbs.)
