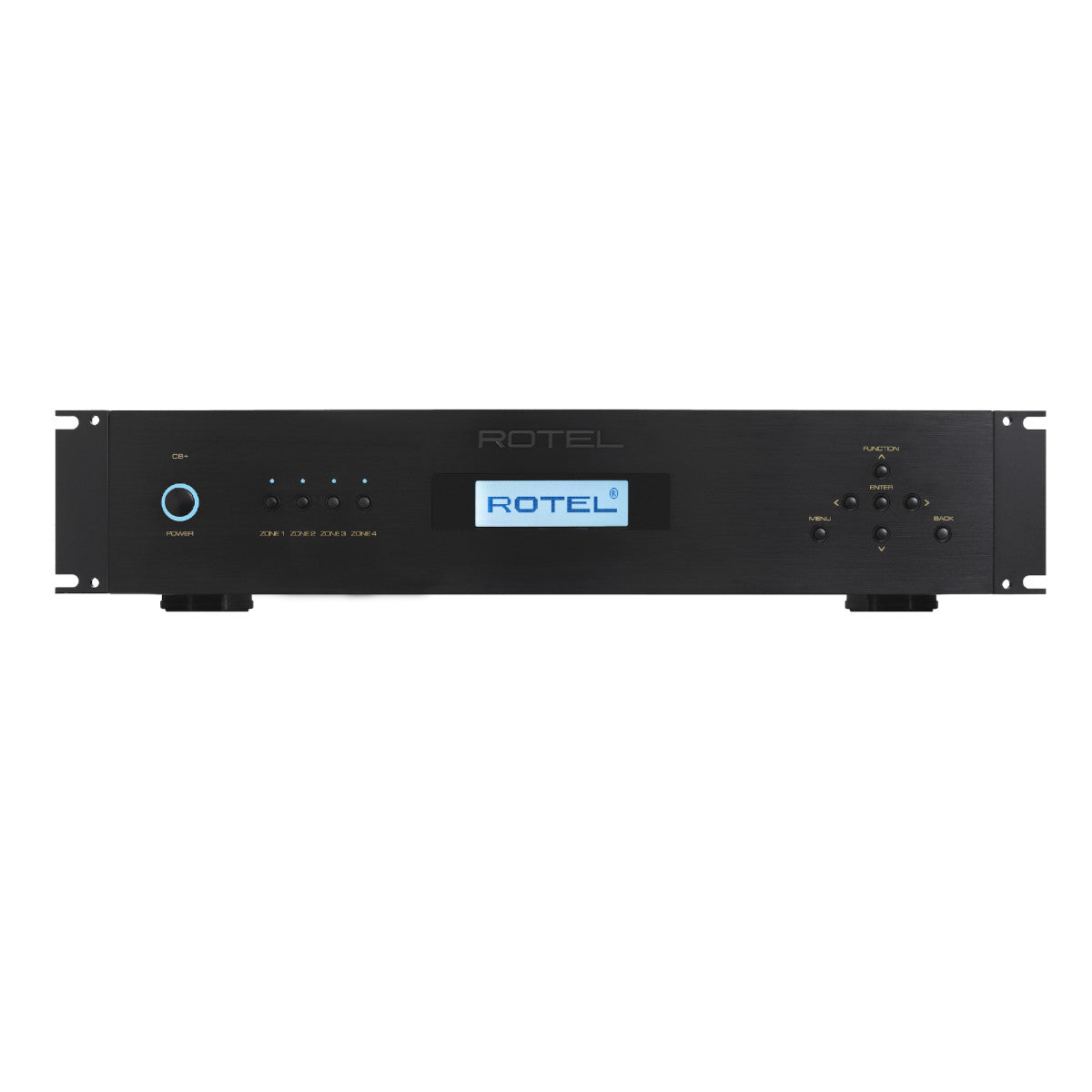

Rotel C8 - 8-channel Distribution Amplifier

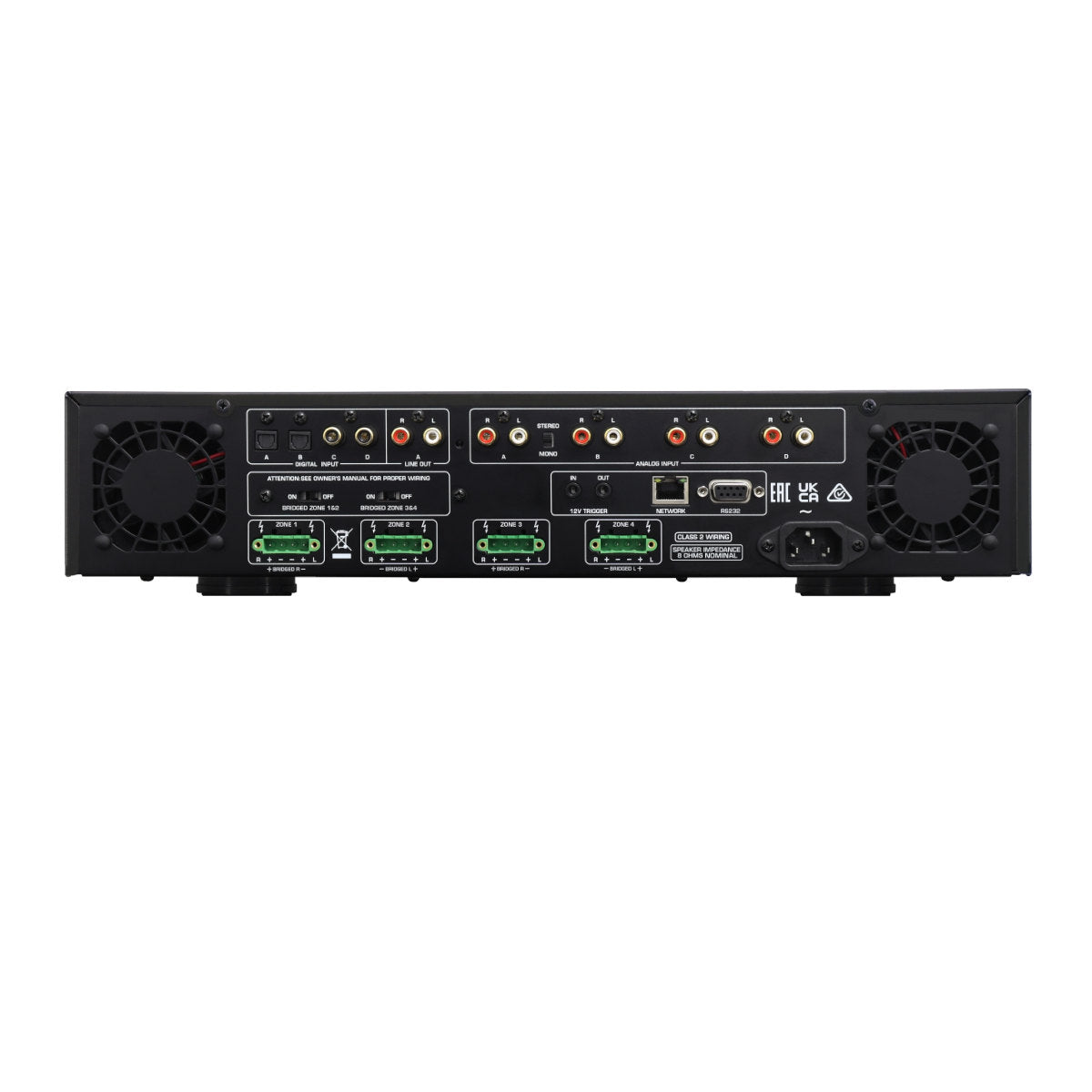

Rotel C8 - 8-channel Distribution Amplifier - Rear View
Rotel C8 - 8
    Rotel C8 - 8-channel Distribution Amplifier
    Rotel C8 - 8-channel Distribution Amplifier - Rear View
    Rotel C8 - 8
Rotel C8 - 8-channel Distribution Amplifier
Rotel C8 - 8-channel Distribution Amplifier - Rear View
Rotel C8 - 8
Rotel C8 - 8-channel Distribution Amplifier
Rotel C8 - 8-channel Distribution Amplifier - Rear View
Rotel C8 - 8
    Rotel C8 - 8-channel Distribution Amplifier
    Rotel C8 - 8-channel Distribution Amplifier - Rear View
    Rotel C8 - 8
Rotel C8 - 8-channel Distribution Amplifier
Rotel C8 - 8-channel Distribution Amplifier - Rear View
Rotel C8 - 8

About

Description


Ooberpad announces the availability of the feature-packed Rotel C8 - 8-channel Distribution Amplifier. Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads. The C8 comprises 4 Analog inputs matrixed to all Zones. Front panel display and controls render source and independent volume, bass and treble settings. The custom 2U height need no top or bottom clearance when rack mounting.



Warranty

2-year manufacturer's warranty



Key Features



  • 8 x 70 Watts of robust Class AB power, 4 Ohms
  • Class AB amplifier Design
  • Custom-engineered toroidal transformer
  • Rack Ears included
  • 12 volt trigger input



            Benefits of Rotel C8 - 8-channel Distribution Amplifier





            Performance meets Efficiency

            Performance meets Efficiency

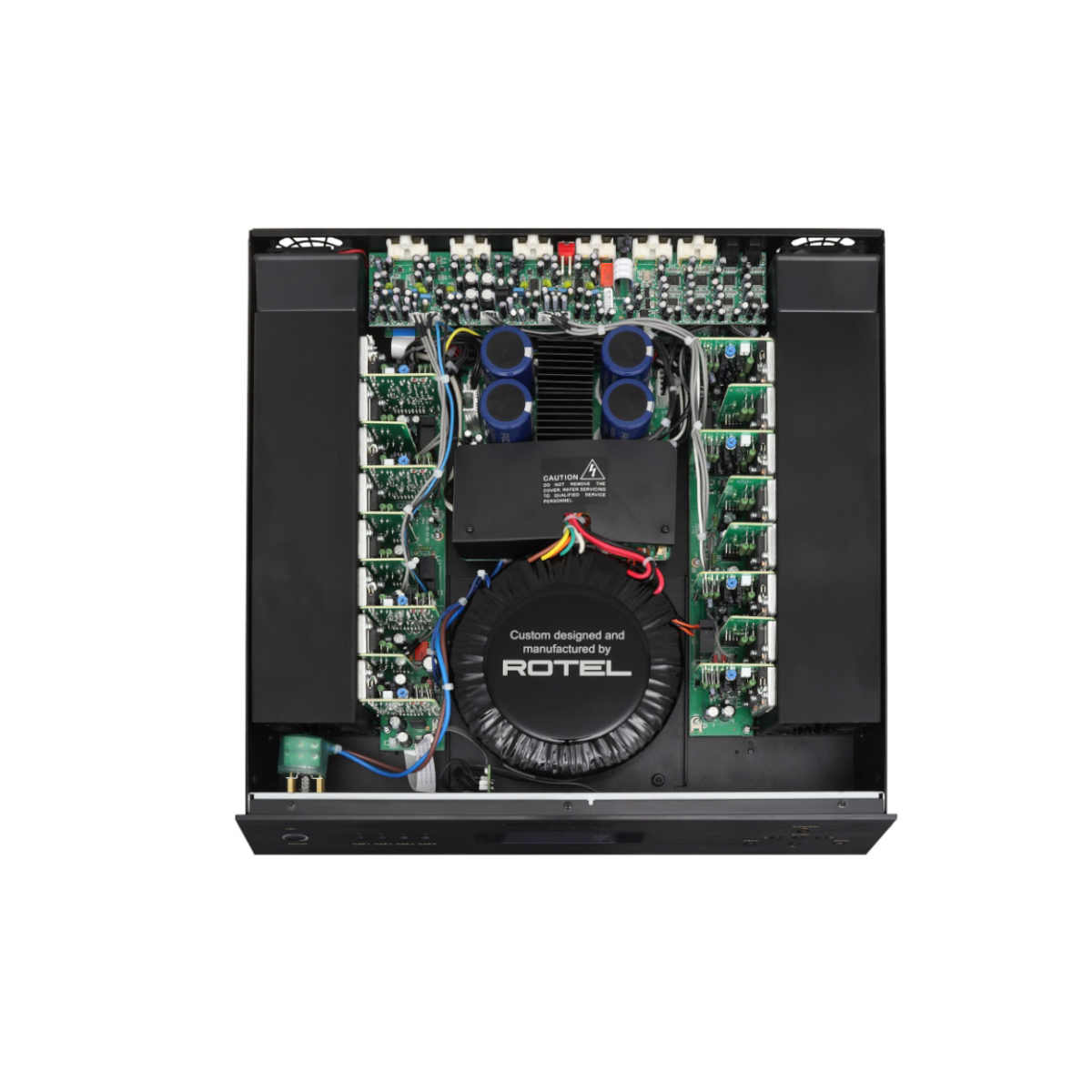

            Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads utilizing Rotel’s proprietary amplification technology.  The oversized in-house manufactured toroidal transformer drives sixteen output devices for effortless, controlled bass energy. For ultimate installation flexibility the C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide source and independent volume, bass and treble settings. Control system integration is available via IP and RS232 interfaces and 12-Volt trigger. The custom 2U height requires no top or bottom clearance when rack mounting. The C8 is available in black only.

            Where to buy?

            Buy the Rotel C8 - 8-channel Distribution Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.

            Technical Specifications of Rotel C8 - 8-channel Distribution Amplifier



            Brand & Model # Rotel C8
            Maximum Power Output 70W/Ch (8 channels driven, 4Ω)
            Continuous Power Output
            50W/Ch (8 channels driven, 8Ω)

            Total Harmonic Distortion (THD)


            <0.1%
            Frequency Response
            Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB

            S/N RATIO (IHF "A" Weighted)



            Line Level Inputs: 100dB
            Gain
            26dB
            Intermodulation Distortion (60Hz:7kHz, 4:1) <0.01%
            Damping Factor
            >80
            Tone Controls ± 10dB at 100Hz / 10kHz
            Crosstalk/Separation >50dB
            Input Sensitivity Line Level Inputs: 0.3V
            Input Impedance Line Level Inputs: 31kΩ
            Input Overload  Line Level Inputs (RCA): 2.8V
            Power Requirements


            230V, 50Hz

            Power Consumption


            570W
            Standby Power Consumption



            Normal: <0.5W
            Network Standby: <2W

            BTU Rating


            1537 BTU/h
            Dimensions (W x H x D)



            430 × 97 × 414mm
            17" × 3.9" × 16.3"

            Front Panel Height


            2U / 88.1mm (3.5")

            Net Weight



            16.7kg (36.81lbs.)
            Description


            Ooberpad announces the availability of the feature-packed Rotel C8 - 8-channel Distribution Amplifier. Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads. The C8 comprises 4 Analog inputs matrixed to all Zones. Front panel display and controls render source and independent volume, bass and treble settings. The custom 2U height need no top or bottom clearance when rack mounting.



            Warranty

            2-year manufacturer's warranty



            Key Features



            • 8 x 70 Watts of robust Class AB power, 4 Ohms
            • Class AB amplifier Design
            • Custom-engineered toroidal transformer
            • Rack Ears included
            • 12 volt trigger input



                      Benefits of Rotel C8 - 8-channel Distribution Amplifier





                      Performance meets Efficiency

                      Performance meets Efficiency



                      Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads utilizing Rotel’s proprietary amplification technology.  The oversized in-house manufactured toroidal transformer drives sixteen output devices for effortless, controlled bass energy. For ultimate installation flexibility the C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide source and independent volume, bass and treble settings. Control system integration is available via IP and RS232 interfaces and 12-Volt trigger. The custom 2U height requires no top or bottom clearance when rack mounting. The C8 is available in black only.

                      Where to buy?

                      Buy the Rotel C8 - 8-channel Distribution Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.

                      Technical Specifications of Rotel C8 - 8-channel Distribution Amplifier



                      Brand & Model # Rotel C8
                      Maximum Power Output 70W/Ch (8 channels driven, 4Ω)
                      Continuous Power Output
                      50W/Ch (8 channels driven, 8Ω)

                      Total Harmonic Distortion (THD)


                      <0.1%
                      Frequency Response
                      Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB

                      S/N RATIO (IHF "A" Weighted)



                      Line Level Inputs: 100dB
                      Gain
                      26dB
                      Intermodulation Distortion (60Hz:7kHz, 4:1) <0.01%
                      Damping Factor
                      >80
                      Tone Controls ± 10dB at 100Hz / 10kHz
                      Crosstalk/Separation >50dB
                      Input Sensitivity Line Level Inputs: 0.3V
                      Input Impedance Line Level Inputs: 31kΩ
                      Input Overload  Line Level Inputs (RCA): 2.8V
                      Power Requirements


                      230V, 50Hz

                      Power Consumption


                      570W
                      Standby Power Consumption



                      Normal: <0.5W
                      Network Standby: <2W

                      BTU Rating


                      1537 BTU/h
                      Dimensions (W x H x D)



                      430 × 97 × 414mm
                      17" × 3.9" × 16.3"

                      Front Panel Height


                      2U / 88.1mm (3.5")

                      Net Weight



                      16.7kg (36.81lbs.)
                      Rotel by Rotel

                      Rotel C8 - 8-channel Distribution Amplifier

                      Regular price
                      ₹ 289,900.00
                      Sale price
                      ₹ 289,900.00
                      Regular price
                      ₹ 289,900.00
                      Tax included.

                      Country of Origin: Japan
