About

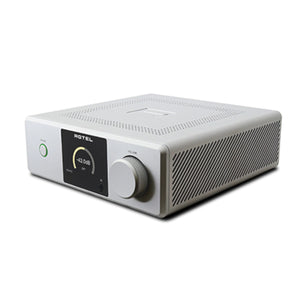

The Rotel DX-5 is the ultimate Personal Audio Integrated Amplifier blending cutting-edge technologies, versatile connectivity, packaged in a sleek, elegant, industrial design. Engineered for audiophiles, music lovers, and home entertainment enthusiasts, the DX-5 delivers 33 watts @ 4 ohms (25 watts @ 8 ohms) of classic Rotel Class AB amplification in an ultra size-efficient chassis.
Warranty
2-year manufacturer's warranty
Rotel DX-5 Key Features
- 2 x 33 Watts of Robust Class AB power, 4 Ohms
- Bluetooth with aptX™ HD and AAC
- ICICESS premium 32-bit Digital to Analog Converter
- Certified Roon Tested
- Includes Remote Control
Benefits of Rotel DX-5 Integrated Amplifier
High-performance personal audio integrated amplifier
The Rotel DX-5 is the ultimate high-performance Personal Audio Integrated Amplifier packaged in a sleek, modern, elegant industrial design. Engineered with passion and driven by a precision Class AB amplifier powered by an in-house wound high-current toroidal transformer delivering 33 watts per channel into 4 ohms (25 watts into 8 ohms).
Exceptional sound quality

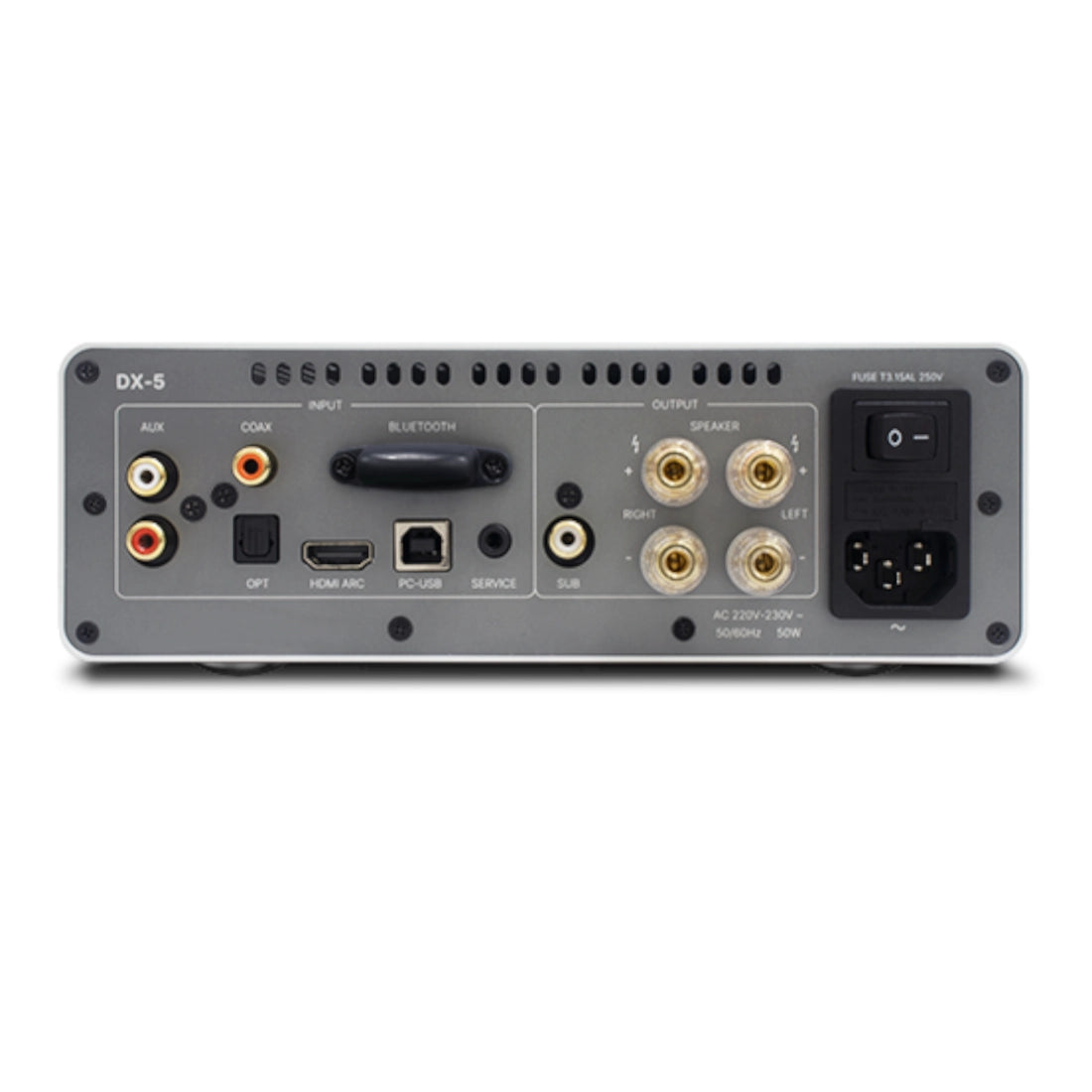

The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptX™ HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with CEC and a subwoofer output. The DX-5 features a full-color TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control perfect for music lovers and home entertainment enthusiasts.
Where to buy?
Buy Rotel DX-5 Integrated Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.
Technical Specifications of Rotel DX-5 Integrated Amplifier
| Brand & Model # | Rotel DX-5 |
| Power Output (FTC) | 25 W / ch |
| Maximum Power Output (Non FTC) | 33 W / ch, (1k Hz, 4 Ω) |
| Continuous Power Output (Non FTC) | 25 W / ch, (1k Hz, 8 Ω) |
| Total Harmonic Distortion | < 0.03% |
| Frequency Response | 10 Hz – 100k Hz (0 ± 0.19 dB) |
| Damping Factor (20 Hz – 20k Hz, 8 Ω) | 140 |
| Input Sensitivity / Impedance |
680 mV / 100k Ω |
| Input Overload | 4.2V |
| S/N Ratio (IHF "A" Weighted) | >100 dB |
| HDMI | Support ARC function |
| Digital Inputs | SPDIF LPCM (up to 24-bit / 192k Hz) |
| PC-USB | USB Audio Class 2.0 (up to 32-bit / 384k Hz )* *Driver installation required Support DSD (up to 4X, 11.2M Hz) and DoP (up to 2X, 5.6M Hz) Roon Tested |
| Power Requirements | 220 V, 50 Hz |
| Power Consumption | 80 W |
| Standby Power Consumption | <0.5 W |
| BTU | 241 BTU/h |
| Dimensions (W × H × D) | 215 x 76 x 251mm 8 1/2 x 3 x 10" |
| Front Panel Height | 70 mm (2 3/4") |
| Net Weight | 4.1 kg (9.1 lbs.) |
The Rotel DX-5 is the ultimate Personal Audio Integrated Amplifier blending cutting-edge technologies, versatile connectivity, packaged in a sleek, elegant, industrial design. Engineered for audiophiles, music lovers, and home entertainment enthusiasts, the DX-5 delivers 33 watts @ 4 ohms (25 watts @ 8 ohms) of classic Rotel Class AB amplification in an ultra size-efficient chassis.
Warranty
2-year manufacturer's warranty
Rotel DX-5 Key Features
- 2 x 33 Watts of Robust Class AB power, 4 Ohms
- Bluetooth with aptX™ HD and AAC
- ICICESS premium 32-bit Digital to Analog Converter
- Certified Roon Tested
- Includes Remote Control
Benefits of Rotel DX-5 Integrated Amplifier
High-performance personal audio integrated amplifier
The Rotel DX-5 is the ultimate high-performance Personal Audio Integrated Amplifier packaged in a sleek, modern, elegant industrial design. Engineered with passion and driven by a precision Class AB amplifier powered by an in-house wound high-current toroidal transformer delivering 33 watts per channel into 4 ohms (25 watts into 8 ohms).
Exceptional sound quality
The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptX™ HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with CEC and a subwoofer output. The DX-5 features a full-color TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control perfect for music lovers and home entertainment enthusiasts.
Where to buy?
Buy Rotel DX-5 Integrated Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.
Technical Specifications of Rotel DX-5 Integrated Amplifier
| Brand & Model # | Rotel DX-5 |
| Power Output (FTC) | 25 W / ch |
| Maximum Power Output (Non FTC) | 33 W / ch, (1k Hz, 4 Ω) |
| Continuous Power Output (Non FTC) | 25 W / ch, (1k Hz, 8 Ω) |
| Total Harmonic Distortion | < 0.03% |
| Frequency Response | 10 Hz – 100k Hz (0 ± 0.19 dB) |
| Damping Factor (20 Hz – 20k Hz, 8 Ω) | 140 |
| Input Sensitivity / Impedance |
680 mV / 100k Ω |
| Input Overload | 4.2V |
| S/N Ratio (IHF "A" Weighted) | >100 dB |
| HDMI | Support ARC function |
| Digital Inputs | SPDIF LPCM (up to 24-bit / 192k Hz) |
| PC-USB | USB Audio Class 2.0 (up to 32-bit / 384k Hz )* *Driver installation required Support DSD (up to 4X, 11.2M Hz) and DoP (up to 2X, 5.6M Hz) Roon Tested |
| Power Requirements | 220 V, 50 Hz |
| Power Consumption | 80 W |
| Standby Power Consumption | <0.5 W |
| BTU | 241 BTU/h |
| Dimensions (W × H × D) | 215 x 76 x 251mm 8 1/2 x 3 x 10" |
| Front Panel Height | 70 mm (2 3/4") |
| Net Weight | 4.1 kg (9.1 lbs.) |
Rotel DX-5 Integrated Amplifier
- Regular price
- 177,900.00
- Sale price
- 177,900.00
- Regular price
-
Country of Origin: Japan
