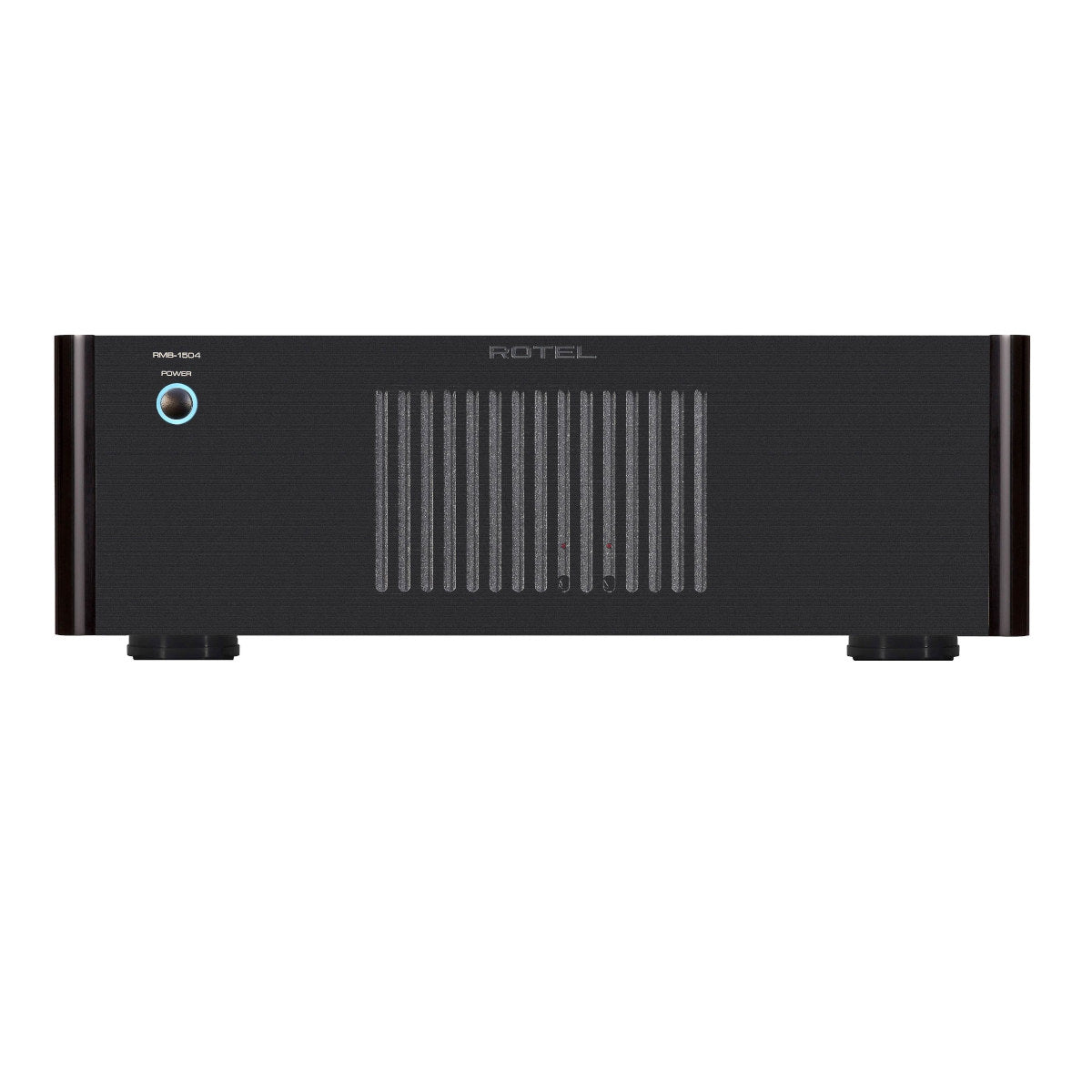

Rotel RMB-1504 4-channel Distribution Amplifier

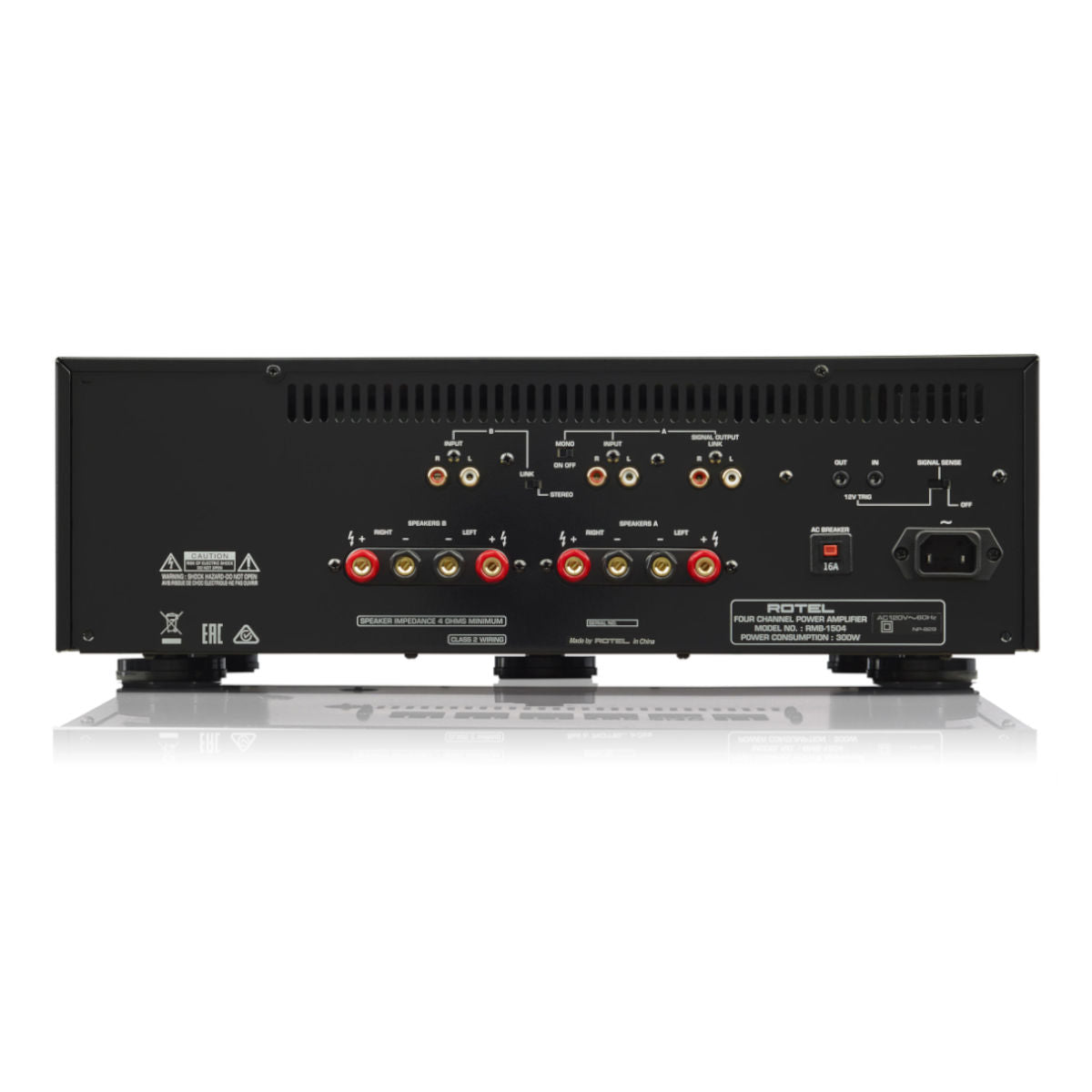

Rotel RMB-1504 4-channel Distribution Amplifier - Rear View
    Rotel RMB-1504 4-channel Distribution Amplifier
    Rotel RMB-1504 4-channel Distribution Amplifier - Rear View
Rotel RMB-1504 4-channel Distribution Amplifier
Rotel RMB-1504 4-channel Distribution Amplifier - Rear View
Rotel RMB-1504 4-channel Distribution Amplifier
Rotel RMB-1504 4-channel Distribution Amplifier - Rear View
    Rotel RMB-1504 4-channel Distribution Amplifier
    Rotel RMB-1504 4-channel Distribution Amplifier - Rear View
Rotel RMB-1504 4-channel Distribution Amplifier
Rotel RMB-1504 4-channel Distribution Amplifier - Rear View

About

Description


Did you check out the powerful Rotel RMB-1504 4-channel Distribution Amplifier? It's now available on Ooberpad. The RMB-1504 Class AB 4-channel amplifier packs a hefty punch with the ongoing commitment of performance while eliminating any compromises in building on over 55 years of Rotel amplifier design and in-house manufacturing of Hi-Fi electronics. This amplifier delivers the power and refinement suited for home theater installations as well as custom installation multi-room audio solutions. This amplifier renders power and refinement for object-based overhead speakers in home theatre set-ups and the demanding drive required for custom installation and multi-room audio solutions.

Warranty

2-year manufacturer's warranty

Key Features

  • 4 x 70 Watts of robust power
  • Class AB amplifier Design
  • Optional rack ears available
  • Automatic signal sensing
  • 12 volt trigger input

          Benefits of Rotel RMB-1504 4-channel Distribution Amplifier

          Superb Performance That Outpaces All Expectations


          Stellar Performance That Pulls Out All Stops

          The RMB-1504 Class-AB 4-channel amplifier delivers 70 watts per channel into 8 ohms and 115 watts into 4 ohm loads with the ongoing commitment of performance without compromise building on over 55 years of Rotel amplifier engineering, design and manufacturing experience. This amplifier provides power and refinement for object-based overhead speakers in home theatre installations and the demanding drive required for custom installation and multi-room audio solutions. The 12-volt trigger input and output connections, user-selected audio signal sense power control, front panel volume attenuators, audio output link connections, 5-way speaker binding posts and available rack mount kit  (rack ears included in some markets) provides ultimate installation flexibility.

          An Amalgamation of Accuracy, Power and Efficiency

          An oversized factory-built toroidal transformer and high-efficiency capacitors drive an array of high current output transistors ensuring fast transient timing, accurate detail and controlled consistency of low frequency regardless of the loudspeakers load rating or cable run distance. Maintaining crucial timing and energy while rendering effortless power is a signature trait of this amplifier rendering increased speaker placement options. Critical evaluation of the circuit design and careful selection of each acoustic audio component ensures accuracy, power and efficiency all coupled with an unsurpassed build quality ensuring this amplifier proudly wears the Rotel name.

          Where to buy?

          Buy the Rotel RMB-1504 4-channel Distribution Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.

          Technical Specifications of Rotel RMB-1504 Distribution Amplifier

          Brand & Model # Rotel RMB-1504
          Continuous Power Output
          4 x 70W/Ch (All channels driven, 8Ω)
          Total Harmonic Distortion (THD)
          (20Hz–20kHz) <0.03%
          Frequency Response
          10Hz - 100kHz ±1dB
          S/N RATIO (IHF "A" Weighted)
          115dB
          Gain
          26dB
          Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
          Damping Factor
          >200
          Speaker Impedance
          4Ω minimum
          Input Sensitivity 1V
          Input impedance 20kΩ
          Power Requirements
           120V, 60Hz
          Power Consumption
          450W
          Standby Power Consumption
          Standby< 0.5W
          Signal Sense  1 W
          BTU Rating
          810 BTU/h
          Dimensions (W x H x D)
          431 × 144 × 443mm
          17" × 5.7" × 17.5"
          Front Panel Height
          3U / 132.6mm (5.25")
          Net Weight
          14.9kg (32.8lbs.)
          Description


          Did you check out the powerful Rotel RMB-1504 4-channel Distribution Amplifier? It's now available on Ooberpad. The RMB-1504 Class AB 4-channel amplifier packs a hefty punch with the ongoing commitment of performance while eliminating any compromises in building on over 55 years of Rotel amplifier design and in-house manufacturing of Hi-Fi electronics. This amplifier delivers the power and refinement suited for home theater installations as well as custom installation multi-room audio solutions. This amplifier renders power and refinement for object-based overhead speakers in home theatre set-ups and the demanding drive required for custom installation and multi-room audio solutions.

          Warranty

          2-year manufacturer's warranty

          Key Features

          • 4 x 70 Watts of robust power
          • Class AB amplifier Design
          • Optional rack ears available
          • Automatic signal sensing
          • 12 volt trigger input

                  Benefits of Rotel RMB-1504 4-channel Distribution Amplifier

                  Superb Performance That Outpaces All Expectations


                  Stellar Performance That Pulls Out All Stops

                  The RMB-1504 Class-AB 4-channel amplifier delivers 70 watts per channel into 8 ohms and 115 watts into 4 ohm loads with the ongoing commitment of performance without compromise building on over 55 years of Rotel amplifier engineering, design and manufacturing experience. This amplifier provides power and refinement for object-based overhead speakers in home theatre installations and the demanding drive required for custom installation and multi-room audio solutions. The 12-volt trigger input and output connections, user-selected audio signal sense power control, front panel volume attenuators, audio output link connections, 5-way speaker binding posts and available rack mount kit  (rack ears included in some markets) provides ultimate installation flexibility.

                  An Amalgamation of Accuracy, Power and Efficiency

                  An oversized factory-built toroidal transformer and high-efficiency capacitors drive an array of high current output transistors ensuring fast transient timing, accurate detail and controlled consistency of low frequency regardless of the loudspeakers load rating or cable run distance. Maintaining crucial timing and energy while rendering effortless power is a signature trait of this amplifier rendering increased speaker placement options. Critical evaluation of the circuit design and careful selection of each acoustic audio component ensures accuracy, power and efficiency all coupled with an unsurpassed build quality ensuring this amplifier proudly wears the Rotel name.

                  Where to buy?

                  Buy the Rotel RMB-1504 4-channel Distribution Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.

                  Technical Specifications of Rotel RMB-1504 Distribution Amplifier

                  Brand & Model # Rotel RMB-1504
                  Continuous Power Output
                  4 x 70W/Ch (All channels driven, 8Ω)
                  Total Harmonic Distortion (THD)
                  (20Hz–20kHz) <0.03%
                  Frequency Response
                  10Hz - 100kHz ±1dB
                  S/N RATIO (IHF "A" Weighted)
                  115dB
                  Gain
                  26dB
                  Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
                  Damping Factor
                  >200
                  Speaker Impedance
                  4Ω minimum
                  Input Sensitivity 1V
                  Input impedance 20kΩ
                  Power Requirements
                   120V, 60Hz
                  Power Consumption
                  450W
                  Standby Power Consumption
                  Standby< 0.5W
                  Signal Sense  1 W
                  BTU Rating
                  810 BTU/h
                  Dimensions (W x H x D)
                  431 × 144 × 443mm
                  17" × 5.7" × 17.5"
                  Front Panel Height
                  3U / 132.6mm (5.25")
                  Net Weight
                  14.9kg (32.8lbs.)
                  Rotel by Rotel

                  Rotel RMB-1504 4-channel Distribution Amplifier

                  Regular price
                  ₹ 135,900.00
                  Sale price
                  ₹ 135,900.00
                  Regular price
                  ₹ 135,900.00
                  Tax included.

                  Country of Origin: Japan
