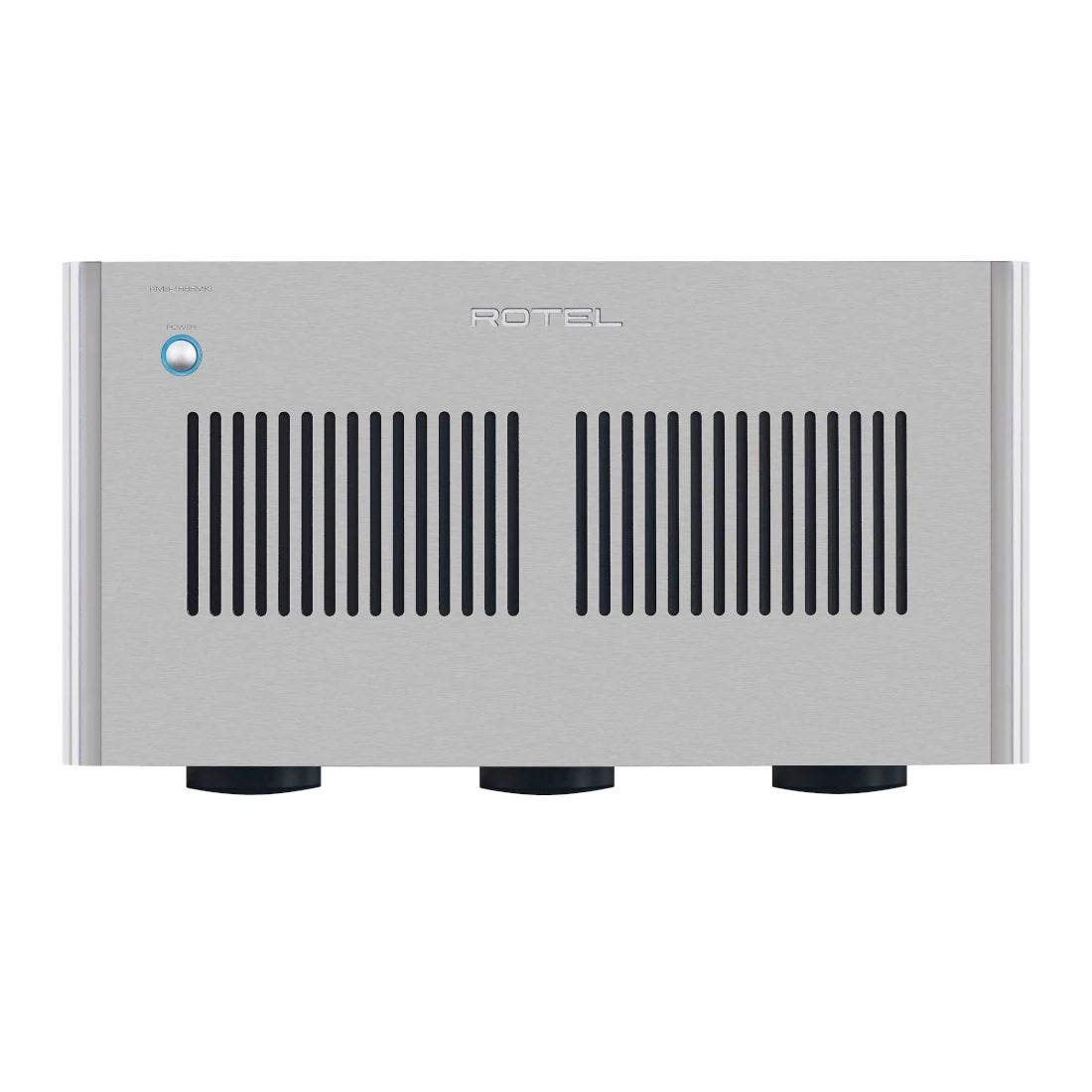

Rotel RMB-1585 MKII 5 channel Power Amplifier - Silver

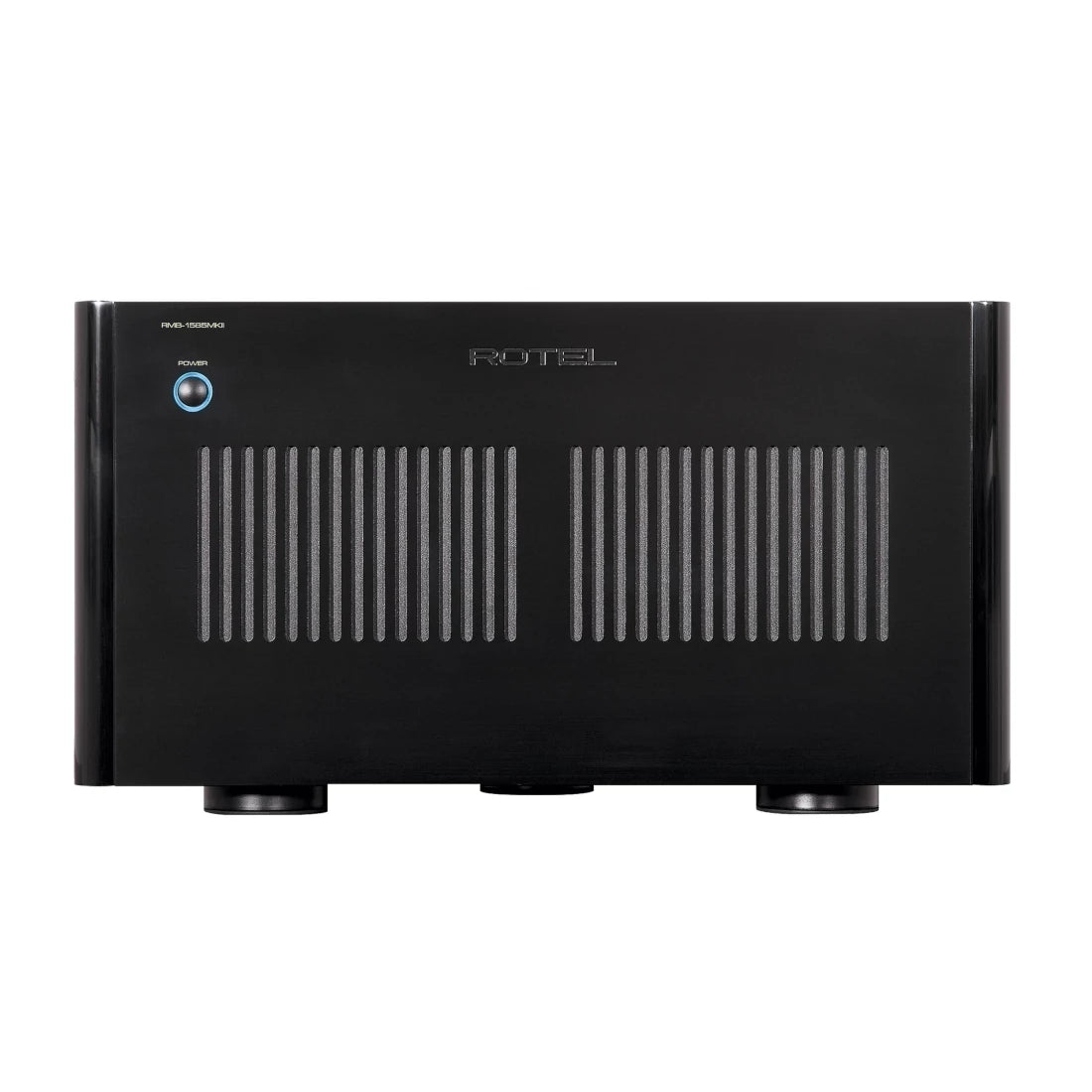

Rotel RMB-1585 MKII 5 channel Power Amplifier - Black

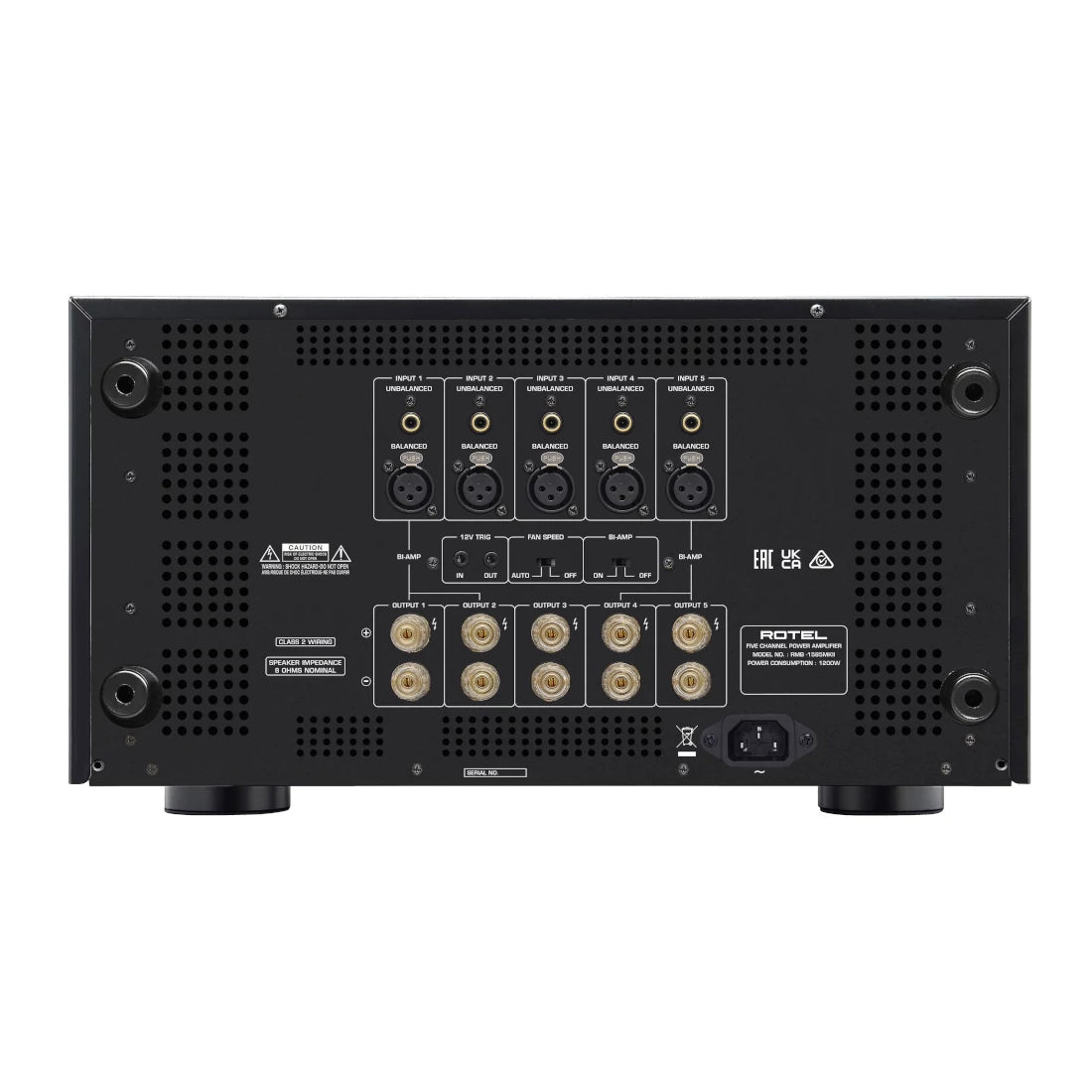

Rotel RMB-1585 MKII 5 channel Power Amplifier - Rear View
Rotel RMB-1585 MKII 5 channel Power Amplifier
    Rotel RMB-1585 MKII 5 channel Power Amplifier - Silver
    Rotel RMB-1585 MKII 5 channel Power Amplifier - Black
    Rotel RMB-1585 MKII 5 channel Power Amplifier - Rear View
    Rotel RMB-1585 MKII 5 channel Power Amplifier
Rotel RMB-1585 MKII 5 channel Power Amplifier - Silver
Rotel RMB-1585 MKII 5 channel Power Amplifier - Black
Rotel RMB-1585 MKII 5 channel Power Amplifier - Rear View
Rotel RMB-1585 MKII 5 channel Power Amplifier
Rotel RMB-1585 MKII 5 channel Power Amplifier - Silver
Rotel RMB-1585 MKII 5 channel Power Amplifier - Black
Rotel RMB-1585 MKII 5 channel Power Amplifier - Rear View
Rotel RMB-1585 MKII 5 channel Power Amplifier
    Rotel RMB-1585 MKII 5 channel Power Amplifier - Silver
    Rotel RMB-1585 MKII 5 channel Power Amplifier - Black
    Rotel RMB-1585 MKII 5 channel Power Amplifier - Rear View
    Rotel RMB-1585 MKII 5 channel Power Amplifier
Rotel RMB-1585 MKII 5 channel Power Amplifier - Silver
Rotel RMB-1585 MKII 5 channel Power Amplifier - Black
Rotel RMB-1585 MKII 5 channel Power Amplifier - Rear View
Rotel RMB-1585 MKII 5 channel Power Amplifier

About

Description

Rotel’s smashing new RMB-1585 MKII 5-channel amplifier continues the heritage of packing a punch with high-powered, perfectionist amplifiers for multi-channel systems. Following Rotel's updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages achieving ultra-low distortion, high gain amplification and signal isolation rendering multi-channel audio with ultimate precision and stunning clarity. The RMB-1585 MKII is available in both elegant black and stylish silver colors. It is precision-built for Home Theaters and custom installation. Convenient auto-switching XLR Balanced and RCA inputs ensure compatibility with any AV Processor or Home Theater receiver preamp output, and a 12 V trigger input and output provides simplified power control.

Warranty

2-year manufacturer's warranty

Rotel RMB-1585 MKII Key Features

  • 5 x 340 Watts of robust power, 4 Ohms
  • Class AB amplifier Design
  • Massive power supply using Dual Toroidal Transformers
  • High quality slit foil capacitors
  • Optional rack ears available

              Benefits of Rotel RMB-1585 MKII 5 channel Power Amplifier

              Rich, Deep Bass energy with absolute control of Low Frequencies

              Rotel RMB-1585 MKII

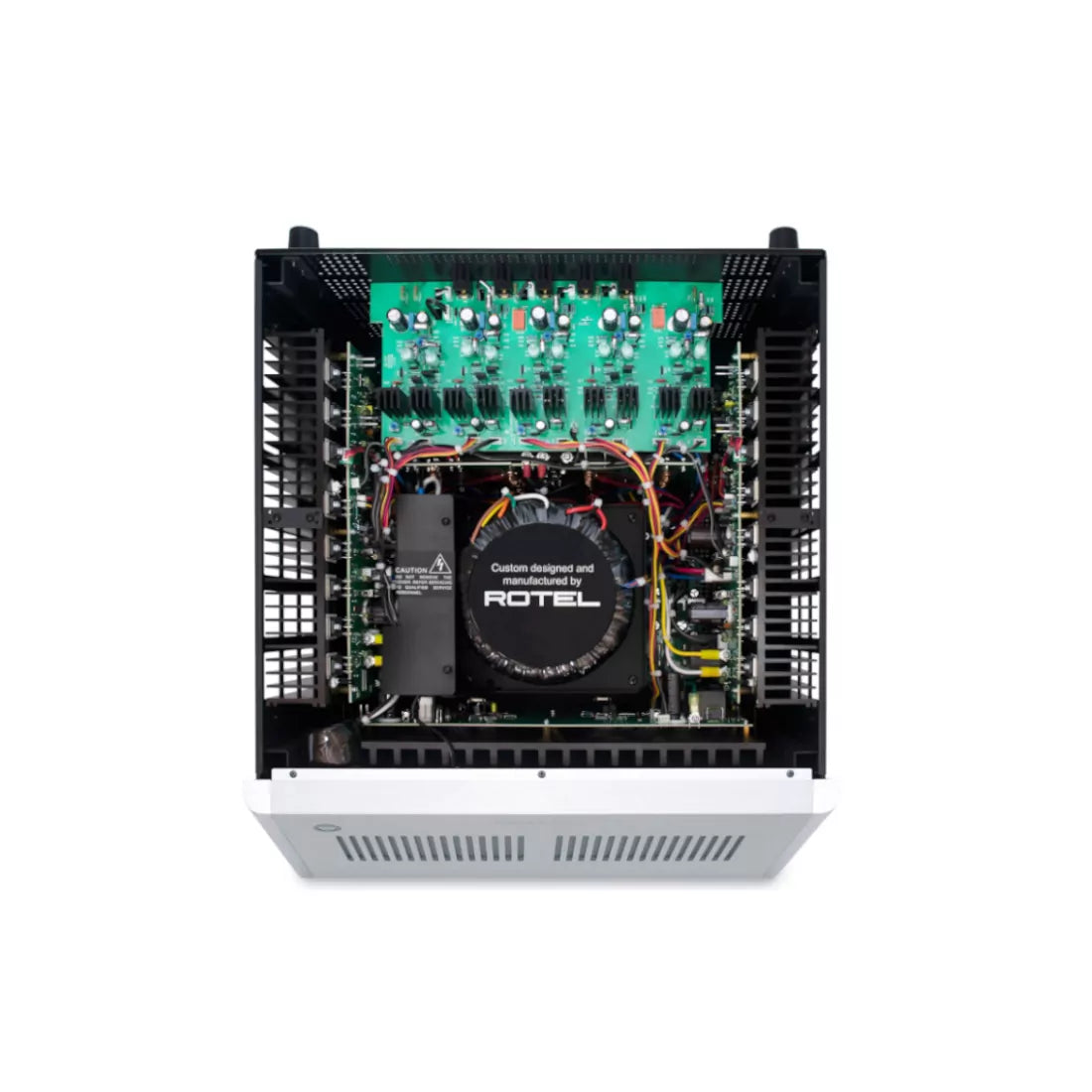

              The Class AB RMB-1585 MKII is built around two massive in-house manufactured high-current toroidal transformers designed to supply stable current to an array of 8 high-efficiency energy storage capacitors. This power supply architecture delivers rich, deep bass energy with absolute control of low frequencies even when driving the most demanding loudspeakers. To optimize cooling, the RMB-1585 MKII is equipped
              with 4 thermostat-controlled, variable-speed ultra- low-noise fans.

              Unique Configuration

              The RMB-1585 MKII features a rear panel switch to select normal 5-channel mode, or Bi-Amp mode. In Bi-Amp mode, Channels 1+2 and Channels 4+5 are wired to receive the same input signal, allowing for simple bi-amplification. This unique configuration allows the use of a separate amplifier channel for the Left and Right channel High Frequency (HF) and Low Frequency (LF) drivers, resulting in improved dynamics, and enhanced resolution from compatible loudspeakers.

              Where to buy:
              Buy Rotel RMB-1585 MKII 5 channel Power Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.


              Technical Specifications of Rotel RMB-1585 MKII 5 channel Power Amplifier

              Brand & Model # Rotel RMB-1585 MKII
              Power Output
              (5ch driven, 8 Ohms) - 210 Watts / channel
              (5ch driven, 4 Ohms) - 340 Watts / channel
              (2ch driven, 4 Ohms) - 440 Watts / channel
              Total Harmonic Distortion (THD)
              <0.03%
              Intermodulation Distortion (60 Hz : 7k Hz, 4:1) < 0.03%
              Frequency Response (+0.1 dB, –0.3 dB)
              10Hz - 100kHz
              Damping Factor (1k Hz, 8 Ohms)
              223
              Gain
              26.5dB
              Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
              Input Impedance/ Sensitivity

              Unbalanced 12k Ohms / 1.89 Volt
              Balanced 50k Ohms / 4.7 Volt
              Gain
              26.9 dB
              Signal to Noise Ratio (A Weighting)
              120 dB
              Crosstalk/ Separation > 55 dB
              Power Requirements
              USA 120 Volts, 60 Hz
              Europe 230 Volts, 50 Hz
              Power Consumption
              1200 Watts
              BTU (4 Ohms, 1/8 power)
              3317 BTU/h
              Dimensions (W x H x D)
              431 x 237 x 456 mm
              17 x 9 1/3 x 18 ins.
              Front Panel Height
              5U / 221 mm / 8 3/4 ins.
              Weight (net)

              37.4 kg / 82 lbs.
              Finish Black and Silver
              Description

              Rotel’s smashing new RMB-1585 MKII 5-channel amplifier continues the heritage of packing a punch with high-powered, perfectionist amplifiers for multi-channel systems. Following Rotel's updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages achieving ultra-low distortion, high gain amplification and signal isolation rendering multi-channel audio with ultimate precision and stunning clarity. The RMB-1585 MKII is available in both elegant black and stylish silver colors. It is precision-built for Home Theaters and custom installation. Convenient auto-switching XLR Balanced and RCA inputs ensure compatibility with any AV Processor or Home Theater receiver preamp output, and a 12 V trigger input and output provides simplified power control.

              Warranty

              2-year manufacturer's warranty

              Rotel RMB-1585 MKII Key Features

              • 5 x 340 Watts of robust power, 4 Ohms
              • Class AB amplifier Design
              • Massive power supply using Dual Toroidal Transformers
              • High quality slit foil capacitors
              • Optional rack ears available

                          Benefits of Rotel RMB-1585 MKII 5 channel Power Amplifier

                          Rich, Deep Bass energy with absolute control of Low Frequencies

                          Rotel RMB-1585 MKII

                          The Class AB RMB-1585 MKII is built around two massive in-house manufactured high-current toroidal transformers designed to supply stable current to an array of 8 high-efficiency energy storage capacitors. This power supply architecture delivers rich, deep bass energy with absolute control of low frequencies even when driving the most demanding loudspeakers. To optimize cooling, the RMB-1585 MKII is equipped
                          with 4 thermostat-controlled, variable-speed ultra- low-noise fans.

                          Unique Configuration

                          The RMB-1585 MKII features a rear panel switch to select normal 5-channel mode, or Bi-Amp mode. In Bi-Amp mode, Channels 1+2 and Channels 4+5 are wired to receive the same input signal, allowing for simple bi-amplification. This unique configuration allows the use of a separate amplifier channel for the Left and Right channel High Frequency (HF) and Low Frequency (LF) drivers, resulting in improved dynamics, and enhanced resolution from compatible loudspeakers.

                          Where to buy:
                          Buy Rotel RMB-1585 MKII 5 channel Power Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.


                          Technical Specifications of Rotel RMB-1585 MKII 5 channel Power Amplifier

                          Brand & Model # Rotel RMB-1585 MKII
                          Power Output
                          (5ch driven, 8 Ohms) - 210 Watts / channel
                          (5ch driven, 4 Ohms) - 340 Watts / channel
                          (2ch driven, 4 Ohms) - 440 Watts / channel
                          Total Harmonic Distortion (THD)
                          <0.03%
                          Intermodulation Distortion (60 Hz : 7k Hz, 4:1) < 0.03%
                          Frequency Response (+0.1 dB, –0.3 dB)
                          10Hz - 100kHz
                          Damping Factor (1k Hz, 8 Ohms)
                          223
                          Gain
                          26.5dB
                          Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
                          Input Impedance/ Sensitivity

                          Unbalanced 12k Ohms / 1.89 Volt
                          Balanced 50k Ohms / 4.7 Volt
                          Gain
                          26.9 dB
                          Signal to Noise Ratio (A Weighting)
                          120 dB
                          Crosstalk/ Separation > 55 dB
                          Power Requirements
                          USA 120 Volts, 60 Hz
                          Europe 230 Volts, 50 Hz
                          Power Consumption
                          1200 Watts
                          BTU (4 Ohms, 1/8 power)
                          3317 BTU/h
                          Dimensions (W x H x D)
                          431 x 237 x 456 mm
                          17 x 9 1/3 x 18 ins.
                          Front Panel Height
                          5U / 221 mm / 8 3/4 ins.
                          Weight (net)

                          37.4 kg / 82 lbs.
                          Finish Black and Silver
                          Rotel by Rotel

                          Rotel RMB-1585 MKII 5 channel Power Amplifier

                          Regular price
                          ₹ 493,900.00
                          Sale price
                          ₹ 493,900.00
                          Regular price
                          ₹ 493,900.00
                          Tax included.
                          Style:

                          Country of Origin: Japan
