Ooberpad brings to you Crestron CLXI-2DIM8 - 8 Channel Dimmer Module, 2 Feeds - International Version, 230V. It provides 8 channels of dimming for 230V incandescent, magnetic low-voltage, neon/cold cathode, and dimmable 2-wire fluorescent loads. The CLXI-2DIM8 is actually composed of two independent 4 channel dimmers in a single module. Each channel is rated for 2300 Watts, with a total module rating of 5980 Watts when fed from two separate 16 Amp feeds. Air-gap relays are provided on every channel output to allow individual circuits to be serviced without disabling the entire module.

CLXI-Series dimmers are rigorously built using 40 Amp triacs and oversized heat sinks for ultimate reliability. Split-bobbin transformers and ground-referenced electronics deliver superior performance. Lamp flicker is minimized through Crestron's innovative zero-crossing detection technique, backed by proprietary firmware. Low-maintenance convection cooling assures quiet and trouble-free operation. An override feature allows each channel to be adjusted to a preset state during setup. In the event that Cresnet® communications should be disrupted for any reason, a simple contact closure can be used to activate the override presets.

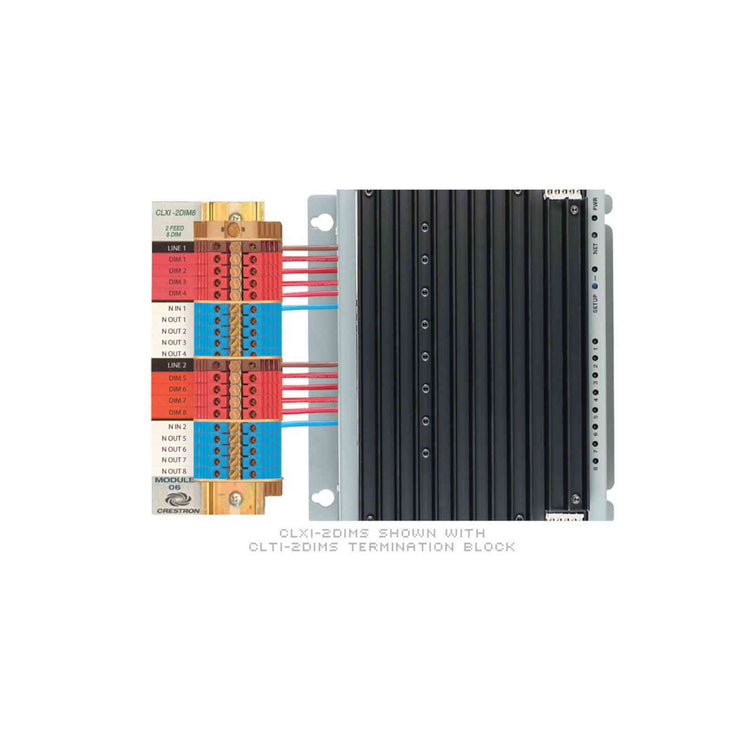

The CLXI-2DIM8 occupies a single module space in any CAEN or CAENIB automation enclosure. Termination of high-voltage wiring to the module is facilitated by a CLTI-2DIM8 terminal block, sold separately to enable termination of the wiring at any time prior to installing the module. CLXI modules are controlled by the PAC2 and PAC2M professional automation control systems via the Cresnet network. A 5-wire link provides bussing of the Cresnet and override signals between modules within an enclosure (interconnect jumpers included).

Warranty

1-year manufacturer warranty

Where to buy:
Buy Crestron CLXI-2DIM8 - 8 Channel Dimmer Module online at best price in Mumbai, Delhi, Bangalore, Hyderabad, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and will give you all the support you need to take the right buying decision in India.

Technical Specifications of Crestron CLXI-2DIM8 - 8 Channel Dimmer Module:

Brand & Model # Crestron CLXI-2DIM8
Load Ratings
Dimmer Channels
8
Per Channel
10 Amps (2300 Watts)
Per Group Channels 1-4: 13 Amps (2990 Watts);
Channels 5-8: 13 Amps (2990 Watts)
Module Total
26 Amps (5980 Watts)
Load Types
Incandescent, Magnetic Low-voltage, Neon/Cold Cathode, Dimmable 2-Wire Fluorescent
Minimum Load
15 Watts
Power Requirements
Power Requirements
230 Volts AC, 50/60Hz, single-phase;
All feeds must be same phase or split phase
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 148 BTU/Hr at maximum load
Connectors on Module
Module Interconnect
(2) 5-pin 0.156 inch headers;
Cresnet/Override interconnect ports;
Connect to PAC2, PAC2M, CAEN-BLOCK or adjacent CLXI-Series module using interconnect cable provided
Buttons & LED Indicators
SETUP
Used for manual channel activation and TSID
(1) Red LED, indicates unit is in setup/manual mode
PWR
(1) Green LED, indicates line power is applied to the LINE terminal
NET
(1) Yellow LED, indicates communication with the control system
1 – 8
(8) Red LEDs, each indicates the state of the corresponding channel
Enclosure, Dimensions & Weight
Enclosure
Gray metal with black heat sink, surface mount module with (2) integral mounting flanges;
Occupies 1 module space in any CAEN or CAENIB or enclosure
Height
7.59 in (193 mm)
Width
6.92 in (176 mm)
Depth
3.43 in (87 mm)
Weight
4.50 lbs. (2.04 kg)
Connections via CLTI or CLTIBN Terminal Block (Sold Separately)
  • LINE: (2) DIN rail terminal blocks, brown, line power inputs;
    Must be same phase or split phase
  • DIM 1 - 8: (8) DIN rail terminal blocks, red, channel outputs
  • N IN: (2) DIN rail terminal blocks, blue, line input neutrals
  • N OUT 1 - 8: (8) DIN rail terminal blocks, blue, channel output neutrals
