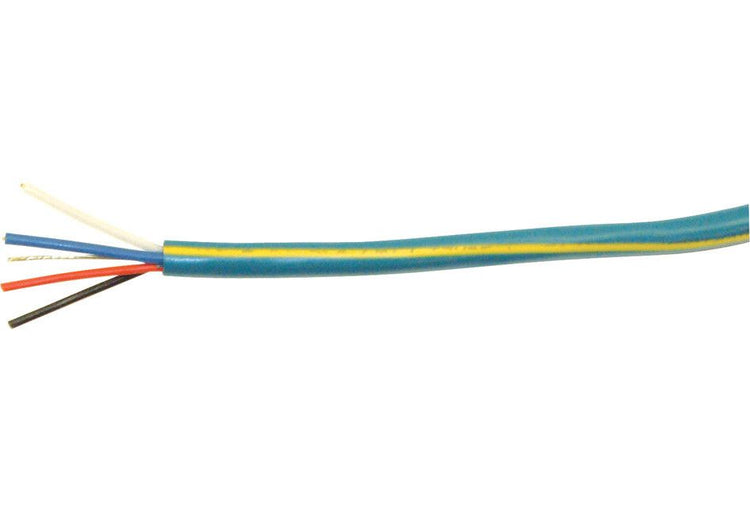

Ooberpad brings to you CRESNET-NP-TL-SP1000 - Cresnet® Control Cable, Non-Plenum, Teal, 1000 ft (304 m) spool. Crestron® certified for use in the wiring of a Cresnet® control network. Provides (1) 22 AWG shielded twisted pair for Cresnet control data, and (1) 18 AWG pair for 24VDC and Ground, within a single PVC jacket.

The Cresnet® bus is the communications backbone for many Crestron® keypads, lighting controllers, shade motors, sensors, and other devices. Cresnet is a simple, yet flexible 4-wire network that provides bidirectional communication and 24VDC power for Cresnet devices. Cresnet allows for both homerun and daisy-chain wiring topologies, with cable lengths up to approximately 3000 feet (915 meters) per run.

Within a single non-plenum PVC jacket, CRESNET-NP contains (1) 18 AWG pair for 24VDC and Ground, and (1) 22 AWG shielded twisted pair for control data. CRESNET-NP is available in four colors: teal, orange, black, or white.

Warranty

1-year manufacturer's warranty

Where to buy?
Buy Crestron Cresnet® Control Cable - CRESNET-NP-TL-SP1000 online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and will give you all the support you need to take the right buying decision in India.

Technical Specifications of Crestron Cresnet® Control Cable - CRESNET-NP-TL-SP1000:

Brand & Model # CRESNET-NP-TL-SP1000 Cresnet® Control Cable
Data Pair
  • Colors: Blue/white
  • Conductors: (2) 22 AWG (0.33 mm²) stranded bare copper, twisted
  • Insulation: Foam Polyolefin
  • Shield: Aluminum/Polyester (100% coverage)
  • Drain: (1) 24 AWG (0.20 mm²) stranded tinned copper
  • Capacitance: 12.5 pF/ft (41 pF/m), nominal
  • Impedance: 100 Ohms, nominal
Power Pair
  • Colors: Red/black
  • Conductors: (2) 18 AWG (0.82 mm²) stranded bare copper
  • Insulation: PVC
  • Shield: none
Outer Jacket
  • Material: PVC
  • Thickness: 0.032 inch (0.813 mm) nominal
  • Outer Diameter: 0.250 inch (6.35 mm) nominal
  • Color Options: Teal w/yellow stripe, orange w/black stripe, black w/yellow stripe, or white w/gray stripe
