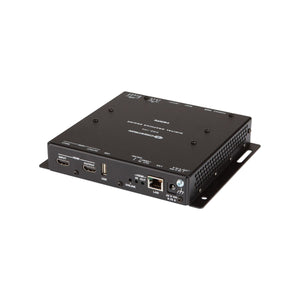

Crestron DGE-100 Digital Graphics Engine - Ooberpad
    Crestron DGE-100 Digital Graphics Engine - Ooberpad
Crestron DGE-100 Digital Graphics Engine - Ooberpad
Crestron DGE-100 Digital Graphics Engine - Ooberpad
    Crestron DGE-100 Digital Graphics Engine - Ooberpad
Crestron DGE-100 Digital Graphics Engine - Ooberpad

About

Description

The DGE-100 Digital Graphics Engine transforms an HD touch screen display into an advanced Crestron® controller. Featuring Crestron Smart Graphics® technology, the DGE-100 provides for the creation of a completely custom graphical environment combining advanced controls for audio & video, lighting, shades, HVAC, security, and other functions with dual-window video display, annotation, audio feedback, and web browsing. Its low-profile, surface-mountable design allows for a discreet installation behind a flat-panel display, under a table, or inside a lectern or equipment rack.

The DGE-100 features an HDMI® output for connection to the display device, and includes a USB HID port for touch, mouse, and/or keyboard input. Additional control ports are provided to enable control of the display device and other equipment. A single HDMI input allows an AirMedia wireless presentation gateway or other high-definition video source to be connected and displayed on screen. Additionally, H.264 streaming video signals can be received over a high-speed Ethernet connection.[1] Ethernet also provides the interface to a Crestron control system.

Key Features:

  • Touch screen graphics engine for the Crestron® TSD-2220 or a third-party USB HID compliant touch screen
  • Also supports OSM applications without a touch screen
  • HDMI® output supports display resolutions up to Full HD 1080p60 and WUXGA
  • Displays dual-window or full screen video from HDMI and H.264 streaming sources [1,3]
  • Supports video input resolutions up to 1080p60 via HDMI
  • Receives H.264 streaming video signals up to 1080p60/25Mpbs [1]
  • HDCP 1.4 compliant (HDMI only)
  • Crestron Smart Graphics® technology
  • Built-in annotation capabilities
  • Compatible as a video source for Crestron AirBoard™ whiteboard capture system
  • Customizable audio feedback


Benefits of Crestron DGE-100 Digital Graphics Engine:

    Touch Screen Interface



    The DGE-100 pairs perfectly with a Crestron TSD-2220 HD Touch Screen Display to deliver a high-definition 21.5 in. touch screen control panel that’s ideal for home automation, corporate multimedia presentation, and command center applications. Third-party touch screens of varying sizes can be used with the DGE-100 to fulfill a range of control, collaboration, video display, and interactive kiosk solutions.

    Device Controller


    The DGE-100 includes built-in RS-232 and IR control ports to allow for programmable control of the connected display and other devices via the control system. Additional control capability is afforded by harnessing the CEC (Consumer Electronics Control) signal embedded in HDMI. Via its Ethernet connection to the control system, the DGE-100 provides a gateway for controlling the display device right through its HDMI connection, potentially eliminating the need for any dedicated serial cables or IR emitters.

    Where to buy:
    The Crestron DGE-100 Digital Graphics Engine is available online at best prices in Mumbai, Delhi, Bangalore, Hyderabad, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and will give you all the support you need to take the right buying decision in India.


    Technical Specifications of Crestron DGE-100 Digital Graphics Engine:

    Brand & Model Crestron DGE-100
    Graphics Engine
    Crestron Smart Graphics, landscape or portrait orientation, local and remote annotation, multi-language web browser [2], multi-language on-screen keyboard, screensaver, scalable dual streaming video windowing (displays any combination of HDMI and/or streaming sources) [1,3], setup and diagnostics via web browser or onscreen UI
    Memory
    RAM 2 GB DDR3-SDRAM
    Flash 4 GB
    Maximum Project Size
    1 GB
    Communications
    Ethernet 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SNMP, IPv4 or IPv6, Active Directory authentication, HTTPS web browser setup, Crestron XiO Cloud client, IEEE 802.1X, IEEE 802.3af and IEEE 802.3at Type 1 compliant, web browser setup, Crestron control system integration
    USB Host Supports the Crestron TSD-2220 touch screen display and most third-party USB HID compliant touch screens, mice, and keyboards
    USB Device
    		 For computer console (installer setup and firmware update)
    RS-232 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system)
    IR/Serial 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 Volts) up to 19.2k baud (via control system)
    HDMI HDCP 1.4, EDID, CEC

    Streaming Decoder
    Video Formats
    H.264 (MPEG-4 part 10 AVC), MJPEG
    Audio Formats AAC stereo
    Bitrates Up to 25 Mbps [1]
    Resolutions Up to 1080p60
    Video
    Input Signal Types HDMI (DVI & Dual-Mode DisplayPort compatible [4])
    Output Signal Types HDMI (DVI compatible [4])
    Input Resolutions 640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 852x480@60Hz, 854x480@60Hz, 1024x768@60Hz, 1024x852@60Hz, 1024x1024@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1365x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@24Hz (1080p24), 1920x1080@25Hz (1080p25), 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), plus any other resolution allowed by HDMI up to 148MHz pixel clock
    Output Resolutions 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz[5], 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz [5], 1366x768@60Hz [5], 1440x900@60Hz [5], 1600x900@60Hz [6], 1600x1200@60Hz, 1680x1050@60Hz [5], 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz
    Connectors
    CONSOLE, USB (1) USB Micro-A connector, female
    USB computer console port
    Type A to Micro-A USB cable included
    IR 1 - 2 (1) 4-pin 3.5 mm detachable terminal block
    Comprises (2) IR/Serial ports
    IR output up to 1.1 MHz
    1-way serial TTL/RS-232 (0-5 Volts) up to 19200 baud
    COM (1) 5-pin 3.5 mm detachable terminal block
    Bidirectional RS-232 port
    Up to 115.2k baud, hardware and software handshaking support
    HDMI INPUT (1) HDMI Type A connector, female
    HDMI digital video/audio input
    (DVI & Dual-Mode DisplayPort compatible [4])
    HDMI OUTPUT (1) HDMI Type A connector, female
    HDMI digital video/audio output
    (DVI compatible [4])
    USB (1) USB Type A connector, female
    USB 2.0 host port for connection of a USB HID compliant touch screen, mouse, or keyboard
    LAN PoE (1) 8-pin RJ45 connector, female
    10Base-T/100Base-TX Ethernet port
    Power over Ethernet (PoE) compliant
    24VDC 0.75A (1) 2.1 x 5.5 mm DC power connector
    24 Volt DC power input
    PW-2407WU power pack included
    G (1) 6-32 screw
    Chassis ground lug
    Environmental
    Temperature 32° to 104° F (0° to 40° C)
    Humidity 10% to 90% RH (non-condensing)
    Heat Dissipation 27.3 BTU/hr
    Enclosure
    Chassis Metal, black finish, with (2) integral mounting flanges, vented sides
    Mounting Freestanding, surface mount, or attach to a single rack rail
    Dimensions
    Height 6.42 in. (163 mm)
    Width 7.40 in. (188 mm)
    Depth 6.56 in (167 mm)
    Weight 19.6 oz (554 g)

    Description

    The DGE-100 Digital Graphics Engine transforms an HD touch screen display into an advanced Crestron® controller. Featuring Crestron Smart Graphics® technology, the DGE-100 provides for the creation of a completely custom graphical environment combining advanced controls for audio & video, lighting, shades, HVAC, security, and other functions with dual-window video display, annotation, audio feedback, and web browsing. Its low-profile, surface-mountable design allows for a discreet installation behind a flat-panel display, under a table, or inside a lectern or equipment rack.

    The DGE-100 features an HDMI® output for connection to the display device, and includes a USB HID port for touch, mouse, and/or keyboard input. Additional control ports are provided to enable control of the display device and other equipment. A single HDMI input allows an AirMedia wireless presentation gateway or other high-definition video source to be connected and displayed on screen. Additionally, H.264 streaming video signals can be received over a high-speed Ethernet connection.[1] Ethernet also provides the interface to a Crestron control system.

    Key Features:

    • Touch screen graphics engine for the Crestron® TSD-2220 or a third-party USB HID compliant touch screen
    • Also supports OSM applications without a touch screen
    • HDMI® output supports display resolutions up to Full HD 1080p60 and WUXGA
    • Displays dual-window or full screen video from HDMI and H.264 streaming sources [1,3]
    • Supports video input resolutions up to 1080p60 via HDMI
    • Receives H.264 streaming video signals up to 1080p60/25Mpbs [1]
    • HDCP 1.4 compliant (HDMI only)
    • Crestron Smart Graphics® technology
    • Built-in annotation capabilities
    • Compatible as a video source for Crestron AirBoard™ whiteboard capture system
    • Customizable audio feedback


    Benefits of Crestron DGE-100 Digital Graphics Engine:

      Touch Screen Interface



      The DGE-100 pairs perfectly with a Crestron TSD-2220 HD Touch Screen Display to deliver a high-definition 21.5 in. touch screen control panel that’s ideal for home automation, corporate multimedia presentation, and command center applications. Third-party touch screens of varying sizes can be used with the DGE-100 to fulfill a range of control, collaboration, video display, and interactive kiosk solutions.

      Device Controller


      The DGE-100 includes built-in RS-232 and IR control ports to allow for programmable control of the connected display and other devices via the control system. Additional control capability is afforded by harnessing the CEC (Consumer Electronics Control) signal embedded in HDMI. Via its Ethernet connection to the control system, the DGE-100 provides a gateway for controlling the display device right through its HDMI connection, potentially eliminating the need for any dedicated serial cables or IR emitters.

      Where to buy:
      The Crestron DGE-100 Digital Graphics Engine is available online at best prices in Mumbai, Delhi, Bangalore, Hyderabad, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and will give you all the support you need to take the right buying decision in India.


      Technical Specifications of Crestron DGE-100 Digital Graphics Engine:

      Brand & Model Crestron DGE-100
      Graphics Engine
      Crestron Smart Graphics, landscape or portrait orientation, local and remote annotation, multi-language web browser [2], multi-language on-screen keyboard, screensaver, scalable dual streaming video windowing (displays any combination of HDMI and/or streaming sources) [1,3], setup and diagnostics via web browser or onscreen UI
      Memory
      RAM 2 GB DDR3-SDRAM
      Flash 4 GB
      Maximum Project Size
      1 GB
      Communications
      Ethernet 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SNMP, IPv4 or IPv6, Active Directory authentication, HTTPS web browser setup, Crestron XiO Cloud client, IEEE 802.1X, IEEE 802.3af and IEEE 802.3at Type 1 compliant, web browser setup, Crestron control system integration
      USB Host Supports the Crestron TSD-2220 touch screen display and most third-party USB HID compliant touch screens, mice, and keyboards
      USB Device
      		 For computer console (installer setup and firmware update)
      RS-232 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system)
      IR/Serial 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 Volts) up to 19.2k baud (via control system)
      HDMI HDCP 1.4, EDID, CEC

      Streaming Decoder
      Video Formats
      H.264 (MPEG-4 part 10 AVC), MJPEG
      Audio Formats AAC stereo
      Bitrates Up to 25 Mbps [1]
      Resolutions Up to 1080p60
      Video
      Input Signal Types HDMI (DVI & Dual-Mode DisplayPort compatible [4])
      Output Signal Types HDMI (DVI compatible [4])
      Input Resolutions 640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 852x480@60Hz, 854x480@60Hz, 1024x768@60Hz, 1024x852@60Hz, 1024x1024@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1365x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@24Hz (1080p24), 1920x1080@25Hz (1080p25), 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), plus any other resolution allowed by HDMI up to 148MHz pixel clock
      Output Resolutions 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz[5], 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz [5], 1366x768@60Hz [5], 1440x900@60Hz [5], 1600x900@60Hz [6], 1600x1200@60Hz, 1680x1050@60Hz [5], 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz
      Connectors
      CONSOLE, USB (1) USB Micro-A connector, female
      USB computer console port
      Type A to Micro-A USB cable included
      IR 1 - 2 (1) 4-pin 3.5 mm detachable terminal block
      Comprises (2) IR/Serial ports
      IR output up to 1.1 MHz
      1-way serial TTL/RS-232 (0-5 Volts) up to 19200 baud
      COM (1) 5-pin 3.5 mm detachable terminal block
      Bidirectional RS-232 port
      Up to 115.2k baud, hardware and software handshaking support
      HDMI INPUT (1) HDMI Type A connector, female
      HDMI digital video/audio input
      (DVI & Dual-Mode DisplayPort compatible [4])
      HDMI OUTPUT (1) HDMI Type A connector, female
      HDMI digital video/audio output
      (DVI compatible [4])
      USB (1) USB Type A connector, female
      USB 2.0 host port for connection of a USB HID compliant touch screen, mouse, or keyboard
      LAN PoE (1) 8-pin RJ45 connector, female
      10Base-T/100Base-TX Ethernet port
      Power over Ethernet (PoE) compliant
      24VDC 0.75A (1) 2.1 x 5.5 mm DC power connector
      24 Volt DC power input
      PW-2407WU power pack included
      G (1) 6-32 screw
      Chassis ground lug
      Environmental
      Temperature 32° to 104° F (0° to 40° C)
      Humidity 10% to 90% RH (non-condensing)
      Heat Dissipation 27.3 BTU/hr
      Enclosure
      Chassis Metal, black finish, with (2) integral mounting flanges, vented sides
      Mounting Freestanding, surface mount, or attach to a single rack rail
      Dimensions
      Height 6.42 in. (163 mm)
      Width 7.40 in. (188 mm)
      Depth 6.56 in (167 mm)
      Weight 19.6 oz (554 g)
