McIntosh DA2 Digital Audio Module Upgrade Kit

₹ 133,900.00

Check Cash on Delivery Availability for Orders under Rs 20,000/-

No Cost EMI: Avail No Cost EMI on Bajaj Finserve and select Credit Cards for orders above ₹3000 Details

EMI Guide


EMI for Rs.

Below EMI options can be availed while making payment. To avail EMI continue to check out and chose the Credit Card option for payment.

Country of Origin: Usa

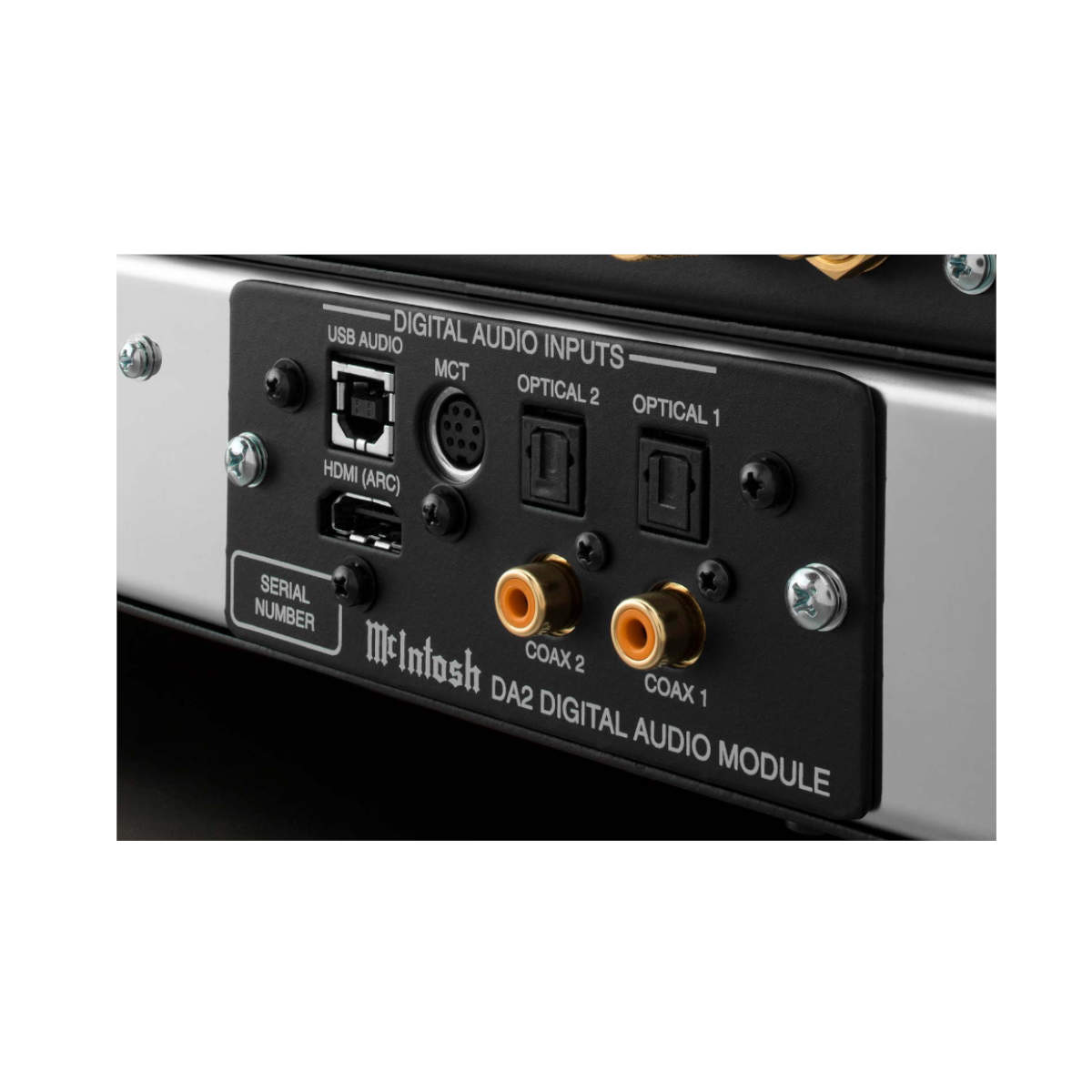

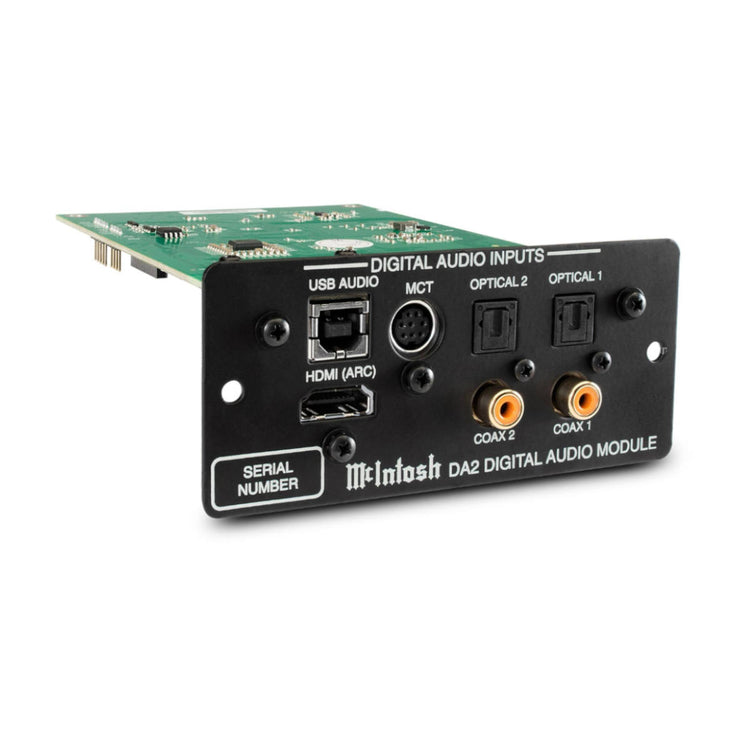

Ooberpad announces the availability of the feature-packed McIntosh DA2 Digital Audio Module Upgrade Kit. The DA2 Digital Audio Module is the most breakthrough module for processing digital audio. It comes standard in the C53 and C2700 Preamplifiers and in the MA12000, MA9500 and MA8950 Integrated Amplifiers, allowing these units to take advantage of some of the latest innovations in digital audio technology. McIntosh home audio products equipped with the DA1 can be upgraded to the newer DA2.

The models that can be upgraded to the DA2 are: MA9000, MA8900, MA7200 and MA5300 Integrated Amplifiers; MAC7200 Receiver; and C49 Preamplifier. (Note: These models will continue to come with the DA1 installed. Upgrading to the DA2 is an optional dealer installed upgrade that must be set up by an Authorized McIntosh Dealer or Authorized McIntosh Service Agency.)


3-year manufacturer's warranty

Key Features:

  • McIntosh's newest and most advanced Digital Audio Module
  • Available as an optional dealer installed upgrade to MA9000, MA8900, MA7200, MA5300, MAC7200, C49
  • Next gen, Quad Balanced, 8-channel, 32-bit DAC
  • 7 inputs: 2 coax, 2 optical, 1 USB, 1 MCT, 1 HDMI (ARC)
  • Supports up to DSD512 and DXD 384kHz

Benefits of McIntosh DA2 Digital Audio Module Upgrade Kit:

Expanded set of capabilities
Expanded set of capabilities

The DA2 Digital Audio Module builds upon the DA1 with an expanded set of capabilities. In addition to having all the same connections as the DA1 (2 coaxial, 2 optical, 1 USB and 1 MCT) a new audio-only HDMI Audio Return Channel (ARC)1 connection is included on the DA2. This allows it to be connected to TVs with a compatible HDMI (ARC) output to bring your TV sound to the next level by listening to it through your home stereo system. ARC functionality can provide two-way communication between your DA2 equipped unit and TV, allowing for volume control and lip-syncing functions to ensure the audio and video are perfectly synched. Popular multi-channel audio formats from Dolby® and DTS® are supported and will be expertly converted to 2-channel audio for proper playback through your DA2 equipped unit. When CEC communication is enabled in both the DA2 equipped unit and your TV, your TV remote can control the power and volume of your connected McIntosh unit.

Improved dynamic range and total harmonic distortion

Additionally, the DA2’s USB input can support native playback of up to DSD512, surpassing the DSD256 limit of the DA1. This increased DSD playback support is thanks to the next generation, Quad Balanced, 8-channel, 32-bit Digital-to-Analog Converter (DAC) that powers the DA2. This audiophile-grade DAC is highlighted by both an improved dynamic range and total harmonic distortion compared to the DA1. The USB input also supports DXD up to 384kHz. The coax and optical inputs can decode digital music up to 24-bit/192kHz for high resolution audio playback. Rounding out the DA2 is a proprietary MCT input that offers a secure, custom DSD connection for playback of the high definition audio found on SACDs when paired with our MCT500 and MCT80 SACD/CD Transports to produce the best possible sound quality from your SACD collection.

Where to buy?
Buy the McIntosh DA2 Digital Audio Module Upgrade Kit online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of McIntosh DA2 Digital Audio Module Upgrade Kit:

Brand & Model # McIntosh DA2
  • Digital Coaxial Input: 2
  • Digital Optical Input: 2
  • Digital MCT Input: 1
  • Digital USB Input: 1
  • HDMI (ARC) Input: 1
Digital-to-Analog Converter (DAC):
  • Quad Balanced, 8-channel, 32-bit, Audiophile-Grade
DSD Processing
  • Up to DSD512
DXD Processing:
  • Up to DXD 384kHz
Models with DA1 module that can be upgraded to DA2 module Integrated Amplifiers:
Receivers: MAC7200
Preamplifiers: C49

PN: All Pre-order/On-Order/Special-Color takes minimum 4-6 weeks to arrange from brand. Please speak with Customer Support Representative incase of any queries.
