Ooberpad announces the availability of the power-packed Sonus faber IL Cremonese Ex3me Floorstanding Speaker. The blend of two jewels - The Sonus faber IL Cremonese Ex3me Floorstanding Speaker. More than 5 years since its inception, IL Cremonese remains one of the most famous loudspeaker systems in the Sonus faber portfolio. Initially introduced with the intent of completing the Homage collection, due to its great capability, this speaker immediately placed itself among the ranks of Sonus faber’s Reference collection catalogue, the line that perfectly exemplifies the brand’s exemplary performance. This particular predilection turned the IL Cremonese into the ideal platform for one of the most important activities of the electro-acoustic design: experimentation. This is the birth of a unique loudspeaker system, embellished by the return of an historical Sonus faber finish: the classic “Red Violin”.
Warranty
2-year manufacturer's warranty
Key Features:
- 3.5 ways, 6 speakers Stealth-reflex technology
- Tweeter: 30 mm Diamond Like Carbon Beryllium dome diaphragm
- Midrange: 150 mm composite cone ND magnet
- Woofers: 2 x180 mm composite cone, Fe magnet.
- Inrfrawoofers: 2 x 220 mm Nano carbon Fiber/Nomex Honeycomb Long Throw Subwoofer
Benefits of Sonus faber IL Cremonese Ex3me Floorstanding Speaker:
Fusion
By mainly working around the behavior of both the top and bottom ends of the audio spectrum it was possible to extract a performance, avoiding any sort of interpretation, of the musical message so that Il Cremonese ex3me could even be used as an extremely high-performance professional studio monitor. The new loudspeaker system came to life by the fusion of elements belonging to the original project, such as midrange and woofers, with the most iconic solution derived from the company's 30th Anniversary celebration concept speaker model, Ex3ma.
Beryllium DLC
From Ex3ma, Il Cremonese ex3me inherits the Beryllium DLC (Diamond Like Carbon) tweeter. Sonus faber set aside its classic silk diaphragm Damped Apex Dome™ tweeter to approach this transducer construction. Brilliant in terms of transparency and micro dynamics, the Beryllium tweeter diaphragm has formidable physical characteristics but it has a sound presentation often described as a “metallic flavor” which can often make listening unpleasant.
To mitigate this typical Beryllium characteristic Sonus faber used a treatment called “Chemical Vapor Deposition“. A layer of D.L.C. is deposited on the diaphragm surface, turning it black and giving the Beryllium some of the typical properties of diamond— the most important being its amorphous nature and unmatched strength. As a result, the new diaphragm is increasingly rigid with a nearly unperceivable higher resonant frequency, making it capable of extremely fast sound, very detailed and airy – free of coloration.
The Crossover Network
The blend between the Beryllium DLC tweeter and the midrange is obtained courtesy of a totally redesigned mid-high crossover network, using non-inductive resistors and air core inductors. Capacitors are Mundorf Evo Silver Oil and Evo Gold Oil designs, known for their supreme performance in audio circuitry. The entire crossover network implements Paracross Topology, a trademark technology about a special circuit making the crossover less sensitive to radio-frequency interference, lowering noise floor.
Infrawoofer
The 2 side-firing infrawoofers featured in each loudspeaker are brand new and designed ad hoc for this project. Their diaphragm is made using the sandwich construction mode, with 2 sheets of nanocarbon fiber (structurally rigid and light) with a core of Nomex honeycomb . This Tri-laminated sandwich cone diaphragm manages the driver's excursion and resistance to flexing, even at extreme amplitudes. Thanks to its long-throw magnetic motor system, this transducer is capable of managing very high levels of linear excursion.Like the woofer, the infra-woofers are implemented in independent acoustic chambers, acoustically amorphous and each fitted with their own 'Stealth Reflex' duct.

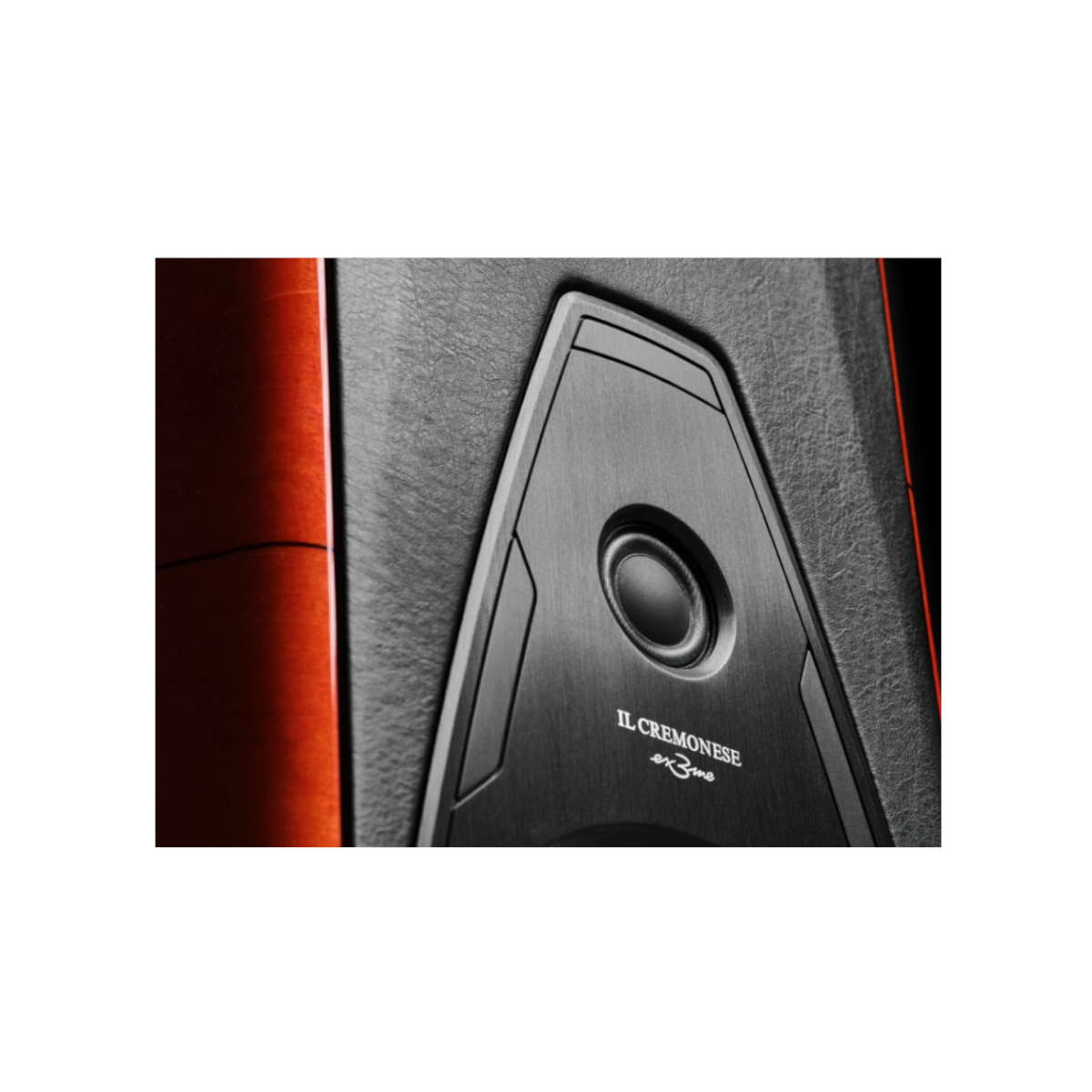

Tweeter
Extreme dynamic linearity and maximum resolution in reproduction are the result of a powerful Neodymium magnetic system and a moving coil implemented with a Sonus faber mechanical interface that optimizes vibration management. The tweeter is fitted with a rear decompression chamber featuring an acoustic labyrinth free of parallel surfaces, made of Ergal (Aluminum alloy) which is CNC machined from solid billets. This unique feature is enhanced with an imbedded mechanical anti-resonation device - further improving detail and transparency.
Midrange
The 180 mm midrange features a cone manufactured according to the classic Sonus faber recipe: an air-dried, non-pressed blend of cellulose pulp and other natural fibers, Kapok and Kenaf. This natural treatment gives the cone a slightly rough surface of varying density. The Neodymium magnetic motor system is completely 'Eddy Current Free' thanks to a copper Faraday ring strategically placed in the gap. The final touch a 1.5" voice coil made in Copper Clad Aluminum Winding (CCAW), a special copper coated aluminum wire alloy that reduces the moving mass dramatically improving the dynamic performance while positively affecting power handling.
Woofer
The two 180 mm woofers are implemented in an independent acoustic chamber, acoustically amorphous and fitted with 'Stealth Reflex' ducts. Great care is taken to combine their sonic signature in synergy with that of the midrange driver. This is accomplished through the development of a "sandwich" membrane made of two sheets of our cellulose pulp recipe with a layer of hi-tech rigid syntactic foam in between them. This construction technique provides maximum coherence with the mid-high units but also ensures, speed, rigidity and low mass in the driver. These woofers cones are mounted on die-cast aluminum baskets designed for structural rigidity and maximum ventilation to the moving parts.
Cabinet
IL Cremonese ex3me maintains the so-called "Romboidal Diamond Design". The 5-sided cabinet breaks the classic rules of Lute or Lyre shape. Taking inspiration from the shape of Lilium, IL Cremonese has cleaner lines and a more edgy design. Maintaining the absence of parallel walls ensures that the acoustic characteristics are not compromised by standing waves or internal reflections.
Zero Vibration Transmission
To complete the IL Cremonese ex3me's technical equipment, spurious micro-vibration is grounded to the patented Zero Vibration Transmission system. The Z.V.T. mechanically decouples the entire loudspeaker from the floor using a combination of metal and elastomer isolation components inside of a multi-part coaxial spike assembly, called "Silent Spikes". The result is an audible improvement in transparency and dynamics.
Where to Buy?
Buy Sonus faber IL Cremonese Ex3me Floorstanding Speaker (Pair) online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Sonus faber IL Cremonese Ex3me Floorstanding Speaker:
Brand & Model # | Sonus faber IL Cremonese Ex3me |
Type |
Floorstanding 3.5 ways, 6 speakers |
Acoustical Loading | Bass-Reflex, Floor emission (woofers) / Rear (midrange) ports. “Stealth Reflex” technology |
Drivers |
Tweeter: 30 mm Diamond Like Carbon Beryllium dome diaphragm Midrange: 150mm composite cone, Nd magnet Woofers: 2x180mm composite cone, Fe magnet Infra-woofers: 2x220mm Nanocarbon Fiber/Nomex Honeycomb Long Throw Subwoofer |
Crossover Frequency | 250 Hz and 2,500 Hz |
Frequency Response |
25 Hz – 35.000 Hz |
Sensitivity |
92 db SPL (2.83V/1 m) |
Nominal Impedance |
4 ohm |
Suggested Amplifier Power Output |
100W – 800W, without clipping |
Dimensions (HXWXD) |
1,450 x 398 x 622 mm 57 x 15.3 x 24.5 in |
Weight |
84 Kg each – net weight 185 lb each – net weight |
Ooberpad announces the availability of the power-packed Sonus faber IL Cremonese Ex3me Floorstanding Speaker. The blend of two jewels - The Sonus faber IL Cremonese Ex3me Floorstanding Speaker. More than 5 years since its inception, IL Cremonese remains one of the most famous loudspeaker systems in the Sonus faber portfolio. Initially introduced with the intent of completing the Homage collection, due to its great capability, this speaker immediately placed itself among the ranks of Sonus faber’s Reference collection catalogue, the line that perfectly exemplifies the brand’s exemplary performance. This particular predilection turned the IL Cremonese into the ideal platform for one of the most important activities of the electro-acoustic design: experimentation. This is the birth of a unique loudspeaker system, embellished by the return of an historical Sonus faber finish: the classic “Red Violin”.
Warranty
2-year manufacturer's warranty
Key Features:
- 3.5 ways, 6 speakers Stealth-reflex technology
- Tweeter: 30 mm Diamond Like Carbon Beryllium dome diaphragm
- Midrange: 150 mm composite cone ND magnet
- Woofers: 2 x180 mm composite cone, Fe magnet.
- Inrfrawoofers: 2 x 220 mm Nano carbon Fiber/Nomex Honeycomb Long Throw Subwoofer
Benefits of Sonus faber IL Cremonese Ex3me Floorstanding Speaker:
Fusion
By mainly working around the behavior of both the top and bottom ends of the audio spectrum it was possible to extract a performance, avoiding any sort of interpretation, of the musical message so that Il Cremonese ex3me could even be used as an extremely high-performance professional studio monitor. The new loudspeaker system came to life by the fusion of elements belonging to the original project, such as midrange and woofers, with the most iconic solution derived from the company's 30th Anniversary celebration concept speaker model, Ex3ma.
Beryllium DLC
From Ex3ma, Il Cremonese ex3me inherits the Beryllium DLC (Diamond Like Carbon) tweeter. Sonus faber set aside its classic silk diaphragm Damped Apex Dome™ tweeter to approach this transducer construction. Brilliant in terms of transparency and micro dynamics, the Beryllium tweeter diaphragm has formidable physical characteristics but it has a sound presentation often described as a “metallic flavor” which can often make listening unpleasant.
To mitigate this typical Beryllium characteristic Sonus faber used a treatment called “Chemical Vapor Deposition“. A layer of D.L.C. is deposited on the diaphragm surface, turning it black and giving the Beryllium some of the typical properties of diamond— the most important being its amorphous nature and unmatched strength. As a result, the new diaphragm is increasingly rigid with a nearly unperceivable higher resonant frequency, making it capable of extremely fast sound, very detailed and airy – free of coloration.
The Crossover Network
The blend between the Beryllium DLC tweeter and the midrange is obtained courtesy of a totally redesigned mid-high crossover network, using non-inductive resistors and air core inductors. Capacitors are Mundorf Evo Silver Oil and Evo Gold Oil designs, known for their supreme performance in audio circuitry. The entire crossover network implements Paracross Topology, a trademark technology about a special circuit making the crossover less sensitive to radio-frequency interference, lowering noise floor.
Infrawoofer
The 2 side-firing infrawoofers featured in each loudspeaker are brand new and designed ad hoc for this project. Their diaphragm is made using the sandwich construction mode, with 2 sheets of nanocarbon fiber (structurally rigid and light) with a core of Nomex honeycomb . This Tri-laminated sandwich cone diaphragm manages the driver's excursion and resistance to flexing, even at extreme amplitudes. Thanks to its long-throw magnetic motor system, this transducer is capable of managing very high levels of linear excursion.Like the woofer, the infra-woofers are implemented in independent acoustic chambers, acoustically amorphous and each fitted with their own 'Stealth Reflex' duct.
Tweeter
Extreme dynamic linearity and maximum resolution in reproduction are the result of a powerful Neodymium magnetic system and a moving coil implemented with a Sonus faber mechanical interface that optimizes vibration management. The tweeter is fitted with a rear decompression chamber featuring an acoustic labyrinth free of parallel surfaces, made of Ergal (Aluminum alloy) which is CNC machined from solid billets. This unique feature is enhanced with an imbedded mechanical anti-resonation device - further improving detail and transparency.
Midrange
The 180 mm midrange features a cone manufactured according to the classic Sonus faber recipe: an air-dried, non-pressed blend of cellulose pulp and other natural fibers, Kapok and Kenaf. This natural treatment gives the cone a slightly rough surface of varying density. The Neodymium magnetic motor system is completely 'Eddy Current Free' thanks to a copper Faraday ring strategically placed in the gap. The final touch a 1.5" voice coil made in Copper Clad Aluminum Winding (CCAW), a special copper coated aluminum wire alloy that reduces the moving mass dramatically improving the dynamic performance while positively affecting power handling.
Woofer
The two 180 mm woofers are implemented in an independent acoustic chamber, acoustically amorphous and fitted with 'Stealth Reflex' ducts. Great care is taken to combine their sonic signature in synergy with that of the midrange driver. This is accomplished through the development of a "sandwich" membrane made of two sheets of our cellulose pulp recipe with a layer of hi-tech rigid syntactic foam in between them. This construction technique provides maximum coherence with the mid-high units but also ensures, speed, rigidity and low mass in the driver. These woofers cones are mounted on die-cast aluminum baskets designed for structural rigidity and maximum ventilation to the moving parts.
Cabinet
IL Cremonese ex3me maintains the so-called "Romboidal Diamond Design". The 5-sided cabinet breaks the classic rules of Lute or Lyre shape. Taking inspiration from the shape of Lilium, IL Cremonese has cleaner lines and a more edgy design. Maintaining the absence of parallel walls ensures that the acoustic characteristics are not compromised by standing waves or internal reflections.
Zero Vibration Transmission
To complete the IL Cremonese ex3me's technical equipment, spurious micro-vibration is grounded to the patented Zero Vibration Transmission system. The Z.V.T. mechanically decouples the entire loudspeaker from the floor using a combination of metal and elastomer isolation components inside of a multi-part coaxial spike assembly, called "Silent Spikes". The result is an audible improvement in transparency and dynamics.
Where to Buy?
Buy Sonus faber IL Cremonese Ex3me Floorstanding Speaker (Pair) online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Sonus faber IL Cremonese Ex3me Floorstanding Speaker:
Brand & Model # | Sonus faber IL Cremonese Ex3me |
Type |
Floorstanding 3.5 ways, 6 speakers |
Acoustical Loading | Bass-Reflex, Floor emission (woofers) / Rear (midrange) ports. “Stealth Reflex” technology |
Drivers |
Tweeter: 30 mm Diamond Like Carbon Beryllium dome diaphragm Midrange: 150mm composite cone, Nd magnet Woofers: 2x180mm composite cone, Fe magnet Infra-woofers: 2x220mm Nanocarbon Fiber/Nomex Honeycomb Long Throw Subwoofer |
Crossover Frequency | 250 Hz and 2,500 Hz |
Frequency Response |
25 Hz – 35.000 Hz |
Sensitivity |
92 db SPL (2.83V/1 m) |
Nominal Impedance |
4 ohm |
Suggested Amplifier Power Output |
100W – 800W, without clipping |
Dimensions (HXWXD) |
1,450 x 398 x 622 mm 57 x 15.3 x 24.5 in |
Weight |
84 Kg each – net weight 185 lb each – net weight |
Sonus faber IL Cremonese Ex3me Floorstanding Speaker (Pair)
Country of Origin: Italy
