About
Ooberpad presents the power-packed Sonus faber Palladio PC 683 3-way In-Ceiling Speaker. This line of Custom installation speakers in-wall and in-ceiling directly refer to the Olympica Nova Collection for the choice of materials, the electroacoustic project and design. These models embody a remarkable choice in the Custom Installation landscape: the first speakers that even furnishes your home. We can subdivide the Palladio collection into two lines: Level 5 and Level 6, ideal completion of Sonetto and Olympica collections respectively with 13 models in total. Level 5 offers 2 In-Wall and 4 In-Ceiling speakers and the Level 6 includes 2 In-Wall and 5 In-Ceiling speakers. Additionally, both lines boast an option to add a versatile passive subwoofer (PS-G101).

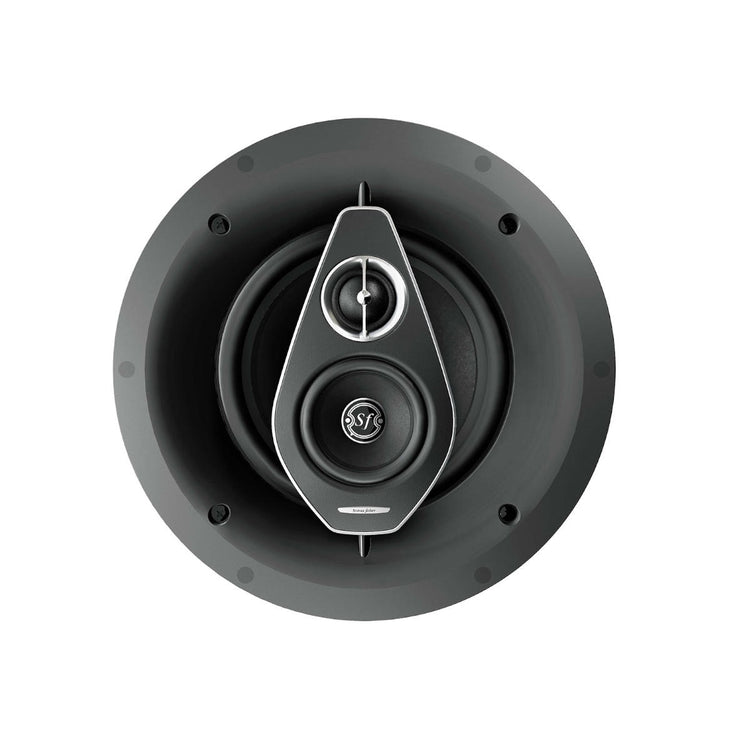

The PC-683 comes with a magnetic edgeless round metal grille, ready to be painted. The square metal grille is optionally available. Compact and refined, the PC-683 is a highly versatile 3 way in-ceiling system, whose industrial design highlights the placement, in line with the aesthetics of the Olympica range, of the tweeter on a stand. covered with natural leather. The custom diaphragm is crafted in natural fiber and cellulose pulp, according to the most spontaneous sound. In the field of electroacoustic technology, it is worth highlighting the use of imported elements from Sonus Faber's series of high-end loudspeakers. The square metal grille and pre-mounting is optionally available.
Warranty
2-year manufacturer's warranty
Key Features:
- A visible reminder of the Olympica Nova collection is the leather that embellishes the configuration of tweeter and midwoofer
- The PC-683 is equipped with a magnetic edgeless round metal grille, ready to be painted. The square metal grille is optionally available
- Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard
- PRE-MOUNT KIT: If the PC-683 must be installed in a new construction, a pre-mount kit is provided as an optional accessory
Benefits of Sonus faber Palladio PC 683 3-way In-Ceiling Speaker:
Palladio - The new custom collection
Developed as a solution to the lack of high-quality craftsmanship and warmth of sound in modern architectural speakers, the new Palladio collection works to expand the spaces of the listening experience, beyond the boundaries of traditional listening rooms. Palladio custom installation speakers guarantees a total sound immersion with versatile models, also aesthetically pleasing in design.
The voice of Sonus faber
It's timbre of the loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of design solution that identify the DNA of the brand. As for Sonus faber line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome™) technology and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp, a special Sonus faber receipt. The anti-resonant design of the
x-over network features the Paracross TopologyTM circuitry enriched with custom made capacitors branded by Sonus faber.
Easy to install and customize
All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible. All models grilles are ready to be painted and all in-ceilings models can be equipped with a square magnetic grille, to further increase the freedom of listener’s choice. Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard. All Palladio In-Ceiling speakers (except for PC-664P and PC-563P) can be completed with their pre-mount kit, an optional accessory for new constructions installations.
Where to Buy?
Buy Sonus faber Palladio PC 683 3-way In-Ceiling Speaker (Each) online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Sonus faber Palladio PC 683 3-way In-Ceiling Speaker:
Brand & Model # | Palladio PC 683 |
Loudspeaker System |
3-way in ceiling system. Infinite baffle |
Tweeter - DAD Driver |
29 mm / 1.1 in |
Midrange | 80 mm / 3.1 in |
Woofer | 200 mm / 8 in |
Crossover FrequencyY - Paracross Topology | 1400 - 3,500 Hz |
Frequency Response |
45 - 25,000Hz(-6dB) |
Sensitivity (2.83 Vrms @ 1m) |
90 dB SPL |
Nominal Impedance |
4 ohm |
Suggested Amplifier Power Output |
40 – 200 W Undistorted signal |
Frame Outer |
Ø 283 mm / 11.1 in |
Cut Out | Ø 257 mm / 10.1 in |
Depth Behind Surface | 142 mm / 5.7 in |
Protrusion | 13 mm / 0.51 in |
Weight |
4,56 kg / 10 lb |
Included In The Box | Bezel-Free round magnetic grille |
Optionally Available - Additional Fittings sold separately |
*OPTIONAL SQUARE GRILLE (paintable) - 5,090 ₹ (SINGLE) |
Ooberpad presents the power-packed Sonus faber Palladio PC 683 3-way In-Ceiling Speaker. This line of Custom installation speakers in-wall and in-ceiling directly refer to the Olympica Nova Collection for the choice of materials, the electroacoustic project and design. These models embody a remarkable choice in the Custom Installation landscape: the first speakers that even furnishes your home. We can subdivide the Palladio collection into two lines: Level 5 and Level 6, ideal completion of Sonetto and Olympica collections respectively with 13 models in total. Level 5 offers 2 In-Wall and 4 In-Ceiling speakers and the Level 6 includes 2 In-Wall and 5 In-Ceiling speakers. Additionally, both lines boast an option to add a versatile passive subwoofer (PS-G101).
The PC-683 comes with a magnetic edgeless round metal grille, ready to be painted. The square metal grille is optionally available. Compact and refined, the PC-683 is a highly versatile 3 way in-ceiling system, whose industrial design highlights the placement, in line with the aesthetics of the Olympica range, of the tweeter on a stand. covered with natural leather. The custom diaphragm is crafted in natural fiber and cellulose pulp, according to the most spontaneous sound. In the field of electroacoustic technology, it is worth highlighting the use of imported elements from Sonus Faber's series of high-end loudspeakers. The square metal grille and pre-mounting is optionally available.
Warranty
2-year manufacturer's warranty
Key Features:
- A visible reminder of the Olympica Nova collection is the leather that embellishes the configuration of tweeter and midwoofer
- The PC-683 is equipped with a magnetic edgeless round metal grille, ready to be painted. The square metal grille is optionally available
- Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard
- PRE-MOUNT KIT: If the PC-683 must be installed in a new construction, a pre-mount kit is provided as an optional accessory
Benefits of Sonus faber Palladio PC 683 3-way In-Ceiling Speaker:
Palladio - The new custom collection
Developed as a solution to the lack of high-quality craftsmanship and warmth of sound in modern architectural speakers, the new Palladio collection works to expand the spaces of the listening experience, beyond the boundaries of traditional listening rooms. Palladio custom installation speakers guarantees a total sound immersion with versatile models, also aesthetically pleasing in design.
The voice of Sonus faber
It's timbre of the loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of design solution that identify the DNA of the brand. As for Sonus faber line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome™) technology and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp, a special Sonus faber receipt. The anti-resonant design of the
x-over network features the Paracross TopologyTM circuitry enriched with custom made capacitors branded by Sonus faber.
Easy to install and customize
All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible. All models grilles are ready to be painted and all in-ceilings models can be equipped with a square magnetic grille, to further increase the freedom of listener’s choice. Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard. All Palladio In-Ceiling speakers (except for PC-664P and PC-563P) can be completed with their pre-mount kit, an optional accessory for new constructions installations.
Where to Buy?
Buy Sonus faber Palladio PC 683 3-way In-Ceiling Speaker (Each) online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Sonus faber Palladio PC 683 3-way In-Ceiling Speaker:
Brand & Model # | Palladio PC 683 |
Loudspeaker System |
3-way in ceiling system. Infinite baffle |
Tweeter - DAD Driver |
29 mm / 1.1 in |
Midrange | 80 mm / 3.1 in |
Woofer | 200 mm / 8 in |
Crossover FrequencyY - Paracross Topology | 1400 - 3,500 Hz |
Frequency Response |
45 - 25,000Hz(-6dB) |
Sensitivity (2.83 Vrms @ 1m) |
90 dB SPL |
Nominal Impedance |
4 ohm |
Suggested Amplifier Power Output |
40 – 200 W Undistorted signal |
Frame Outer |
Ø 283 mm / 11.1 in |
Cut Out | Ø 257 mm / 10.1 in |
Depth Behind Surface | 142 mm / 5.7 in |
Protrusion | 13 mm / 0.51 in |
Weight |
4,56 kg / 10 lb |
Included In The Box | Bezel-Free round magnetic grille |
Optionally Available - Additional Fittings sold separately |
*OPTIONAL SQUARE GRILLE (paintable) - 5,090 ₹ (SINGLE) |
Sonus faber Palladio PC 683 3-way In-Ceiling Speaker (Each)
Country of Origin: China
