Did you check out the power-packed Sonus faber Palladio PL 563 2-way LCR In-Wall Speaker? It is now available on Ooberpad. This line of Custom installation speakers in-wall and in-ceiling directly refer to the Olympica Nova Collection for the choice of materials, the electroacoustic project and design. These models embody a unique choice in the Custom Installation landscape: the first speakers that even furnishes your home. We can subdivide the Palladio collection into two lines: Level 5 and Level 6, ideal completion of Sonetto and Olympica collections respectively with 13 models in total. Level 5 offers 2 In-Wall and 4 In-Ceiling speakers and the Level 6 includes 2 In-Wall and 5 In-Ceiling speakers. Additionally, both lines boast an option to add a versatile passive subwoofer (PS-G101).

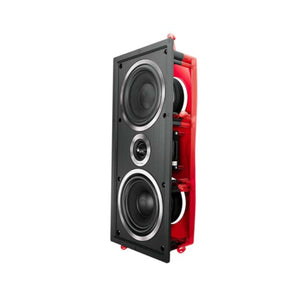

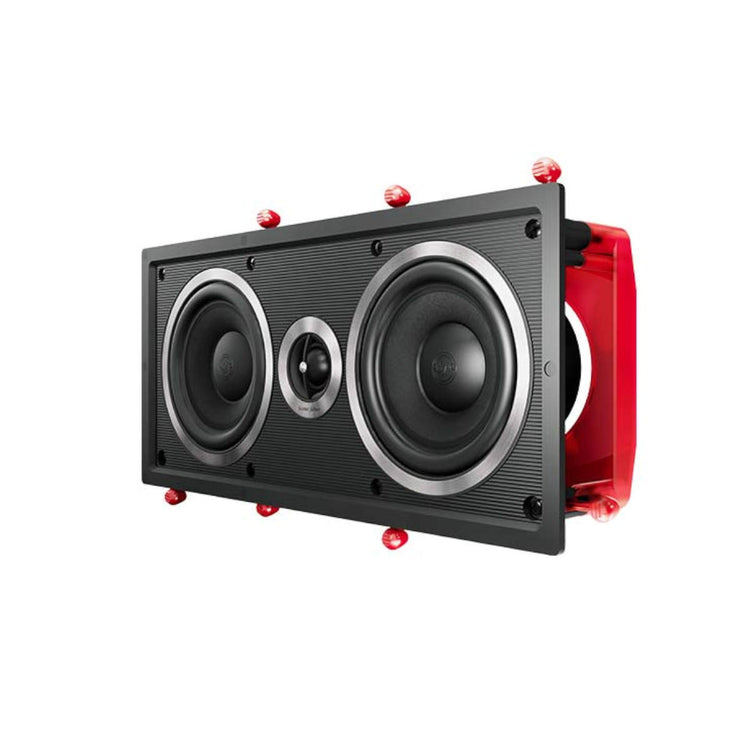

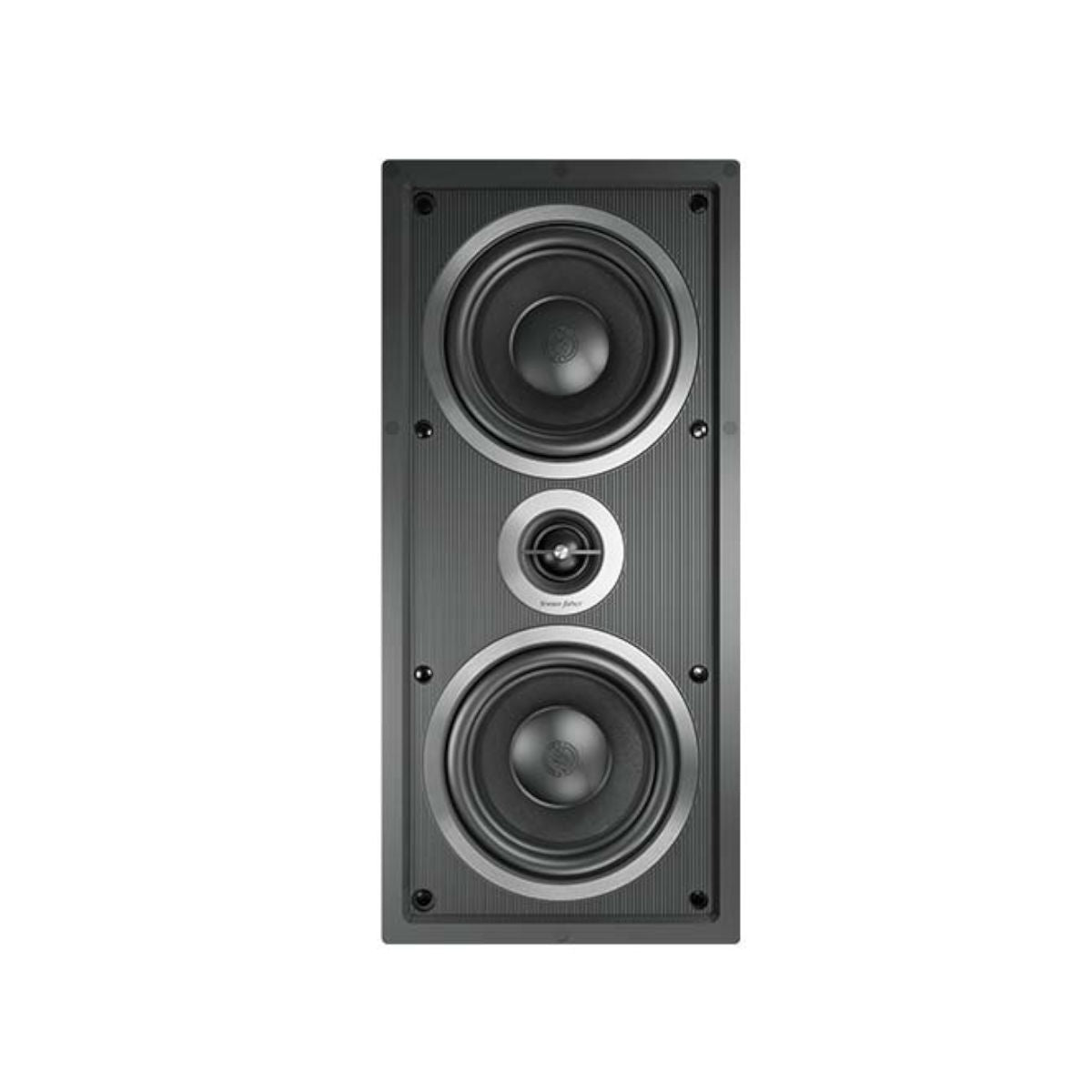

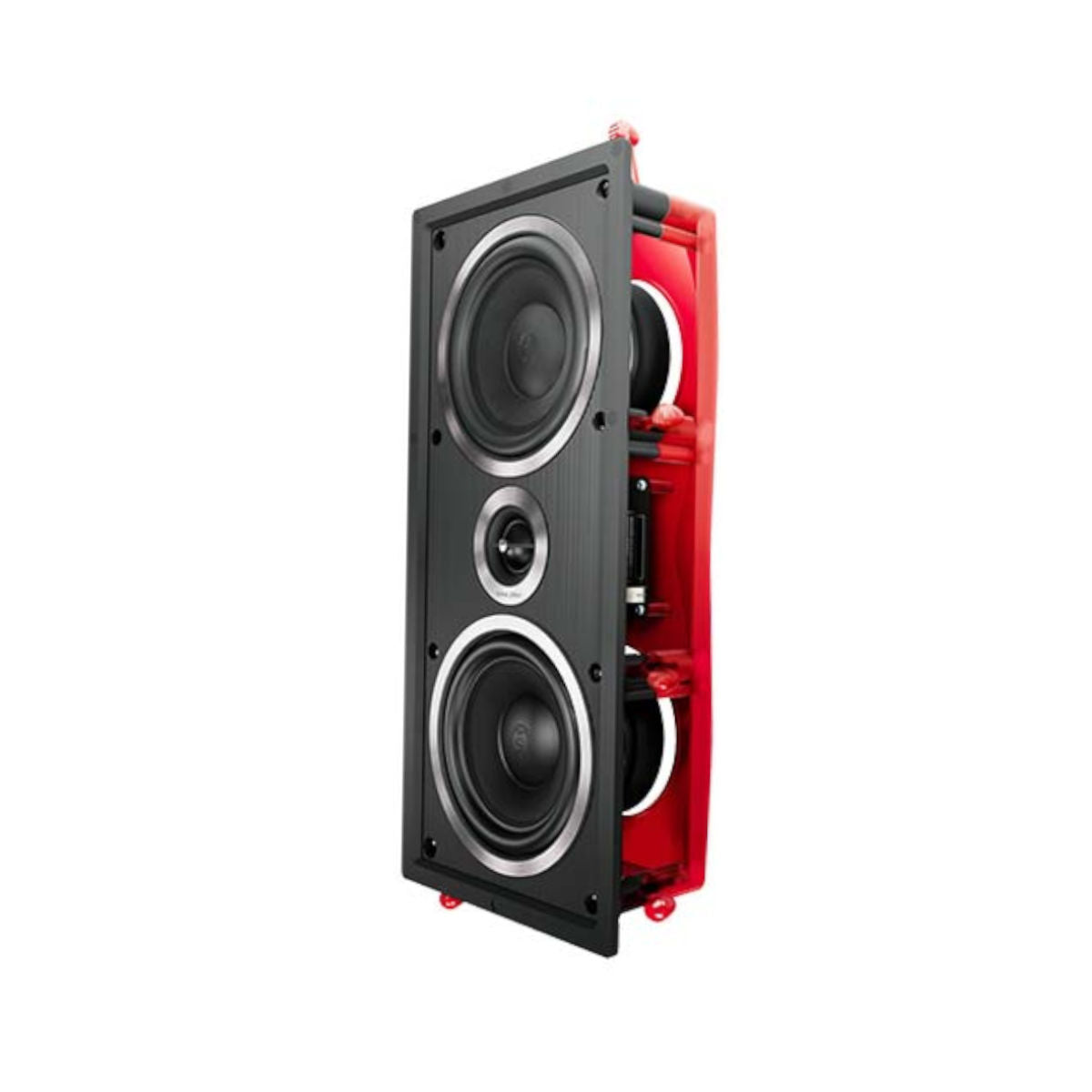

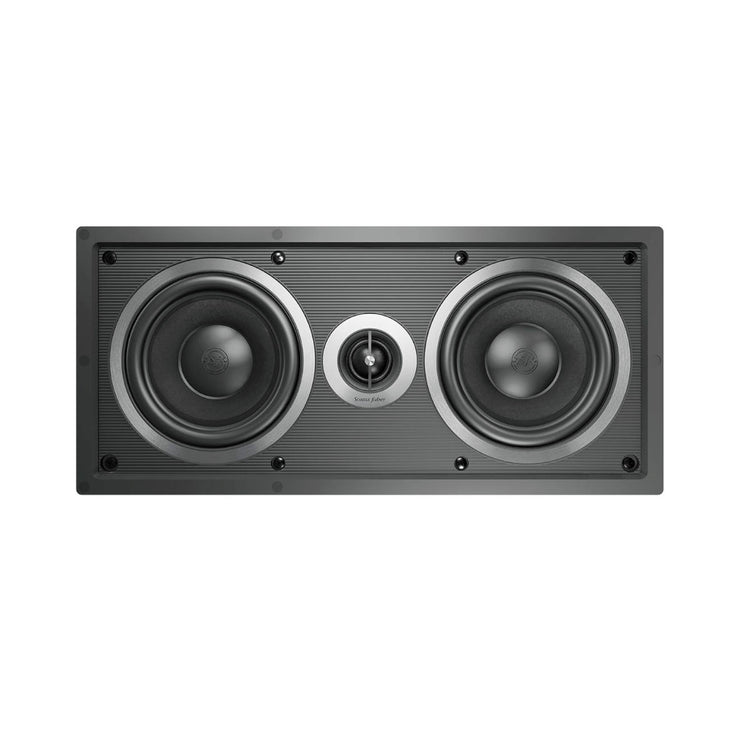

The PL-563 directly refers to the Sonetto Collection for the choice of materials, the electroacoustic project and design. Tweeter and mid-woofers are enriched with satin aluminum trims. The LCR model PL-563 is meticulously designed to cover multiple roles according to different needs, front / side / surround channel if used in vertical position or center channel if mounted horizontally. The tweeter ring can be oriented according to the needs. The PL-563 comes packed with a magnetic edgeless square metal grille, ready to be painted.
Warranty
2-year manufacturer's warranty
Key Features:
- The PL-563 directly refers to the Sonetto Collection for the choice of
materials, the electroacoustic project and design - The LCR model PL-563 is designed to cover multiple roles according to different needs, front / side / surround channel if used in vertical position or center channel if mounted horizontally

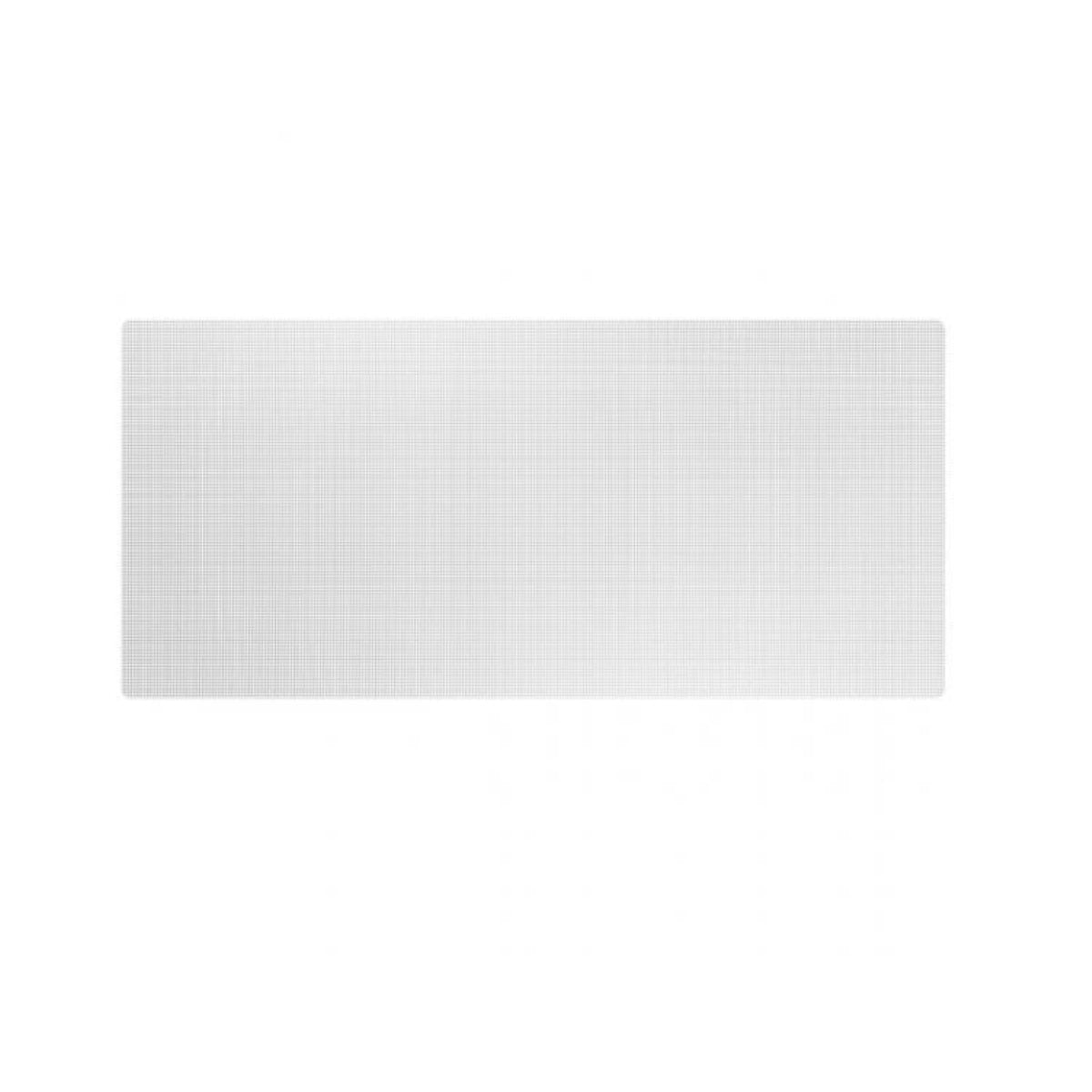

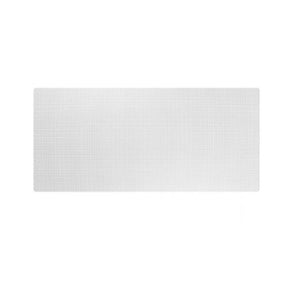

- The PL-563 is equipped with a magnetic edgeless square metal grille, ready to be painted

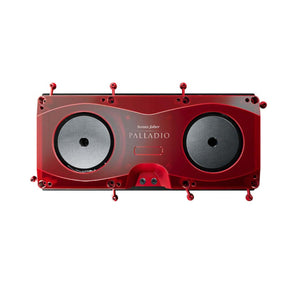

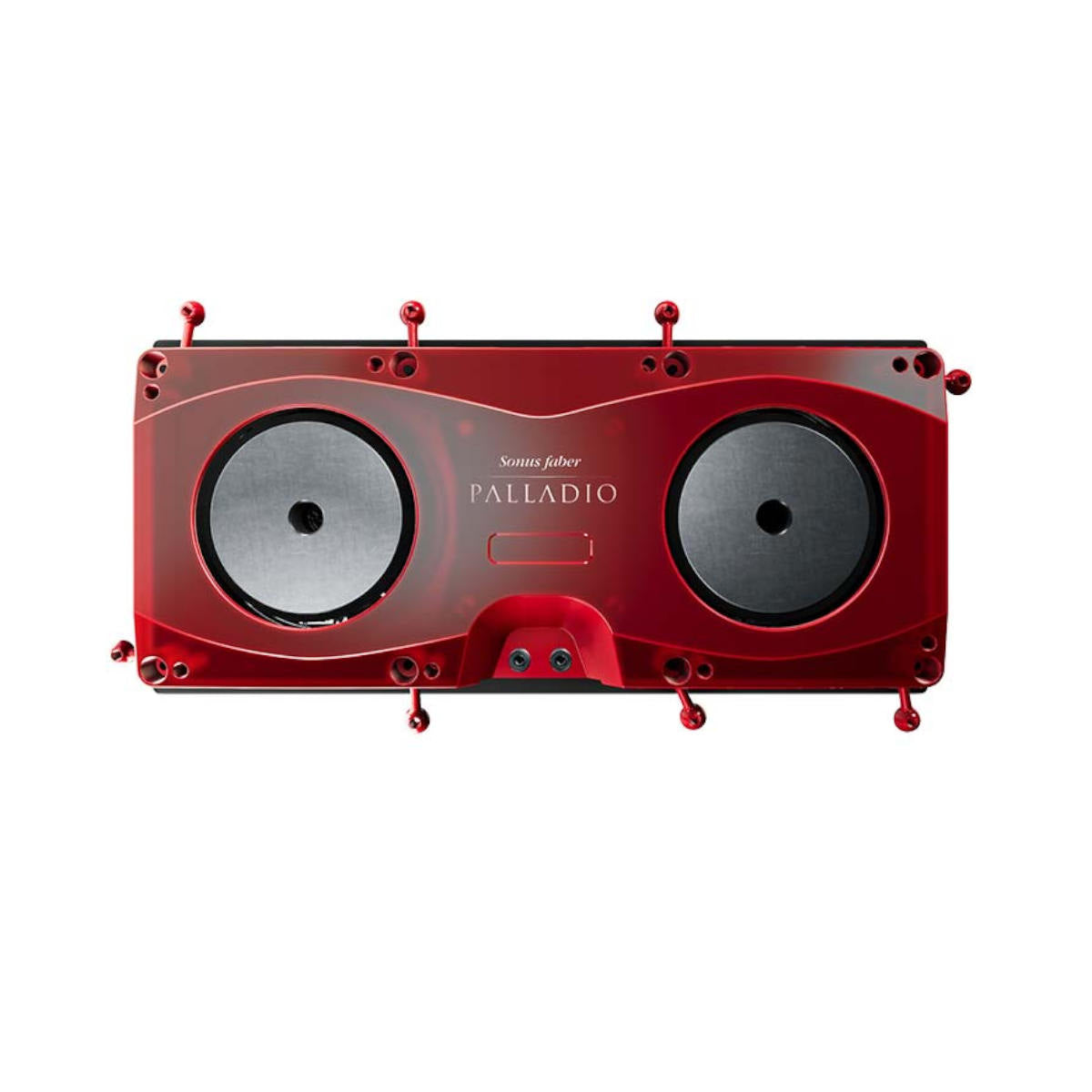

- Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard
Benefits of Sonus faber Palladio PL 563 2-way LCR In-Wall Speaker:
Palladio - The new custom collection
Developed as a solution to the lack of high-quality craftsmanship and warmth of sound in modern architectural speakers, the new Palladio collection works to expand the spaces of the listening experience, beyond the boundaries of traditional listening rooms. Palladio custom installation speakers guarantees a total sound immersion with versatile models, also aesthetically pleasing in design.
Level 5 and Sonetto - Harmonic Integration
The characterization of Level 5 front panels is the same of the Sonetto collection. The satin aluminum trims that frame both tweeter and mid-woofer, create the “Voice of Sonus faber” aesthetic. The string pattern explicitly references the Sonetto bookshelves stand design, where the motif ideally referred to the use of the elastic strings of the first Guarneri stands (1993).
The voice of Sonus faber
It's timbre of our loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of design solution that identify the DNA of the brand. As for our line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome™) technology and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp, a special Sonus faber receipt. The crossover network or the entire line is designed for better definition and purity of sound featuring the Paracross Topology™ circuitry.
Easy to install and customize
All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible. All models grilles are ready to be painted and all in-ceilings models can be equipped with a square magnetic grille to further increase the freedom of listener’s choice. Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard. All Palladio In-Ceiling speakers (except for PC-664P and PC-563P) can be completed with their pre-mount kit, an optional accessory for new constructions installations.
Where to Buy?
Buy Sonus faber Palladio PL 563 2-way LCR In-Wall Speaker (Each) online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Sonus faber Palladio PL 563 2-way LCR In-Wall Speaker:
Brand & Model # | Palladio PL 563 |
Loudspeaker System |
Two-way left/right/center In-wall system. Infinite baffle |
Tweeter - DAD Driver |
29 mm / 1.1 in |
Midwoofer | 2 x 165 mm / 2 x 6.5 in |
Crossover Frequency - Paracross Topology | 1,650 Hz |
Frequency Response |
50 - 25,000Hz(-6dB) |
Sensitivity (2.83 Vrms @ 1m) |
92 dB SPL |
Nominal Impedance |
4 ohm |
Coverage Angle (1 kHz, @-6 dB) | ± 45° H - ± 60° V |
Suggested Amplifier Power Output |
40 – 250 W without clipping |
Frame Outer |
471 x 216 mm / 18.5 x 8.5 in |
Cut Out | 448 x 192 mm / 17.6 x 7.6 in |
Depth Behind Surface | 101 mm / 3.4 in |
Protrusion | 13 mm / 0.51 in |
Weight |
6.3 Kg / 13.9 lb |
Included In The Box | Bezel-Free square magnetic grille |
